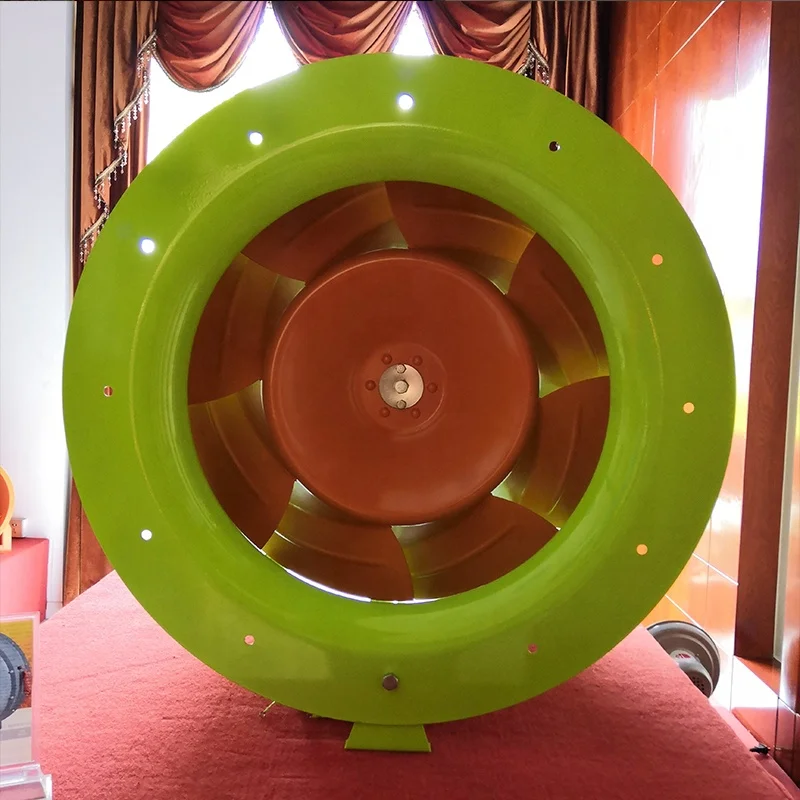

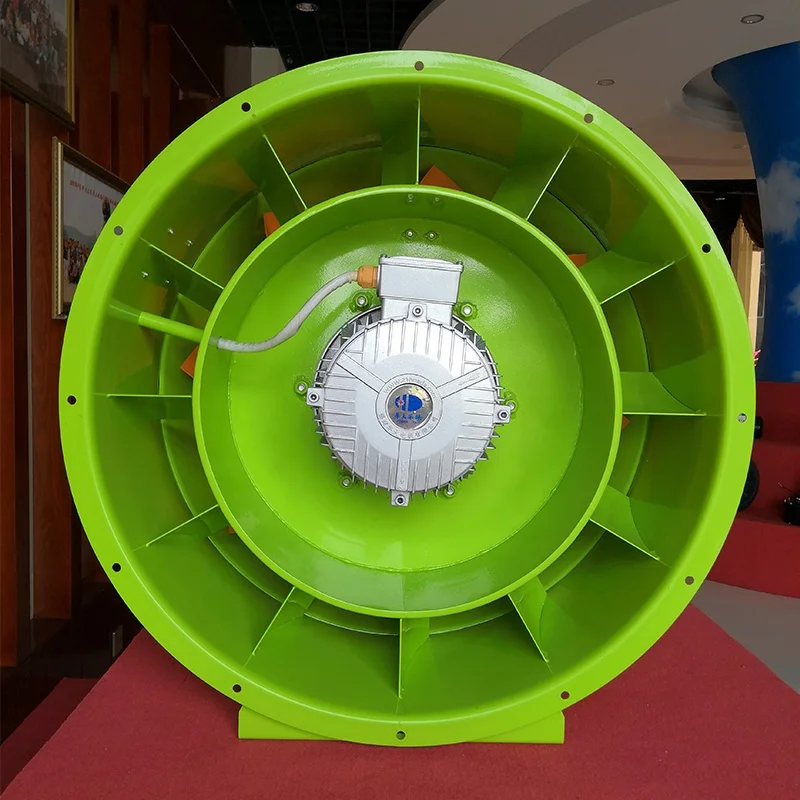

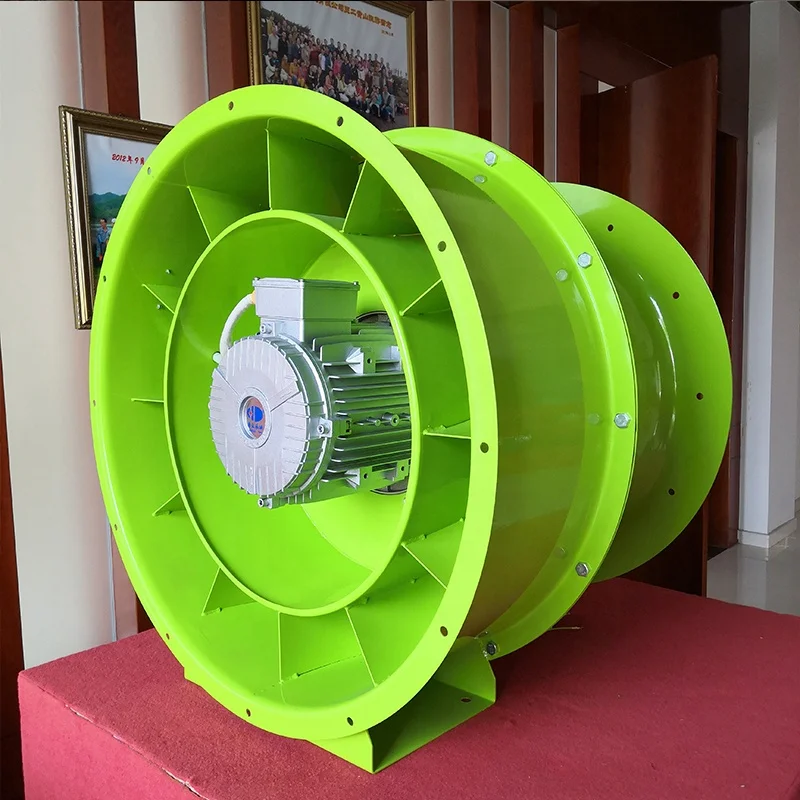

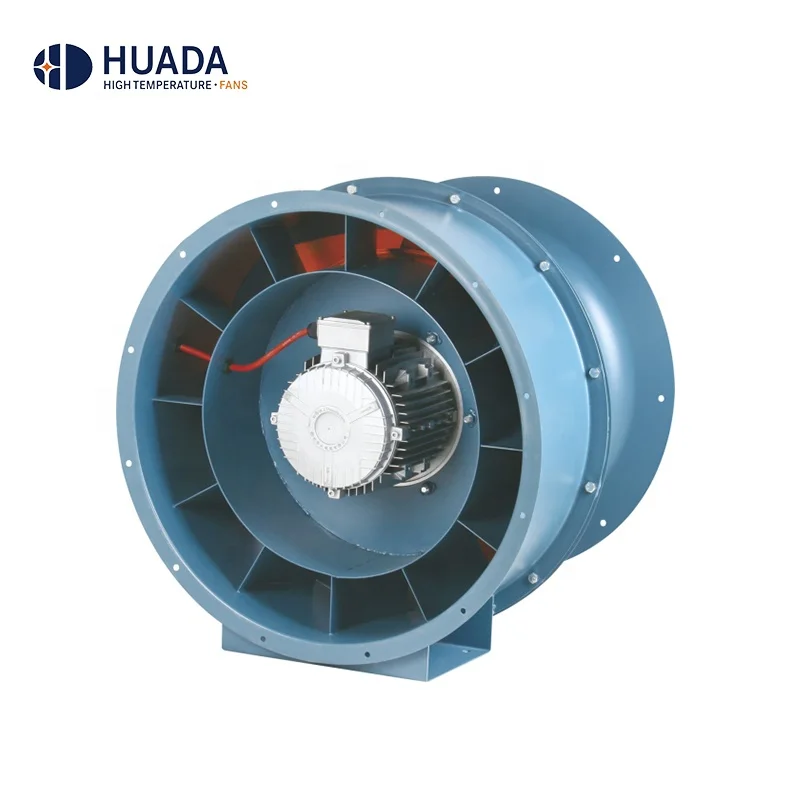

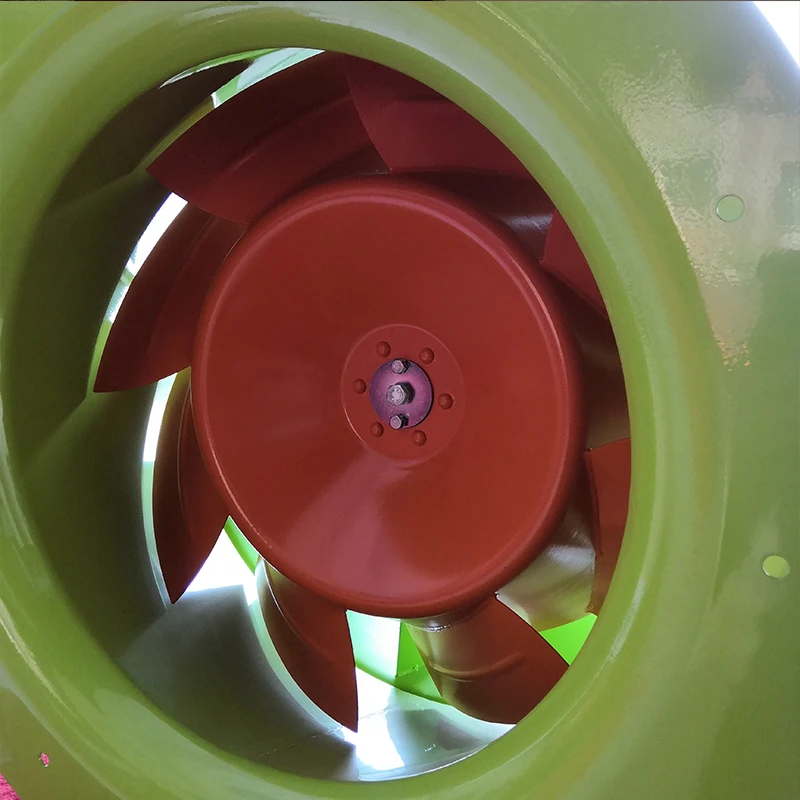

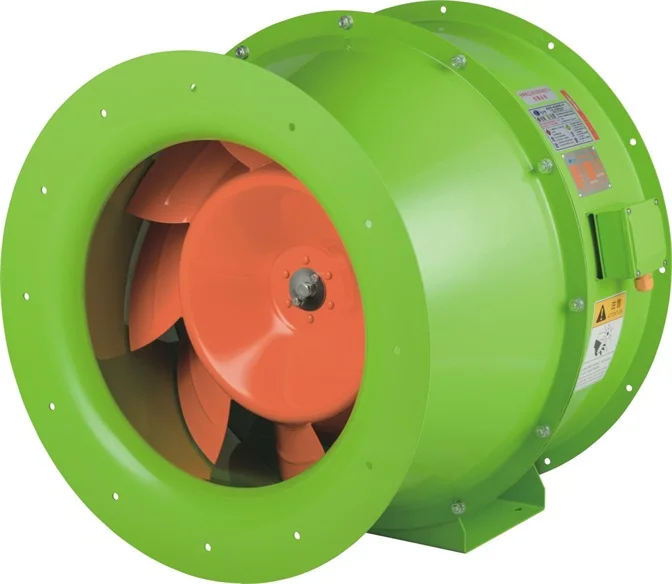

Baking grains mine diagonal flow small ventilation fan 1450 r.p.m

Grain Drying use

CRF Series

Grain drying diagonal flow fan with high temperature resistance

 1. Diagonal flow fan is a new type fan, which is made of cylindrical housing and two flanges. The outlet and inlet follow the air by connecting a pipe network.

2. The pressure is higher than axial fan, and the air volume is larger than centrifugal fan by new design of meridian acceleration.

3. High efficiency, low noise, compact dimensions and convenient installation.

Different appearance design according to clients' requirements

Max. Ambient Temp: <130℃ Relative humidity: ≤98% Rated voltage: 220V, 220/440V, 220/380/660V, 230/400/690V, 240/415/720V Cooling Method: IC411,    Protection Class: IP54/IP55 Insulation Class: Class F(120℃), Class H(180℃) Fan Blade: Aluminium/ Stainless steel Motor: Double speed Motor/ Explosion-proof Motor Pipe: Iron Stainless steel

Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China. Have passed the ISO9001:2008 certification,CE cert.,CCC cert. and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003. All of our products sell all over the world with good reputation and reliablity. On 2009,"GKF" series was selected a standard products by China administration of tobacco.

Well-equipped with production lines and testing machines of motor and fans,we’re advanced in manufacturing and management in our area. Besides,our R&D team is very strong.We cooperate with academic institutions and have many intellectual properties. Mostly,we can customize all kinds of special fans for customers.
