Product Overview

Description



Product Description

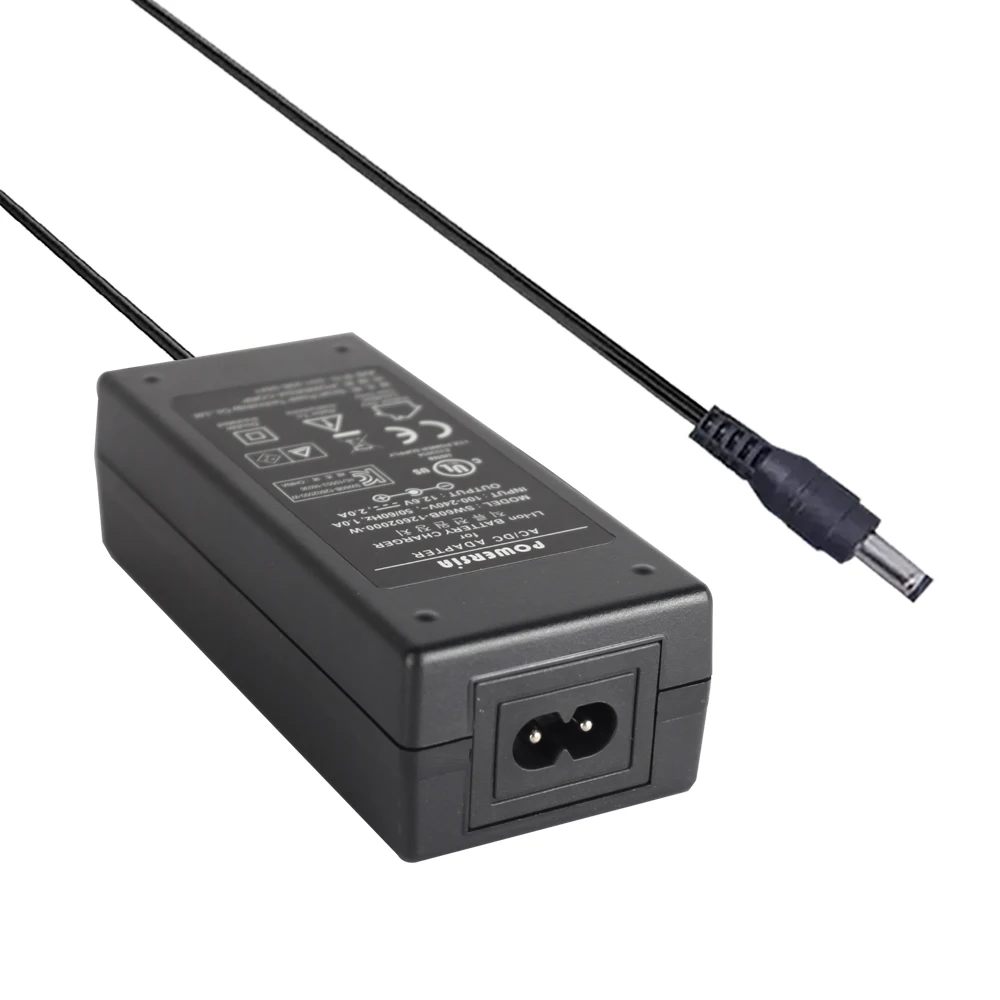

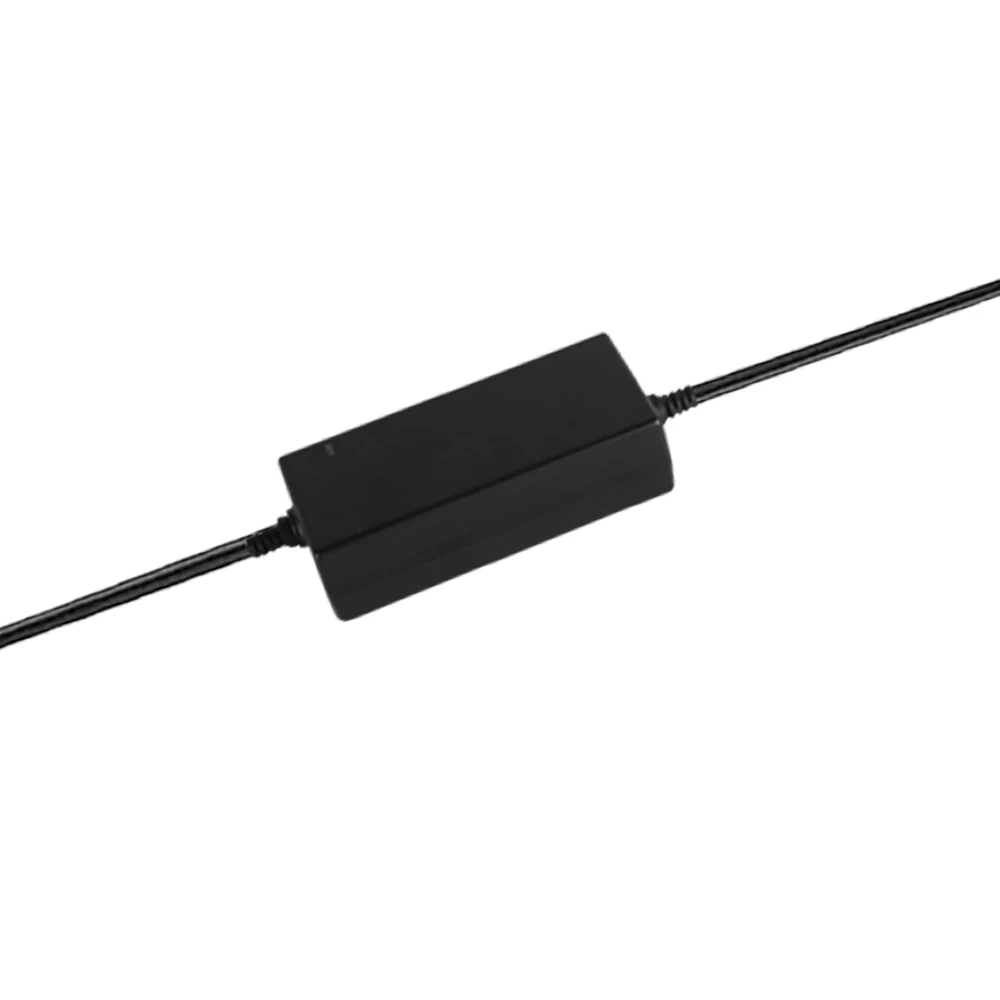

24V1.5A AC DC Power Adapter POWER-TEK 36W Desktop Power Adapter with UL/FCC , CE, PSE,KC, ,ROHS Switching Power Supply Adapter

Product Name	24V1.5A AC DC Adapter DC Power Adapter Desktop Power Adapter
Input Voltage	100-240V AC 50/60Hz 1.0 A
Output Voltage /Current	24VDC 1500mA
Total Output Power	40W(Max)
Input Inlet	IEC320-C8
O/P DC Cord Length	1.2M, 1.5M, 1.8M, 2.5M,3.0M, etc.
DC Connector	5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm, 4.0*1.7mm, 2.5*0.7mm ,etc.
Dimension / Net Weight	L97.0xW46.0xH32.0mm ; 130g/pc
Safety Approvals	UL/FCC, CE, PSE, KC,  Certificate, Level 6
MTBF	50,000 hours
Ripple and noise	<150mV
Operating temperature	-10 to 45°C
Storage temperature	-20 to 80°C
Humidity	5% to 95% RH (rockwell hardness)







POWER	MODEL	INPUT	OUTPUT		AC
			Voltage	Current	Input Inlet
40W  Series	SW40-XXXXYYYY-W	96-264V AC 1.0A	5-24V dc	1.5-4A	IEC320-C8
	SW40-05004000-W		5V	4.0A
	SW40-09003000-W		9V	3.0A
	SW40-12003000-W		12V	3.0A
	SW40-15002000-W		15V	2.0A
	SW40-19002000-W		19V	2.0A
	SW40-24001500-W		24V	1.5A



FAQ

Q1: What is the warranty for your product?

A1: We guaranteed for 2 years, any quality problem happened in this period of time for our reason, we will send the replacement parts in next order.


Q2: How soon can I get samples for test to check quality?

A2: We can provide 1-3pcs free samples. The lead time for our regular products is 2-3 days. For customized products need 5-7 days. We will also customized nice product to meet your requirement.

Q3: Can you accept OEM&ODM service business?

A3: Yes, we can. Our month supply ability is 400000pcs. Our R&D team can customize the special product as your needs. You can visit our website to learn more about our excellent R&D team, and you will believe you can get satisfied product.


Q4: Do you accept small quantity orders?

A4: Yes, we accept. But no doubt that the more the amount of you order, you will get more discounts if you have a regular monthly order volume, we also would like to give you the appropriate discount.



Packing Way

1. PE bag+ Small white box + Carton

2. PE bag+ Honeycomb cardboard + Carton

3. We accept custom design retail packing box, customer need to provide file in AI format.

4. All outer cartons we use a standard exporting high quality carton.
