500ml pp pc pet bottles stretch semi automatic blow moulding mini blowing machine

Product Overview

Description

pp pc pet stretch semi automatic blow moulding mini blowing machine

Summary

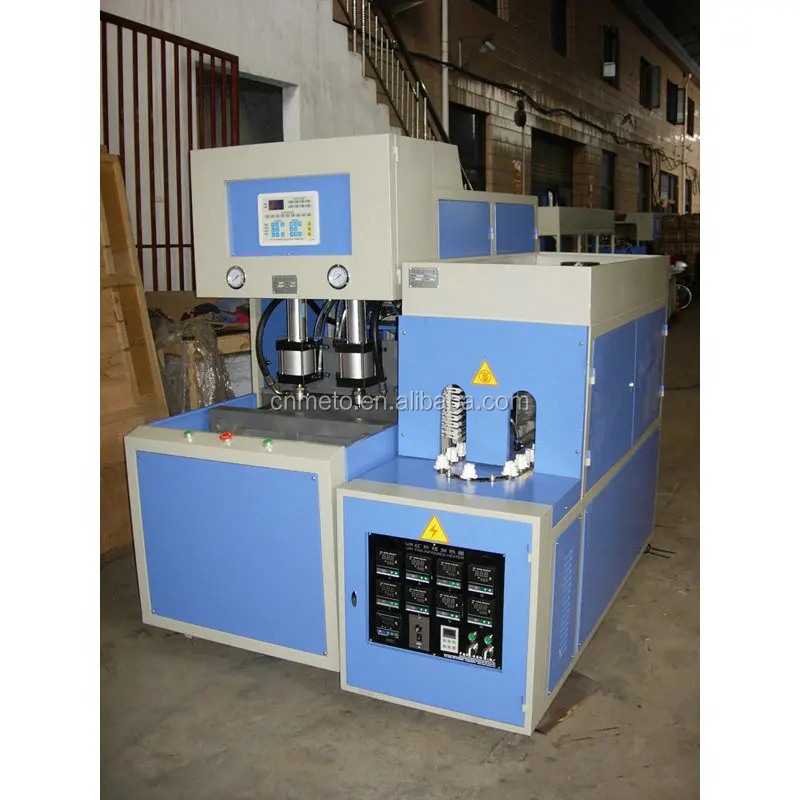

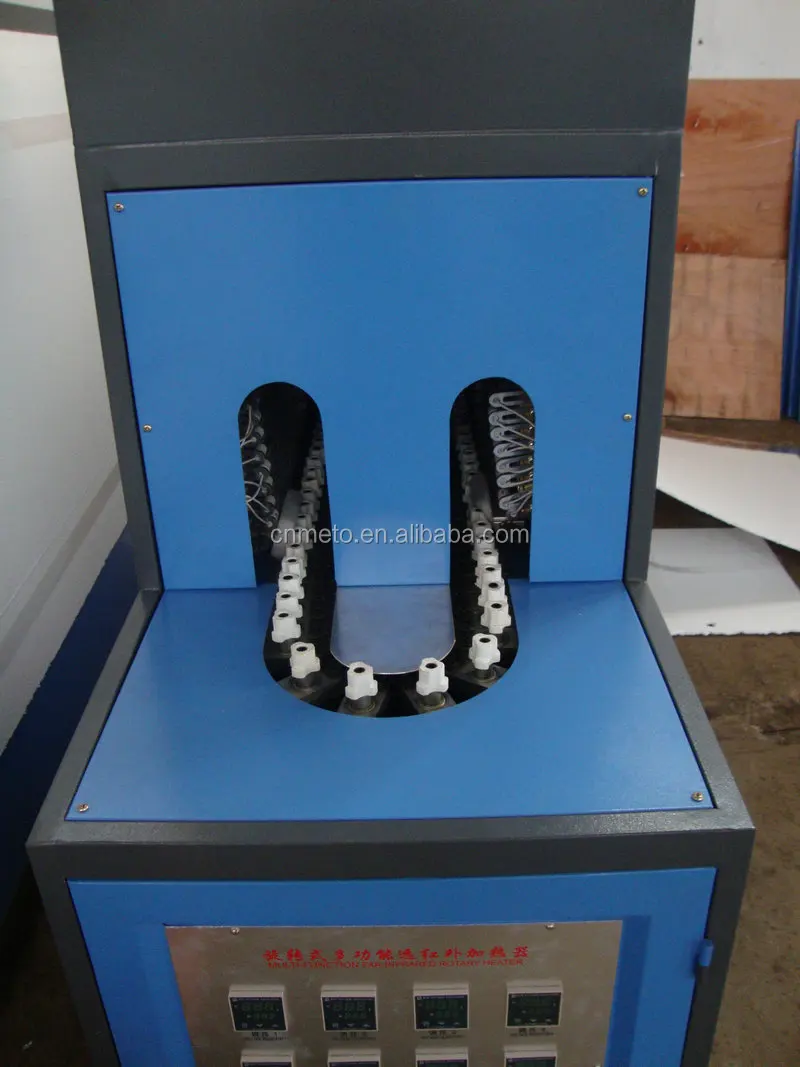

MT-A series Semi Automatic Stretch Blow Molding Machine, including one blower and one heater, used for the series kinds of PET bottle, such as the edible oil bottle,medicinal bottle, drinking bottle, cosmetic jars, Wild-mouth bottle and so on.

Now we have several models as below,



 Technical Parameter :



Spec			MT-A1	MT-A2	MT-A3
Bottle	Max. Bottle volume	ml	2L	5L	10L
	center distance	mm	130	200	0
	Max.neck outer diameter	mm	80	80	150
	Max.body diameter	mm	120	180	400
	Max.bottle Height	mm	280	450	580
	Cavity No.		2	2	1
	Output	BPH	1100-1500	600-800	200-400
	Max. heating power	Kw	12	18	25
air compression	Operating pressure	Mpa	0.8	0.8	0.8
	Blowing pressure	Mpa	3.0	3.0	3.0
Chiller	Pressure	Mpa	0.3-0.5	0.3-0.5	0.3-0.5
	Temperature	℃	12-18	12-18	12-18
	Flow	L/min	30	30	30
Machine	dimension(L*W*H)	m	2.0X0.8X1.4	2.6X1.2X1.70	2.9X1.0X1.70
	Weight	Kg	1.0 t	1.8 t	1.8 t

     (Note: for reference only, it is based on the actual work.)

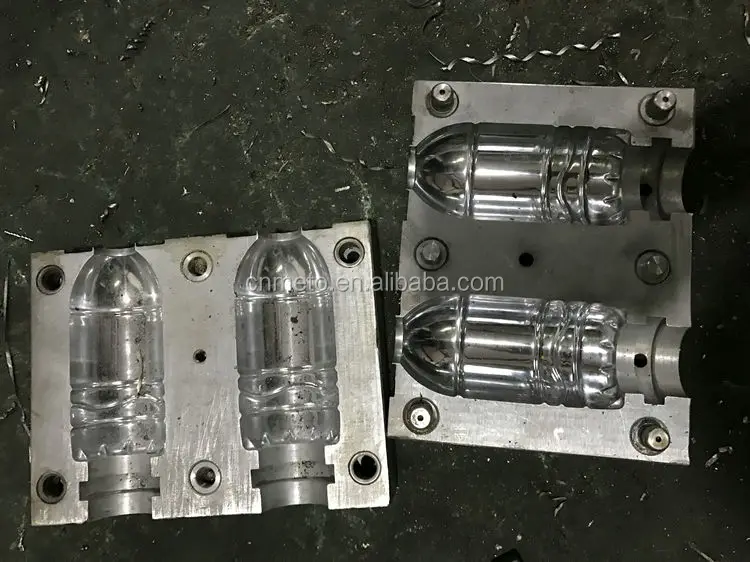

Mould

KEMO Use CAD-CAM design mould, completely anticorrosive processing, process by high precision CNC machine, to achieve accurate, smooth lines capacity, the size and the design is the same as original. We also provide the free design of the mould drawing.
