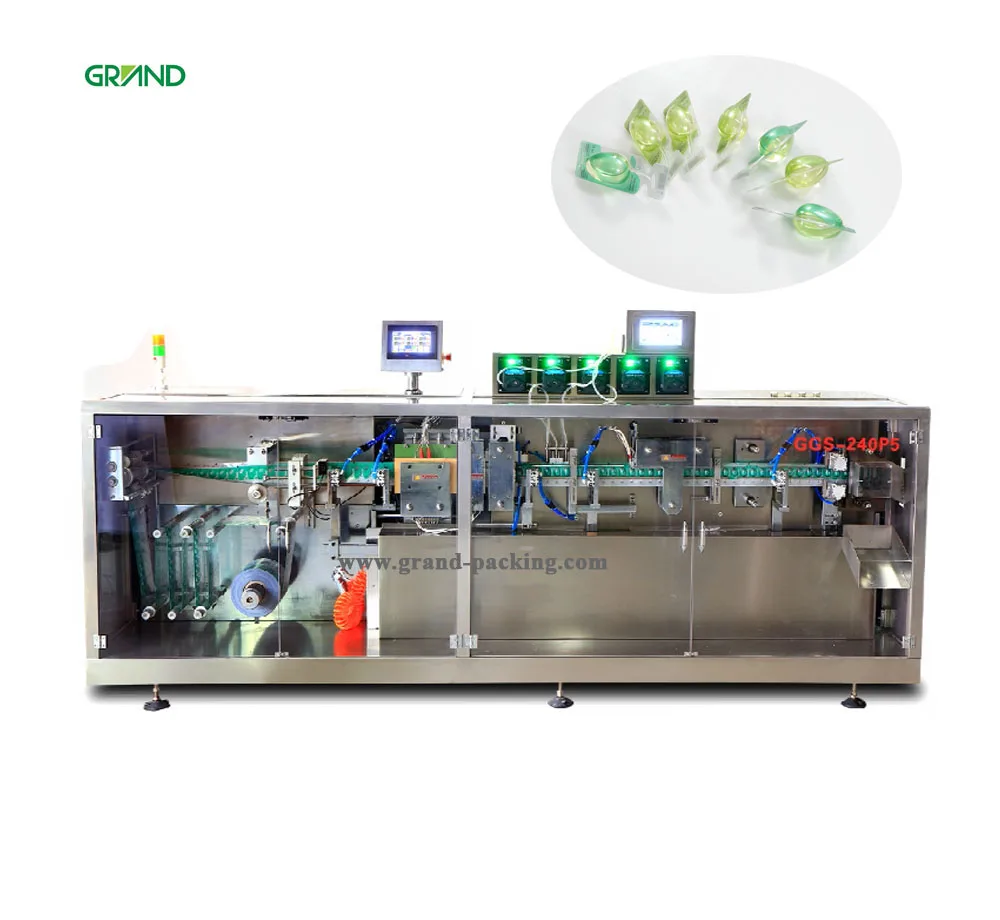

14ml Monodose capsule packing equipment mini olive oil bottle liquid forming filling sealing machine
- Category: >>>
- Supplier: Hunan Grand International Trade Co. Ltd.
Share on (62079711011):
Product Overview
Description
14ml monodose capsule packing equipment mini olive oil liquid forming filling sealing machine
Product Description
Main Technical Parameter
| Model | GGS-240P5 | GGS-240P10 | GGS-240P15 |
| (5 filling heads) | (10filling heads) | (15 filling heads) | |
| Max. Forming Depth | 12mm | ||
| Cutting Speed | 0-25 times | ||
| Packing Material | PVC/PE PPET/PE combined sheet (thickness:0.2-0.4mm) | ||
| Filling Volume | 0.5-200ml | ||
| Power Supply | 6.5kw 220V/380V 50HZ (can be customized) | 22kw 220V/380V 50HZ (can be customized) | 22kw 220V/380V 50HZ (can be customized) |
| Machine Weight | 1200kg | 2000kg | 3000kg |
| Machine Dimension | 3200*850*1400mm | 5200*850*1600mm | 7300*1050*1800mm |
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, packing products, ampoule size.) Contact us>>
This machine is suitable for the unit dosage of medicine, beverage, health product, food, cosmetic, perfume, pesticide, syrup, fruit paste etc. It can finish the following working process including the following:
Packing film unwinding--folding--bottle/ampoule forming--filling--sealing--final product output. We can also add the extra printing and letter or logo engraving function on the machine.
Machine features
1). High speed , high precision, and advanced motion controller. Stepless frequency control of motor speed control, servo motor to control the packing material drawing device.
2) Human machine interface, easy to operate
3)Automatic unwinding, one roll of packing material slitting. It is equipped with the double side photo electrical tracking function, the final product is beautiful and decent, which can completely meet with the high requirement of the packaging.We can do different shape of bottle according to the requirement of customer.
4) It adopts electrical peristaltic pump and mechanical piston pump, it is easy to adjust.
5) High filling precision, no dropping leakage, no foam and overflow. Different product with various viscosity , we will adopt different filling pump such as peristaltic pump, rotary valve pump etc.
6) The contact parts with material is high quality SS316L, the frame is SUS304 , it meets with the GMP requirement strictly.
7) The bottom of the bottle is flat and can stand up.

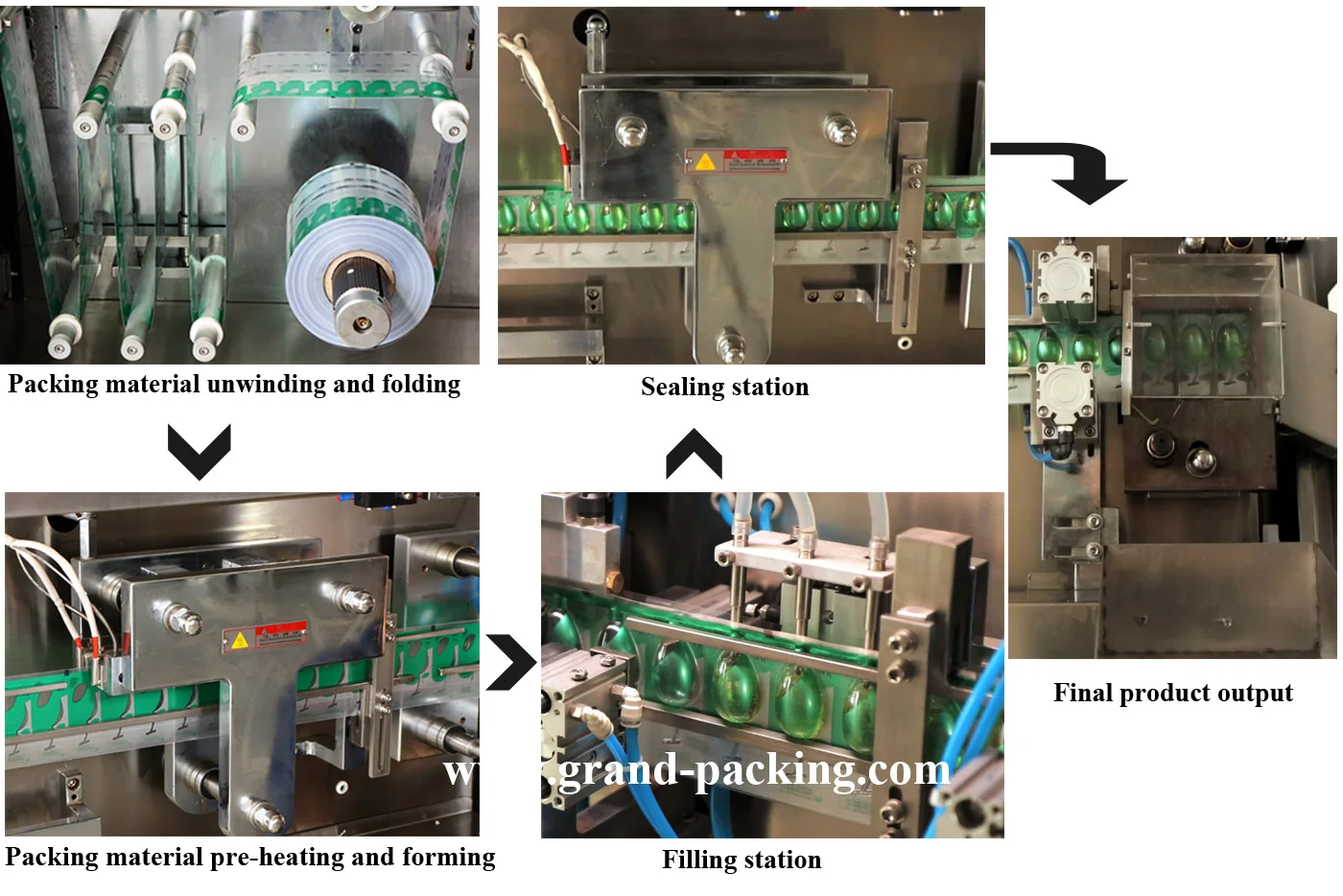

Production Process

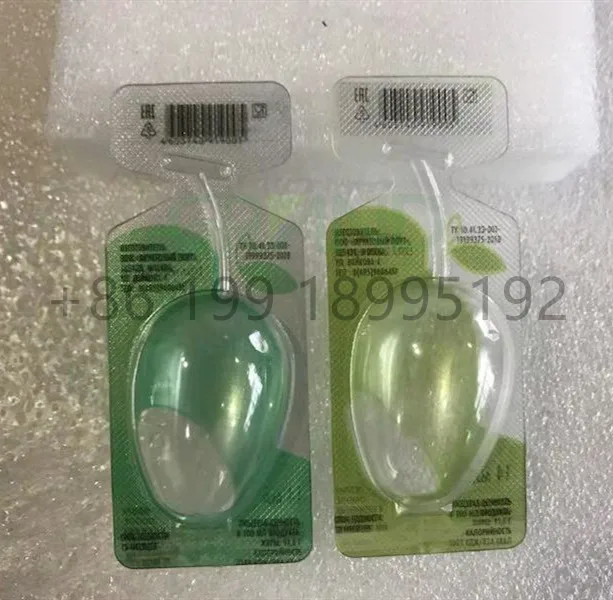

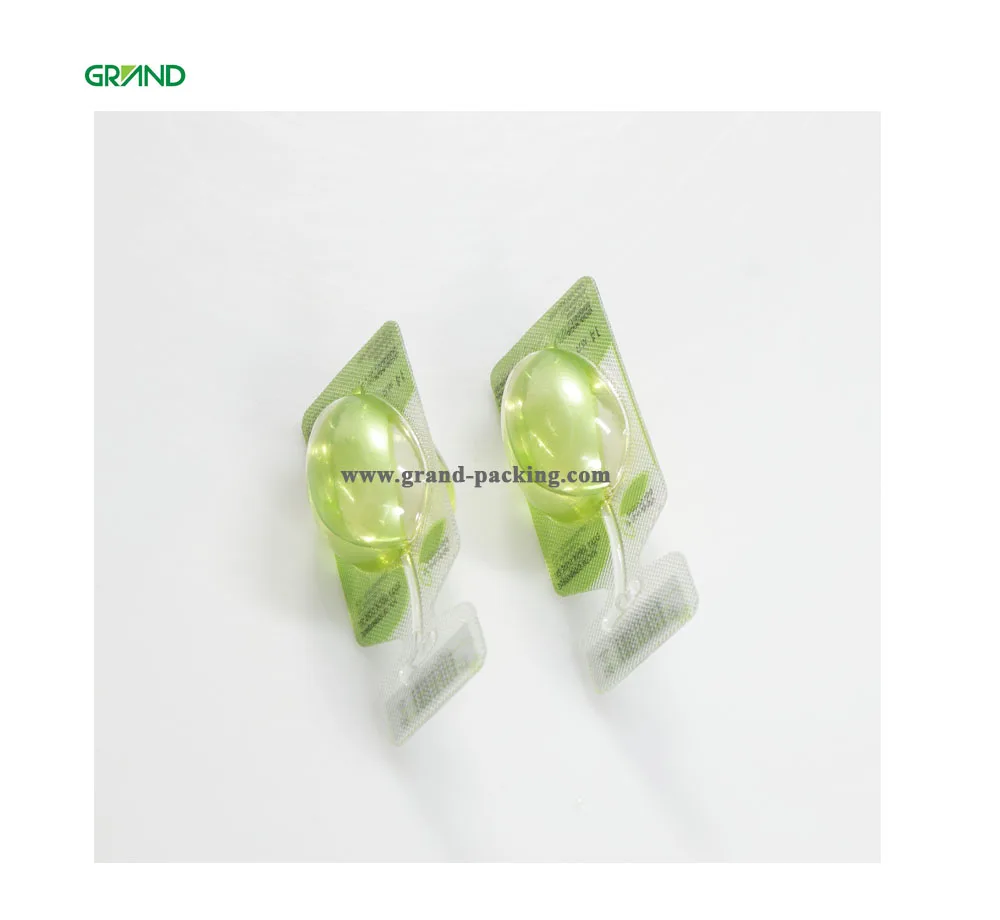

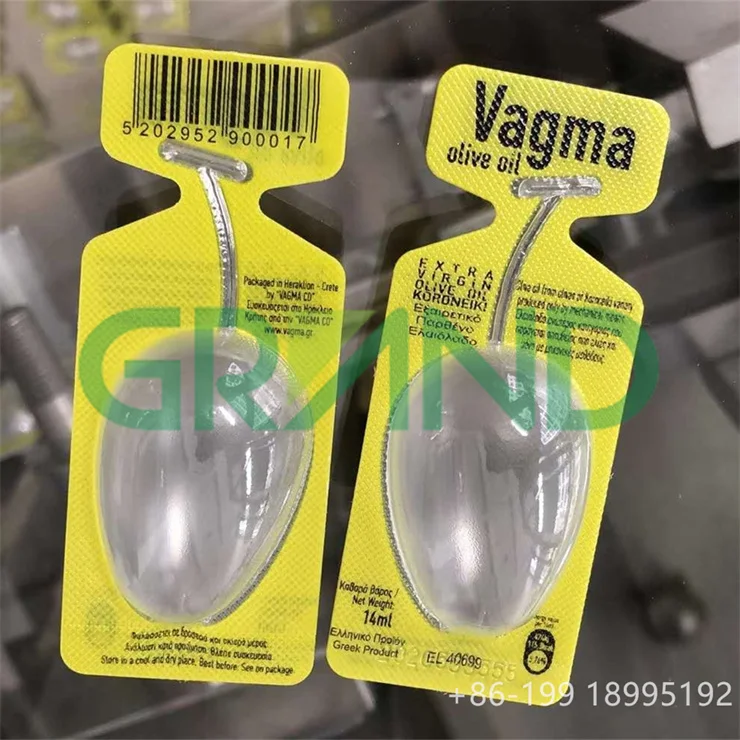

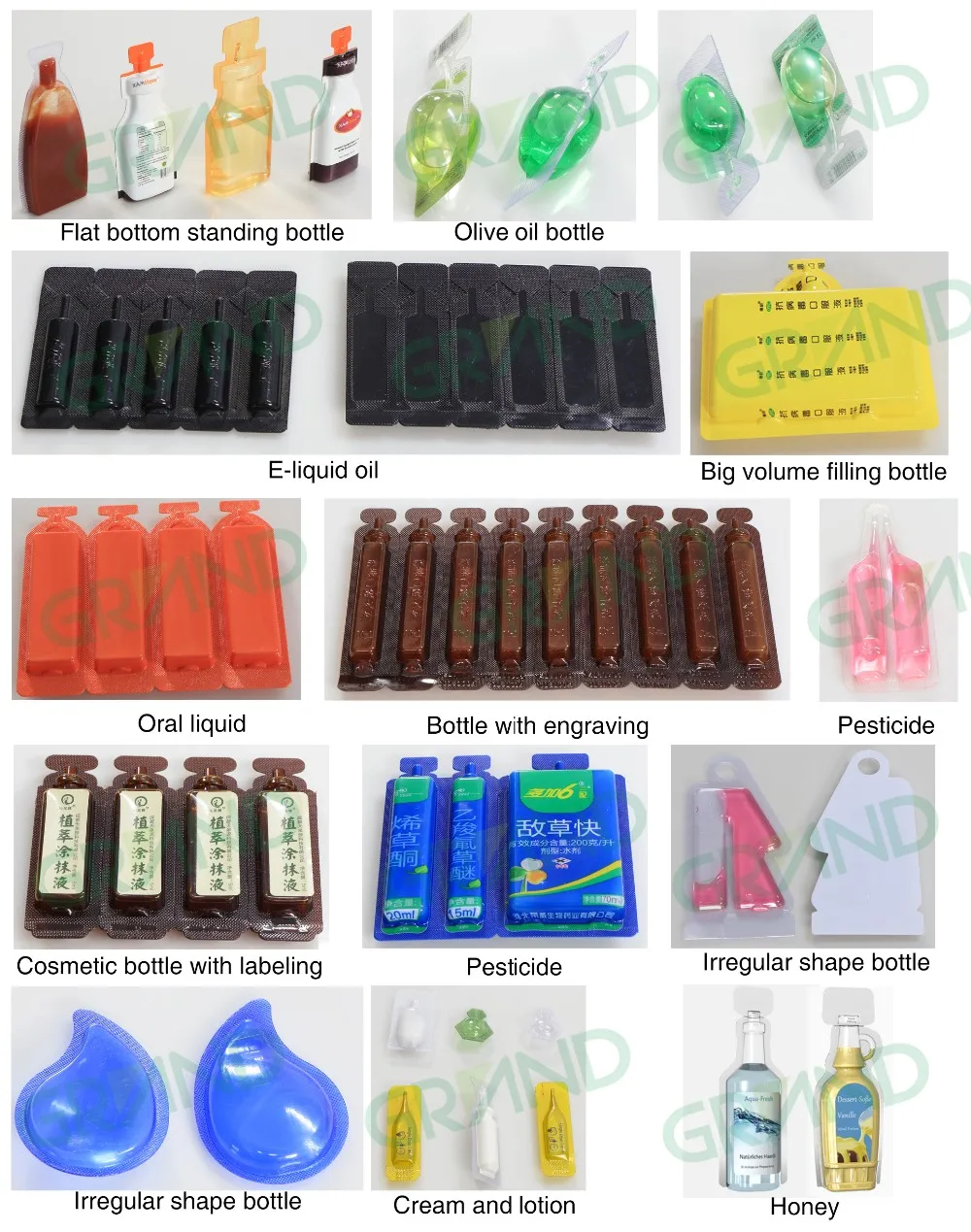

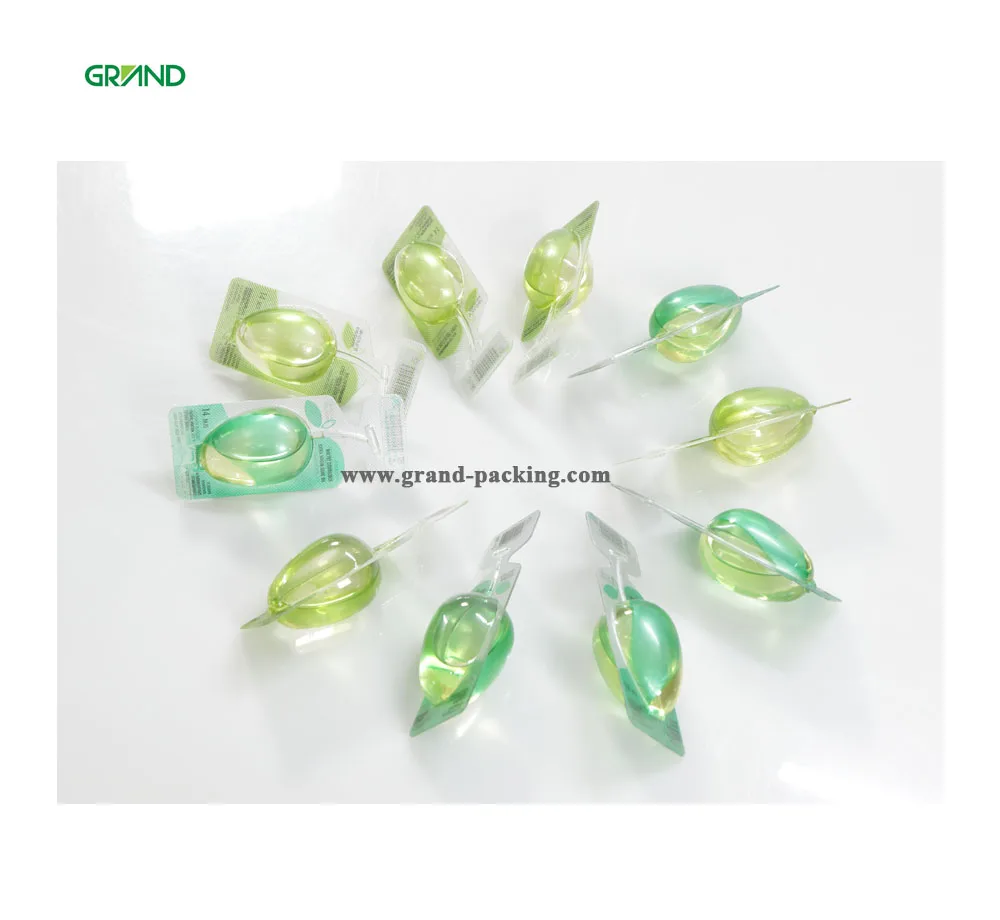

Sample Display
Remark: The bottle shape and size can be customized according to your requirements; for more details, pls contact us.

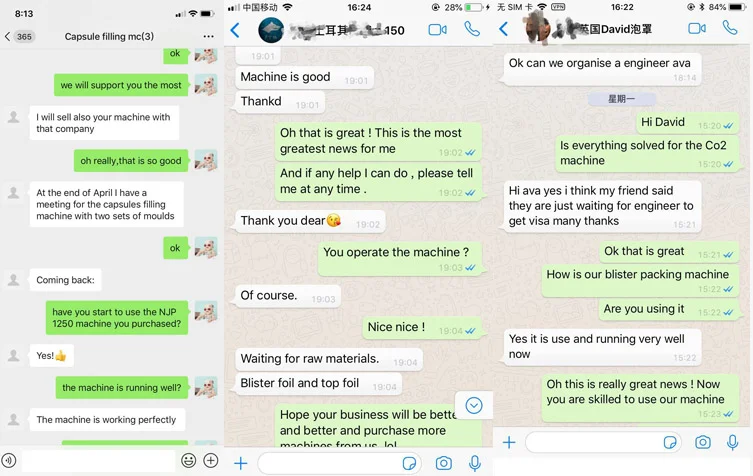

Customer feedback
Packaging & Shipping

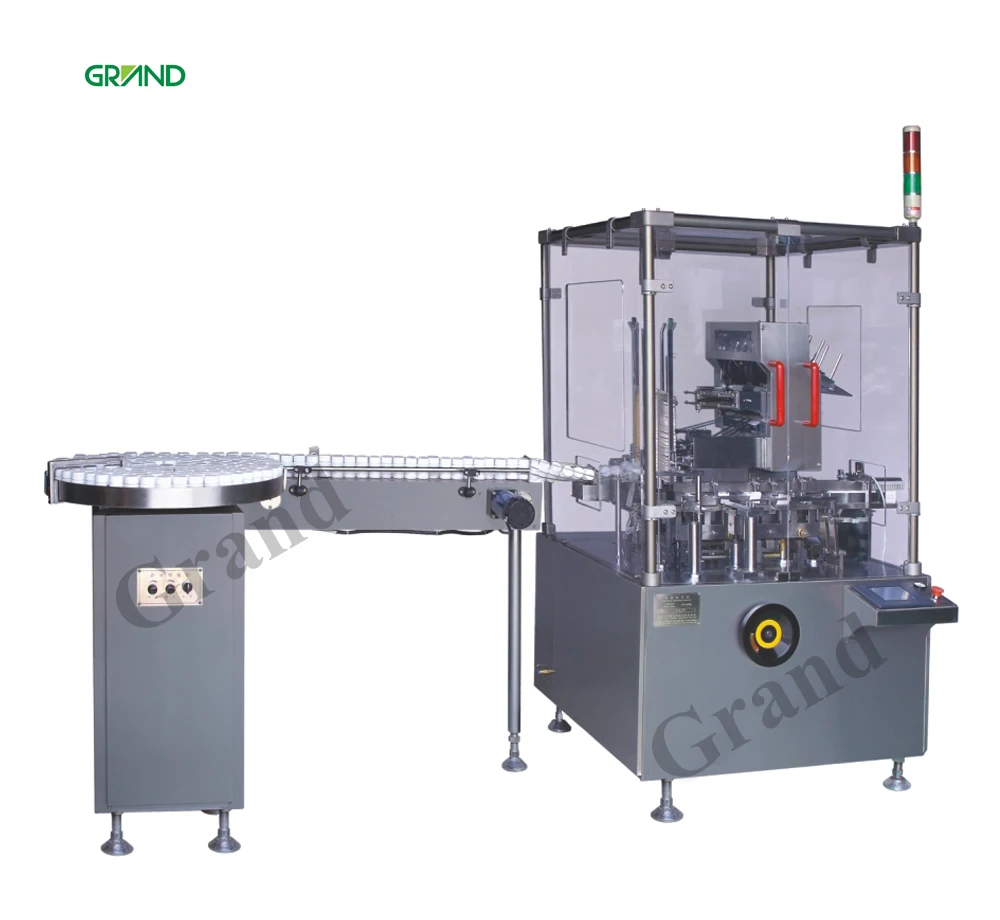

Related Products
Tube filling sealing machine Strip packaging machine Wet wipes packing machine
Capsule filling machine Cartoning machine Blister packing machine
Company Information
Hunan Grand Packing Machinery Co., Ltd.
We're specialized in pharmaceutical and packing machinery for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc.
Our machines were exported to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea, the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago, Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. Good reputation of the machine quality and after-sales service always gained from customers. Various kinds of factories and companies in different fields are cooperating with us. Such as pharmaceutical, food, supplement, stationery, hardware, agrochemical factories. For pesticide, fertilizer, personal care products, like cosmetics, daily use products etc.
Our sales team are professional in communicating with customers about different aspects of our machines. We also have our own technical research group to do the new products development and professional group for customers overseas after-sales service. For customer who doesn’t need our engineer for machine installation, we will provide them the detail and professional machine installation and running video for support and help.
Welcome to get in touch with us, we are always here for you...
