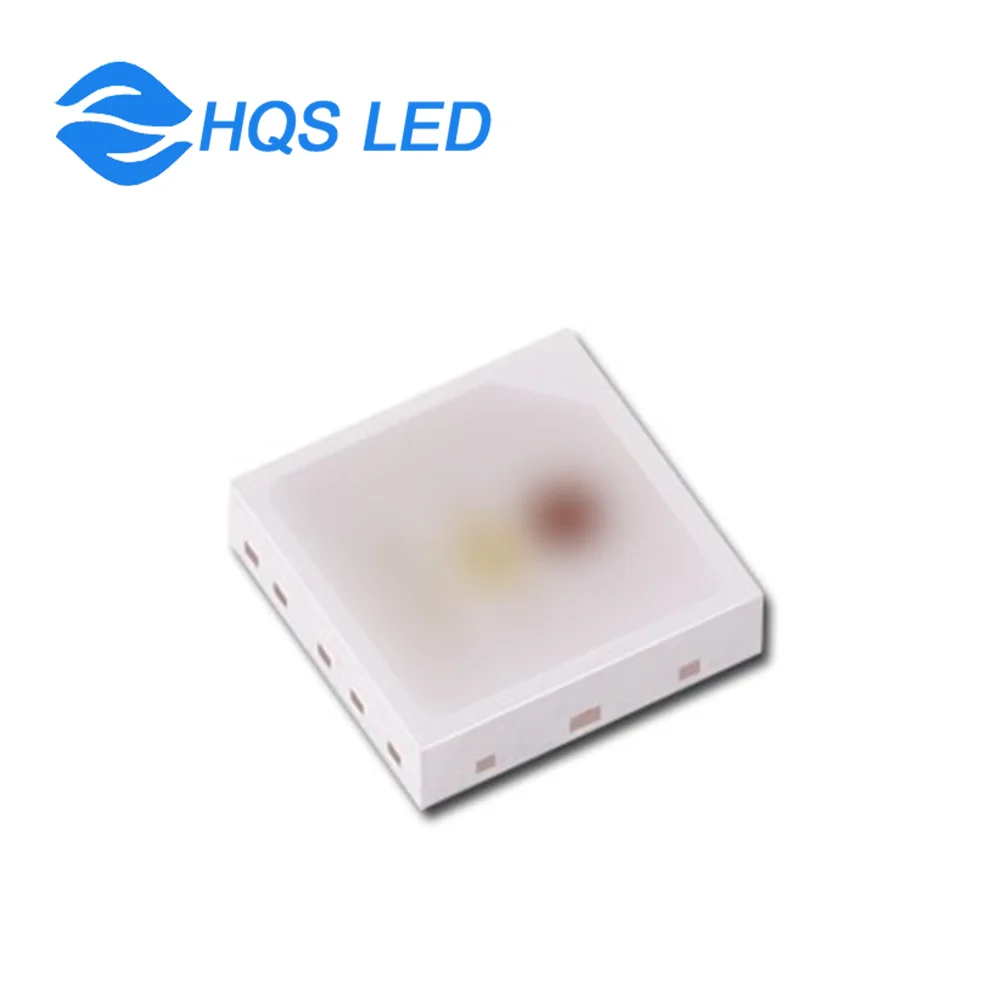

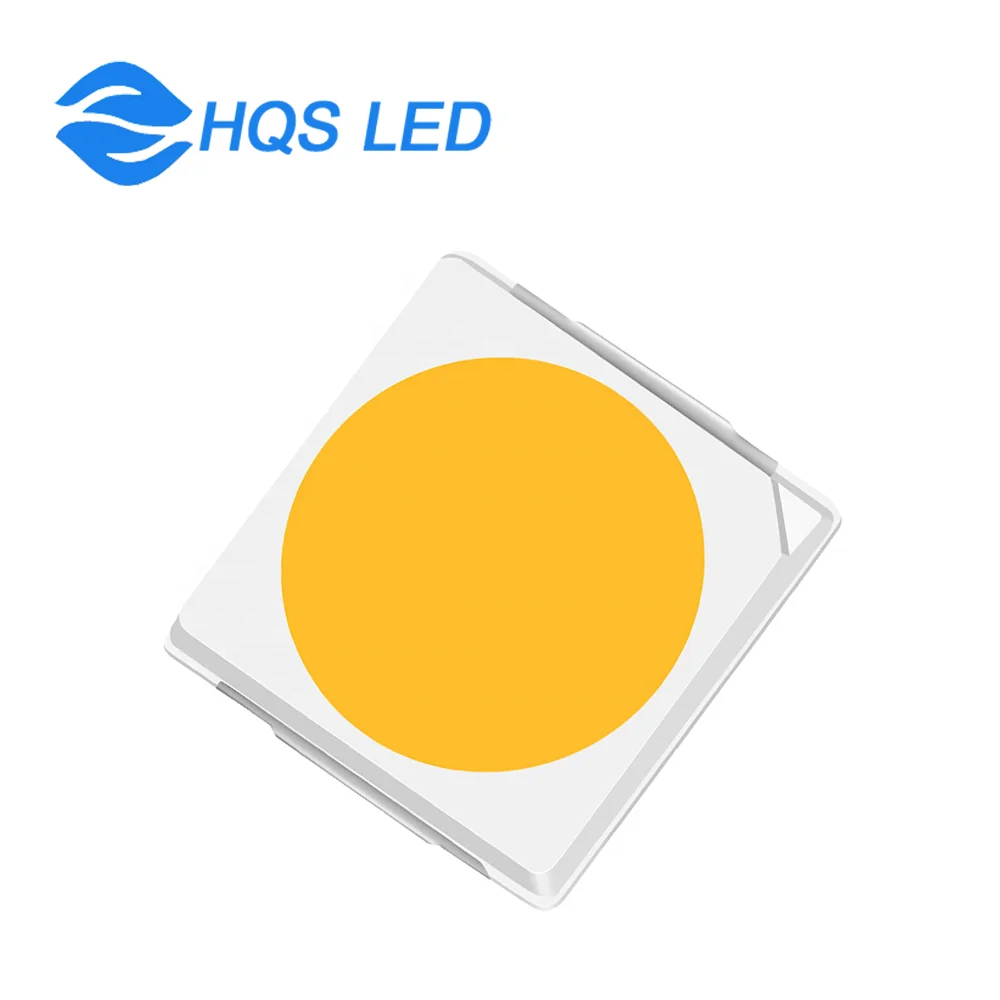

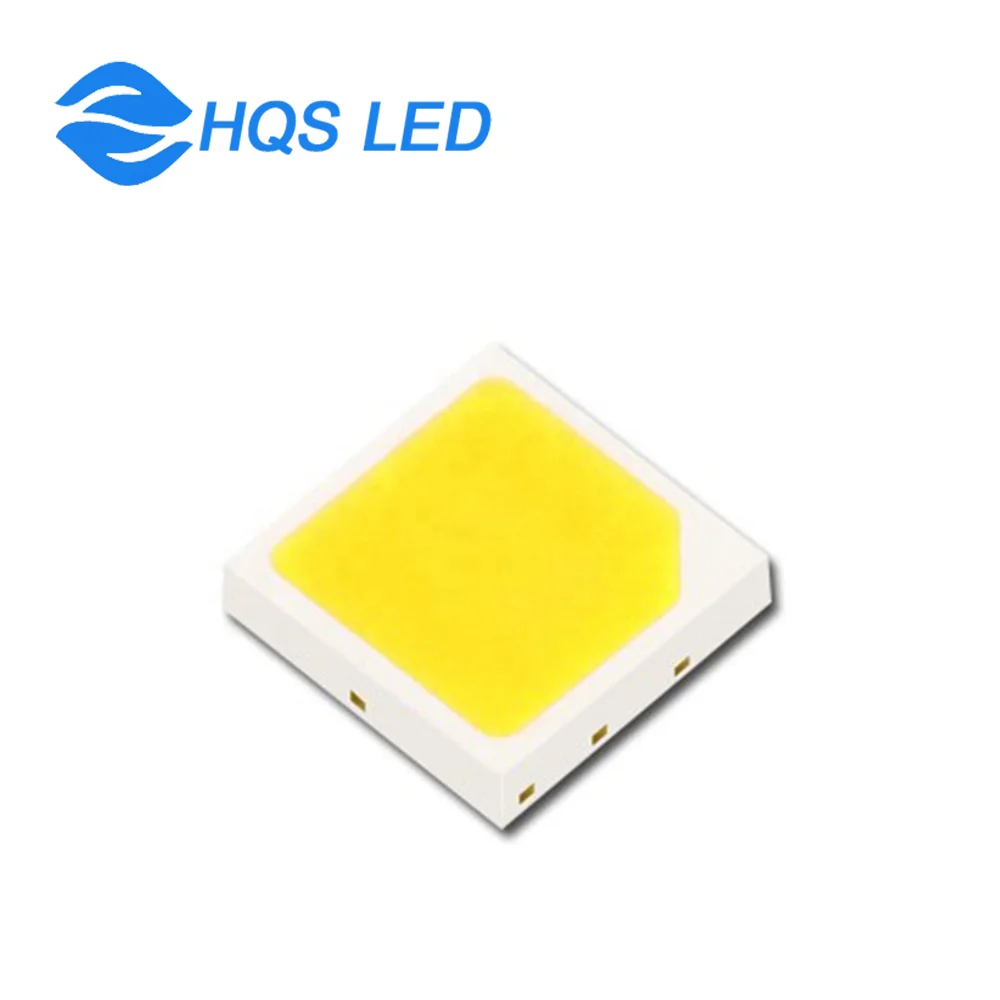

Bridgelux Chip SMD3030 180 200LM/W High Efficiency SMD LED 3030 1W

Product Overview

Description

Product Name	High Efficiency SMD LED 3030 1W	Product Model	HQS-3030WX20170
Power Dissipation	1.05W	Color Rendering Index	70
Forward Voltage	3V / 6V	Viewing Angle	120°
Forward Current	300-350mA /150-175mA	Operating Temperature	-40~+60 ℃
Luminous Flux	170-180LM	Storage Temperature	-40~+85 ℃
Color Temperature	3000-6500K	Soldering Temperature	260℃





3030 SMD LED SERIES SPECIFICATION
Product Name	Light Color	CCT/Wavelength	Voltage	Current	Lumen	Remark
3030 LED	Gold Yellow	1800-2000K	3/6/9V	350/175/100mA	120-150LM	CRI80,90
3030 LED	White	3000-10000K	3/6/9V	350/175/100mA	120-180LM	CRI80,90,96+
3030 UV LED	UV	365-370nm	3/6/9V	350/175/100mA	/	Epileds Chip
3030 UV LED	UV	390-400nm	3/6/9V	350/175/100mA	/	Epileds Chip
3030 BLUE LED	Blue	440-470nm	3/6/9V	350/175/100mA	12-20LM	Epileds Chip
3030 Green LED	Green	520-530nm	3/6/9V	350/175/100mA	70-100LM	Epileds Chip
3030 Amber LED	Yellow/Amber	590-610nm	2/4/6V	350/175/100mA	20-25LM	Epileds Chip
3030 Red LED	Red	620-630nm	2/4/6V	350/175/100mA	30-35LM	Epileds Chip
3030 Far Red	Far Red	660-665nm	2/4/6V	350/175/100mA	12-15LM	Epileds Chip

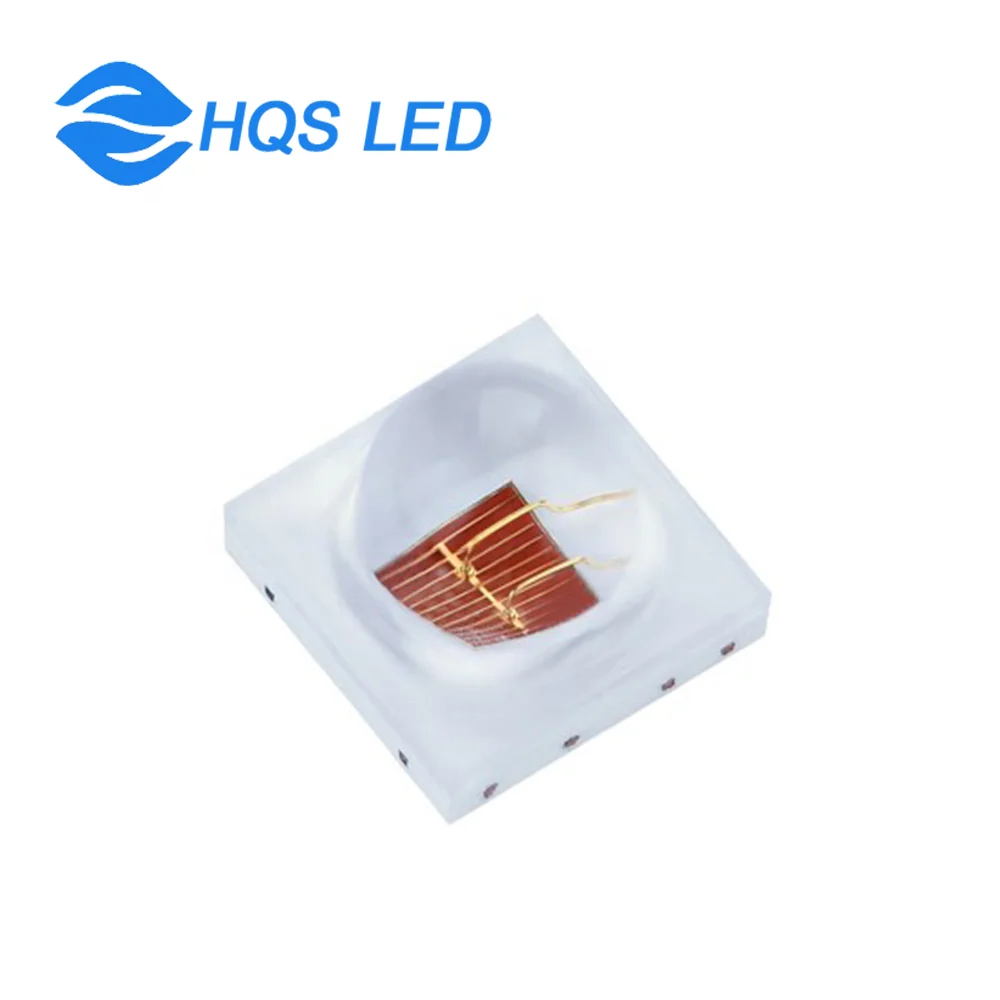

3030 IR LED	IR	730-750nm	2/4/6V	350/175/100mA	/	Epileds Chip
3030 IR LED	IR	850nm	2/4/6V	350/175/100mA	/	Epileds Chip
3030 PC Blue	Phosphor Blue	450-470nm	3/6/9V	350/175/100mA	15-30LM	Customized WD, WP
3030 PC Green	Phosphor Green	510-530nm	3/6/9V	350/175/100mA	140-200LM	Customized WD, WP
3030 PC Color	Phosphor Amber/Red	600-630nm	3/6/9V	350/175/100mA	50-60LM	Customized WD, WP



Product Features

Forward Voltage 3V 6V 9V Available

Forward Current 350mA 150mA 100mA

Color Rendering Index: RA80, RA90, RA93, RA95+, RA98

High Light Efficacy: 200LM/W+

CCT Range: 1600-1800K, 1800-2000K, 2000-2200K, 2200-2400K, 3000-10000K

Light Color: Red, Green, Blue, Yellow, UV, IR...

Full Spectrum 380-850nm

Certificate: LM-80, RoHS, IEC62778, EN62471...



Our 1W SMD 3030 LED Chip are widely used for LED High Bay Light, LED Street Lamp, LED Flood Light, LED Studio Light, LED Plant Growing Light, LED Lamp for fish photoperiod, LED Lamp for Warehouse, Gas Station...

Shenzhen HuaQiSheng Technology CO., LTD has delivered the best quality LED components to different lighting application for clients under our strong technological support, professional management system and perfect & stable supply clain system. Our LEDs (SMD LED, High Power LED, COB LED---Wavelength range: 275nm-940nm) apply to Plant Growing Lighting, Studio Lights, Beauty & Manicure, UVA Sterilization & Disinfection, UV Curing, Exposing, Stage Light, Infrared Sensor, Night Camera and Landscape Lighting and so on.

We got unparalleled customer trust level around the domestic and overseas marketing for over years. 10 Years' LED experience, thank you very much for the attention and support.



HuaQiSheng, with 30 fully automatic production line, which can produce 10kk pcs SMD LED per day. And we has one of the most experienced R & D team in the world, by focusing on technological innovation.

HQS offer the LED products to our lighting designers and tell their stories through light...



Q1: Can I get some free samples for confirmation?

A: Yes, we welcome samples to check our LED quality and performance. Free samples for all kinds LED Chip are available.

Q2: What about the lead time?

A: It needs 1-2 working days for the conventional LED product because we have made up the order for them. Sample needs 2-3 working days. Customized products need 5-7 working days.

Q3: What payment term do you accept?

A: We accept T/T, Paypal, Western Union and Express Collection.

Q4: How do you ship the goods and how long it will take?

A: Generally we ship the goods to you door to door by DHL, UPS, FEDEX, TNT express.

It will take 2-4 working days. And Air transportation and Sea shipping is also available.

Q5: What kinds of value-added service do you offer?

A:  1. We have R & D team with 10-15 engineers, we can design the LED Module/Strip and make the drawing by CAD or Gerber file as your requirement.

2. We have the soldering workshop to solder the LEDs on the PCB.

3. We can offer the best solution for your finished lamp design, for example, high efficiency LED lamp; the best matched LED power supply for the Lamp...
