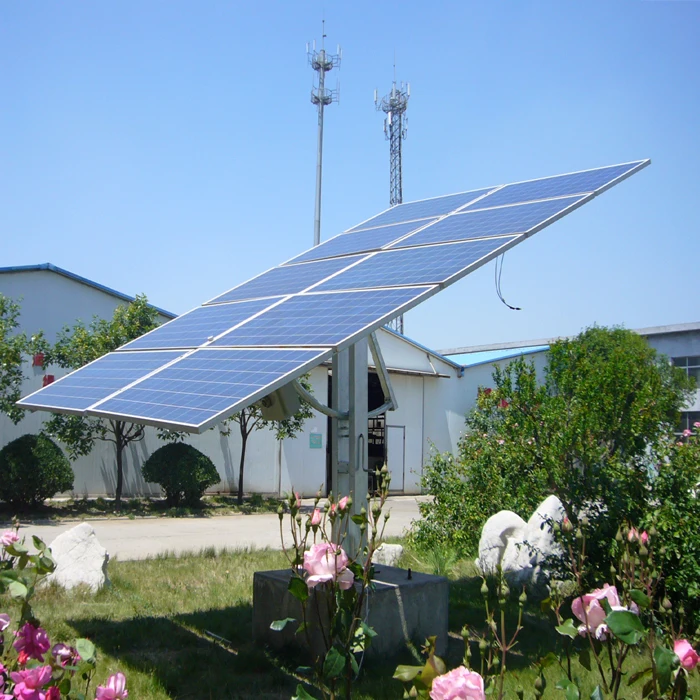

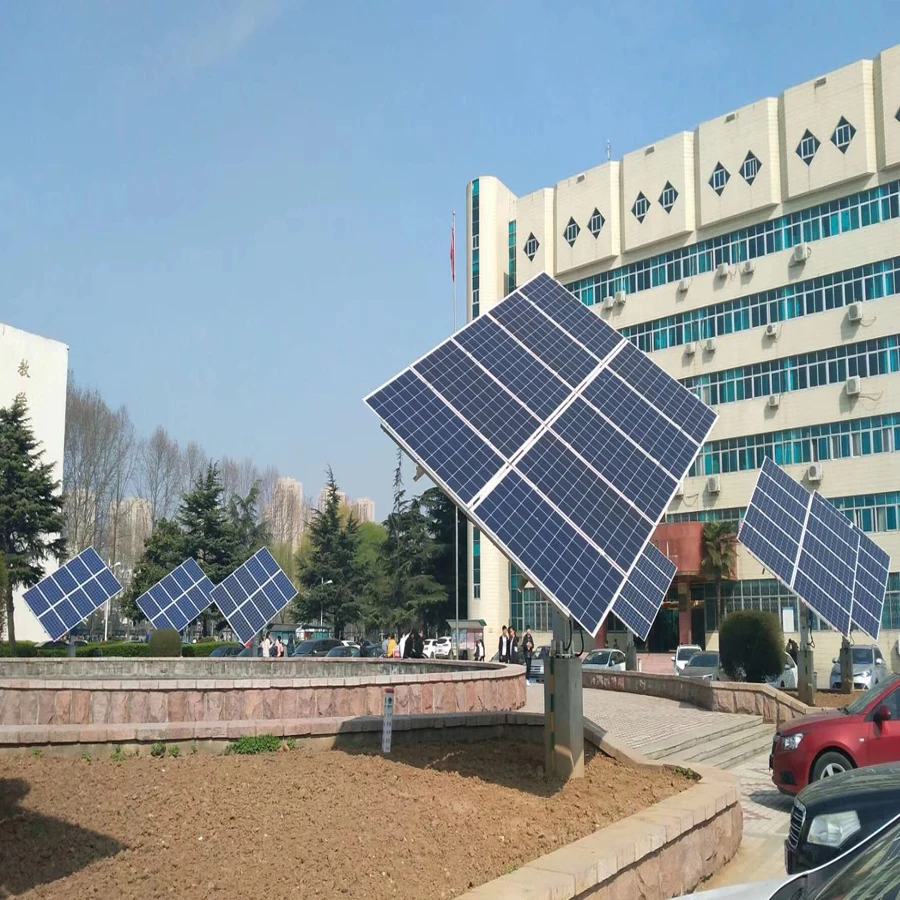

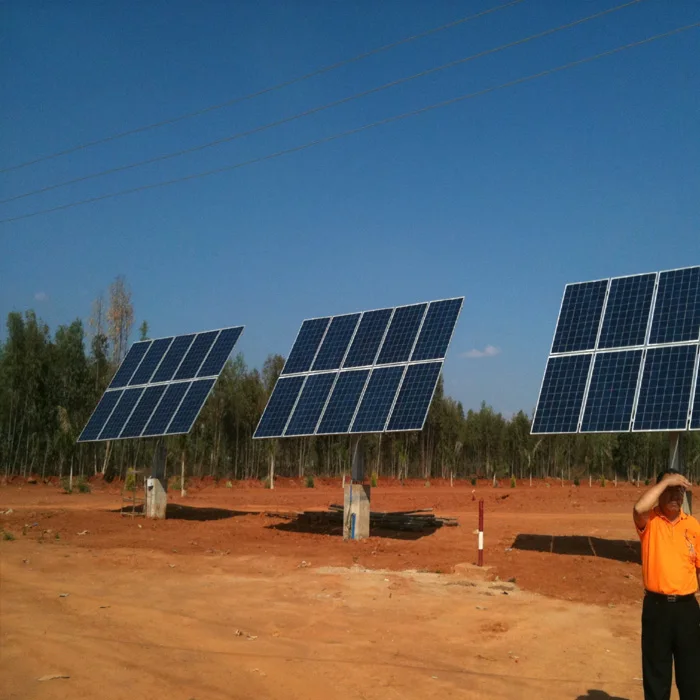

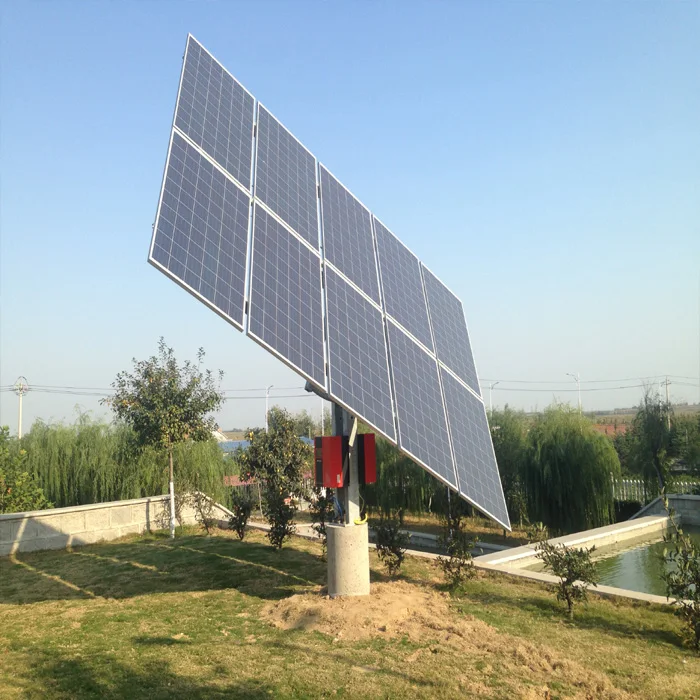

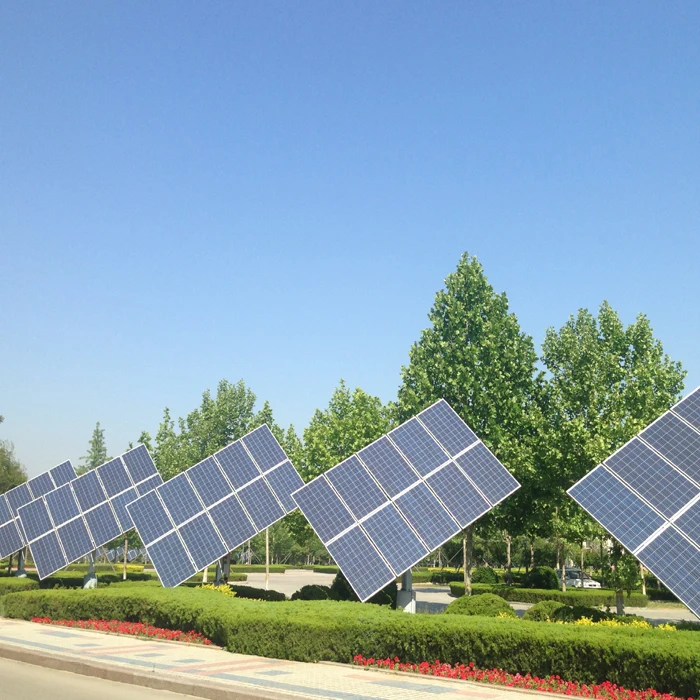

Factory direct supply Solar Tracking Bracket pole bracket install ground mounting system
- Category: >>>
- Supplier: Shandong Zhaori New Energy Tech. Co. Ltd.
Share on (62079921623):
Product Overview
Description

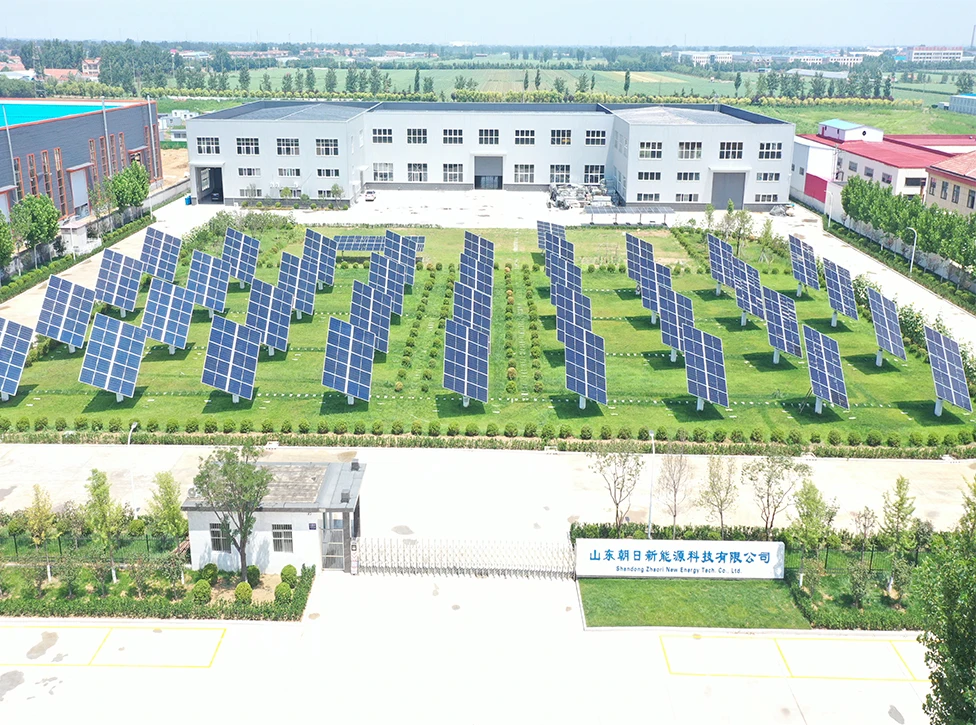

\t\t\t\t\t\t\t\t\tCompany profile \t\t\t\t\t\t\t
Shandong Zhaori New Energy Tech. Co., Ltd. locates in Weicheng Economic and Technological Development Zone of Weifang City, Shandong Province. The company registered capital comes to 20 million RMB, it is a high-tech & new energy company based on independent intellectual property rights, committed to researching and producing most simple and best cost performance smart solar tracking systems, promoting power generation capacity by 30%-45%, with TUV & CE certificates and patent of invention from many countries.
Our Goal: more simple, more reliable, more efficient
Our Aim: excellent products, excellent service
Our Wish: share the solar future with you

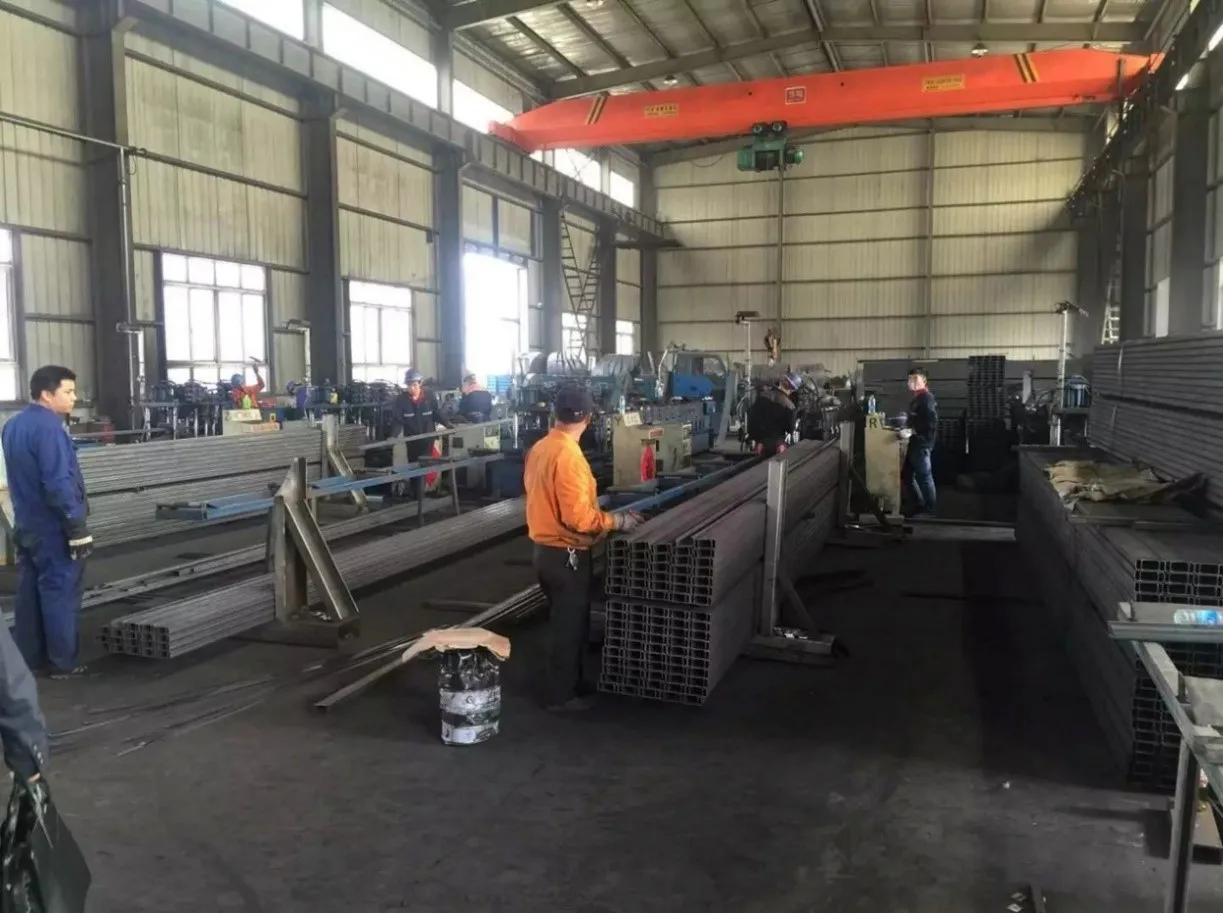

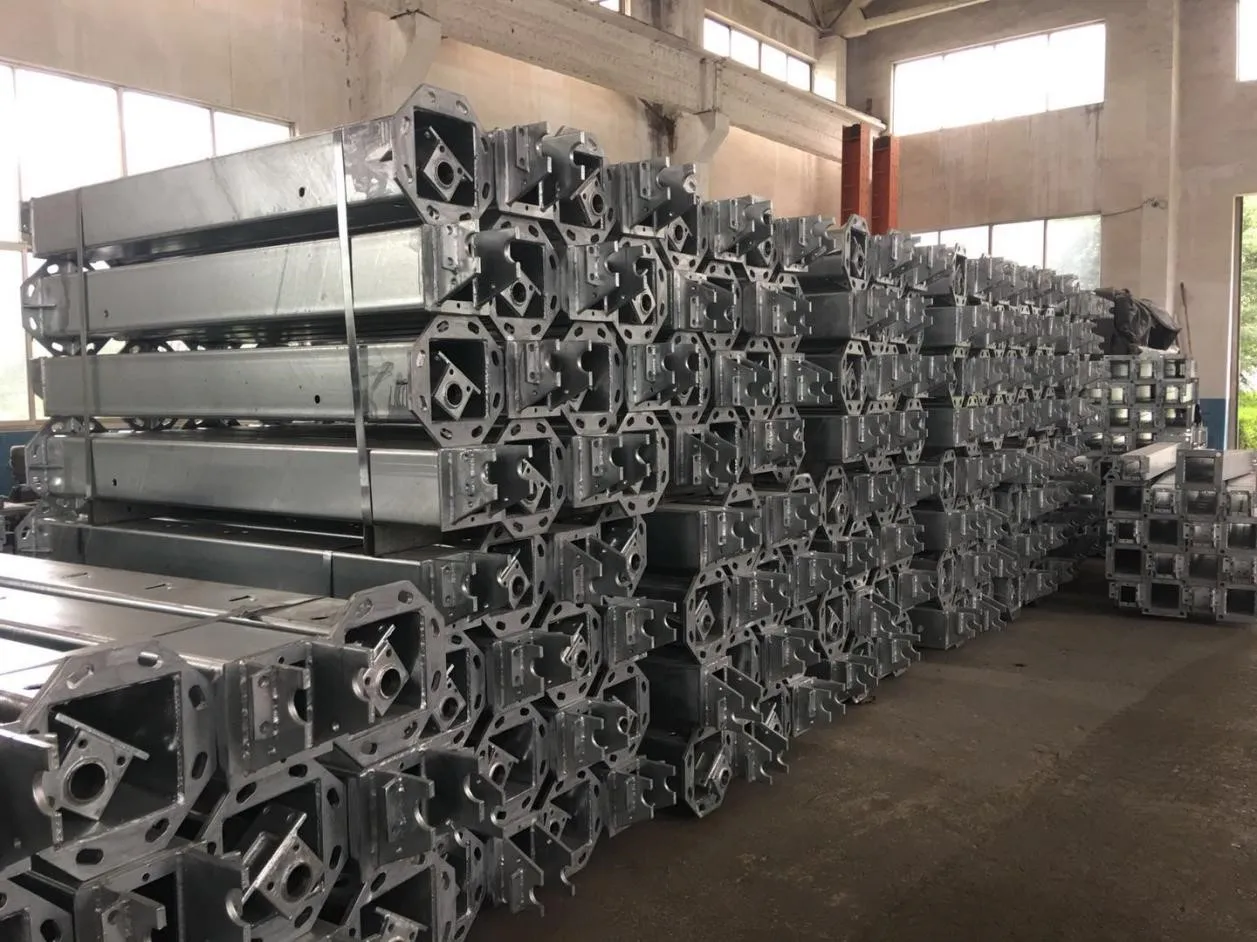

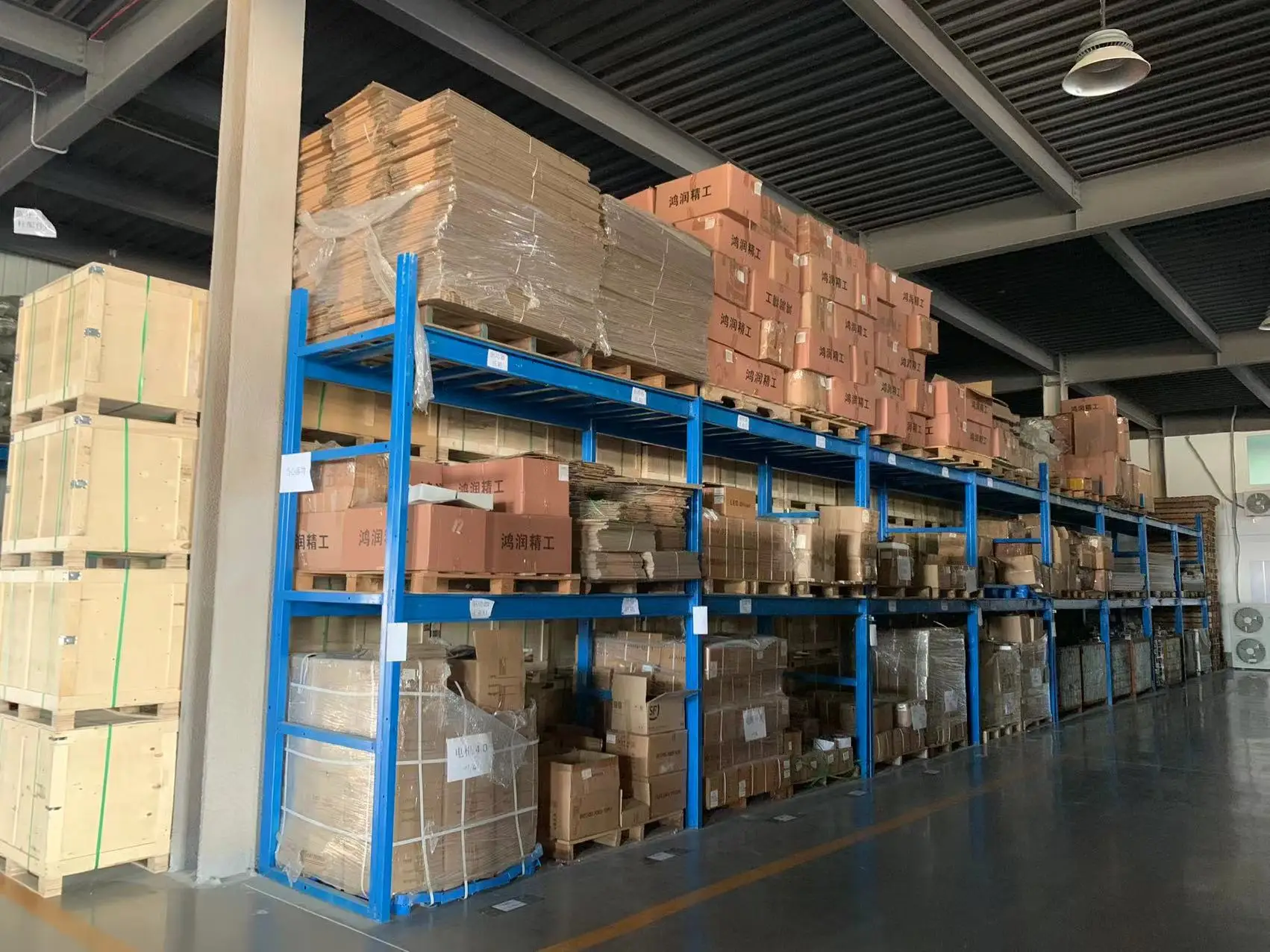

Workshop
\t\t\t\t\t\t\t\t\tSpecifications \t\t\t\t\t\t\t
Product name: | ZRD auto dual axis solar tracking system |
Control mode: | Time + GPS Control |
Tracking accuracy: | 0.1°-2° (Adjustable) |
Motor: | 24V gear motor |
Power consumption: | 3 kwh/set/year |
Output torque: | 2400NM |
Azimuth angle tracking range: | ±45° |
Elevation angle adjust range: | 0-50° |
Brackets material: | Hot-dipped galvanized steel, Zinc layer thickness≥65μm |
Max. wind resistance: | 28m/s in running state, 40m/s in wind protect state |
System guarantee: | 3 years |
Working temperature: | －30℃ － +70℃ |
Certificates: | CE, TUV |
Weight: | 180-280kgs |
Mount solar panels: | 2-12 pieces |
Total power: | 1.5kW－6.0kW |
\t\t\t\t\t\t\t\t\tOur Advantages \t\t\t\t\t\t\t
★ Patent technology, simplest structure, low cost.
★ Conveniently and quickly installation, no need for big machinery.
★ Less power consumption, only totally about 3kWh/set/year.
★ High strength brackets, good wind resistance performance, auto wind protection.
★ Solar panels can be adjusted to a tilt angle for snow proof purpose.
★ Independent support structure, better terrain adaptability.
★ No fixed coverage to sunshine or raining, no affection to plants growing.
★ Effectively reduce your solar panels washing times.
★ Less components, light single part weight, convenient transportation.
★ Intelligent control, self-correction & self-positioning, easy maintenance.
★ Mature and reliable technology, low failure rate, high tracking accuracy.
★ High efficiency, +25% - 45% more energy!

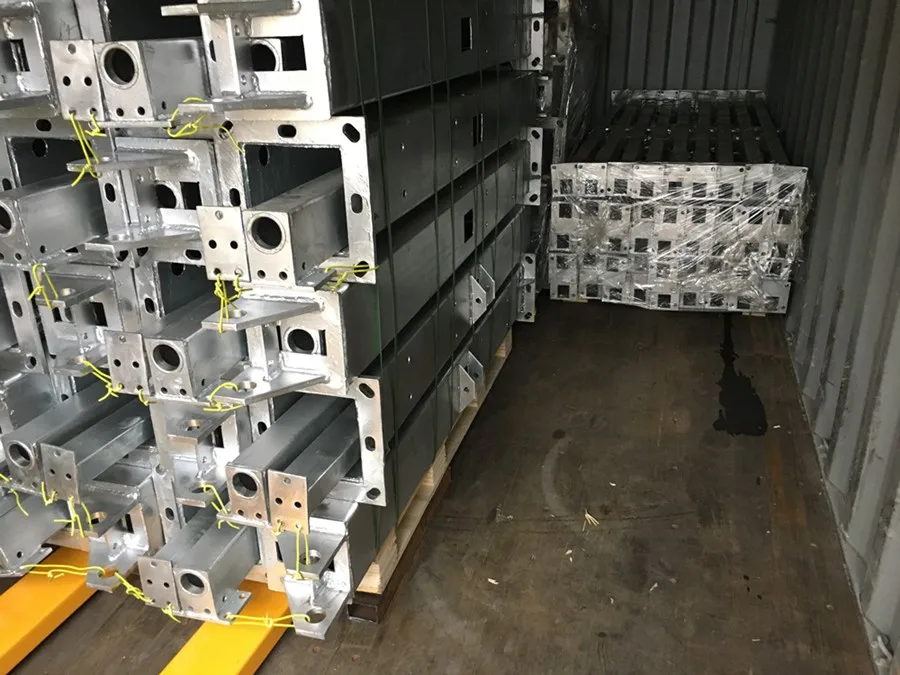

Product packaging
Exhibition
2021 Shanghai SENC show.
Our Team
Title goes here.

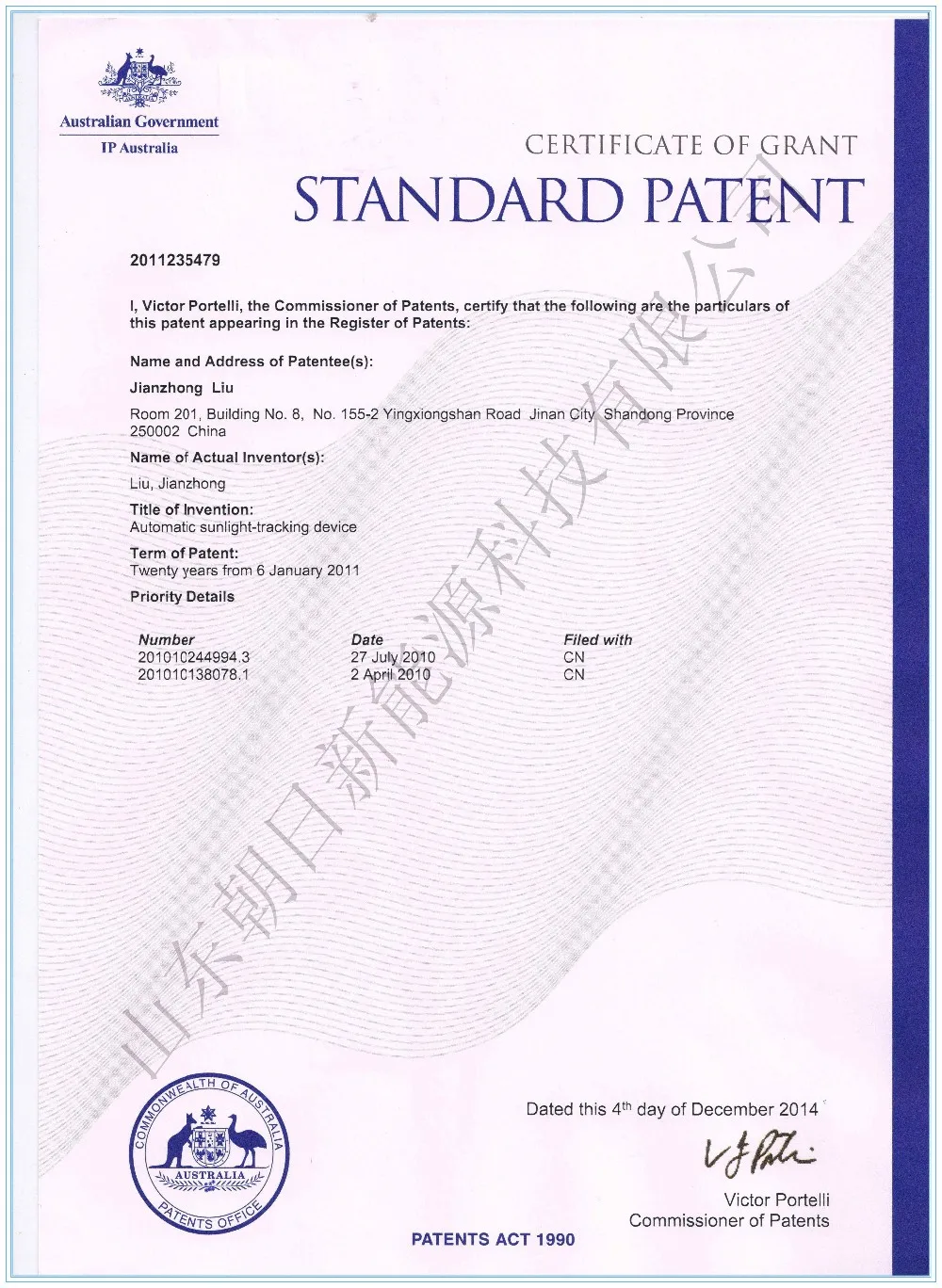

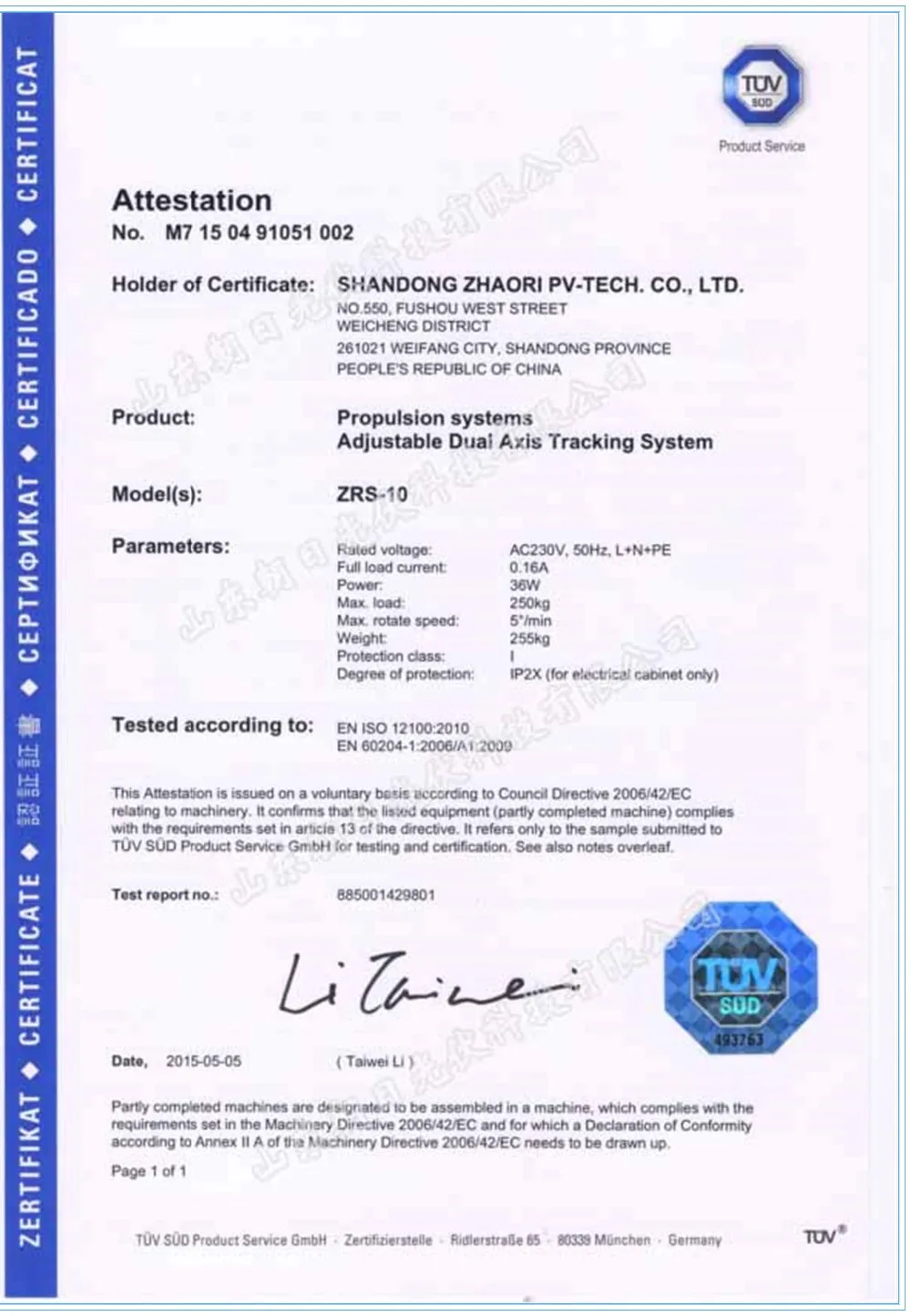

\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t
