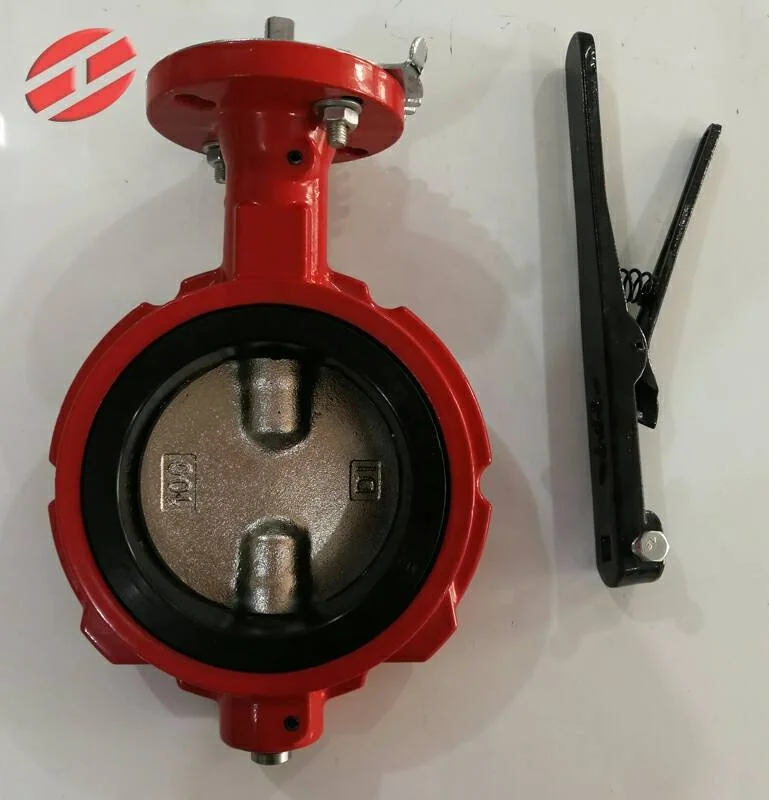

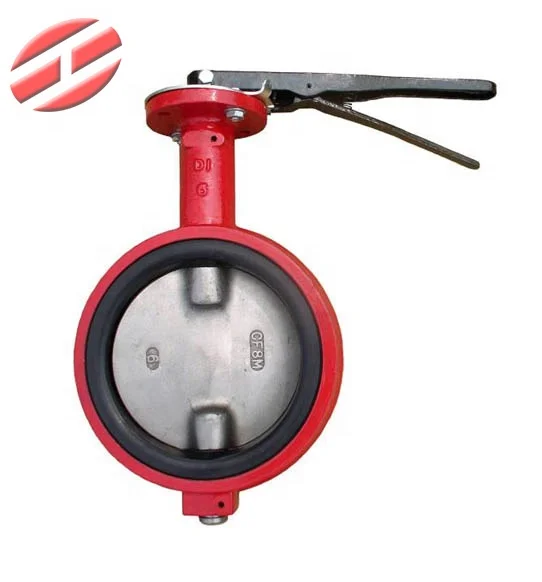

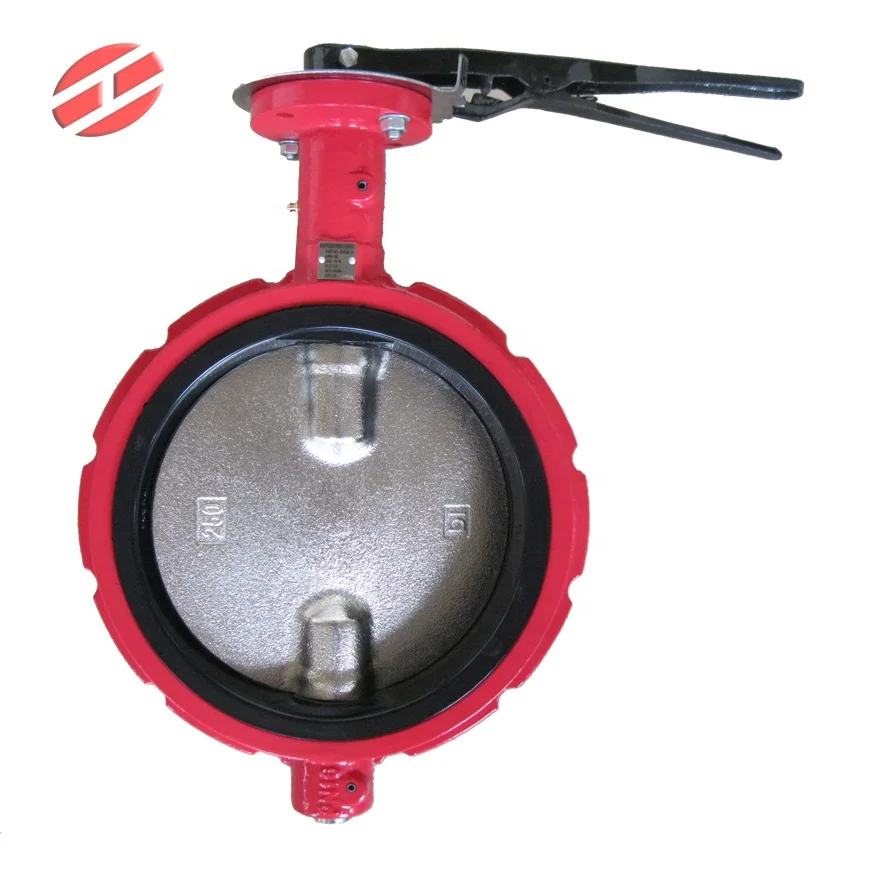

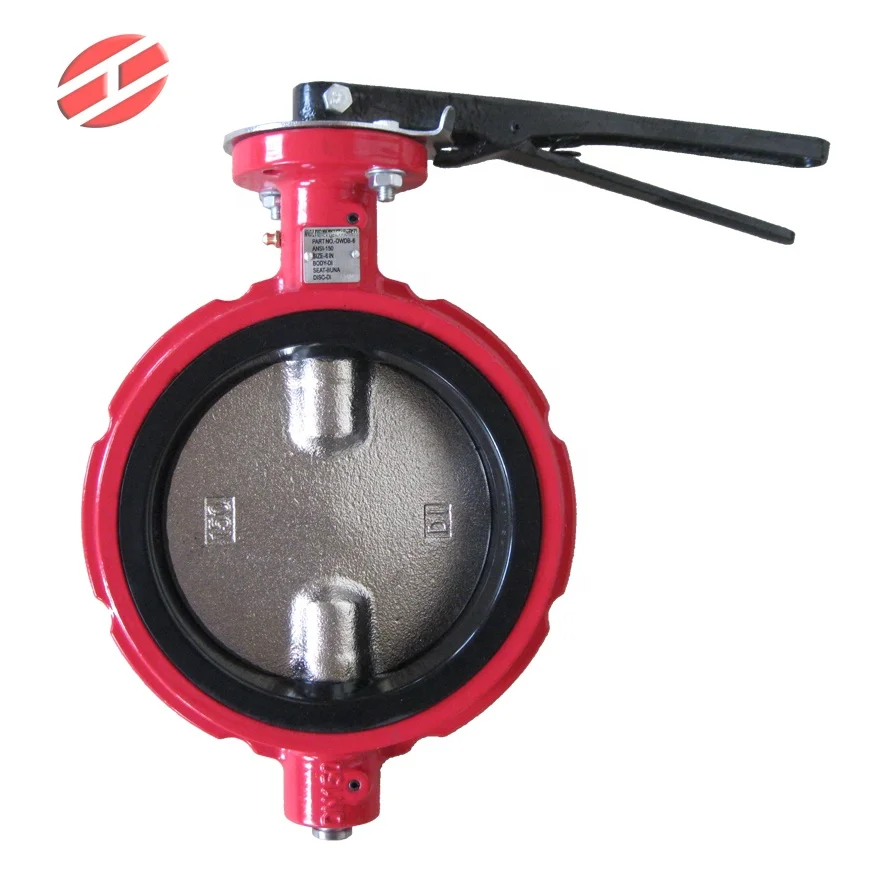

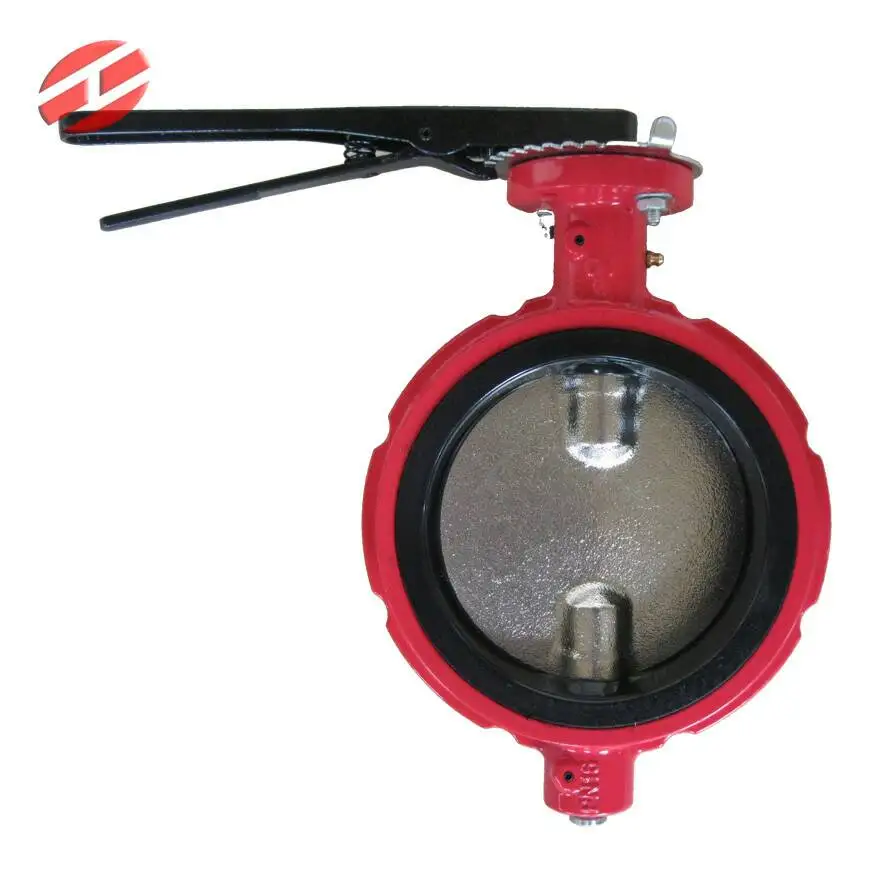

DN300 ANSI 150 Ductile Iron Body NBR/EPDM/PTFE Seat Wafer Butterfly Valve for water oil gas
- Category: >>>
- Supplier: Tangshan Hongyou Ceramics Co. Ltd.
Share on (62079921726):
Product Overview
Description
Product Description
Specific Design for Houston, USA Oil Pipeline
Wafer type
150lbs, PN10, PN16, PN25, 200 psi
Design to comply with MSS SP-67, BS5155 and API 609
Compatible with ANSI, DIN, BS, JIS flanges or universal drilling
Body materials: cast iron, ductile iron, stainless steel 304, 304L, 316, 316L
Disc: ductile iron (with nickel plating or nylon coating), SS 304, 304L, 316, 316L, AL-Bronze
Seat: NBR, EPDM, neoprene, PTFE, Viton
Lever or gear box operation.
TECHNICAL DATA: | |
| Nominal diameter: | DN40-1200/1.5"-48" |
| Face to face: | API609, DIN3202 K1, ISO5752, BS5155, EN558 |
Flange drilling
| AS 2129 "D","E" BS 10:D","E" JIS 5K/10K/16K ASME B16.1 125LB ASME B16.5 150LB BS 4504 PN6/PN10/PN16 DIN 2501 PN6/PN10/PN16 ISO 7005 PN6/PN10/PN16 |
| Design standard: | API609, BS5155, EN593, MSS SP-67 |
| Top flange: | ISO 5211(according to the customer's need) |
| Temperature range: | -20℃to+200℃(depending on pressure,medium and materal) |
| Test inspection: | APL 598EN 12266-1 |
| Suitable medium: | Freshwater,wastewater,sewage,seawater,air,vapor,food,oils, medicine alkailis,salt,etc. |
Packaging & Shipping
Secure the product safe
Plywood case for exporting
Our Services
Pre-Sales Service
* Inquiry and consulting support
* Sample testing support
* View our Factory
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*For example: We took vedio to instruct our customer to replace disc and seat into different material at their own place if needed or install at site
we sincerely welcome foreigh friends to visit our factory.
