High Quality Industrial straight knife grinder/ electric knife sharpener for woodworking machinery

Share on (62080073349):


Price:

Quantity:


Product Overview

Description


 Industrial straight knife grinder/ electric knife sharpener for woodworking machinery

.jpg
Product Description



1,Use:

This knife grinder machine is mainly used in straight blade cutting tool in different angles,suitable for all kinds of cutter tools of plywood,furniture,printing,textile industry etc.It is also used to the oblique opening of high speed tool steel.



Features:

1. The working table is of electromagnetic chunk with strong magnetic power

and lower consumption.

2, The grinding head motor uses a special motor to ensure good performance, high precision and convenient cooling.

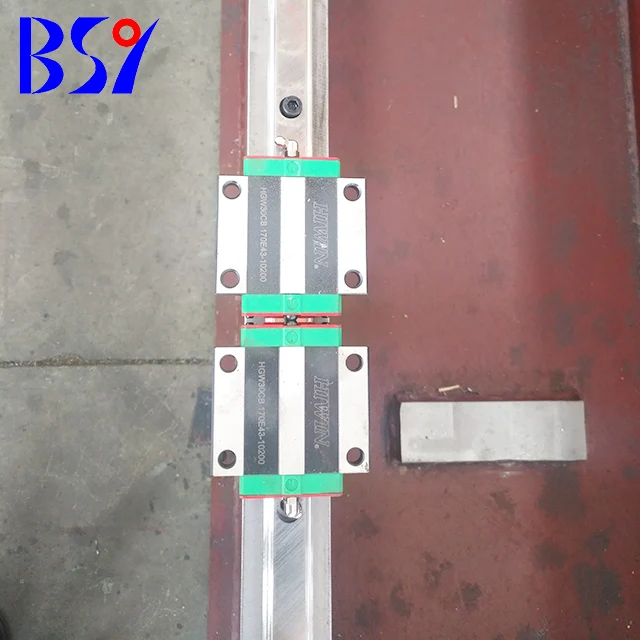

3, The use of Taiwan's precision linear guides to ensure the running accuracy of the slide.

4, The slide drive adopts hydraulic transmission, chain drive, and can be steplessly regulated to ensure free commutation.

Technical Parameters



Model YM4500B YM3500B YM3000C YM3000B YM1500B
Max.grinding length(mm) 4500 3500 300030001500
Table width(mm)200200180180180
Grinding head motor(kw)444.7544
linear speed for grinding wheel(m/s)1515151515
slide plate feeding speed(m/min)12/1812/1812/1812/1815.2
angle range of working table9090909090
overall size(mm)6500x1250x13005500x1250x13005300x1250x13004900x1250x13003220x1250x1300
weight(kg)36003200295028501500

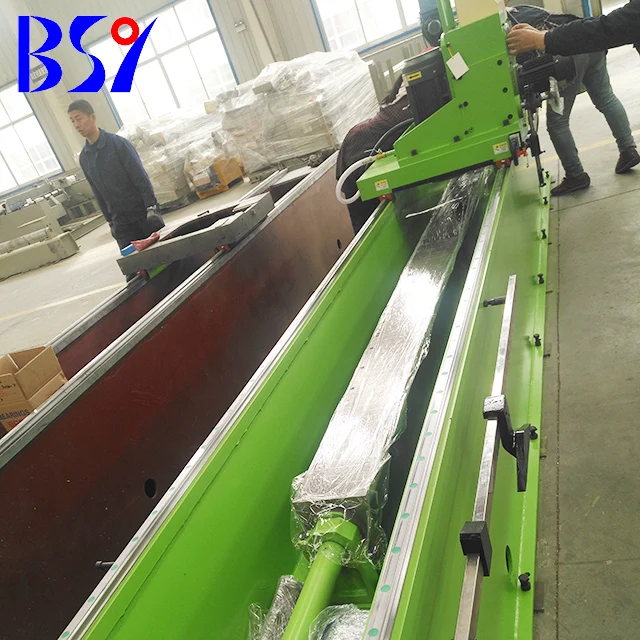

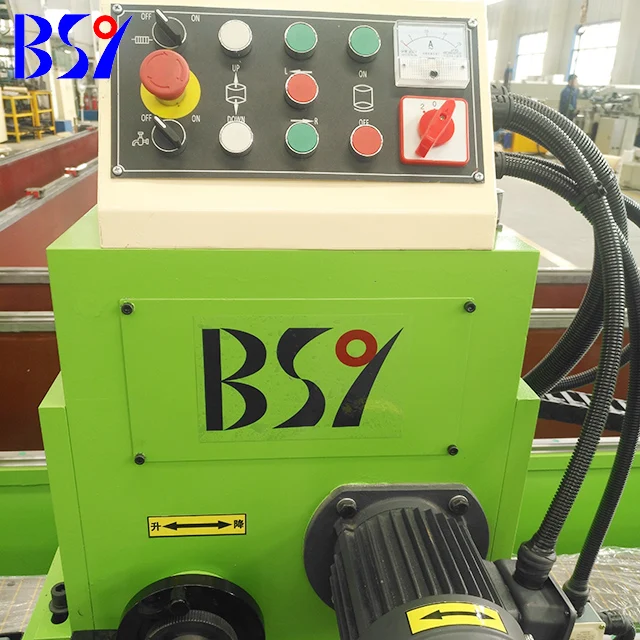

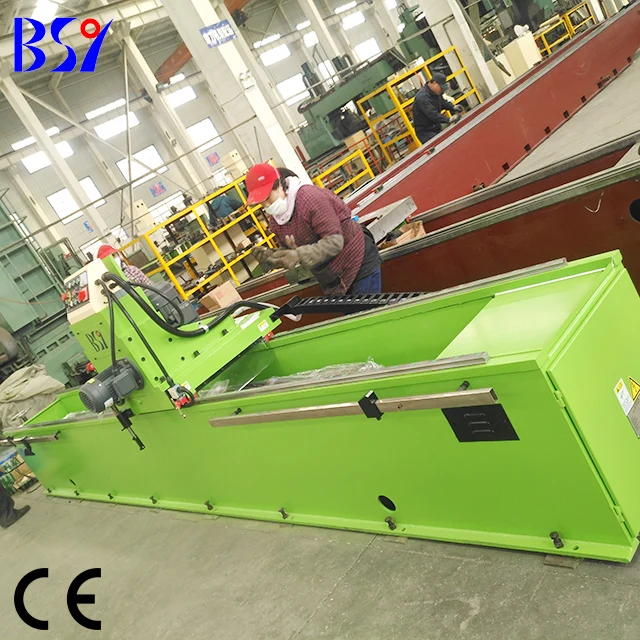

Detailed Images



 .jpg






.jpg

Company Information



SHANDONG BAISHENGYUAN GROUP CO.,LTD

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

3.Specializing in plywood production line and finger joint board production lineThe main productions include: log debarker, log charger, veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, sanding machine etc. If you show us the details you want, our engineer will design the suitable production as your requirement

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.

Website://www.baishengyuan.cc/


If you have any problems,please feel free to contact us.
