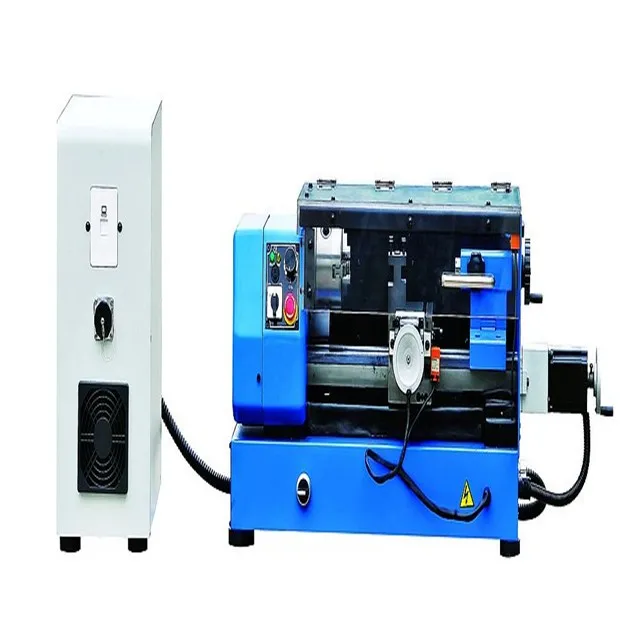

China Small slant bed auto tool changer vertical cnc lathe machine

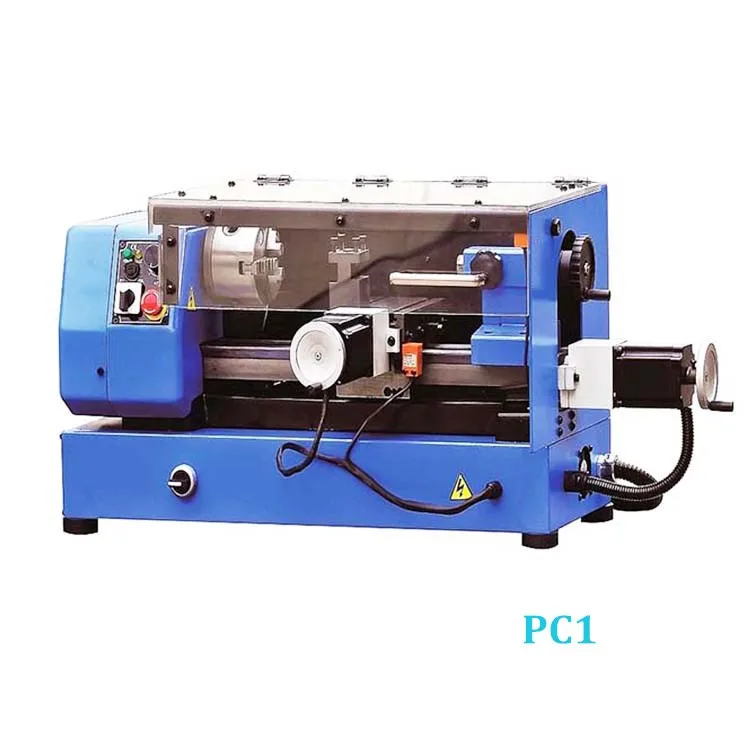

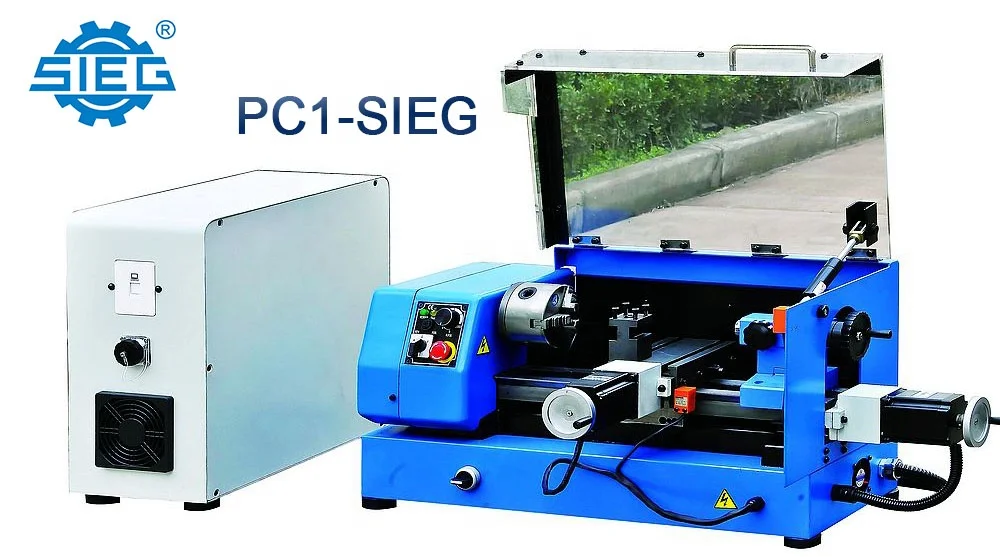

PC1-SIEG

Spindle speed:         100-2000r/min

Weight(NW/GW):     45/65KGS

Overall size:             730*380*350mm


Packing size:           830*480*450mm

China Small slant bed auto tool changer vertical cnc lathe machine

China Small slant bed auto tool changer vertical cnc lathe machine

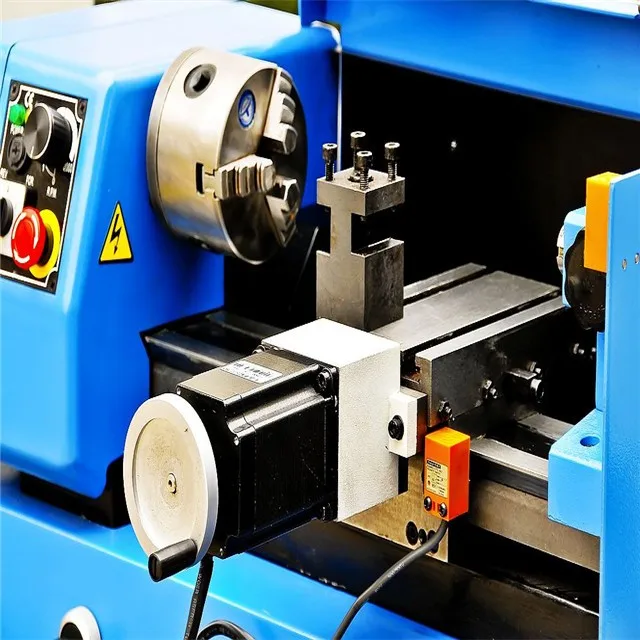

Detailed Images

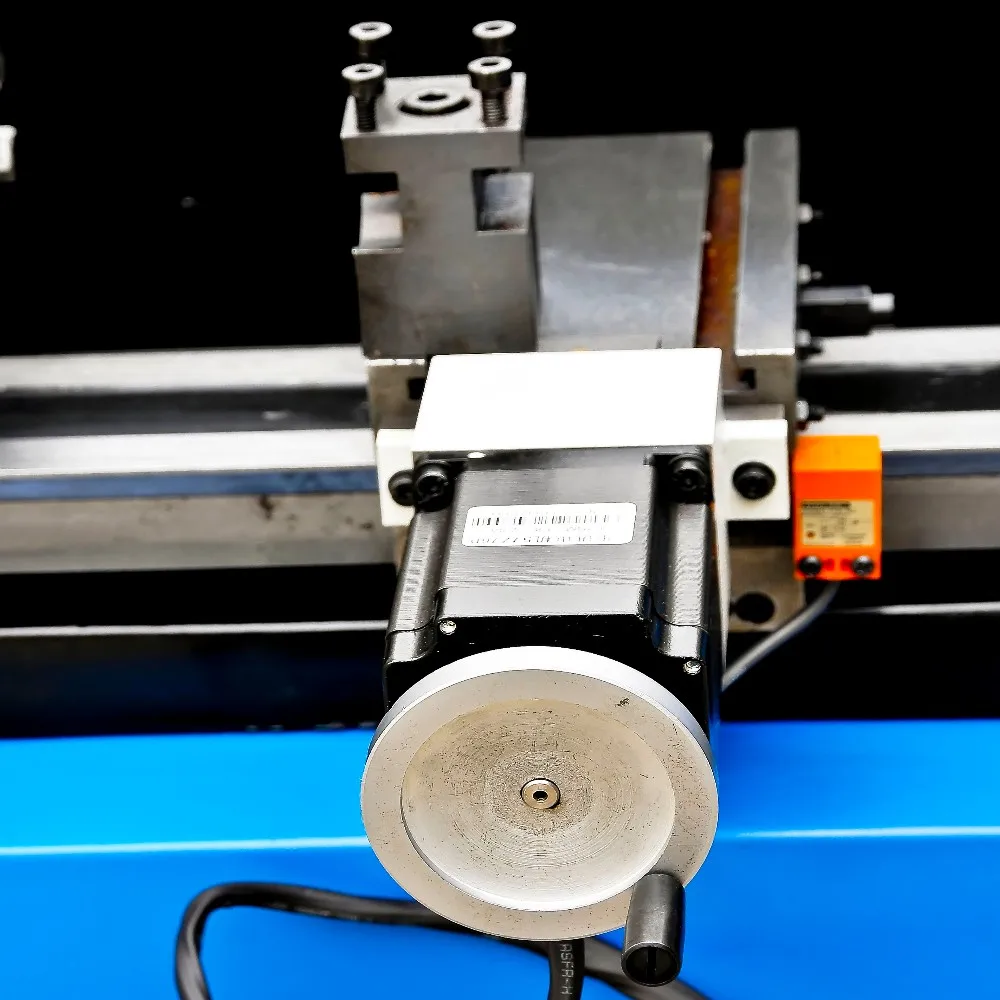

Standard manual hand wheel

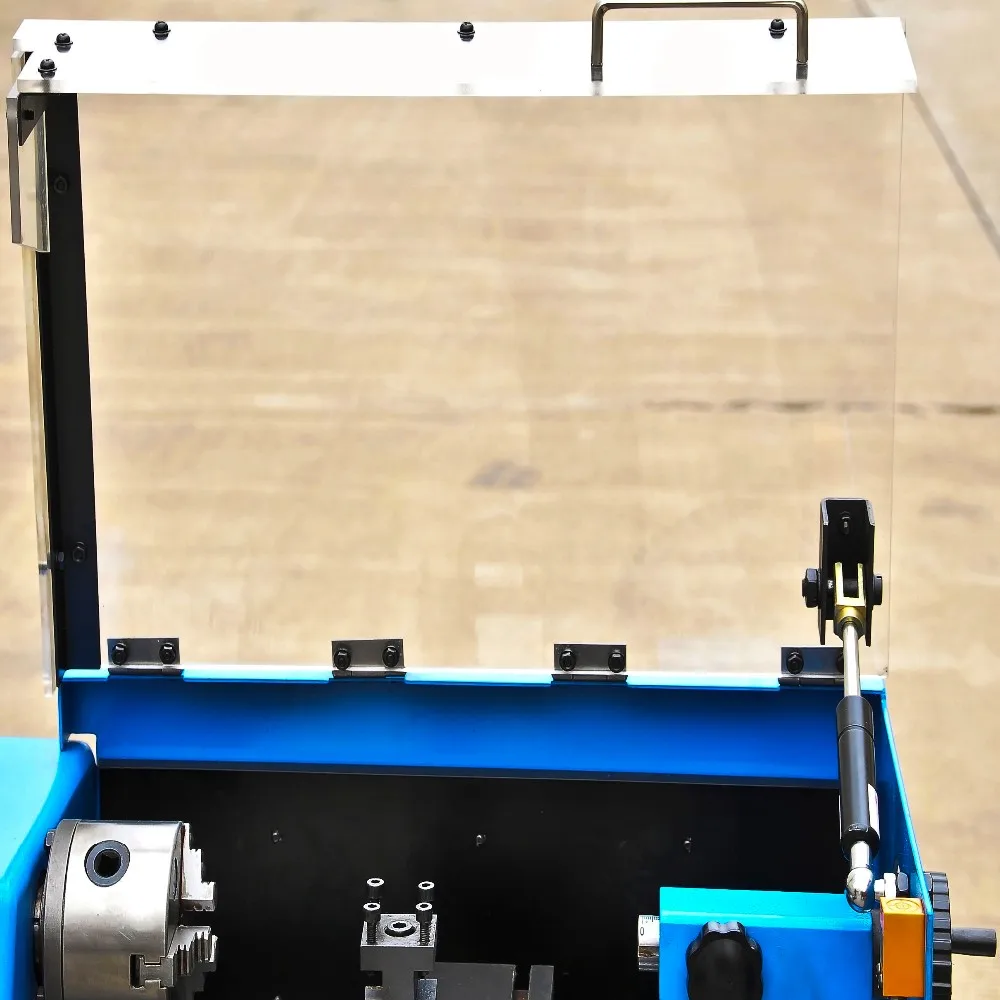

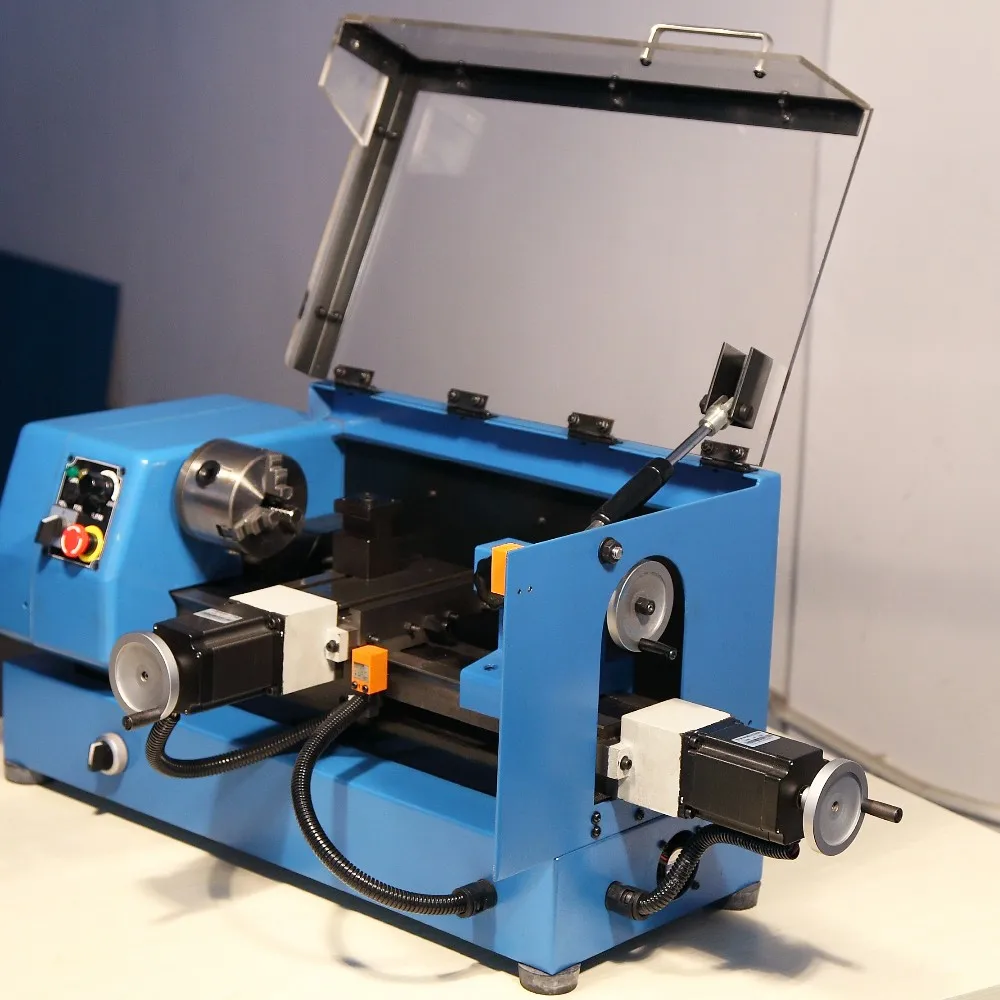

Auto powder off when door open,Pay more attention to your safety

Optional accessory

Hand wheel
S/N 10186(Only available for SIEG)

External spindle control

\t
CNC machine parameters of PC1
\t


WORKING AREA
\t
Turning diameter over bed(max)
\t
140mm
\t
travel across slide
\t
75mm
\t
Center width
\t
250mm
\t



SPINDLE
\t
Chuck diameter
\t
80mm
\t
Spindle speed
\t
100-2000r/min
\t
Spindle through-hole
\t
11mm
\t
Spindle mount
\t
MT2
\t
Spindle motor power
\t
150W
\t



FEED(STEPPER)
\t
X travel
\t
100mm
\t
Z travel
\t
150mm
\t
The max moving speed
\t
300mm/min
\t
The max feeding speed
\t
200mm/min
\t
Motor
\t
1.35Nm
\t

TOOL REST
\t
Tool position
\t
1
\t
Tool dimension
\t
8×8mm
\t


TAILSTOCK
\t
Tailstock taper
\t
MT2
\t
Tailstock sleeve diameter
\t
12mm
\t
Travel of tailstock
\t
20mm
\t

ACCURACY
\t
Positioning accuracy
\t
0.02mm
\t
Repeatability accuracy
\t
0.02mm
\t


OTHERS
\t
Power
\t
230V/120V
\t
Weight(NW/GW)
\t
45/65KG
\t
Overall dimension
\t
730×380×350mm
\t
Packing size
\t
830×480×450mm
Our Company

Liuzhou Gluck Imp&Exp Co., Ltd is an office(located in Liuzhou City,Guangxi Province) of Shanghai SIEG CNC Machinery factory,which belong to SIEG Group, was founded in 1988.
As we have professional in exporting machine equipment, such as milling machines, lathe machine, engraving machines. Especially, we have a lot of experience in providing CNC and manual machines for hobby DIY, education and light industry. We know exactly "What you want" and "How you want it".

Enterprise Culture

There are many activities in every year, Such as New year's Day party,Appreciation Annual Meeting,fun sports meeting,Spring Festival Evening Show,BIRTHDAY CELEBRATION,Annual travel!!!

Customer Case

Small CNC machine tools have the advantages of small volume and convenient operation, and are deeply loved by the majority of users

Our Customers

We have more than 10 countries customers with good cooperation, Listed some for your reference.
Hope can be your best supplier ASAP!! Happy....

Quality Management

Ball bar testing.                                  Laser inspection.                                    CMM(Coordinate Measuring Machine).

Inspecting the type of                           Inspecting repeatable position                 Inspecting position

tolerance/ERRORS and value.             accuracy/micro displacement                 accuracy/geometic accuracy and

                                                              precision,and do compensation              outline accuracy.

                                                               to CNC machine

Factory and Machine PICTURES

Certifications
Packing & Delivery

Packaging Details:1 set/normal carton or based on your requirement

SHIPPING:

1. By Express, by Sea,by Air Cargo,depend on your choice.

2. About 45 days after received your depoist, based on your quantity.

Our Service
FAQ

Q1: Is your company a factory or trading company?

A1: We are factory and have more than 30 years production experience. And have an office in Liuzhou City,Guangxi province,China.

Q2: Where is the factory located? How can I visit there?

A2: Our factory is located in Shanghai City,China.And warmly welcome you to visit us.

Q3: Do you have CE certification?

A3: Yes, we have CE certification,machine quality is guaranteed.

Q4: What's your payment terms?

A4: Our payment term is 30% T/T in advance,70% T/T before shipment.

Q5: What is your delivery time?

A5: Machines order takes 40-45days after deposit payment received. Please inquiry sales.

Q6: What is the Control of your lathe? Can I change it to other brand?

A6: The standard controller of our lathe is SIEG and SIEMENS. You also can change other brand, such as GSK, FANUC and so on..

Q7: How can I get the quotation?

A7: You can send the inquiry on alibaba.com, or send email to us. It is better if you can tell what is your detailed requests.

Q8: What's the main products of your company?

A8: We specialized in many kinds of CNC machines, such as CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center..

Q9: How can I choose the most suitable machines ?

A9: Please tell us your requirement of the machine, or you can also send us the products drawing,our engineer can help to choose the best model for you.

Q10: If still confused. What can I do?

A10: Please feel free to contact us via Email or trade manager.

Contact US

If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just contact us freely
