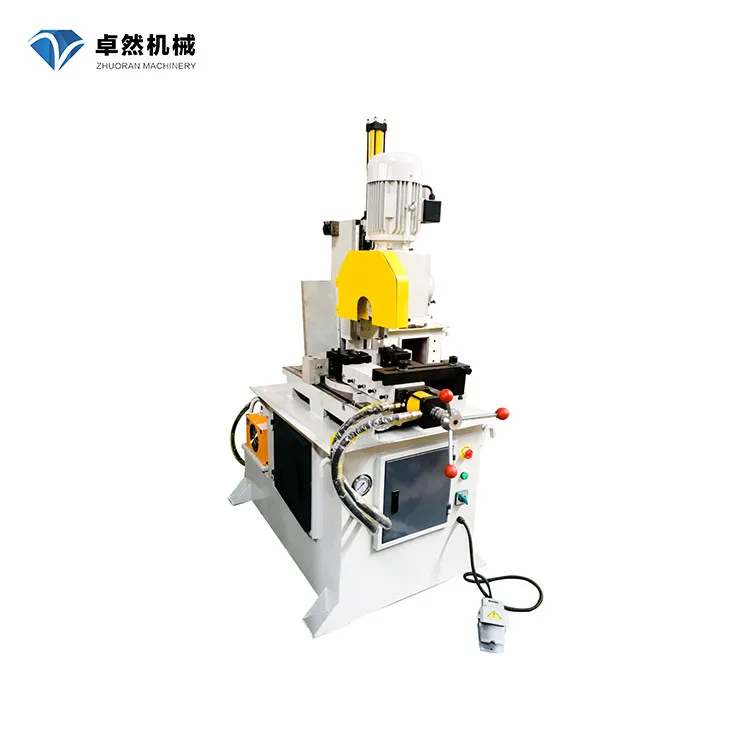

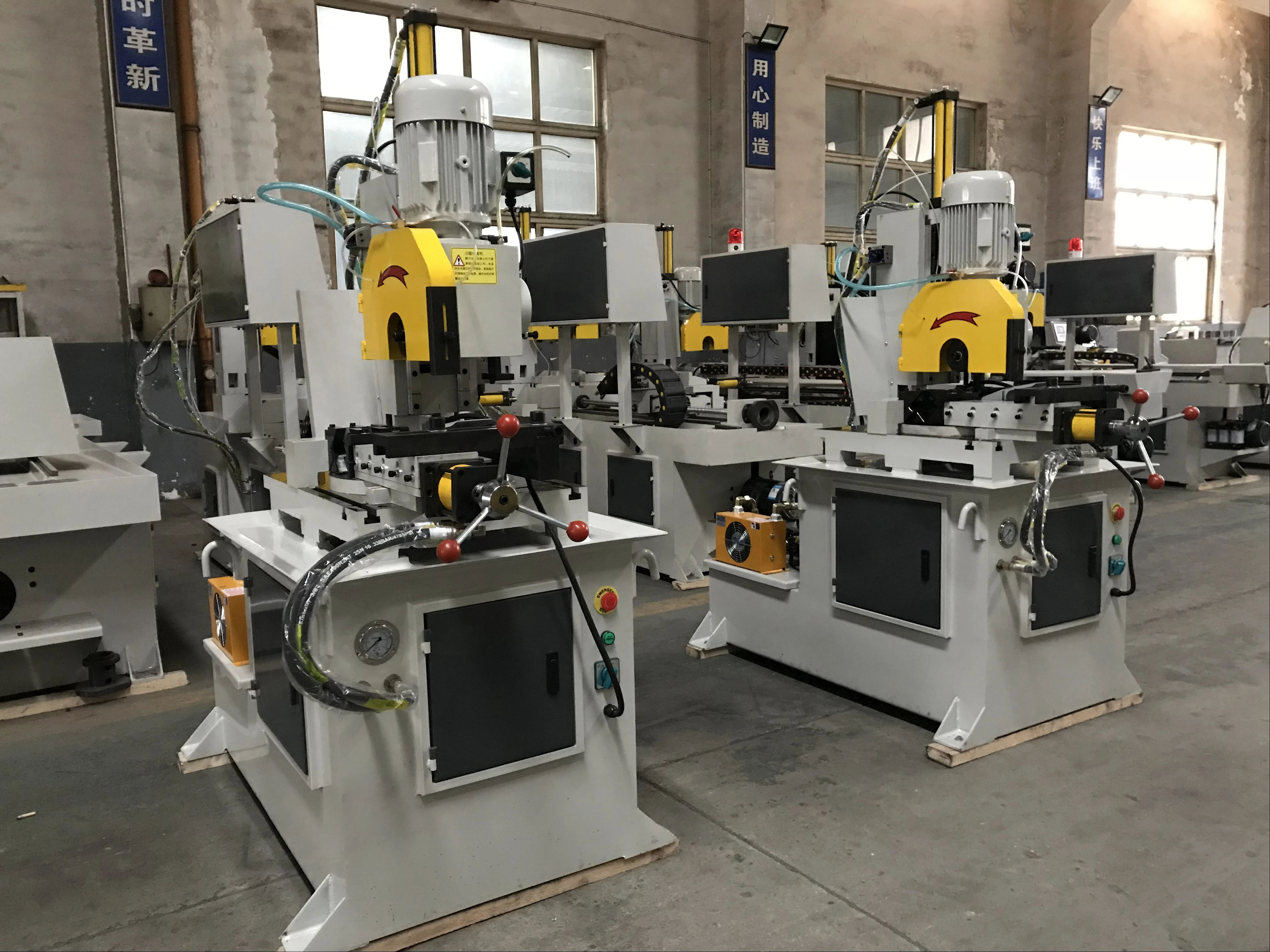

2019 zhuoran spot steel pipe cutter machine MC350NC
- Category: >>>
- Supplier: Zhangjiagang Zhuoran Machinery Co. Ltd.
Share on (62080092565):
Product Overview
Description
Machine type | MC350NC | ||||||
Saw blade dia.(mm) | 300mm | 350mm | 400mm | ||||
Cutting angle(°) | 45° | 90° | 45° | 90° | 45° | 90° | |
(mm) | 50 | 50 | 50 | 50 | 50 | 50 | |
(mm) | 50×50 | 50×50 | 50×50 | 50×50 | 50×50 | 50×50 | |
(mm) | 70 | 80 | 80 | 95 | 115 | 125 | |
(mm) | 60×60 | 70×70 | 70×70 | 80×80 | 110×110 | 120×120 | |
(mm) | 60×60 | 70×70 | 70×70 | 80×80 | 110×110 | 120×120 | |
Saw Blade Size
| Diameter | HSSΦ315-Φ400mm(Φ500mm) | |||||
Bore | Φ32mm | ||||||
Pin Storke | 2*Φ11*PCD63mm | ||||||
Main Driver Motor | 4.5KW/5.5KW | ||||||
The oil pump motor | 2.2KW | ||||||
Collant Pump Motor | 40W | ||||||
Machine dimensions | 1700*900*2000mm | ||||||
Machine weight | 730kg | ||||||
