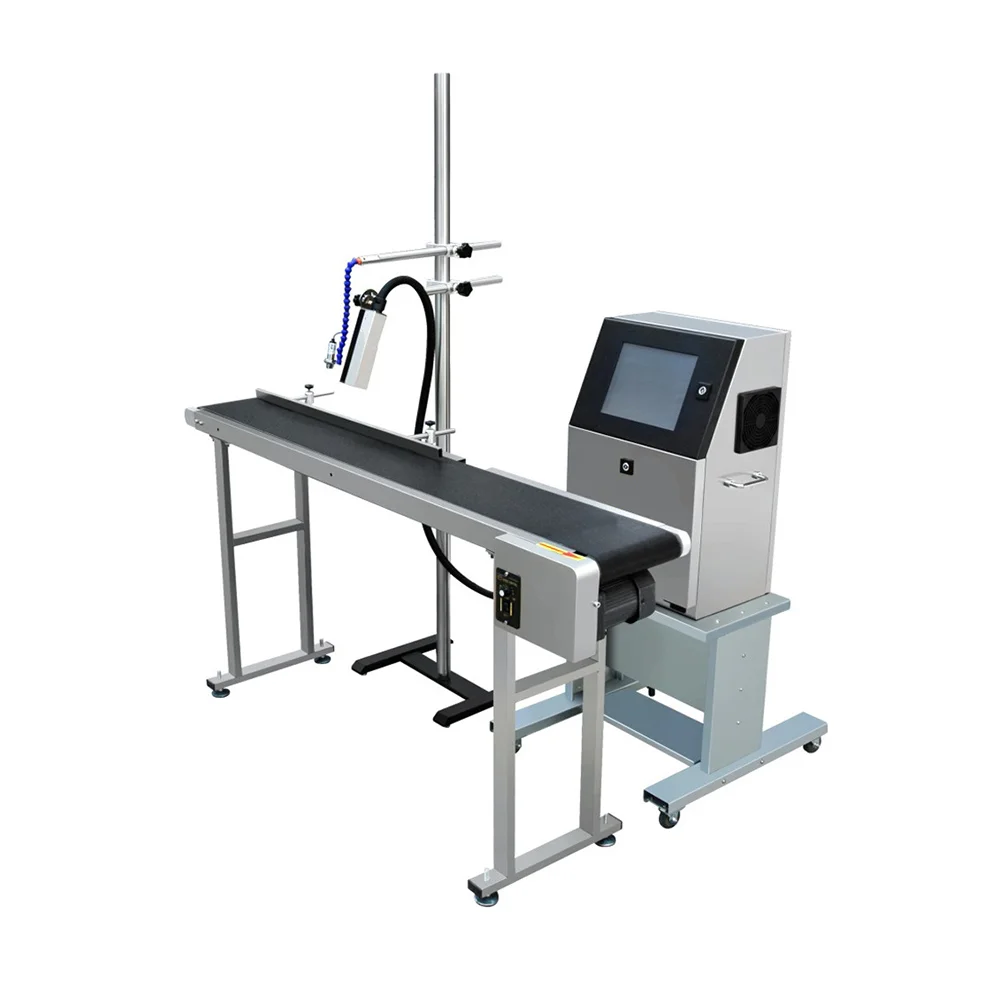

Automatic continuous inkjet printer

meet various requirements of production when modify the software.
Specialization for flatbed inkjet printer :

flatbed inkjet printer with professional software engineers have solved the problems that could happen, and through the deep research, the modular circuit and hydro-system with low.power and high level of integration hardware has been designed. Select the best fittings from all over the world. Power supplies are offered by the most famous manufactures who supplied to the aviation in China, touch-screens are made by Hitachi, pumpsare made in Germany, the electrical chips are supply by Phillips and the pipelines are imported from Switzerland.

Contact: Kelly Li
WhatsApp:18001564982
WeChat:Kelly2021286246
Email:ms.Kelly@kjxyljx.com
Perfect humanity design for flatbed inkjet printer : English-Chinese mutual,phoneticand region-position input, ability to download BMP from computer, one button touch stop/start function, diagnose any fault automatics, phase and viscosity controlled automatically,nozzlesauto wash.
Printing parameters for flatbed inkjet printer :
Outstanding performance:
1.32 embedded CPU, 1000 jet printing of information, graphics information 1000 8.4 "TFT embedded true color touch screen.
2.Jet printing dot matrix rows 1-32 arbitrary line set up, can be defined arbitrary character.
3.Multi-task system of work, jet printing editor at the same time.

4.Automatically add ink, solvent Design.
5.Automatic Mexico Road and head cleaning system.

6.Machine without manual intervention, self-monitoring.
7.A voice alarm function.
Bottle Inkjet Printer Standard features:
1. Jet printing line number: 1-5 (5 × 5 Lattice)
2. Jet printing lattice: numbers and letters 5 × 5,5 × 7,8 × 10,8 × 12,12 × 16,16 × 16,24 × 24 and the self within any 32 × 32 dot matrix
3. Chinese character: 16 × 16 Jian Song , Fan Song, Jane Black, SR-kai, 24 × 24 and SR-32 since the dot-matrix within the definition of
4. Storage: 1000 jet printing, 1,000 of the graphic information
5. Jet printing speed: 1,400 characters / sec (5 × 7)
6. High-jet printing the word: 1-20 mm adjustable
7. Interface: complexity in Chinese and English
8. Chinese support: a built-GB, 2 Chinese character
9. Chinese Input: Pinyin input method, is in an input method, graphics input method Jet
10. Printing: in both English and Chinese characters and numbers, variable date and time, batch number,Order of numbers , and computer connections can be jet printing random code
11. Jet printing materials: metal, plastic, glass, wood, pipes, wire and cable, etc.
12. Widening font: maximum widening to 9 times.
13. Jet printing distance: head to the surface the largest 30 mm
14. Sprinkler pipes: 3 m
Specifications
Communication Interface: USB and RS232 interfaces

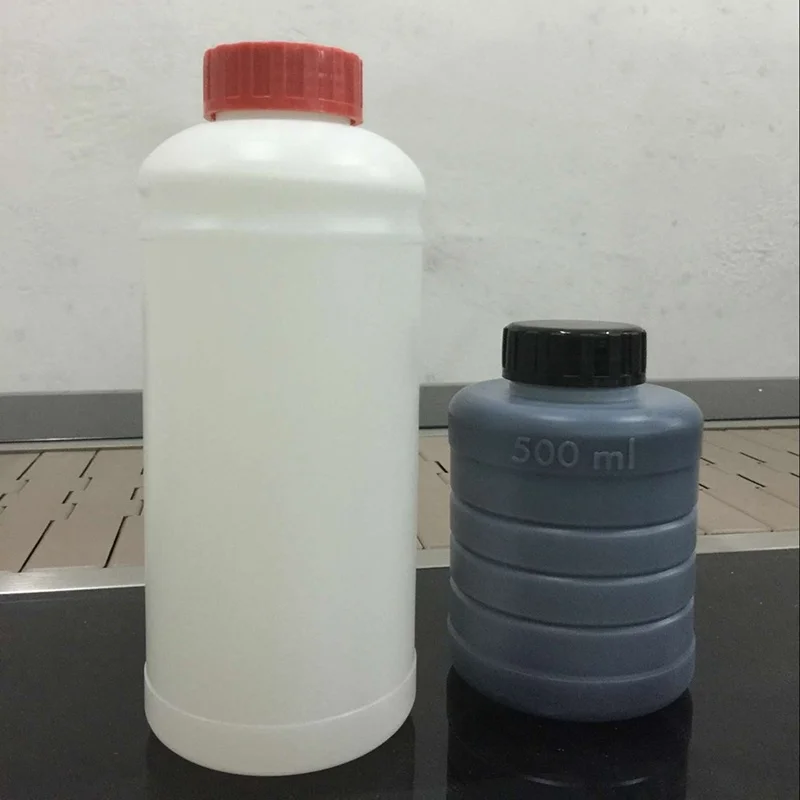

Ink jet printing: choice of black, blue, red and other colors
Ink consumption: 70 million jet printing characters / liter (5 X7)
Temperature range: 5-45 ℃
Humidity: 90% of the following
Weight: 30Kg
Dimensions: 246 × 338 × 550mm
Power requirements: AC220V 50HZ 100VA /AC 110V 60HZ 100VA
