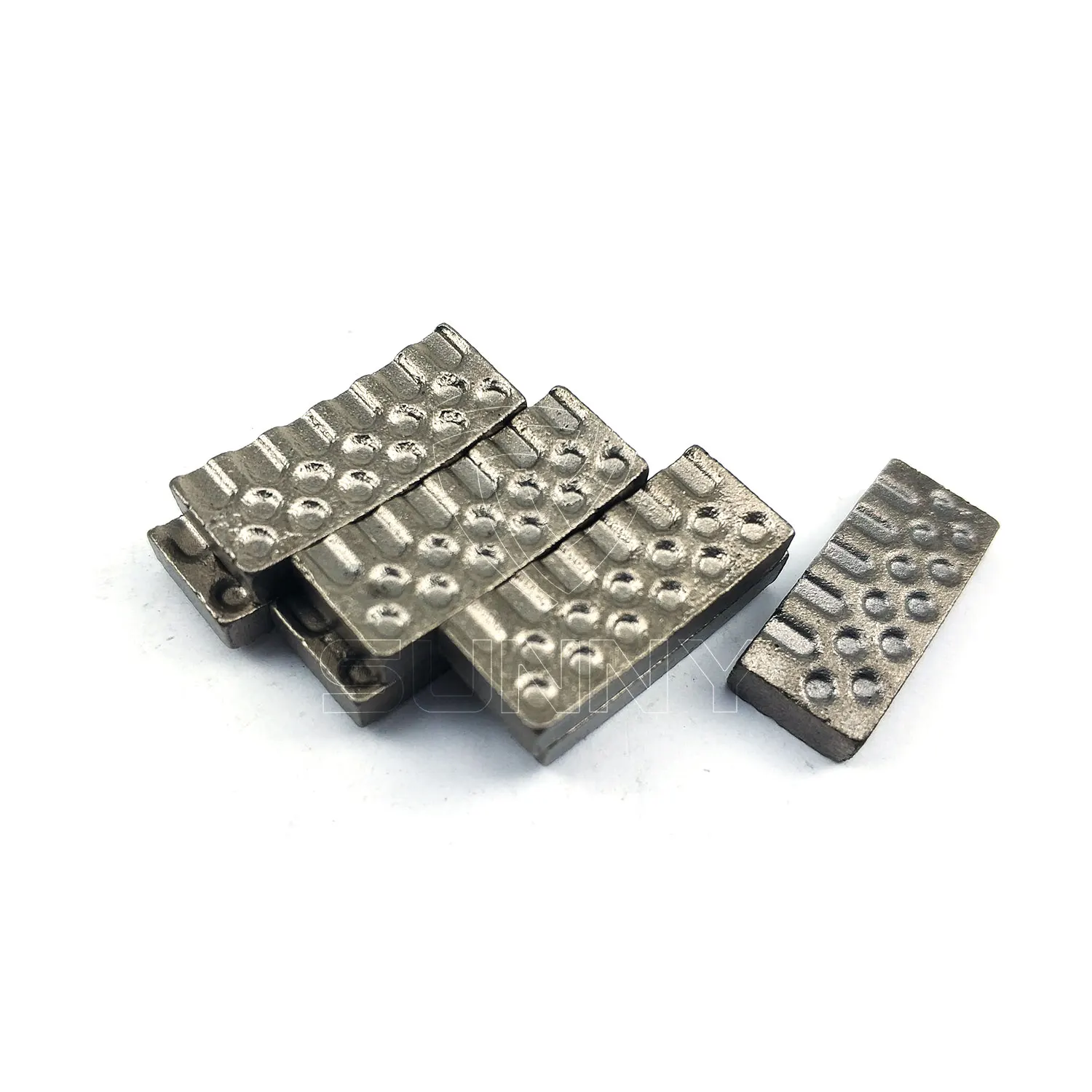

Diamond Segment Core Drill Bits For Stone And Concrete Drilling

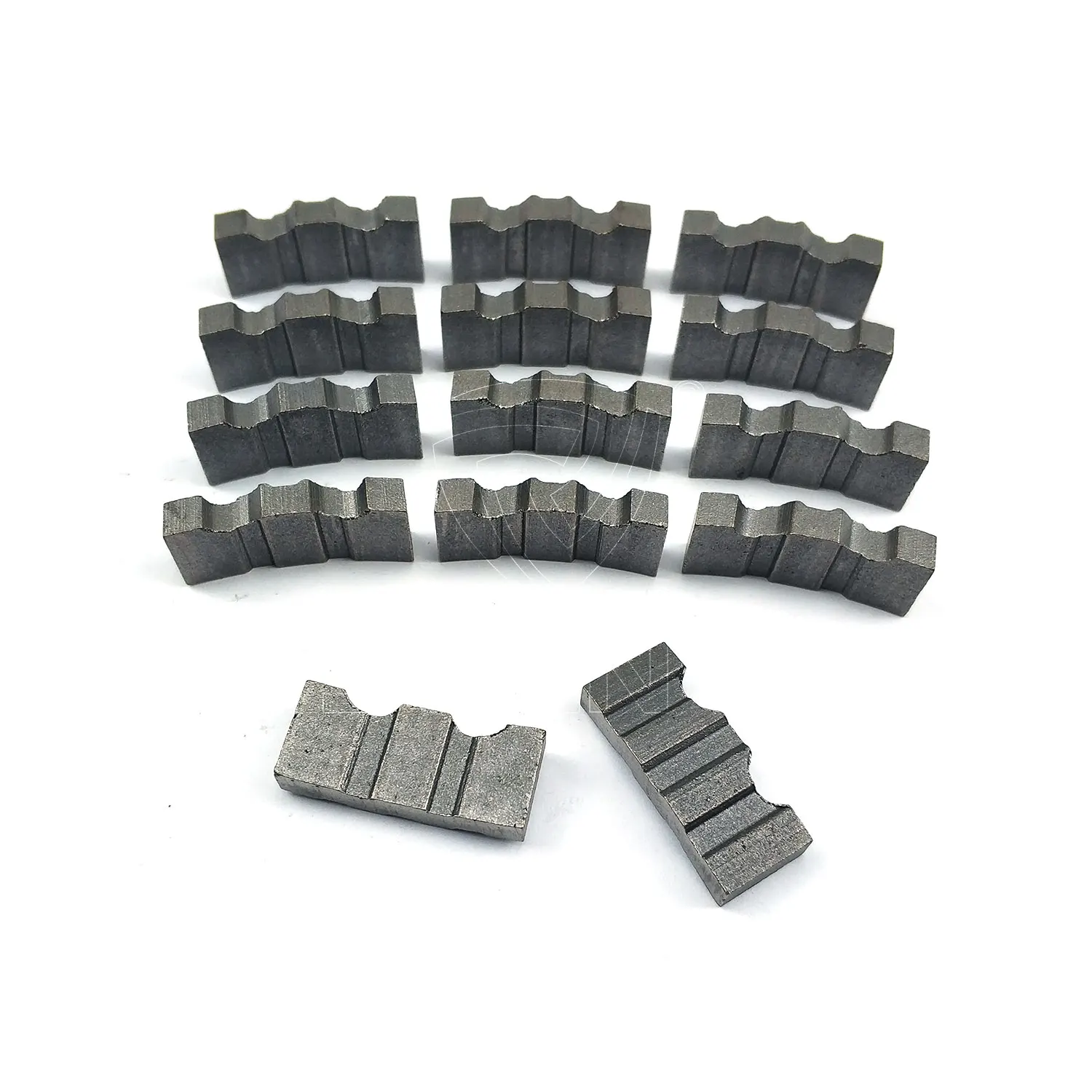

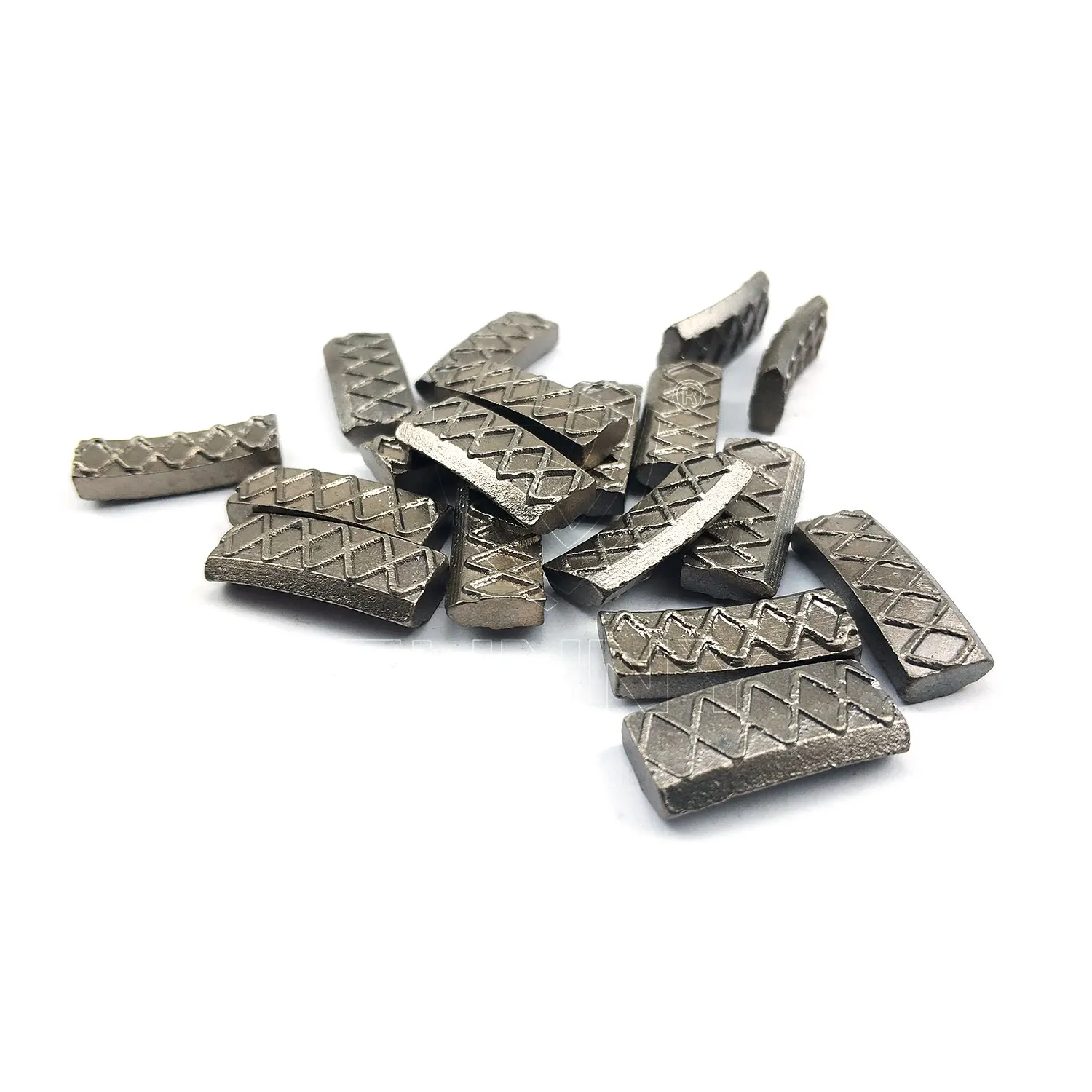

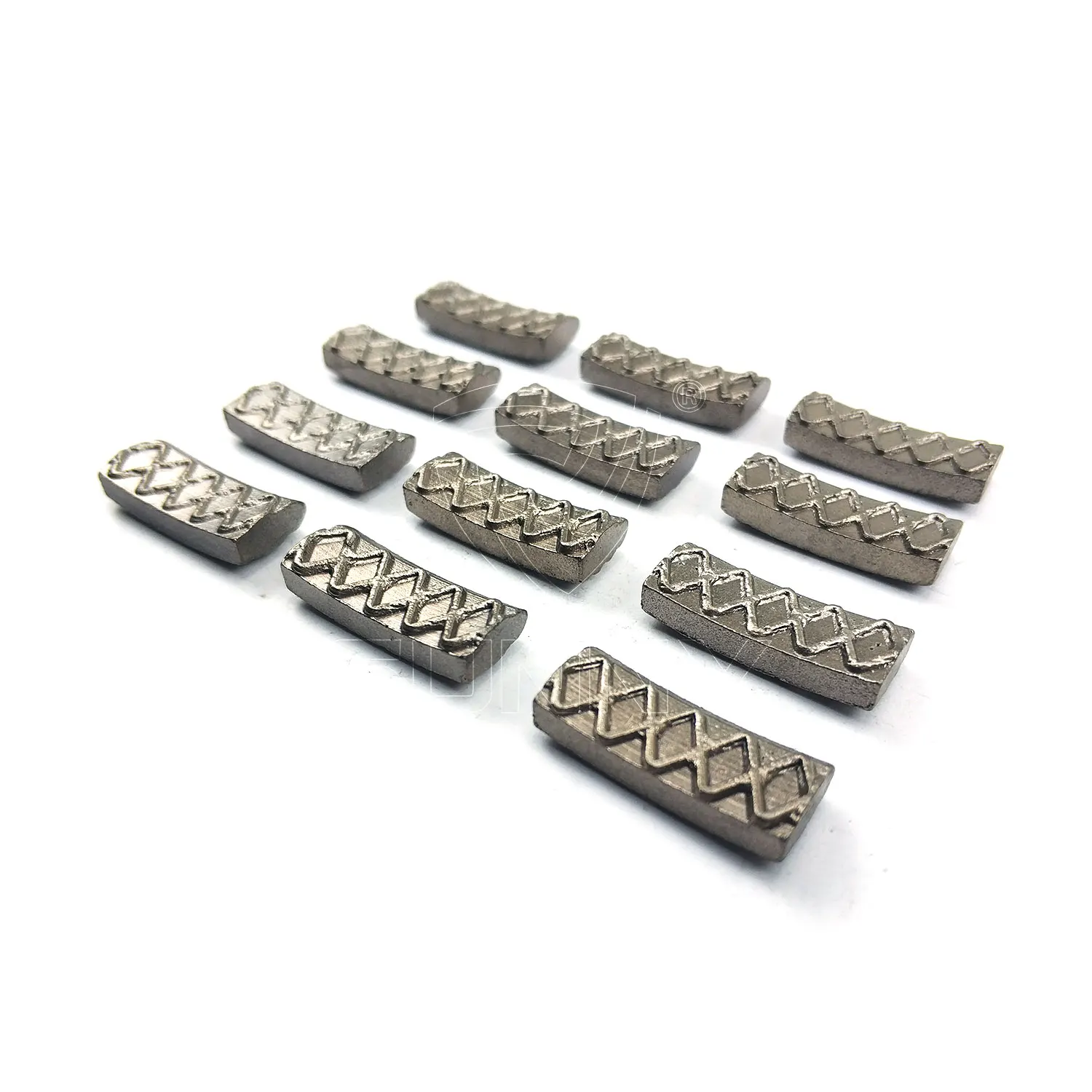

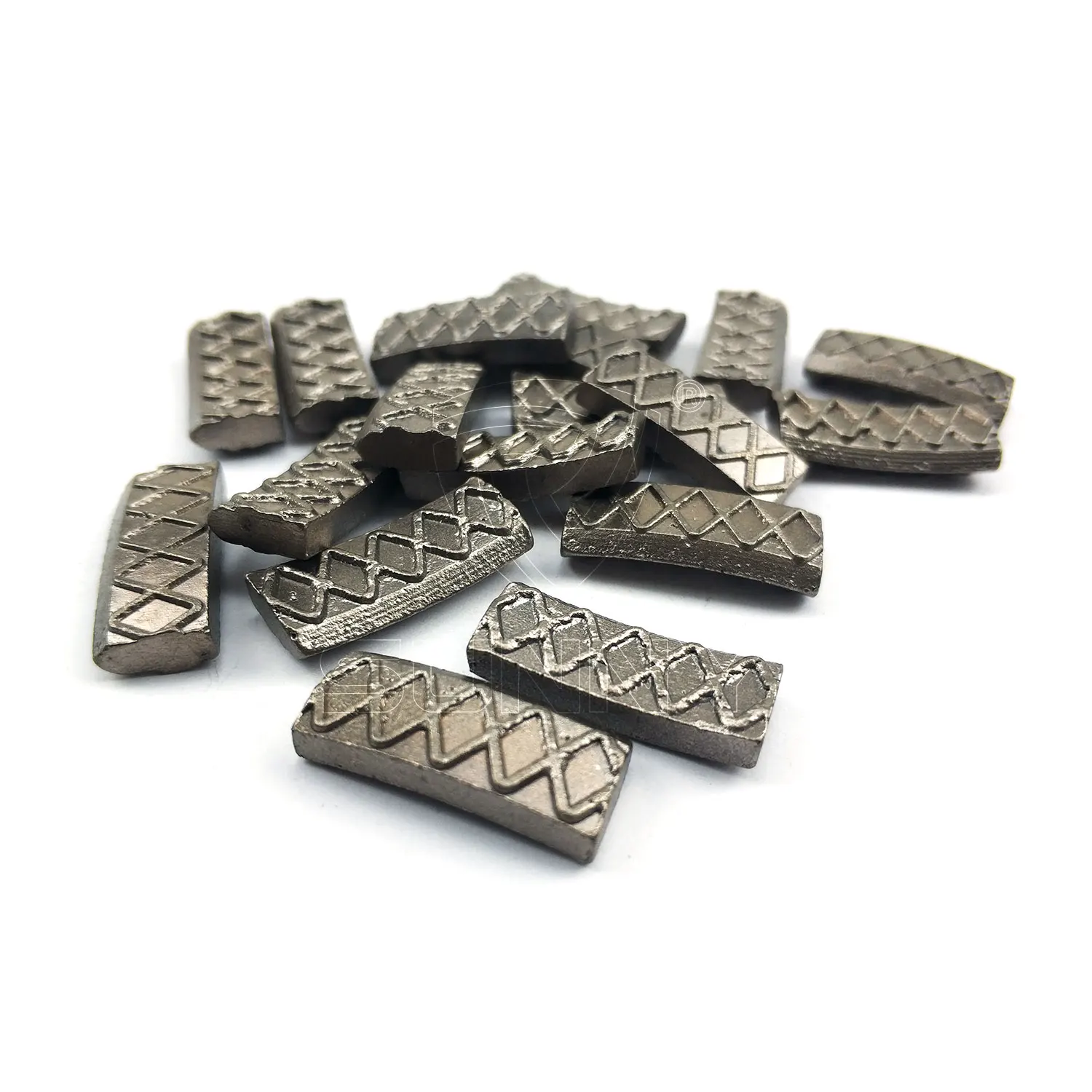

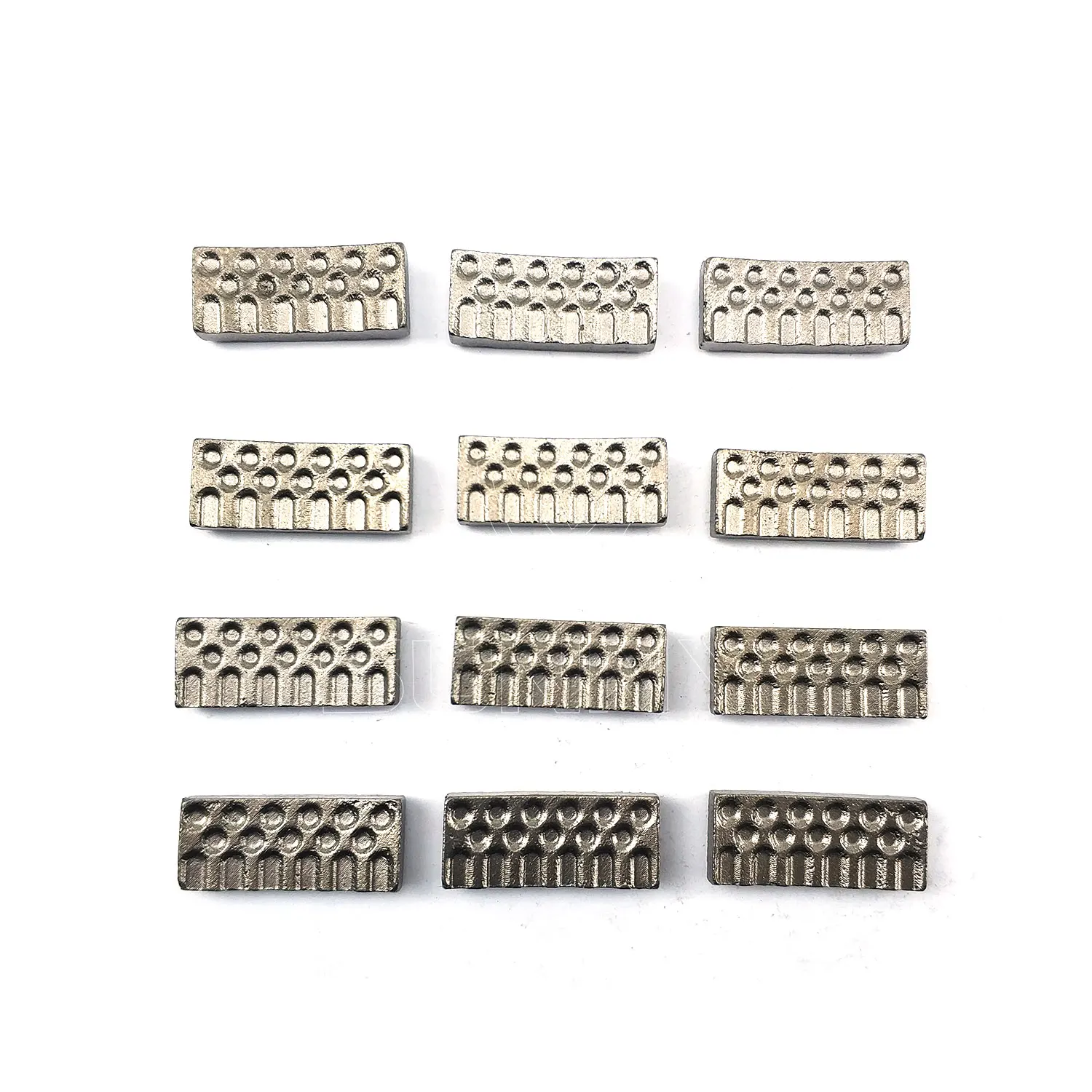

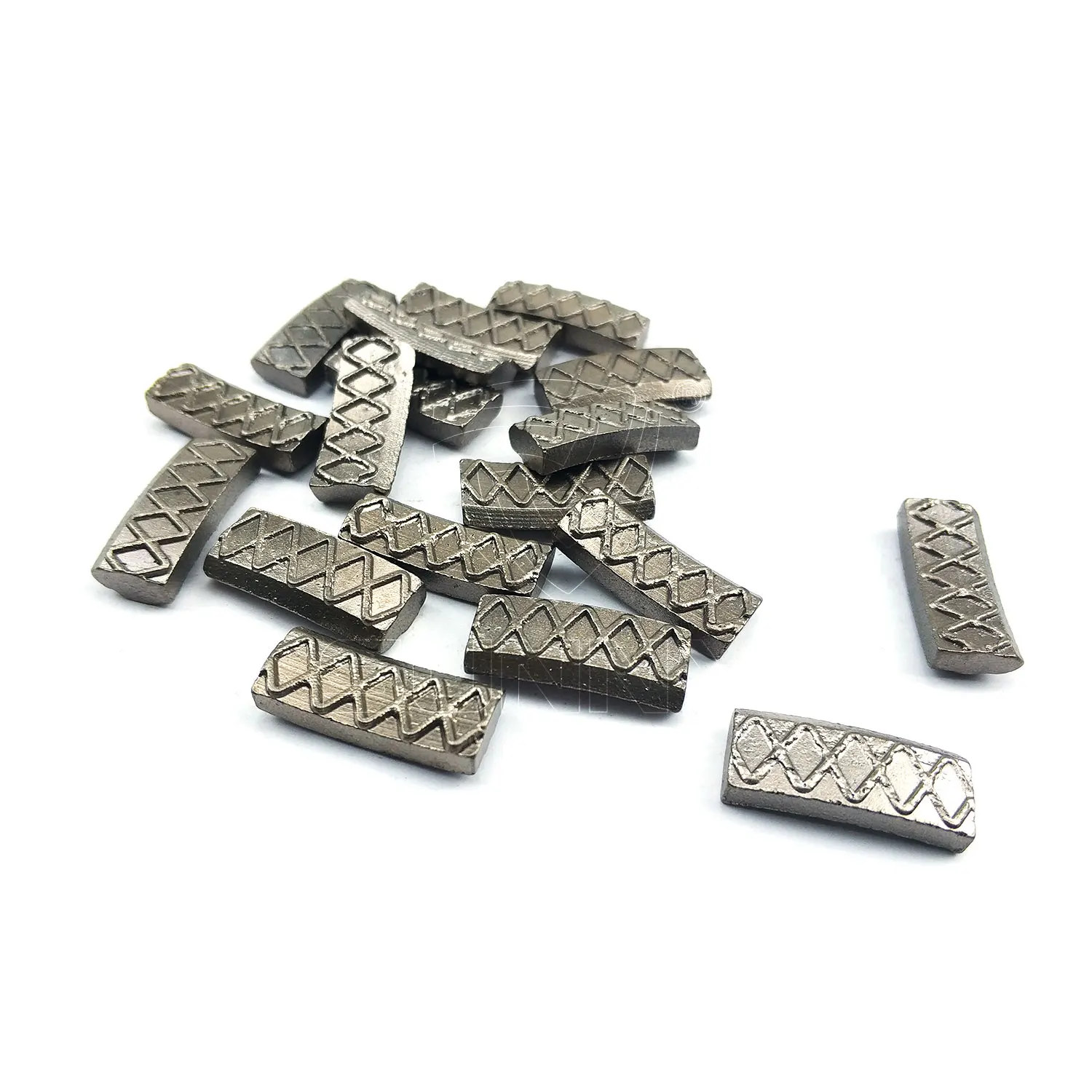

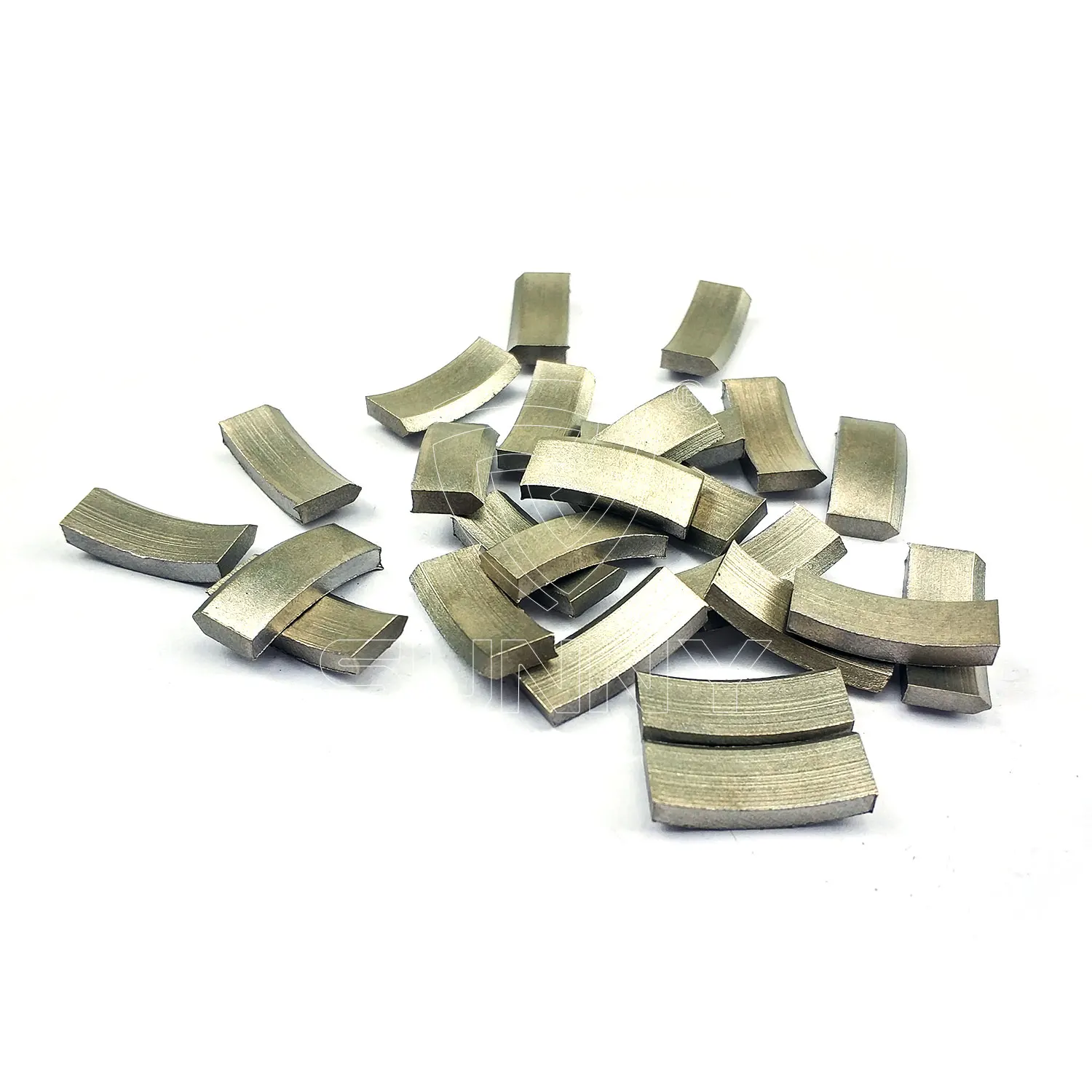

Diamond Segment Of Core Drill Bits For Stone And Concrete Drilling

Design idea for diamond segments:

1. The choice of diamond grit: Select according to cutting performance or grinding requirements. Diamonds grit for cutting segments are generally selected in the range of 30/35-70/80. The diamond grit selection for grinding segments is based on the requirements of surface glossiness. From coarse to fine, the diamond grit of metal bond is generally 30/35-325/400. more Fine grit are generally used in resin bond products.

2. The choice of diamond strength grade: The choice of diamond strength is related to the nature of the material being processed and the properties of the binder. Only when properly selected can the diamond perform optimally. Excessive strength tends to the diamond broken in inappropriate time lead to cutter loss sharp. while too low strength can cause premature diamond breakage and failure.

3. Diamond concentration selection: the diamond concentration is based on the grade of diamond, product price, processed material and product comprehensive performance to select and design.

4. The choice of binder: the comprehensive performance of the diamond segments is not only dependent on the diamond, but also depends on the overall composite property of the proper coordination of the properties of the diamond and the bond. The binder has the Fe base, the Cu base, the Co base and so on. The marble processing tool usually chooses the Cu or the Co base binder, the granite, the sandstone and so on, the choice of Fe based or Co base.

Features of Diamond Segment for Stone Cutting:

(1). Good cutting result: smooth cutting, flat surface and even size.
(2). Stable cutting, narrow cutting gap, stone waste reduction.
(3). Reduce cutting friction a lot, improve slab flatness, save energy.
(4). Quality: 90% of Italy Quality but only 30% of Italy Price .

Suggestion for Choosing the Diamond Segment:

(1). Please tell us what the material you want to cut with our diamond segment. Is it for cutting granite, marble, sandstone, limestone, lava stone, or anything else? When we get your information, our engineer will make the formular of the segment.
(2). Please inform us the diamond segment Size (L x W x H, if better to inform the Steel Core Thickness)
(3). If possible, Please tell us the power of the machine, we will give our advice of cutting speed, cutting depth, the linear speed and so on.
(4). If you have any special requirements about the delivery time and other things, pls tell us.
(5). The silver content of silver welding slice is no less than 35%.
