Stable performance steel flange forming machine,angle steel air duct flange forming machine line

Performance Features:

1.


   It’s controlled by servo motor and its feeding dimensions are accurate.





2.

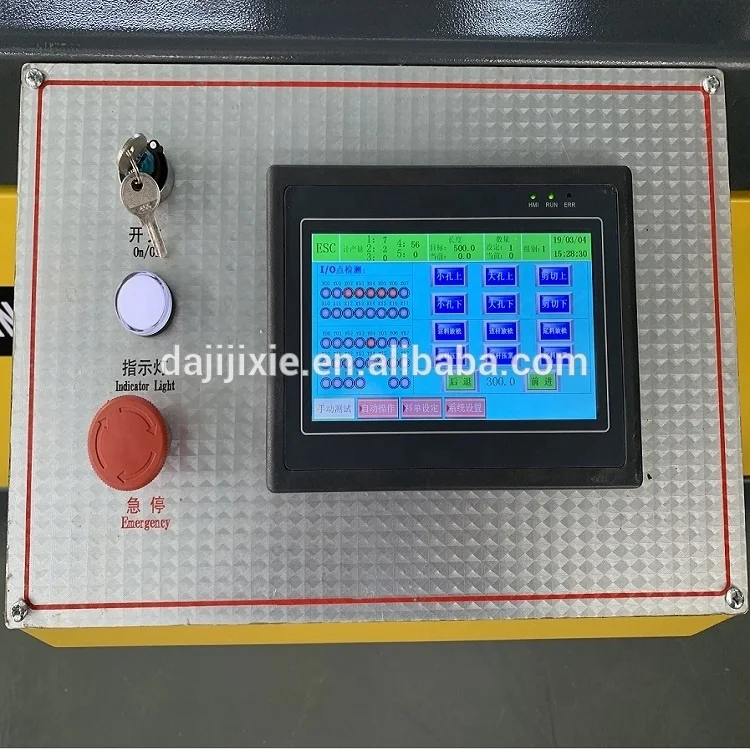

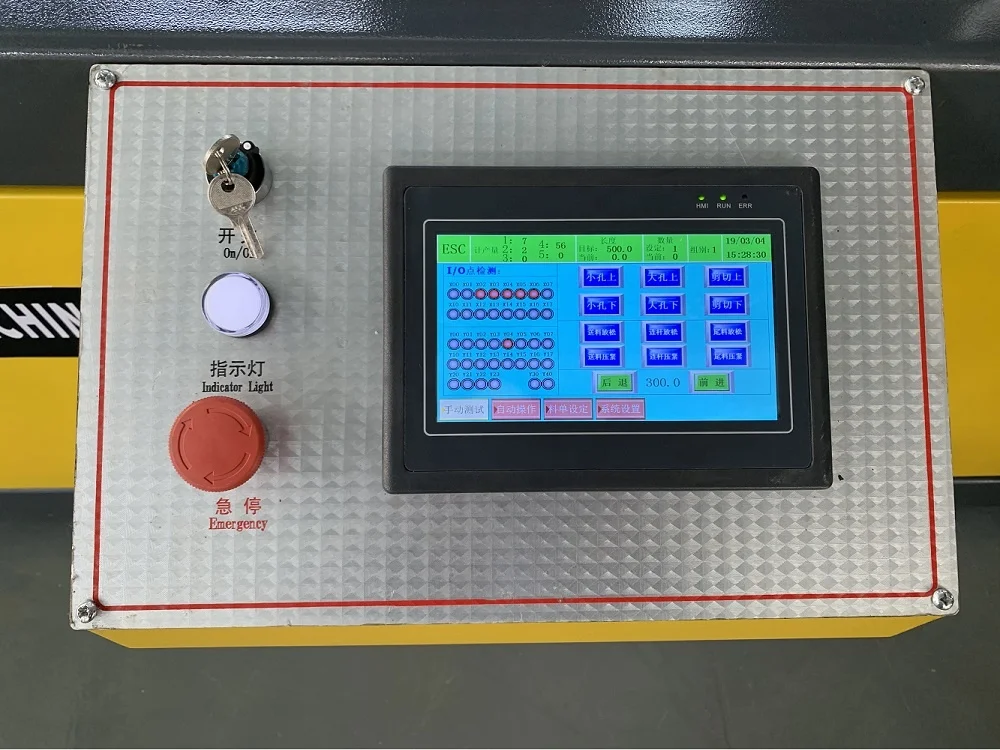

   It only requires to input the size of workpiece, how many holes to punch when programming, which is very easy to operate.





3.

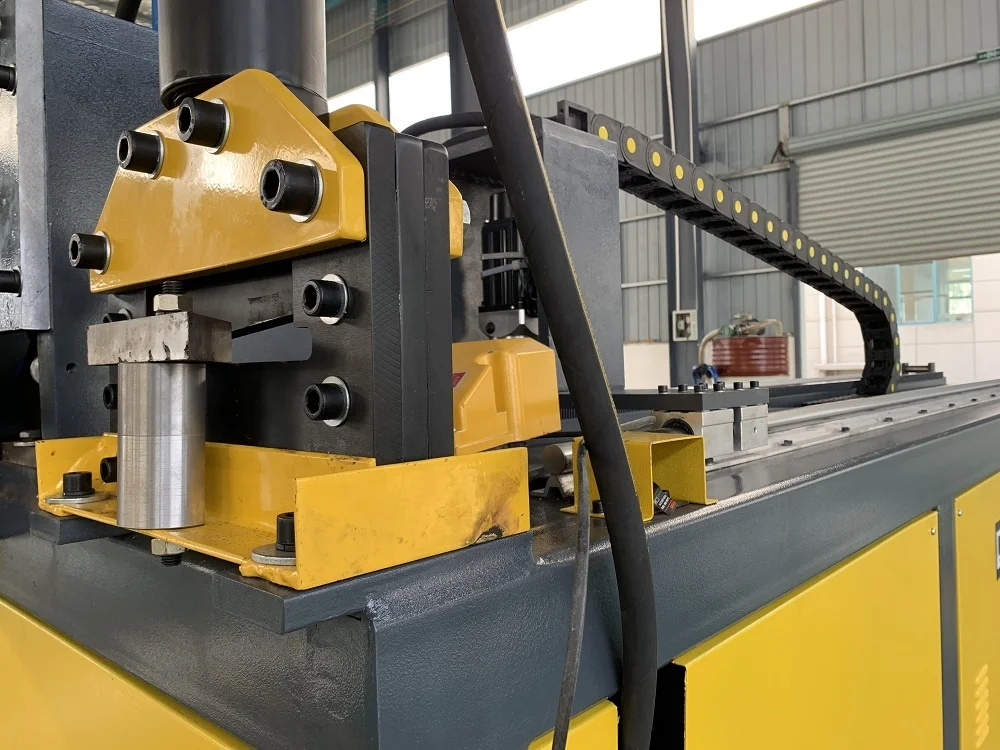

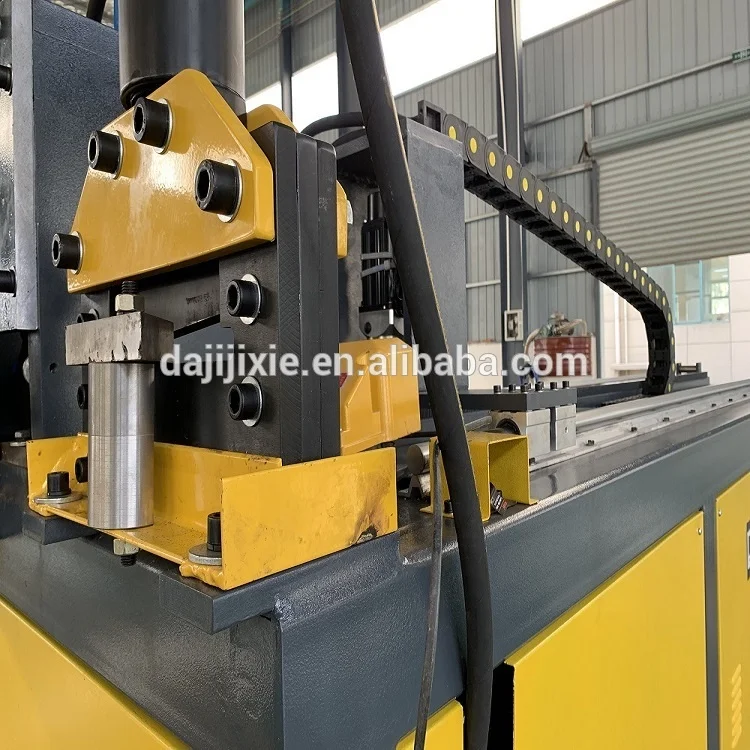

   The new design mold can complete the angle steel switching rapidly, and the punch is durable.









Function:

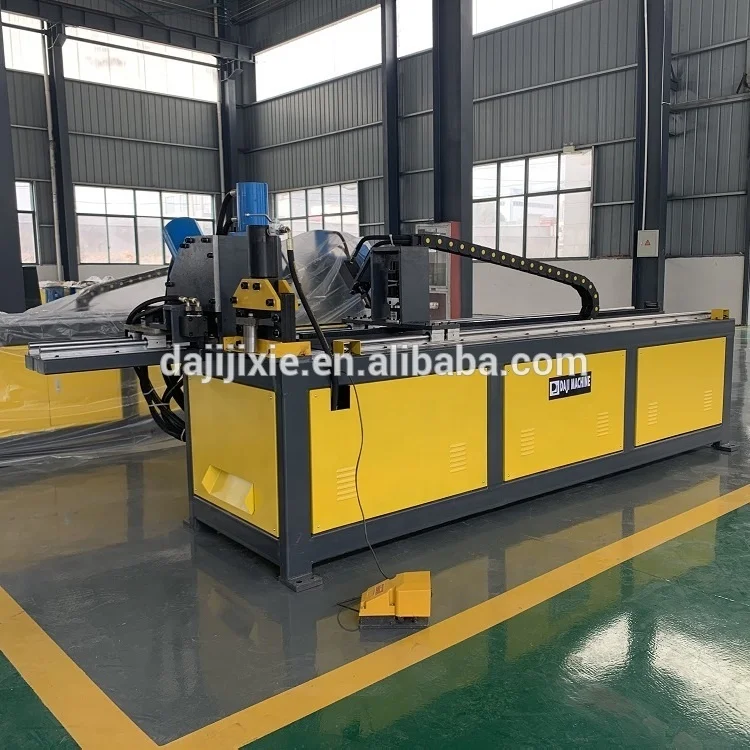

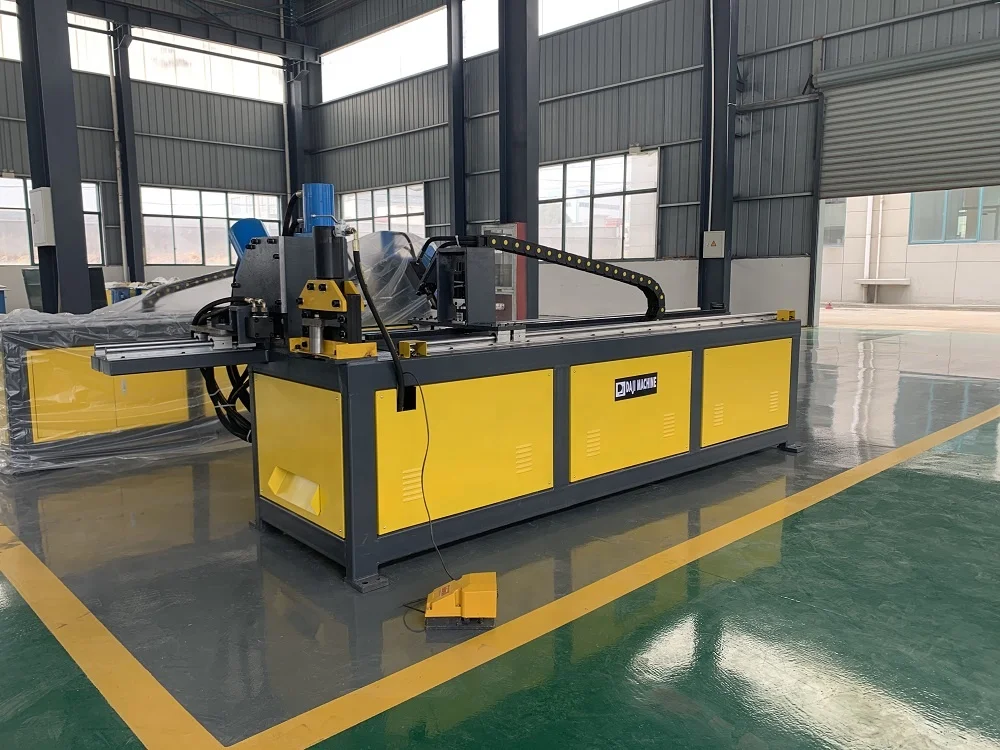

Fully automatic angle steel flange production line, or CNC angle steel flange production line, is mainly for punching and cutting duct angle steel flange. The machine are designed to feed,punch,cut automatically in order to save labor and improve efficiency. It’s very fast, accurate and highly automatic.

Main Configuration:

1.


   Taiwan hydraulic system.





2.


   Cutter and punching die which are both made of American  H13 material.





3.


   Servo motor-driven feeding system.




Main Technical Parameters:

1.

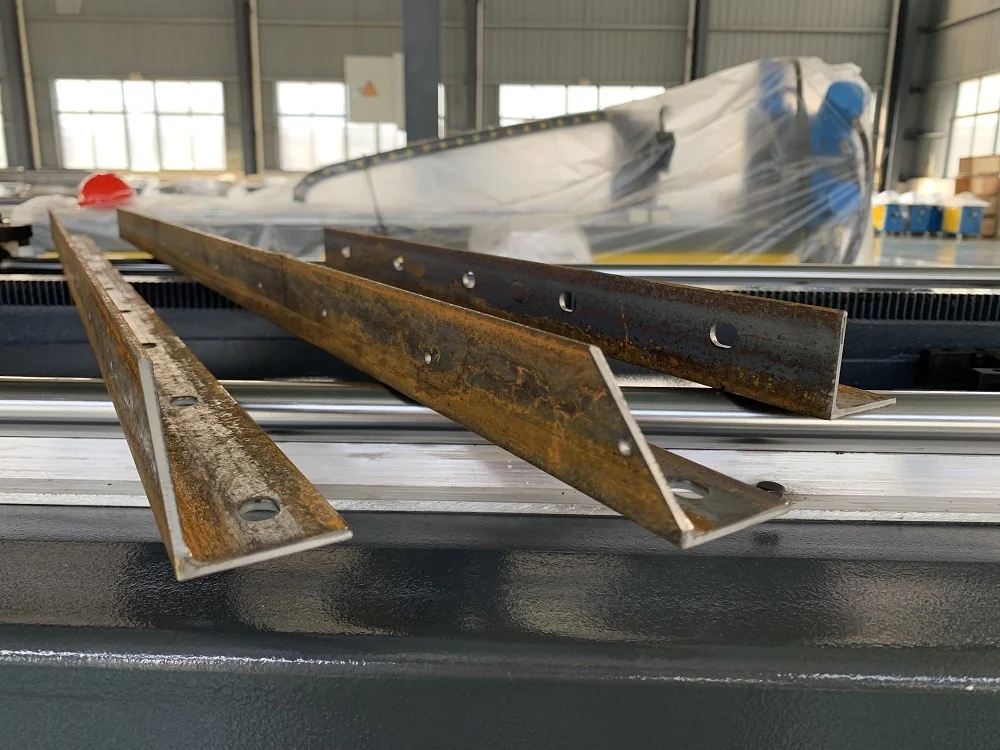

   Scale of angle steel to process:#3-#5 angle steel.





2.


   Common punching size:big-sized 9x13mm, small-sized 4.2/5.2mm.





3.


   The number of punches which can be installed simultaneously:2.





4.


   Common length of angle steel:6000mm.





5.


   Machining accuracy not more than: 0.5mm





6.


   Feeding speed of angle steel: 15-20m/min




Details Images:

Packaging

Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.

Shipping

For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
