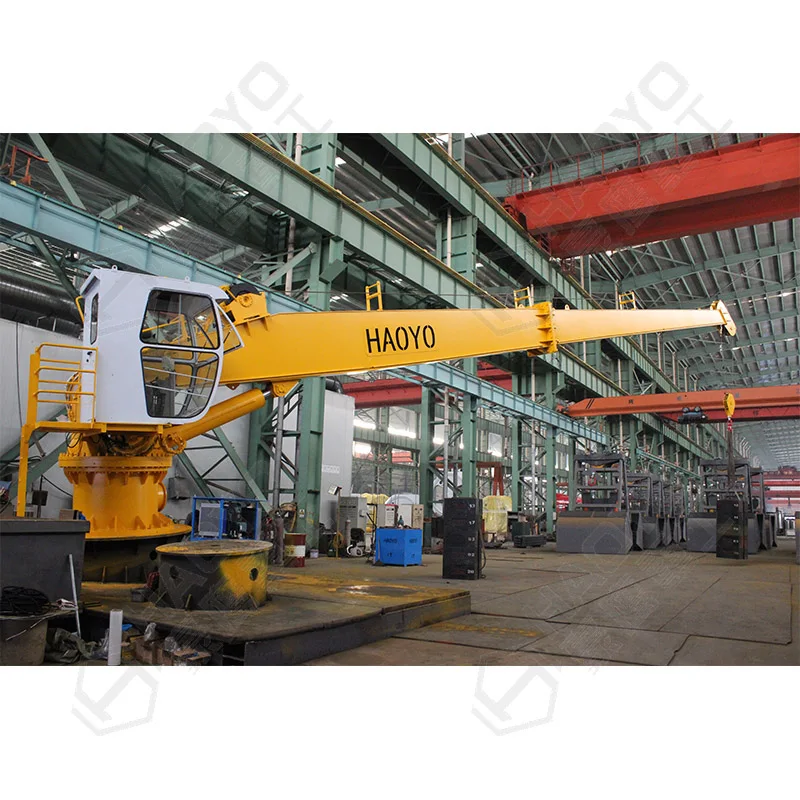

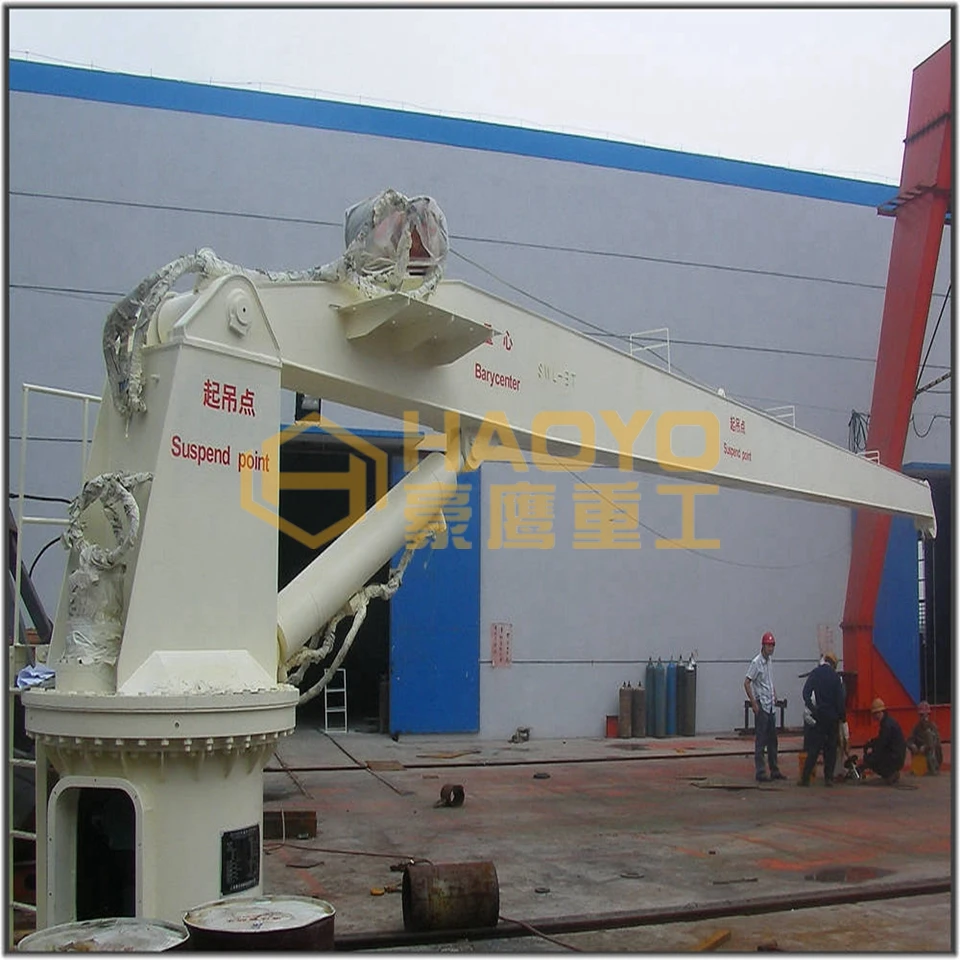

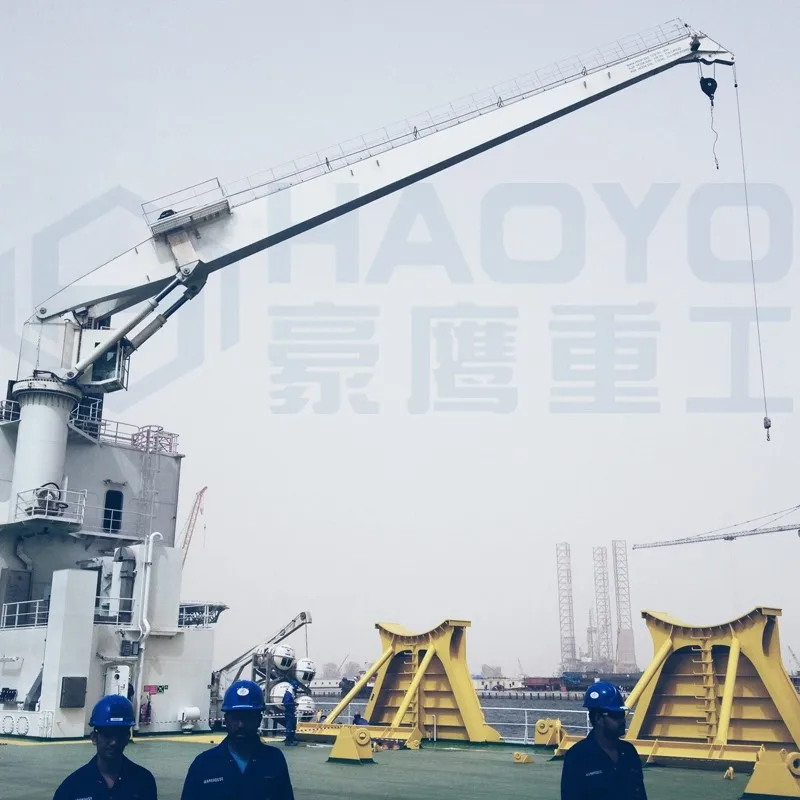

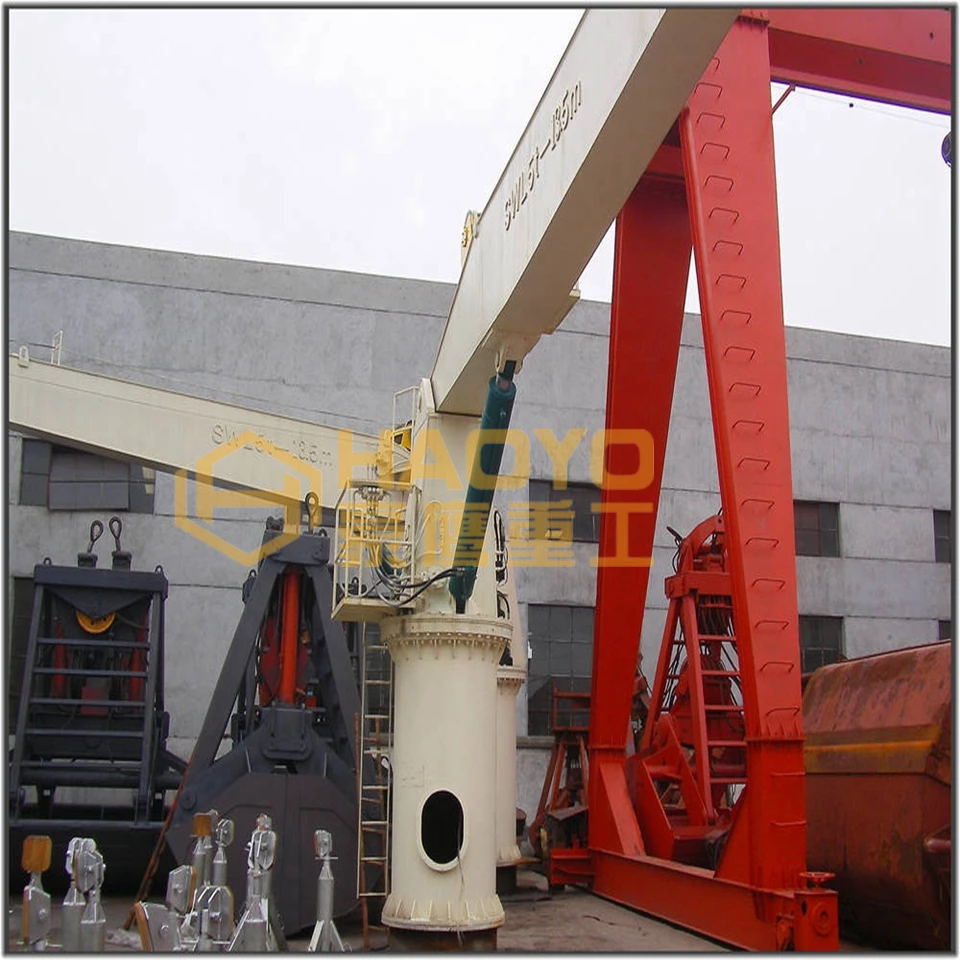

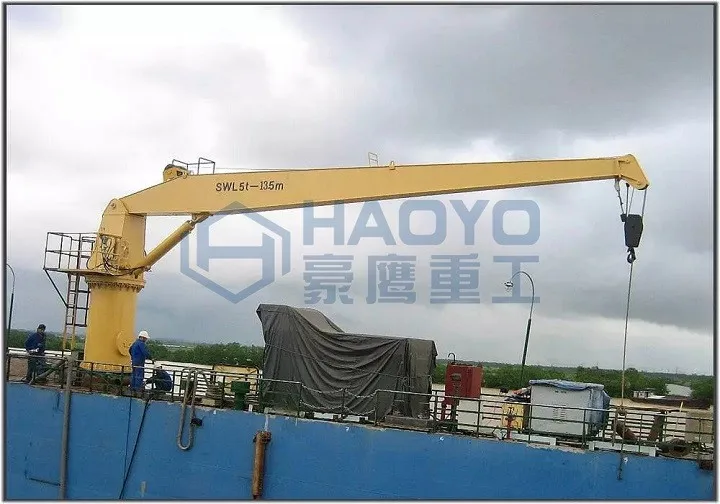

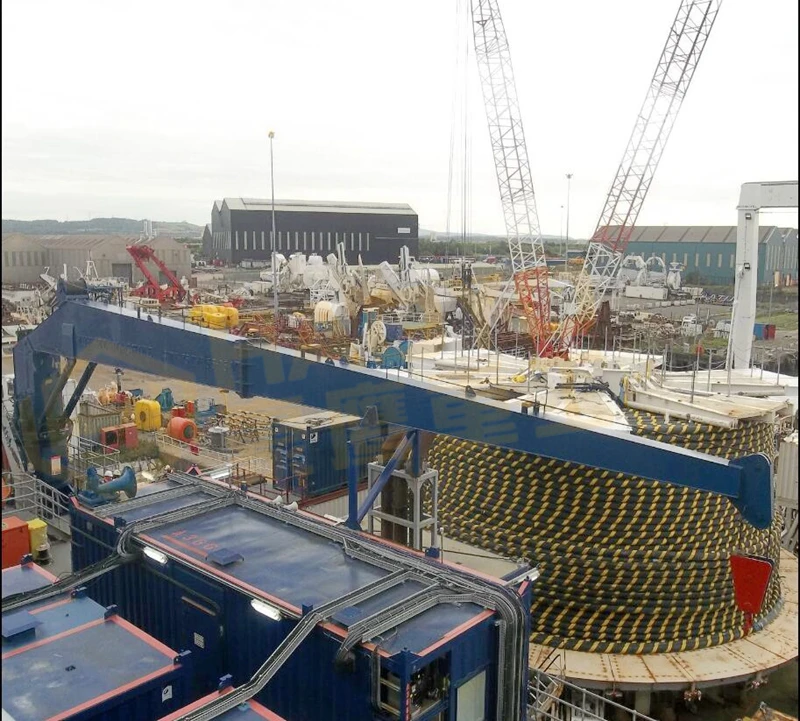

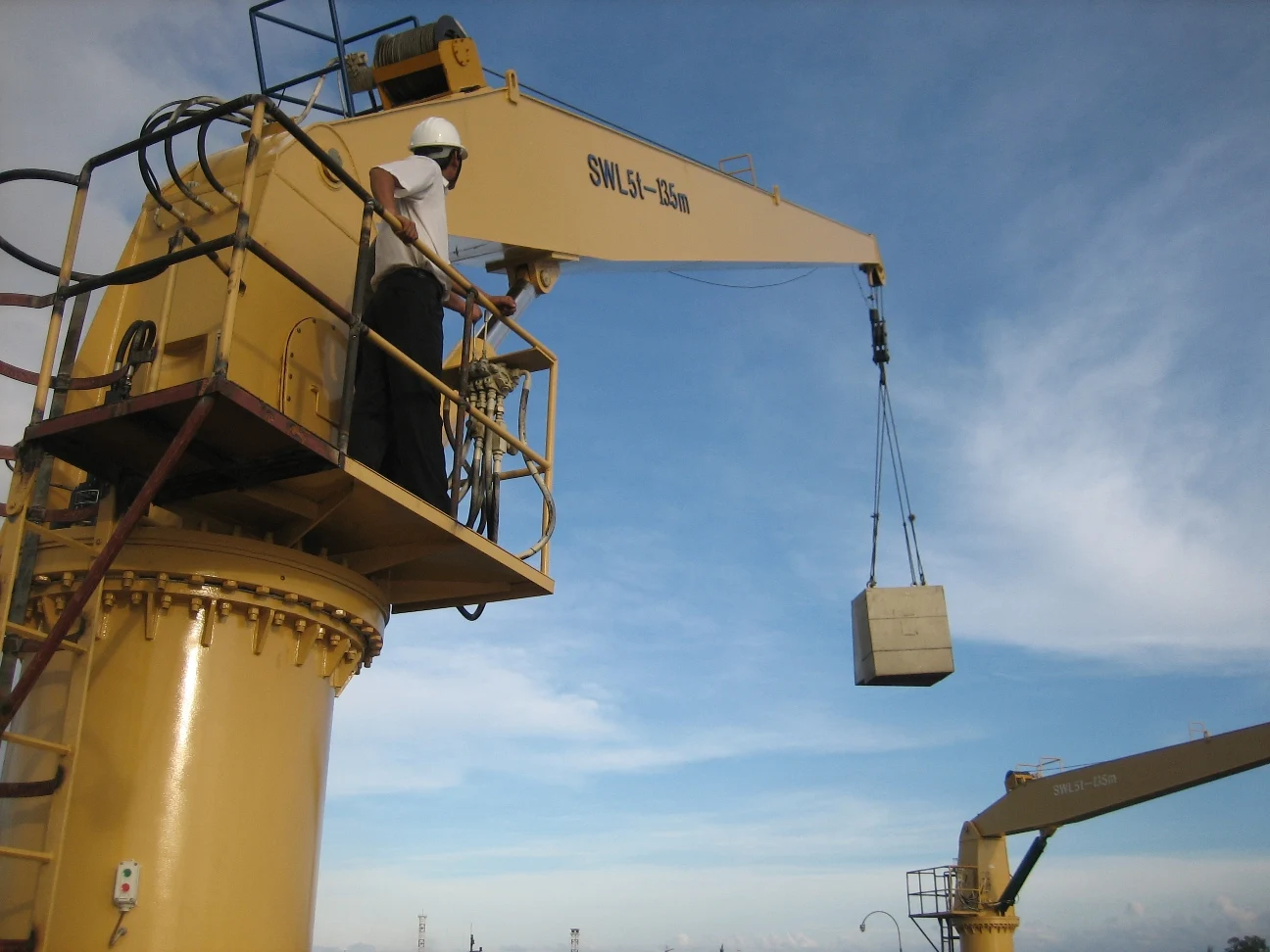

Small Ship Deck Crane For Boat Marine Crane For Sale
HAOYO stiff boom cranes are suitable equipped on the deck for bulk cargo ships or offshore or dock with enough free space. Compare to the knuckle boom crane and telescopic crane, it's price and maintenance cost is the lowest.And it work reliable with the heavy weight.If you need other type crane pls contact me let's talk details
MODEL | Outreach(M) | Safety Load(kN) | Lifting Moment(kNm) | Toal Moment (r/min) | Pedestal Diameter (mm) | Dead Weight (t) |
CS200 | 6-16 | 3.5-0.9 | 144-210 | 270 | 885 | 2.7-3.2 |
CS400 | 6-16 | 5.6-1.7 | 288-336 | 424 | 885 | 3.2-3.7 |
CS600 | 6-20 | 10-2.3 | 460-600 | 737 | 1095 | 4.4-5.5 |
CS 900 | 6-20 | 14.2-3.2 | 640-852 | 1039 | 1325 | 5.9-7.0 |
CS1200 | 6-24 | 19-3.5 | 840-1140 | 1409 | 1490 | 7.8-10.2 |
CS1500 | 7-24 | 20.3-4.6 | 1104-1421 | 1765 | 1490 | 9.2-11.3 |
CS1800 | 7-24 | 25.6-5.4 | 1296-1792 | 2202 | 1770 | 11.4-14.1 |
CS3000 | 21 | 12.5 | 2625 | 3750 | 1775 | 24.8 |
CS220 | 27,5 | 20,0 | 2200 | 4000 | 1800 | 15 |
CS300 | 30 | 25 | 3000 | 5000 | 2065 | 17.5 |
CS400 | 32 | 30 | 4000 | 6300 | 2050 | 20 |
CS500 | 35 | 35 | 5000 | 8000 | 2240 | 25 |
CS800 | 40 | 50 | 8000 | 11500 | 2271 | 45 |
STANDARDS | OPTIONS |
Manual | Radio remote control |
Continuous rotation system | Customized angle |
Seat | Operator's cabin with fan, heater, wiper and chair etc. |
Cooling system for hydraulic oil | Heating system for hydraulic oil |
Overload protection | Torque limiter |
Double primer coat and two layers painting | Customized painting |
Winch | Emergency stop protection and alarm device |
Crane Details
Motor
SIEMENS or ABB motor has IP56 level
Electric
Schneider/Muller for safety IP56 level
Self-Lubricating Bearing
Wear-resistant copper &Antiseptic
Control Valve Group(Italy)
Danfoss/HC smooth&precise control
Hydraulic Tube
Surface chrome, Eaton hose
Rotary Motor
Quality Rotary motor with reducer
Why Choose Us
ABOUT US
Focus marine crane for 15 years
CERTIFICATION
Meet almost all certification
PARTNER
Use best parts and materials
24 HOUR RESPONSE
Respond to customer any time
WELDING CERTIFICATION
All workers have welding certificates

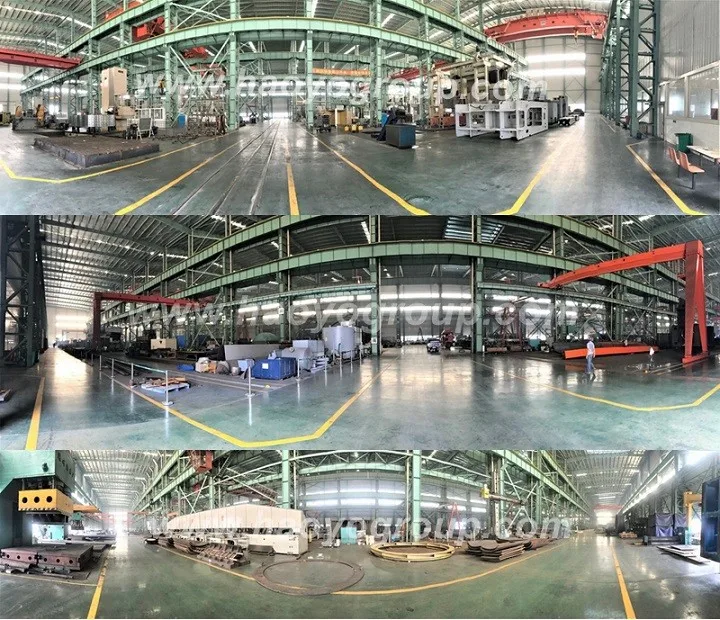

MACHINING
Machining that other suppliers can't
Our Certifications
More Products
FIXED BOOM CRANE TELESCOPIC CRANE KNUCKLE CRANE FOLDING CRANE
IF YOU WANT MORE INFORMATION PLEASE CLICK THE PICTURE
FAQ
Please provide following necessary information,so we can quote right Model crane.
1. What kind of marine crane do you need(stiff boom crane, telescopic boom crane knuckle boom crane knuckle telescopic crane or folding boom crane )
2. Crane SWL requested(___ T/___M)
3. Max. working radius of the crane(___M)
4. The crane will be used on ship, offshore platform or fixed platform (motor 380V or 440V)
5. If you have any other special request for the crane, please advise us, we will design the suitable model for you.
1. What kind of marine crane do you need(stiff boom crane, telescopic boom crane knuckle boom crane knuckle telescopic crane or folding boom crane )
2. Crane SWL requested(___ T/___M)
3. Max. working radius of the crane(___M)
4. The crane will be used on ship, offshore platform or fixed platform (motor 380V or 440V)
5. If you have any other special request for the crane, please advise us, we will design the suitable model for you.
