Stainless steel medicine rotating drum premix mixer blender mixing machine
Application:
Double cone mixer is used to mix dry powder or granules for pharmacy,food, chemical and other relative industries.
Stainless steel medicine rotating drum premix mixer blender mixing machine
Features:
1) High mixing efficiency.
2) Free of dead corner.
3) even mixing.
4) Safty bar can be added.
5) Forced agitator can be added.
Stainless steel medicine rotating drum premix mixer blender mixing machine
Technical data:
Model
BSW-180
BSW-300
BSW-500
BSW-1000
BSW-1500
BSW-2000
BSW-2500
BSW-3000
BSW-4000
Full volume(m3)
0.18
0.3
0.5
1.0
1.5
2.0
2.5
3.0
4.0
Mixing time(min)
4-8
6-10
6-10
6-10
6-10
6-10
6-10
6-10
6-10
Turning speed of cylinder(rpm)
12
12
12
12
12
12
12
7.8
7.8
Power(kw)
1.1
1.1
2.2
4
4
7.5
7.5
7.5
11
Overall size of Main frame(L×W×H)(mm)
1400×
800×1850
1685×
800×1850
1910×
800×1940
2765×
1500×2370
2960×
1500×2480
3386×
1900×3560
3386×
1900×3560
4450×
2200×3600
4750×
2500×3680
Gross rotation height(mm)
1850
1850
1950
2460
2540
3650
3650
3700
3730
Weight(kg)
280
310
550
810
980
2150
2150
2500
3200

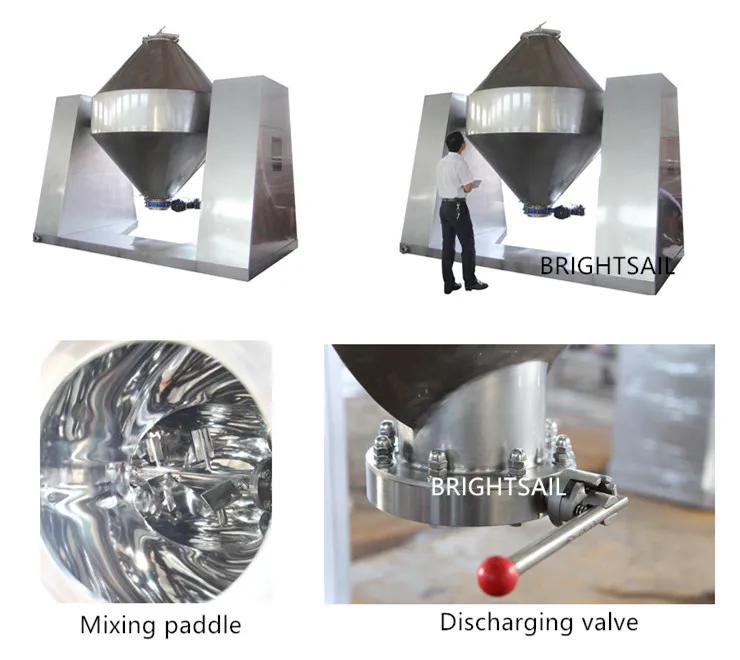

Detail shows:
Remark:

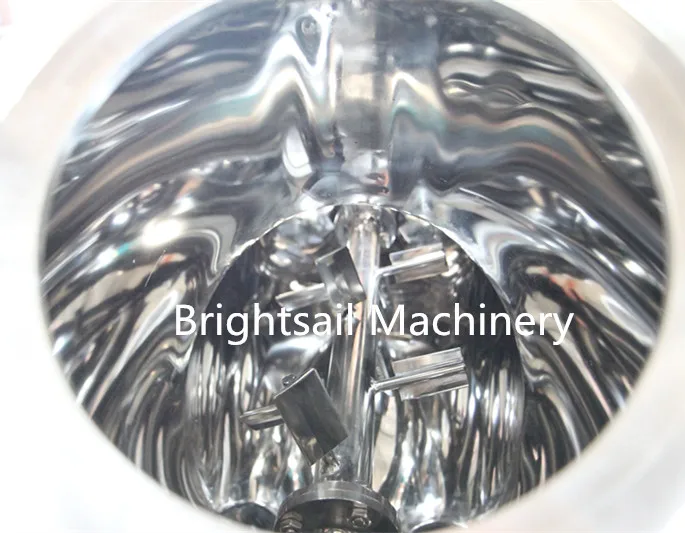

Forced agitator (mixing paddle) within the Double Cone Blender
Forced agitator inside the cone tumble blender can make mixing effect better.
Packaging & Shipping
Stainless steel medicine rotating drum premix mixer blender mixing machine
Packaging Details:
Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.
