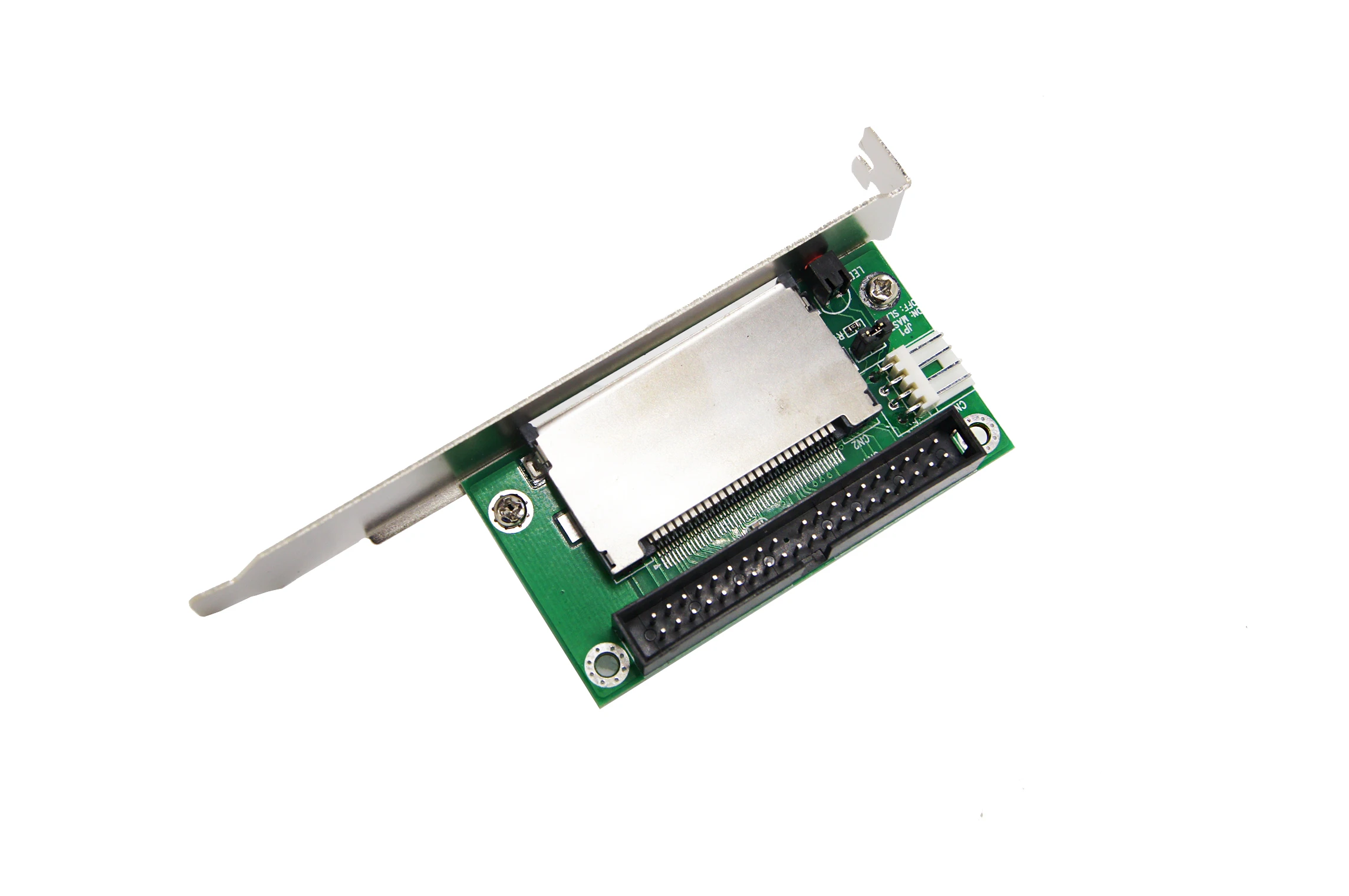

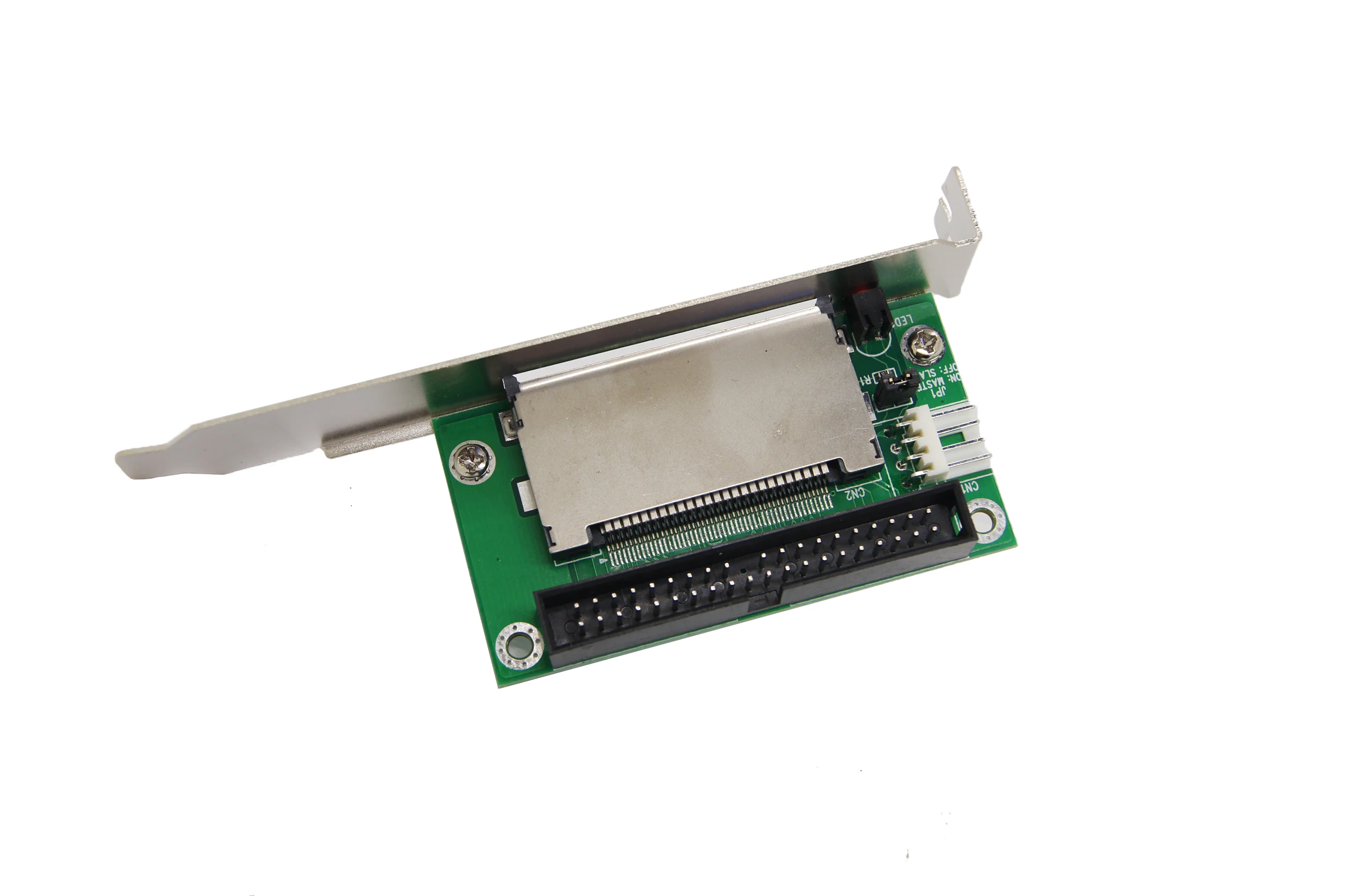

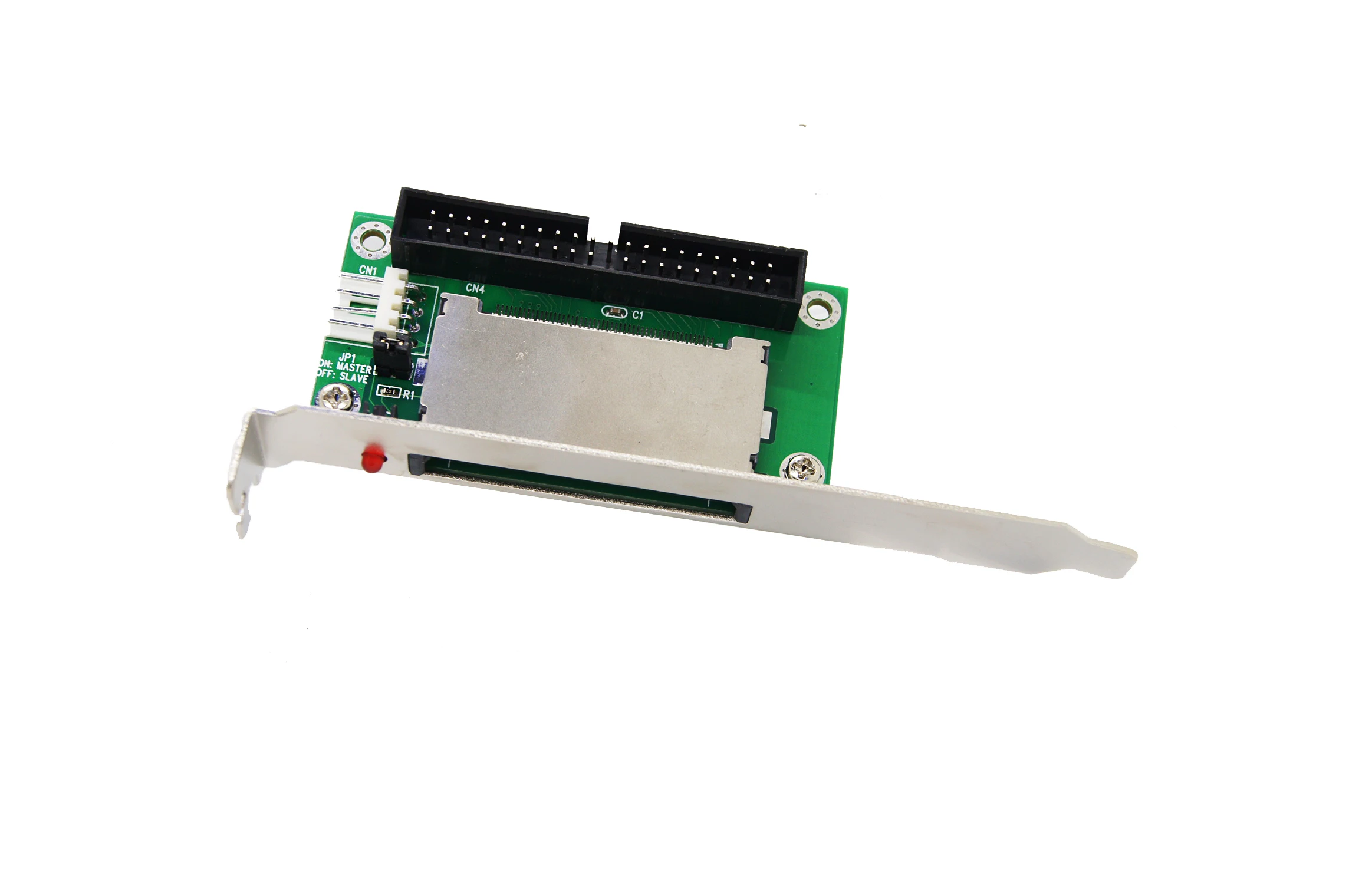

CF to 40pin IDE Adapter Card Desktop 3.5 IDE with Bezel
Product Description
The Compact Flash (CF) card is a removable solid state electronic disk with a standard IDE interface. It is a small body
A large capacity electronic disk. We have developed a series of CF to IDE adapters to make it easy to use CF cards on standard IDEs.
The CF card is a low-priced electronic card that is widely used in notebook computers, personal digital assistants (PDAs), and portable.
Or industrial equipment. In the electronics factory, people use the CF card as a micro hard disk to store the test software, because the computer power is frequently turned on/off.
Easy to damage traditional mechanical hard drives.
Performance characteristics:
* Compliance with standards: CF specification Ver3.0, IDE/ATA-66 specification.
* Standard IDE interface: true-IDE mode, and supports DMA-66 transmission mode.
* Supports CF-I and CF-II two types of cards: IBM micro hard disk that also supports CF-II interface.
* The IDE interface is a 40-pin/2.54mm female connector: this card can be plugged directly into the IDE socket.
* With LED indicator: power (power LED), CF access (active LED), card is inserted (card detect LED).
* Master/slave jumper: Can be configured as master or slave.
* Use the CF card as a DOM: Automatically power from the IDE's 20-pin or external floppy drive power supply.
* 5.0V or 3.3V power supply: Select the appropriate power supply voltage according to your CF card.
The main purpose:
Computer peripheral equipment manufacturers use CF-IDE cards with CF cards to test motherboards, sound cards, graphics cards and other products. Needed in these occasions
Turn the power on/off frequently. Traditional mechanical hard drives are easily damaged. CF is an electronic hard disk, in principle with a mechanical hard disk
Very different, it is not easy to damage in these occasions.
Portable instruments using embedded X86 or RISC cores usually have an IDE interface, if the CF card cannot be directly connected to these instruments
On this device, you can use this adapter to complete the transfer.
Personal computers (PCs): These computers are usually X86 cores, which is the main platform for the card, some digital cameras have
CF card interface, you can access your picture data through this card on the desktop.
Industrial PCs use this card in conjunction with a CF card to store embedded operating systems such as embedded LINUX or WIN CE.
