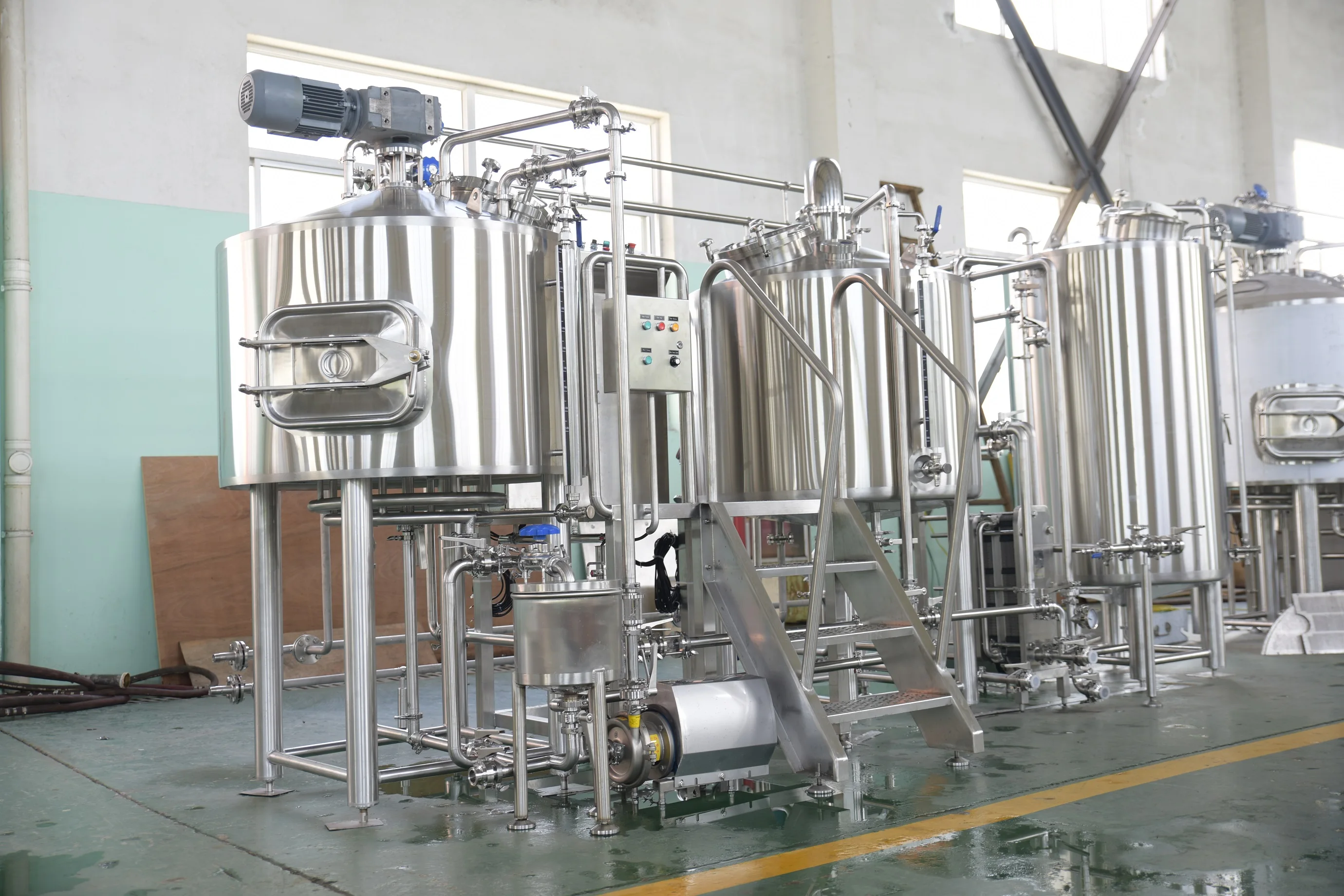

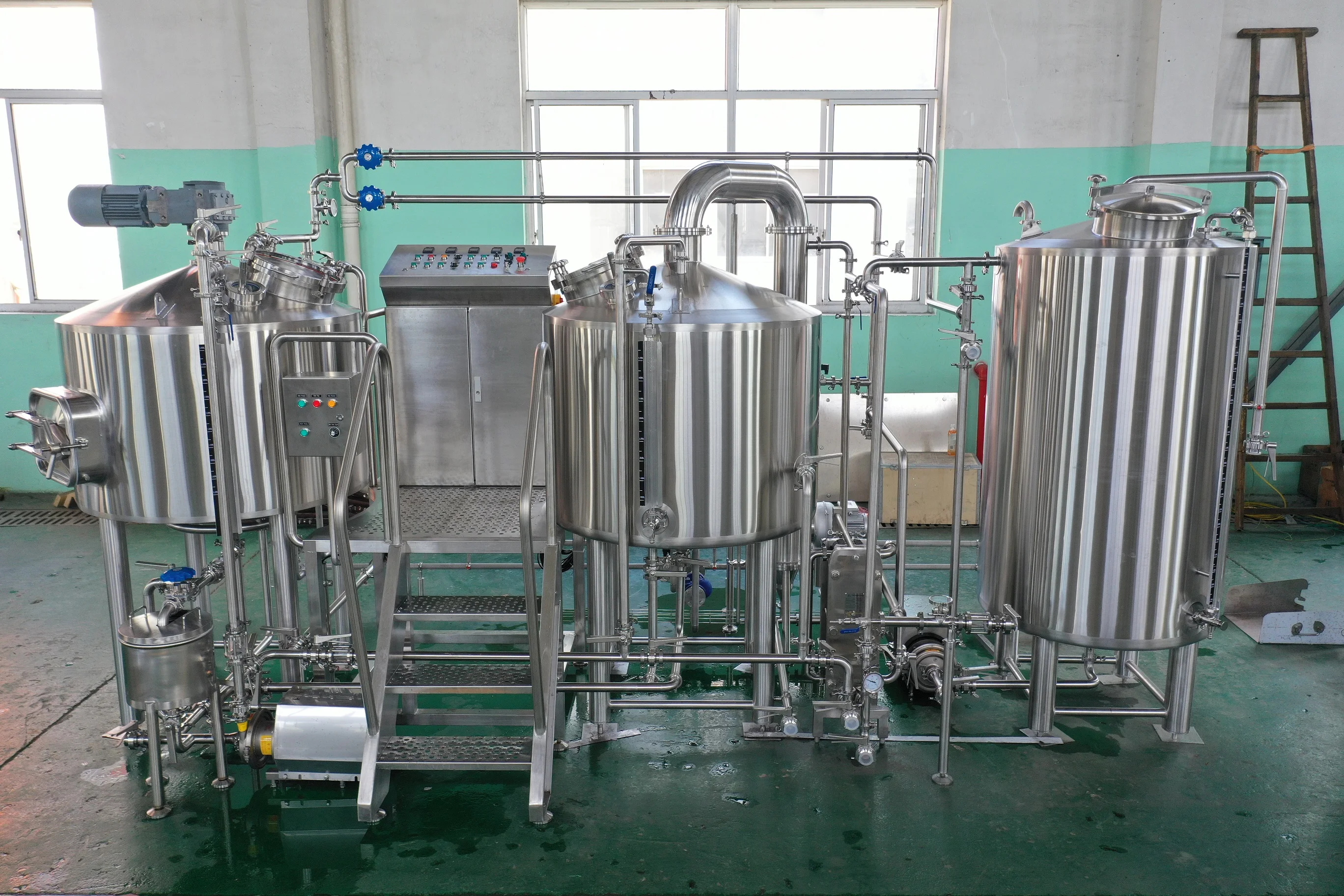

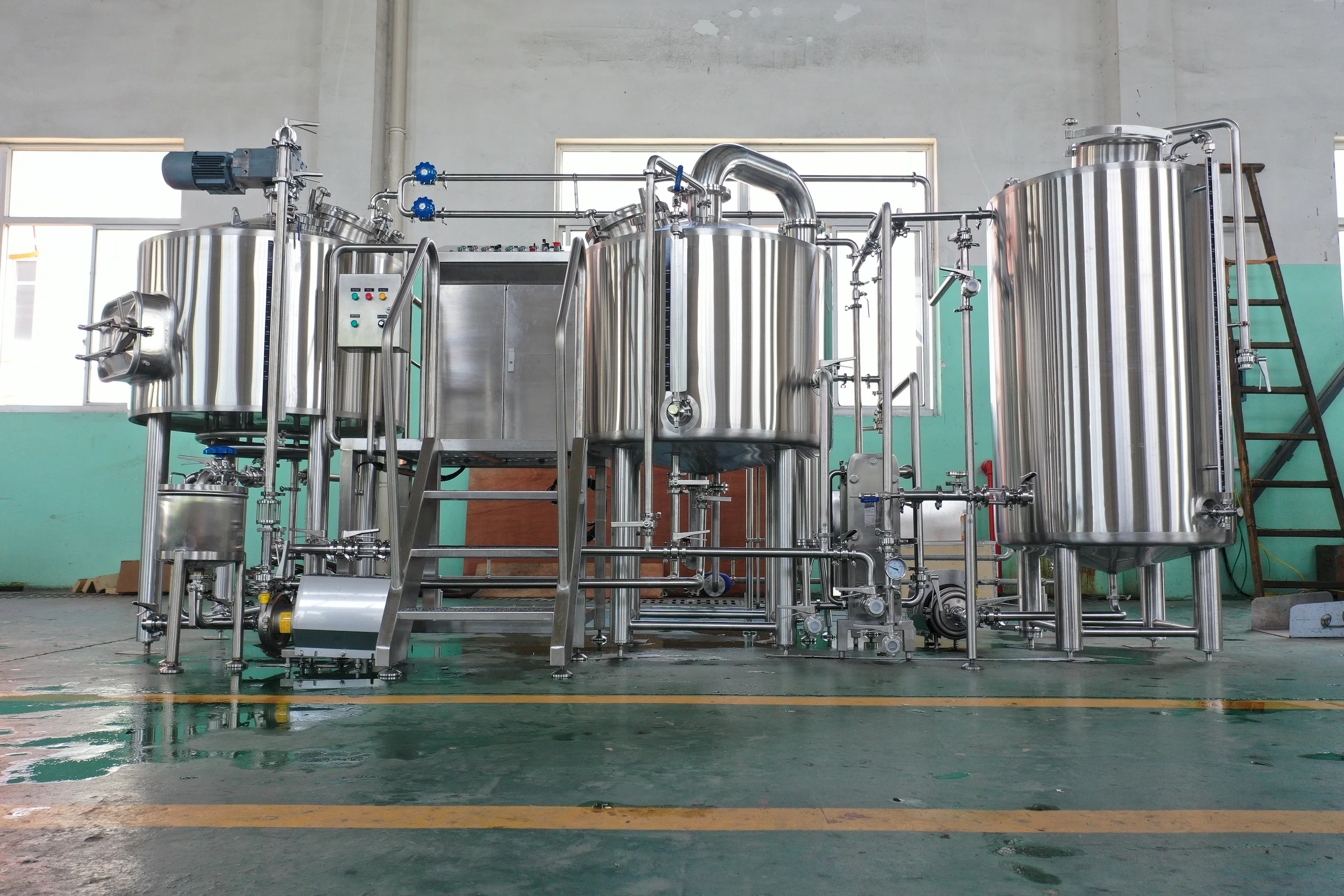

300L Mini Beer manufacturing Equipment | Beer brewing machinery | Microbrewery beer making plant

Name: Malt milling system
Brand: NFE
Original: China
Malt System: MILL MACHINE, FLEX AUGER, GRAIN BIN, GRIST HOPPER
Mill Machine: 80-150kg/h, 300-500kg/h, 500-800kg/h, 800-1000kg/h
Flex Auger: PPR material pipe, stainless steel auger, motor
Grist Hopper, Grain bin

Part Two

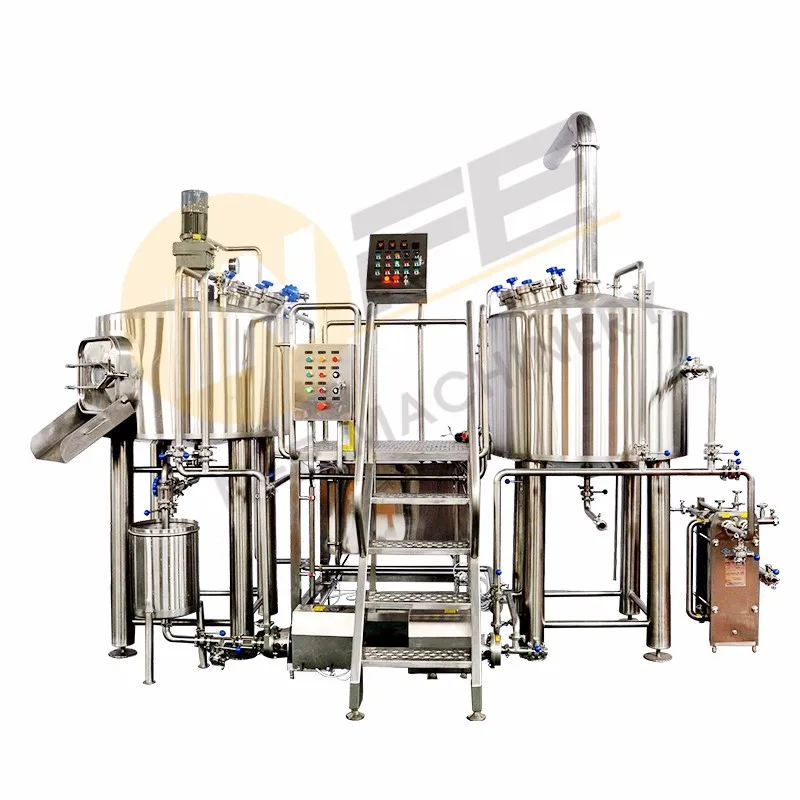

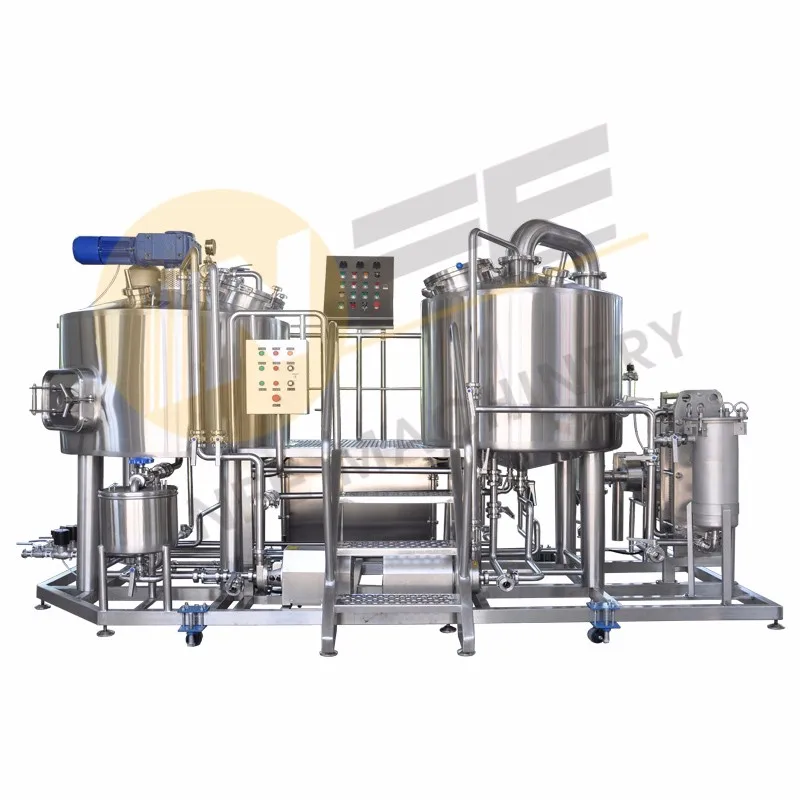

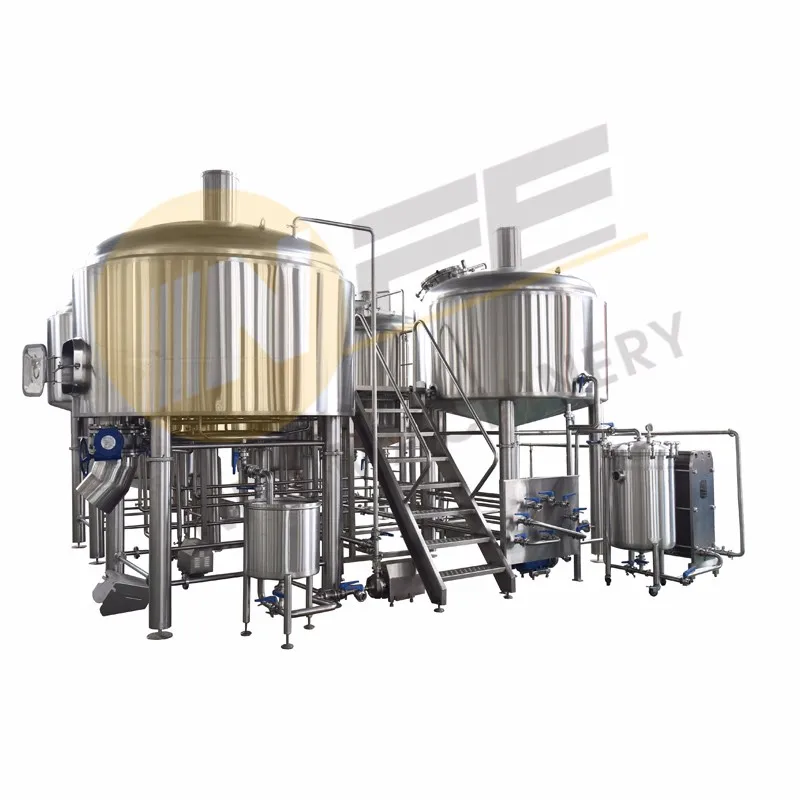

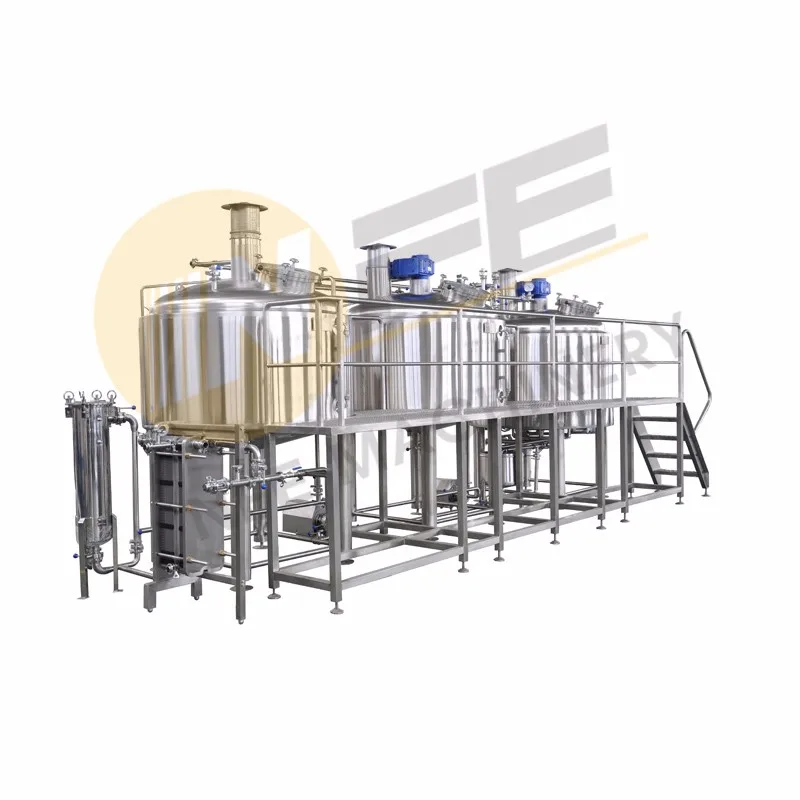

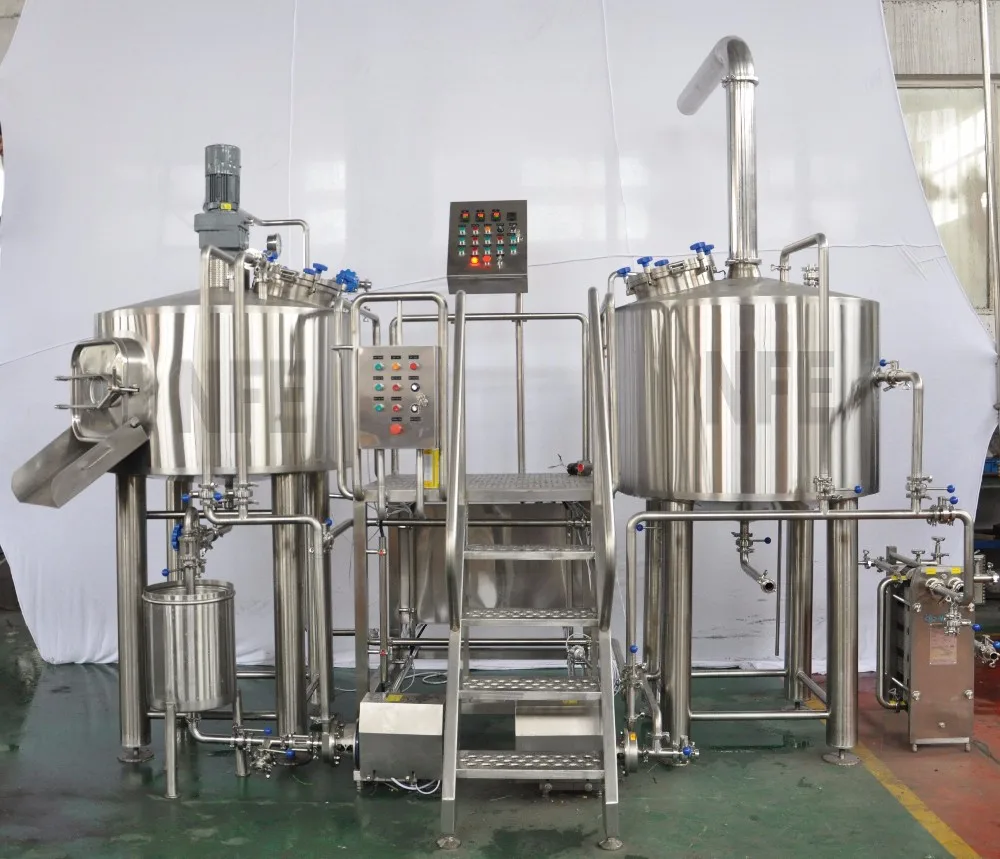

Name: Brewhouse
Brand: NFE
Original: China
Brewhouse Equipment: Mash tank, lauter tun, brew kettle, whirlpool tun.

1. Brewhouse: two vessels, three vessels, four vessels brewhouse
2. Heating medium: steam heating
3. Insulation material: rock wool. Insulation thickness: 100mm
4. Mash tank; hydrator, mixer, steam heating jacket
5. Lauter tun: rake, agitator, false bottom, hydrator
6. Brewkettle, steam heating jacket, inner steam heating deivce
7. Whirlpool tun: whirlpool entry

Part Three

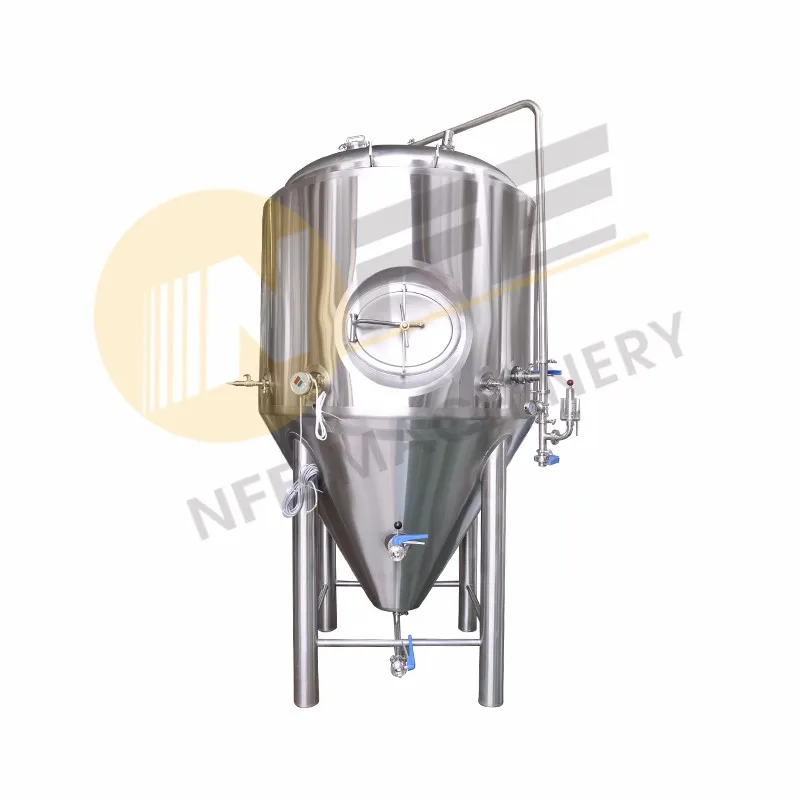

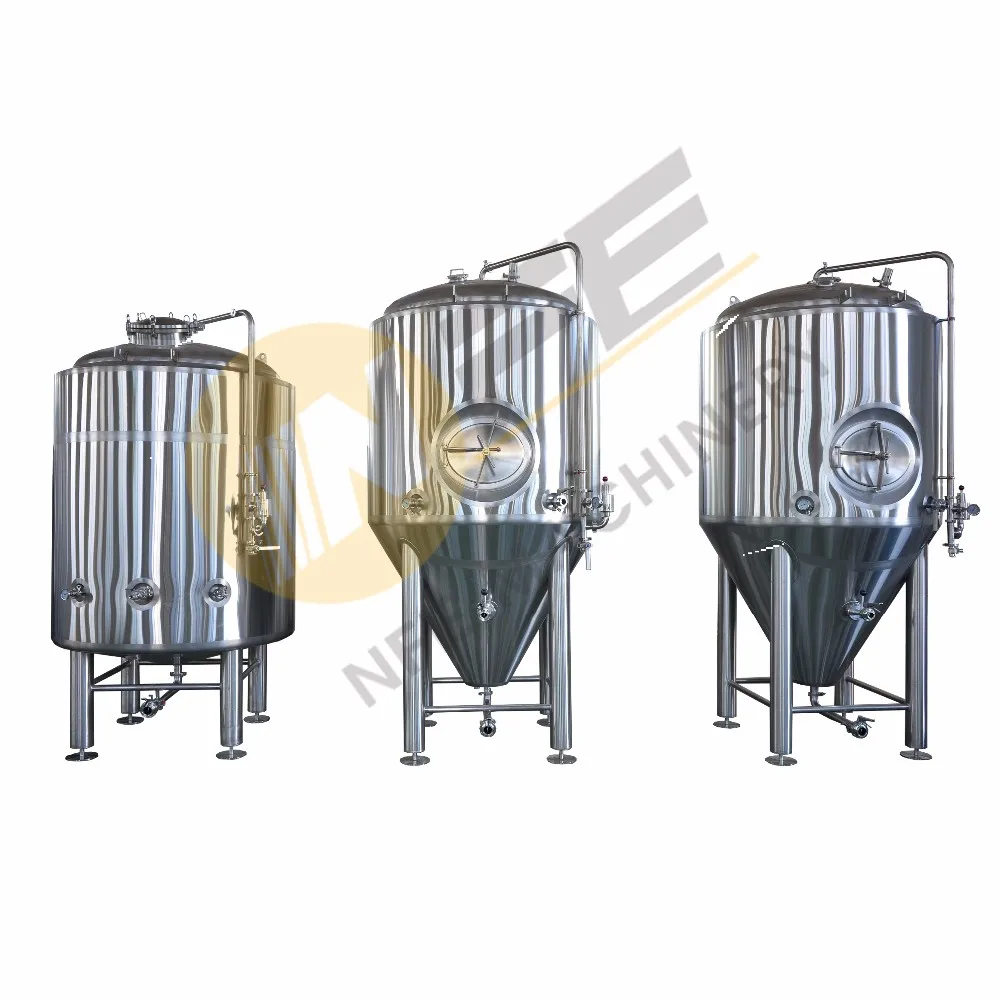

Name: Fermentation tank
Brand: NFE
Original: China

Fermentation tank : 100L-200HL

Main specification:
1. Stainless steel 304, side man way or top manway;

2. PU insulation, insulation thickness: 80-100mm;
3. Inside wall thickness: 3mm, outer shell thickness: 2mm;
4. CIP Rotary Spray Ball;
5.  Relief valve, mechanical pressure regulating valve, sample valve, butterfly valves;
6. PT100 temperature sensor, with temperature controller;
7. 2 sections dimple plate cooling jacket( 1 on wall and 1 on cone);
8. Complete with associated valves and fittings;

Part Four

Name: Bright beer tank
Brand: NFE
Original: China

Bright beer tank : 100L-200HL

Main specification:

1.\tSanitary Stainless steel 304, dome top head and dome bottom;
2.\tSurface brushed, welding line polish sanding light belt;
3.\tPolyurethane insulation, thickness: 80-100mm;  Dimple plate cooling jacket

4. Inner body thickness 3mm, cladding thickness 2mm;
5.\tWith rotary CIP spray balls and arm;
6.\tPT100temperature sensor;
7.\tSample valve in the cylinder;
8.\tCarbonation stone;
9. Complete with associated valves and fittings.

Part Five

Name: Hot/Cold water tank, Glycol tank

Brand: NFE

Original: China

1. Stainless steel 304,
2. steam jacket heating or electric heating or direct gas fired heating,
5. rock wool insulation, and the thickness of insulation is 80-100mm;
6. The thickness of inner body is 3mm,
7. With glass level tube.

Part Six

Name: CIP system

Brand: NFE

Original: China

1. Sterilization tank;

2. Alkali liquor tank;

3. Sterilize vehicle;

4. CIP pump;

5. Pipes and valves;

6. Control box.

Part Seven

Name: Control system

Brand: NFE

Original: China

Control system: manual button control or PLC control;

According to customer's requirement.
