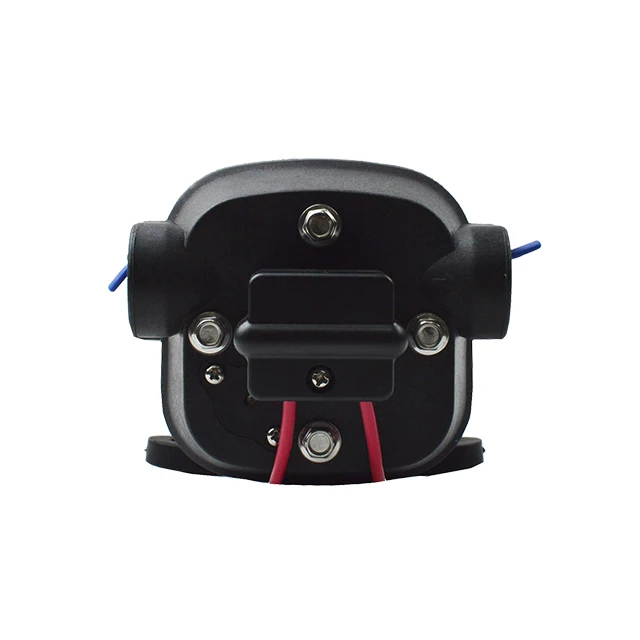

CANFLO 17L/min 40 psi 12v dc pump marine for water supply

Share on (62080557944):


Price:$32.00 - $41.00

Quantity:


Product Overview

Description


Product Description

FL-40 pumps provide high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. They are suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 4.5 gallons(17L) per minute. FL-40pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed. They're easy to install, with quick snap-in port fittings


\t
Product Name
\t
CANFLO 17L/min 40 psi 12v dc pump marine for water supply
\t
Pump type
\t
4 Chambers Positive Displacement Diaphragm Pump
\t
Max flow rate
\t
17L/MIN (4.5GPM)
\t
Max Pressure
\t
45PSI
\t
Voltage
\t
DC 12V
\t
Max Amp
\t
12A
\t
Switch Type
\t
On Demand ( cut-off switch)
\t
Diaphragm Material
\t
Santoprene
\t
Valve Material
\t
Nitrile butadiene rubber
\t
Duty cycle
\t
Intermittent
\t
Self Priming
\t
3m suction
\t
Max Fluid Temp.
\t
60℃(140℉)
\t
Inlet&outlet Port
\t

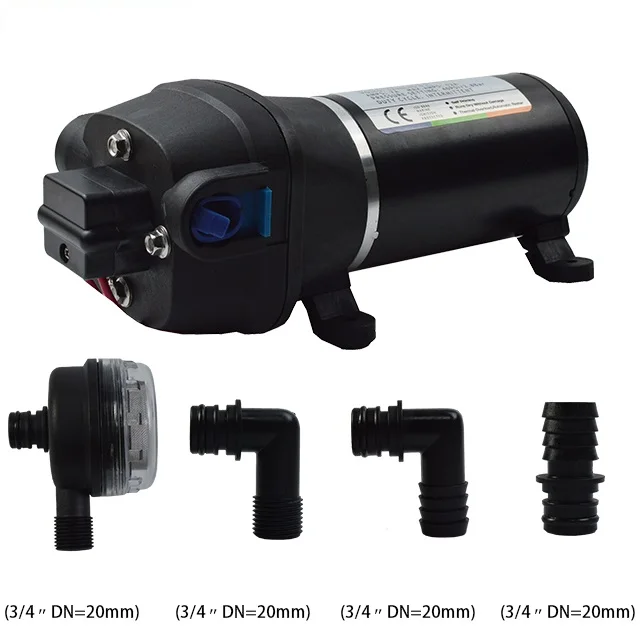

3/4″ quick connect

FEATURES AND BEBEFITS

-Flow rate up to 17L/MIN(4.5GPM)

-Automatically turn on and off

-Quiet operation

-Can run dry without damage

-Self-priming

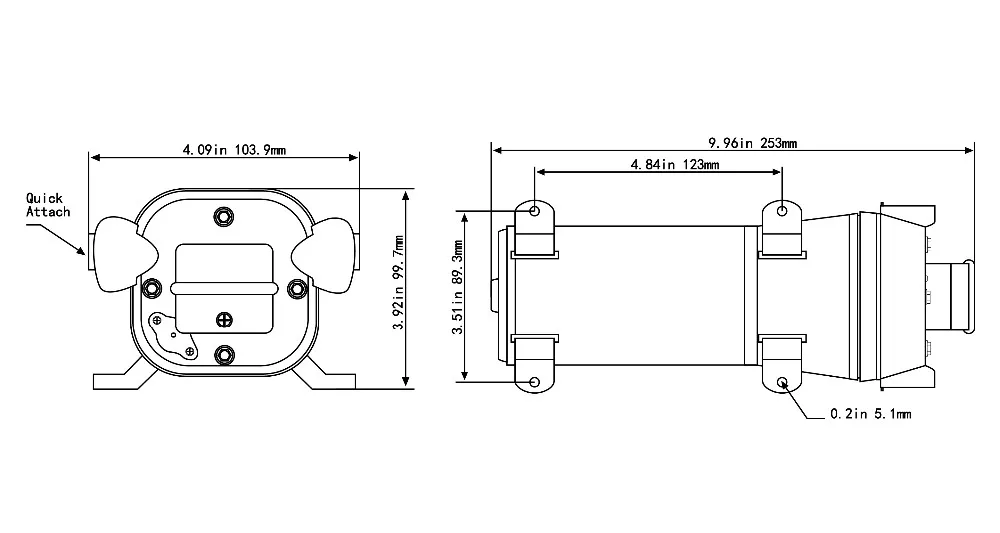

DIMENSIONS


-Chemically resistant materials

-Pressure switch & By pass control

-Thermally protected

-Copper core of the motor is 100% copper

-High cost effective

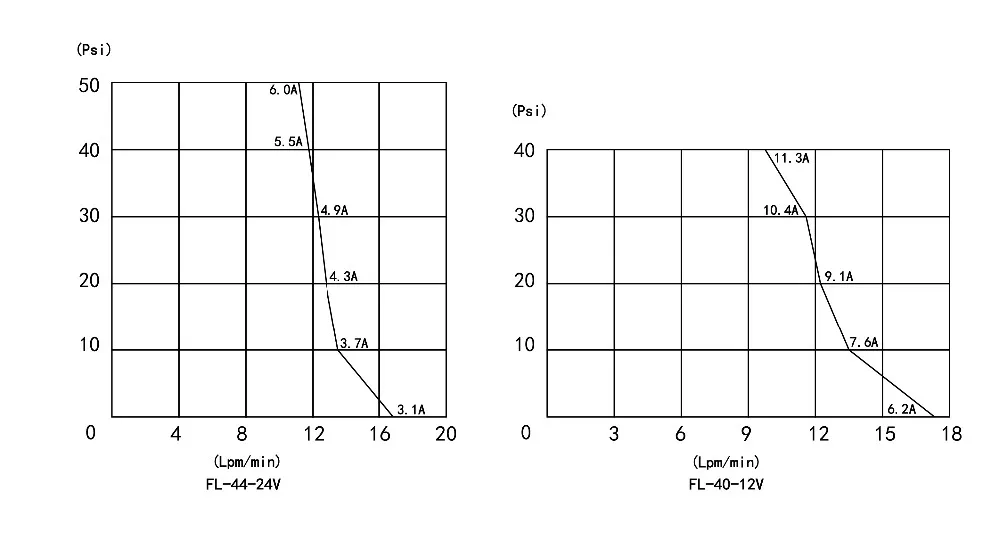

PERFORMANCE

\t
Model
\t
Voltage
\t
OpenFlow (LPM/GPM)
\t
Control type
\t
Shut-off    pressure    ( PSI/BAR)
\t
Amps
\t
Lift
\t
Inlet&outlet
\t
FL-30
\t
12V
\t
10/2.7
\t
Pressure& Bypass switch
\t
17/1.2
\t
4.5A
\t
12m
\t
1/2″
\t
FL-31
\t
24V
\t
10/2.7
\t
Pressure& Bypass switch
\t
17/1.2
\t
2.5A
\t
12m
\t
1/2″
\t
FL-35
\t
12V
\t
12.5/3.3
\t
Pressure& Bypass switch
\t
35/2.4
\t
8.5A
\t
24m
\t
1/2″
\t
FL-34
\t
24V
\t
12.5/3.3
\t
Pressure& Bypass switch
\t
35/2.4
\t
4.5A
\t
24m
\t
1/2″
\t
FL-40
\t
12V
\t
17/4.5
\t
Pressure& Bypass switch
\t
40/2.8
\t
12A
\t
28m
\t
3/4″
\t
FL-44
\t
24V
\t
17/4.5
\t
Pressure& Bypass switch
\t
40/2.8
\t
6.5A
\t
28m
\t
3/4″

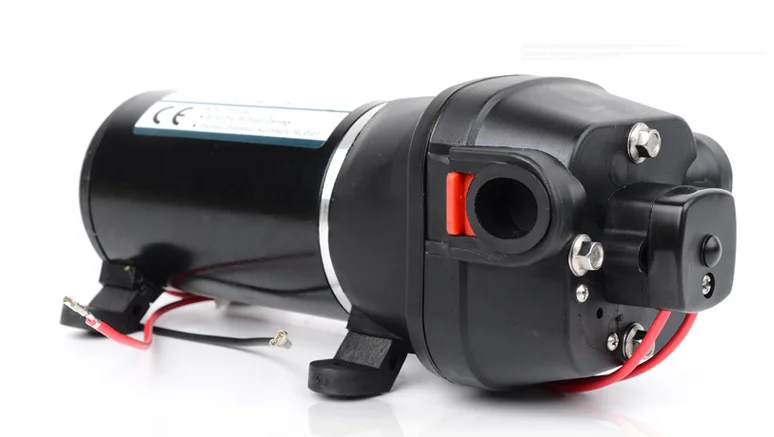

Detailed Images

Housing material : PA66


Motor : Run dry without damage

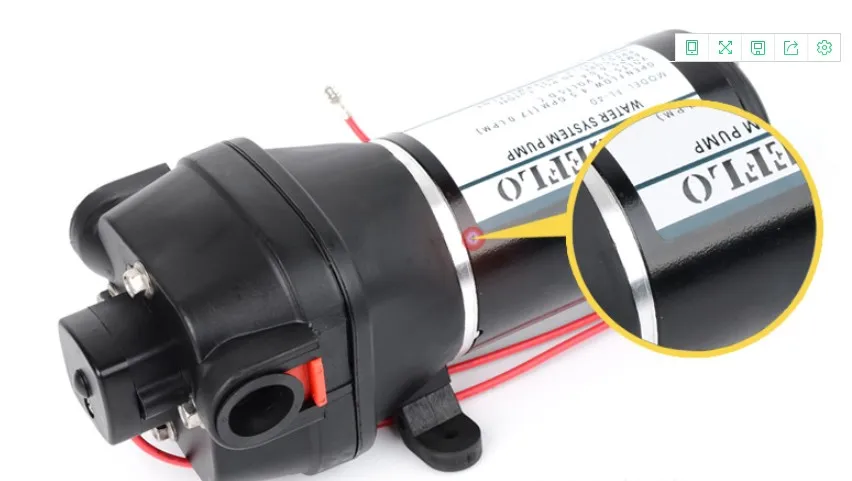

Copper core of the motor is 100% copper

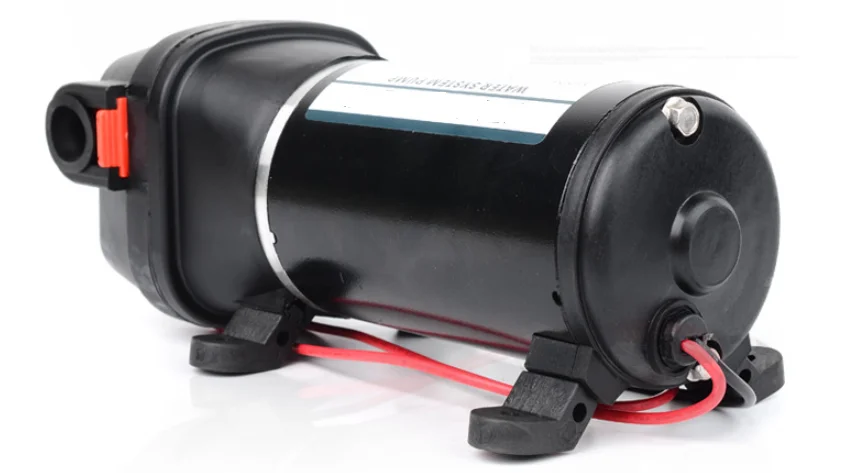

Semi-rigid rubber feet for noise reduction from vibration



Application

WARNING:

-It is need to ensure the smooth water yield when the water pump is working, to avoid the damage of pressure switch due to the pump blocked operation!\t
-Although the water pump support the dry operating in short time, please not to exceed 15 Minutes!\t
-It is self-absorption diaphragm pump which with slight waterproof function, please do not put it in to water directly!\t
-It is clean water pump, please do not pump the sewage with impurities to avoid the block of pump head!

Packing & Delivery
\t
Unit size(L*W*H)
\t
360*130*115mm
\t
Unit N.W/G.W
\t
2.54/2.86kgs
\t
Carton size(L*W*H)
\t
41.5*38.5*25.5cm
\t
Qty/carton
\t
6pcs
\t
Carton N.W/G.W
\t
15.5/17.5kgs
\t
Qty/20'FCL
\t
3900-4000pcs

Package type

Normal package:  Each piece in a color box and 6 pieces into a master carton.

Customized Logo:  Min order 200pcs

Customized Packaging : Min order 500pcs

Our Company

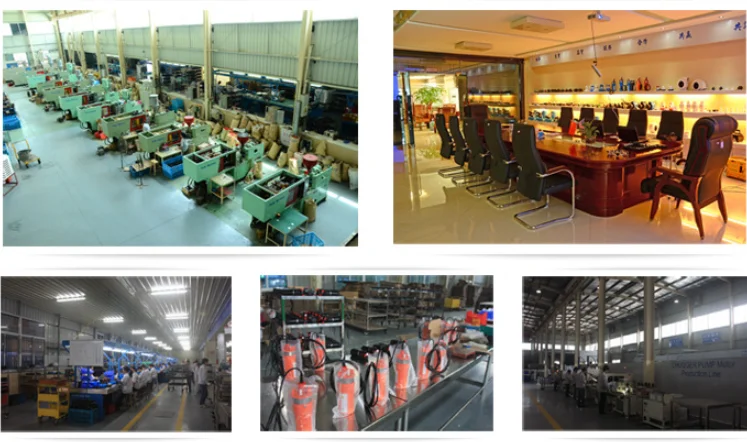

Fujian Diamond Electrical and Mechanical Equipment Co.,Ltd specializes in the Research, Design, Manufacturing and Marketing of micro pumps, which are used in Marine,RV, Industrial, Agricultural and household. The main products are: fresh water pump ,washdown pump, macerator pump, gear pump, self-priming bilge pump, sprayer pumps solar submersible pumps and etc. Products had been passed the CE ,RoHS, GMC and other relevant certificates, exported to more than 30 countries around the world .
