A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement

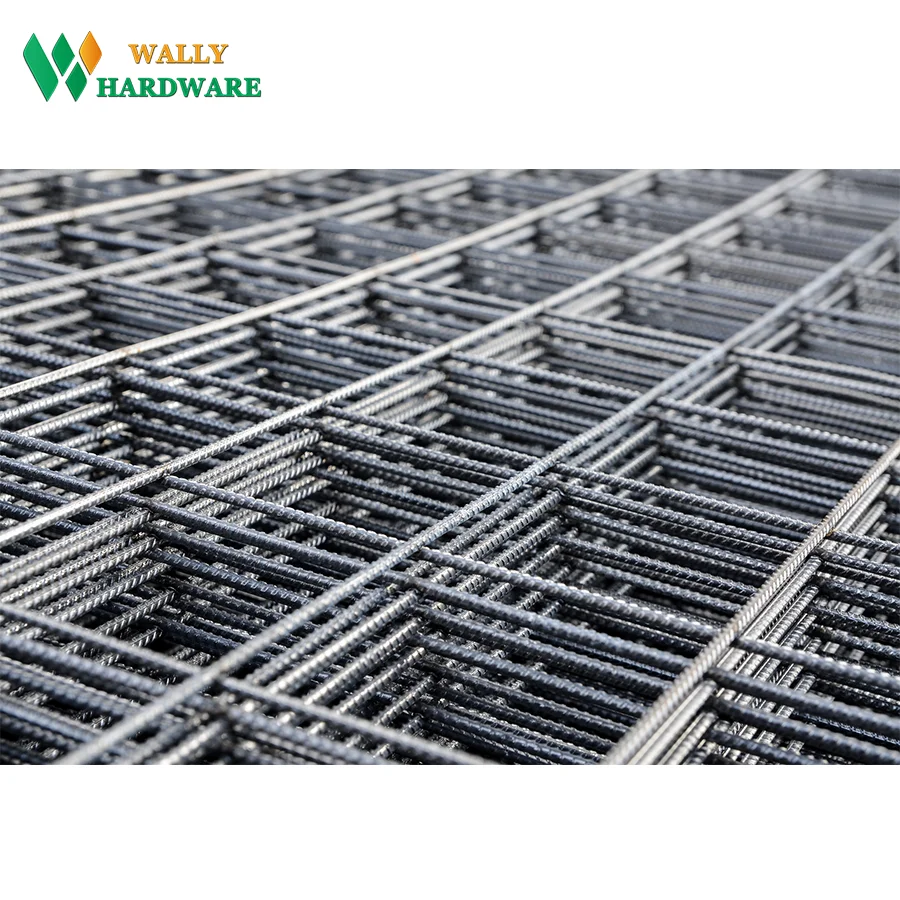

Concrete Reinforcing Mesh

Concrete brc mesh for reinforcement with rectangular or square mesh pattern is a kind of welded wire fabric, which can improve the bonding to concrete, minimize the concrete cracking that may occur as a result of concrete shrinkage. And the standard of brc mesh for reinforcement is usually 6 m long × 2.4 m wide. With flat even surface and firm structure, it is used extensively for reinforcement of road surfaces, masonry walls, and concrete structures in building. Besides, it is also can be used as large animal enclosure, quarantine caging, gabion or various fences.

Specifications of welded brc mesh a142

  • Material: carbon steel or stainless steel.
  • Surface treatment: galvanized.
  • Type
    • Concrete mesh heavy type (diameter of rods above 10 mm).
    • Light type (diameter of rods from 3 mm up to 10 mm).
  • Mesh shape: rectangular or square.
  • Distance between rods: 100, 200, 300, 400 or 500 mm.
  • Mesh sheet width: 650–3800 mm.
  • Mesh sheet length: 850–12000 mm.
  • Standard brc mesh for reinforcement size: 2 × 4 m, 3.6 × 2 m, 4.8 × 2.4 m, 6 × 2.4 m.
 A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement
Table 1: Common Dimension of Reinforcing Mesh 3.6 m × 2 m
A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement
A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement

Table 5: Common Sizes of Concrete Wire Mesh
ItemBar Diameter (mm)Mesh Spacing (mm)Mesh Length and Width (mm)Reference Weight (kg/m2)
WCWM016100-400more than 3000 × 50004.44
WCWM028100-400more than 3000 × 50007.91
WCWM0310100-400more than 3000 × 500012.34
WCWM0412100-400more than 3000 × 500015.99

Reinforcing Rib Mesh – Welded Fabric Construction Reinforcement

Reinforcing rib mesh is also called welded reinforcing rib mesh. With ribbed profile, it can perfectly improve the bonding to concrete and minimize any concrete cracking that may occur as a result of concrete shrinkage.
The reinforcing welded rib mesh is suitable for using in a variety of applications, such as concrete footpaths, industrial and commercial ground slabs, precast panel construction, residential slabs and footings.

Specifications of reinforcing rib mesh

  • Material: carbon steel or stainless steel.
  • Surface treatment: galvanized.
Table 1: Common Specifications of Reinforcing Rib Mesh
ItemLongitudinal Wire (mm)Cross Wire (mm)Weight (kg/sheet)
WRRM0111.9 @ 1007.6 @ 200157
WRRM0211.7 @ 1007.6 @ 200131
WRRM039.5 @ 1007.6 @ 200109
WRRM048.6 @ 1007.6 @ 20094
WRRM057.6 @ 1007.6 @ 20079
WRRM066.75 @ 1007.6 @ 20068
A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement

Features of welded brc mesh a142

  • High strength, not easy to break.
  • Improve bonding to concrete, minimize concrete cracking.
  • Flat even surface and firm structure.
  • Corrosion and rust resistant.
  • Durable and long service life.

Applications of welded brc mesh a142

  • Reinforcement of concrete structures in building.
  • Reinforcement of road surfaces.
  • Reinforcement of masonry walls.
  • Manufacture of various fences.
  • Used as large animal enclosure, quarantine caging or gabion

Concrete Slab Mesh with

                                   High Strength and Rigidity for Reinforcement

Concrete slab mesh is also called reinforced welded wire mesh, which is made of galvanized stainless steel wires. With the features of high strength, high rigidity, and corrosion, rust resistant, it is widely used for foundations reinforcing and roads reinforcing to improve concrete adhesion, prevent the emergence of concrete cracks and increase the bearing weight and so on.

Specifications of concrete slab mesh

  • Material: stainless steel.
  • Surface treatment: hot dipped galvanized or electro galvanized.
  • Variety: truss mesh reinforcement or ladder mesh reinforcement.
  • Tensile strength: 510 MPa.
  • Minimum impact strength: 485 MPa.
Table 1: Specification of Concrete Slab Mesh Length 6000 mm × Width 2400 mm
ItemWire Diameter (mm)Mesh Size (mm)Sheet Weight (kg)
WCSM016.3200 × 20033
WCSM027.1200 × 20041
WCSM038100 × 100105
WCSM048200 × 20052
WCSM059200 × 20062
WCSM0610200 × 20080

A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement

                  Concrete slab mesh supported by steel chair at construction site.



Our Advantage

    All of products have passed CE,SGS certificate

    Have exported to New Zealand , Australia ,USA

    My friend, please send your accurate size so that we quote accurate price accordingly



                                                                            >>>>Click to send us inquiry





Applications  >>>>>>

A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement







Hot Sale Product: Reinforcement Concrete Rebar Mesh

1. Professional supplier of importers, wholesalers and distributors.

2. Selected material and processes follow strict international standards.

3 . 10-years experience about export.

4.  24T online , timely communication reply you all of details

5 . OEM is ok




A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement

A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement

Benefit you get:



v  We have experience in export more than 100 countries, assure you get a relaxed & happy purchase

v  know your market very well, quality products match your market 100%

v  Factory price with RIGHT Products

v  Fast delivery



A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement



A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement





A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement





A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement





A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement





A98 A142 A252 A393 F62 72 82 92 102 Reinforcing Mesh For Highway Brc Concrete Reinforcing Welded Brc Wire Mesh For Reinforcement
