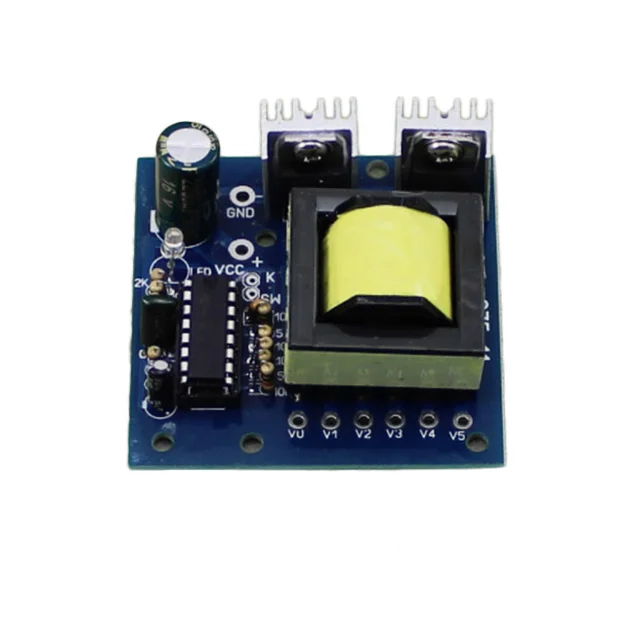

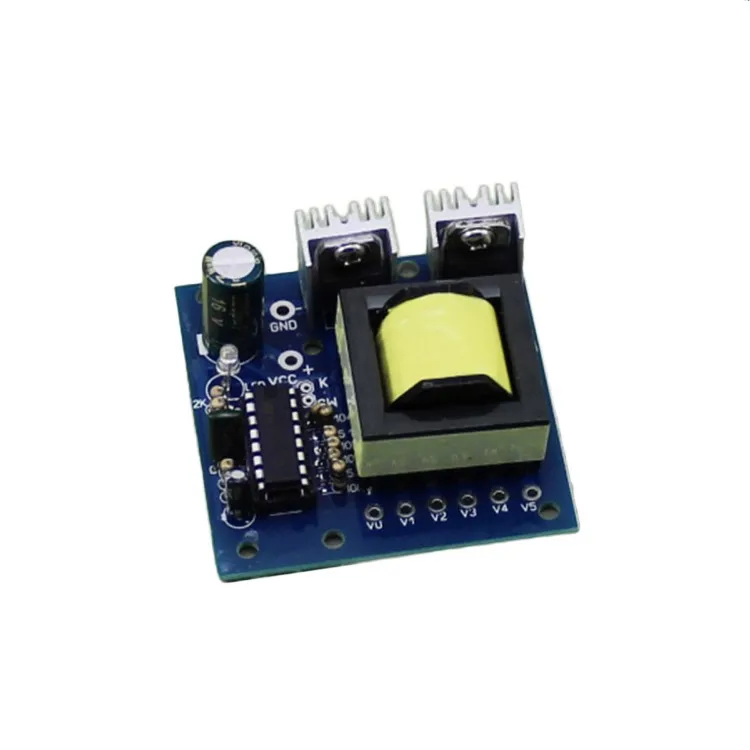

Hot 150W Converter DC 12V to AC 220V Inverter Boost Board Transformer Power Battery booster transformer

 Features:
100% brand new and high quality.
Power: 150W
Input voltage: DC12V
Output voltage: AC 0-110V-172V-200V-220V
Quiescent current: about 0.05A
Output waveform: high frequency square wave
Output frequency: about 20KHZ
Protect: none

Warnings:
1. The board belongs to high frequency square AC output; it is not suitable for the inductive appliance, such as motor, fan and coil transformer.
2. While picked up with low-load machines (LED light, mobile phone charger and DVD set-top box), you are suggested to pick up with low voltage point, such as: 172V/110V.
3. You should install a large heat sink to release its long time high-load (≥100W) work.
4. You could not connect the power inversely. Besides, power supply and power wire should have large enough current.
5. Do not overload and short-circuit because it without any protections.
6. The number in measured by the output high frequency non-load voltage meter will be a little higher.

Output wiring the following voltages:
V0--V2=110V
V0--V3=175V
V0--V4=200V
V0--V5=220V
V5--V4=20V
V5--V3=45V
V5--V2=110V
V4--V3=28V
V4--V2=90V
V3--V2=62V

Specifications:
Material: Electronic components
Color: Blue

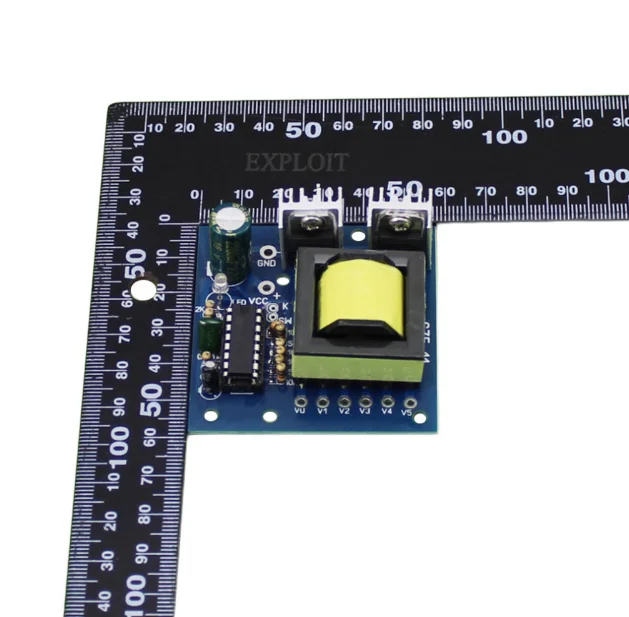

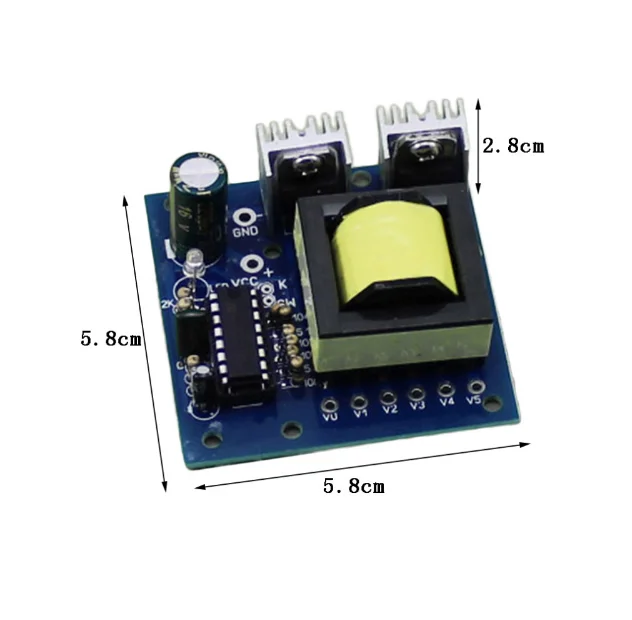

Size: 58*58*28 mm
Net Weight: 75g

Package included:
1 x 150W Inverter Boost Board
