COLO 3009A Electrostatic Liquid Paint Spray Gun

Product Overview

Description

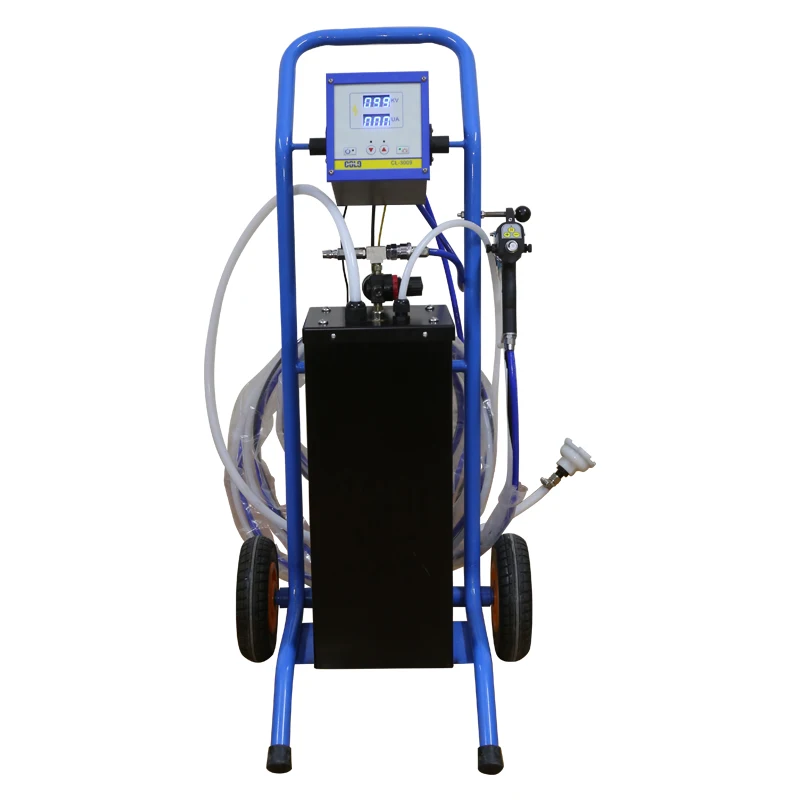

COLO-3009A Electrostatic Liquid Paint Spray Gun



COLO offer  industrial electrostatic, non-electrostatic, and rotary atomization painting equipment and systems that apply liquid paints and coatings to plastic, metal, and wood products.

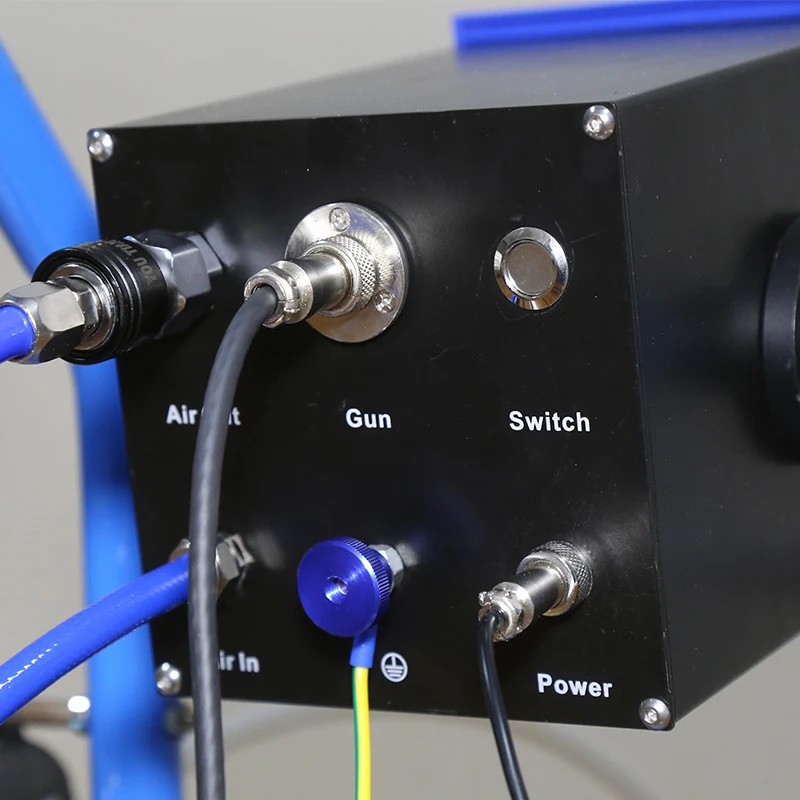

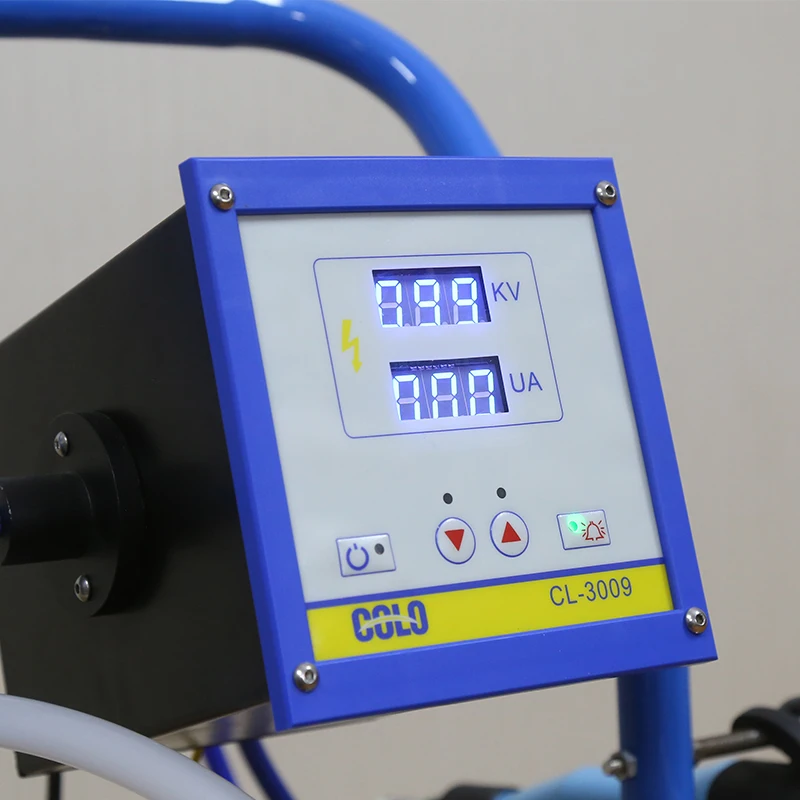

 Controller (for assembly)



supply voltage:	AC220(50—60Hz)	Air Pressure:	0.6MPa—0.8MPa
Output voltage:	10KV—80KV	Output current:	10UA—25UA
Power off protection:	26UA—100UA	Controller  weight:	3.5kg
Controller size:	250*200*150mm	display:	LED display



Electrostatic spray gun(for assembly)

Gun length:	230mm	KV output:	10—80KV
Spraying distance:	150-230mm	Paint tube length:	5500mm
Cable length:	5000mm	Air tube length:	5000mm
Nozzle diameter:	18mm	Air pressure:	0.4—0.6MPa
Paint output:	80—220ML/min	Air consumption:	75—230L/min

Before you choose the electrostatic liquid spray gun, pls tell us the questions a follow:

1, which shape part you will paint? complex or flat simple shape

2, the paint you use is solvent-based or Waterborne paints
