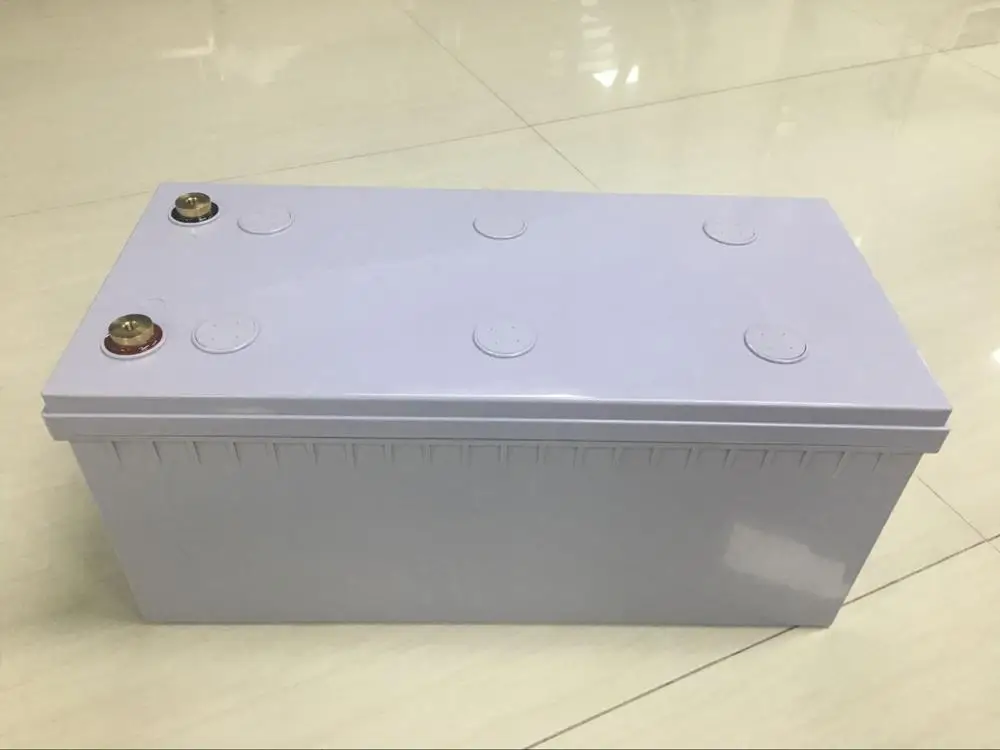

Wholesale Price Custom Made Lithium Iron Phosphate 12v 200Ah /400Ah / 600Ah / 800Ah /1000Ah LiFePO4 battery
- Category: >>>
- Supplier: Shenzhen Smartec Technology Co. Ltd.
Share on (62080944426):
Product Overview
Description

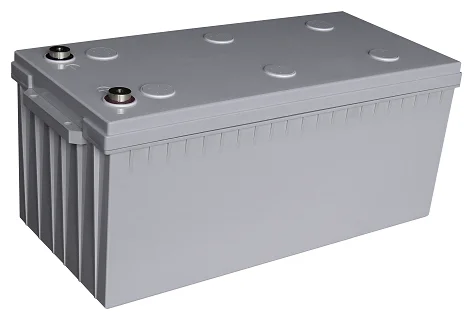

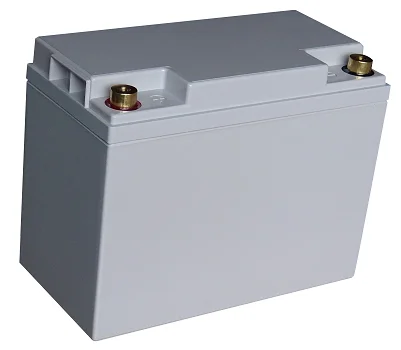

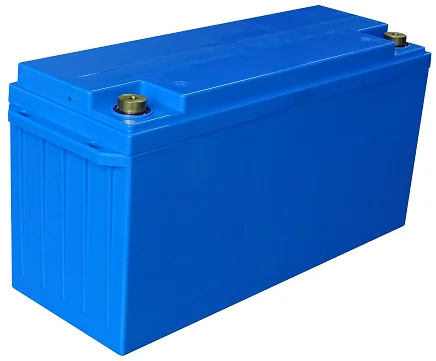

| 12V 50AH Lithium battery | 12V 150AH Lithium battery | 12v 200Ah lithium battery |
 |  |  |
Wholesale Price Custom Made Lithium Iron Phosphate 12v 200Ah /400Ah / 600Ah / 800Ah /1000Ah LiFePO4 battery
Electrochemical System : Lithium Iron (Lifepo4 ) Battery Pack
No. | Items | Specifications |
1 | Cell in pack : | Lifepo4 Cells |
2 | Nominal voltage | 12.8V |
3 | Charge Voltage Range: | 10V-14.4V |
4 | End of Charge voltage : | 14.4V+/- 0.05V |
5 | Max Capacity | 200AH / 60Ah |
6 | Minimal capacity | 3200mAh @ 3C Discharge(per cell) |
7 | Continuous discharging current | 100A |
8 | Contiunuous charging current | 100A |
9 | Peak current | 300A-500A/Second |
10 | Short circuit protection | Automatic recovery |
12 | Shelf life : | 6 month typically before recharging |
13 | Cycle life | ≥2000 times |
13 | Temperature shut down (Charge/discharge) | 60°C |
14 | Operating temperature | Charging: -20°C ~ 45°C Discharging: -20°C ~ 60°C |
15 | Storage temperature/humidity | Temperature -10°C ~ +35°C Humidity 65%±20%RH |
16 | Dimension | 490*230*220mm |
17 | Weight | 26kgs |
18 | Battery Management system | With Built-in BMS |
Electrochemical System : Specification of PCM
The batteries are supplied with a LiFePO4 BMS that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.
Items | Content | Specification |
Over charge Protection | Over charge detection voltage | 3.90±0.025V |
Over charge detection delay time | 0.5S—2S | |
Over charge release voltage | 3.80±0.025V | |
Over discharge protection | Over discharge detection voltage | 2.00±0.05V |
Over discharge detection delay time | 10mS—200mS | |
Over discharge release voltage | 2.3±0.05V | |
Over current protection | Over current detection current | 300-500A |
Detection delay time | 5ms—20ms | |
Release condition | Cut load,charge release | |
Short protection | Detection condition | Exterior short circuit |
Detection delay time | 200-500us | |
Release condition | charge release | |
Temperature | Operating Temperature Range | -40~+85℃ |
Storage Temperature Range | -40~+125℃ |
Applied to Multiple Scense
