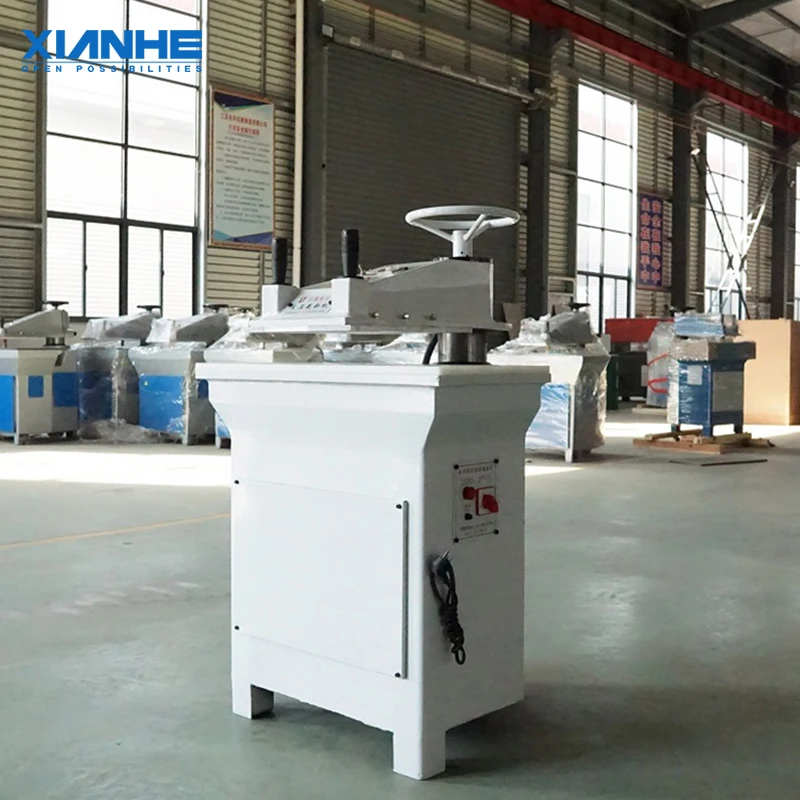

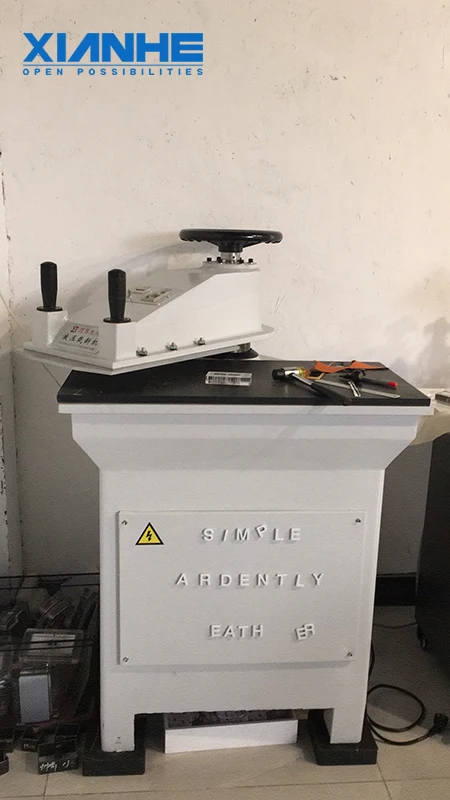

Ручная гидравлическая штамповочная машина 12T для изготовления тапочек eva

Product Overview

Description



Usage & Features:

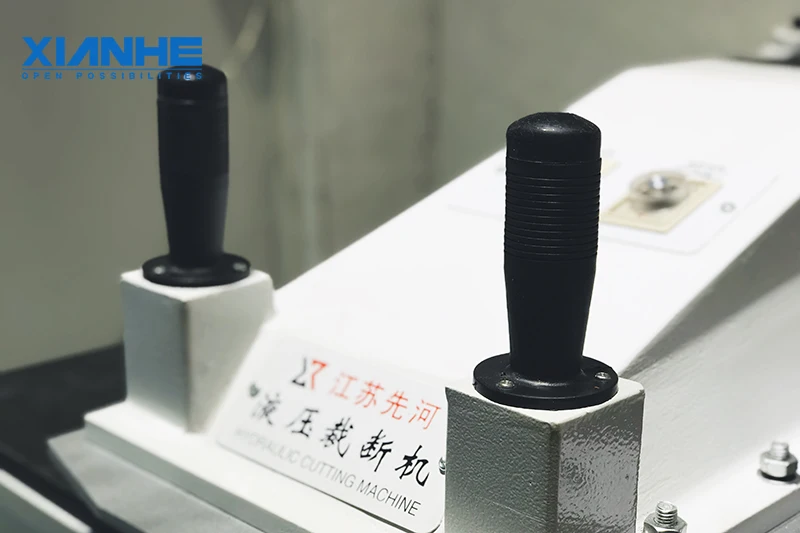

1. For industrial cutting of soft plastic sheets, leather, fibers, cotton textiles, cardboard or other similar materials using die cutter.The swing arm can be shaken freely, and the operation line is excellent. It is especially suitable for cutting the leather. You need to use both hands to make a cut, so that you feel safe.

2.Equipped with lubricating system to lessen wear and prolong service life.

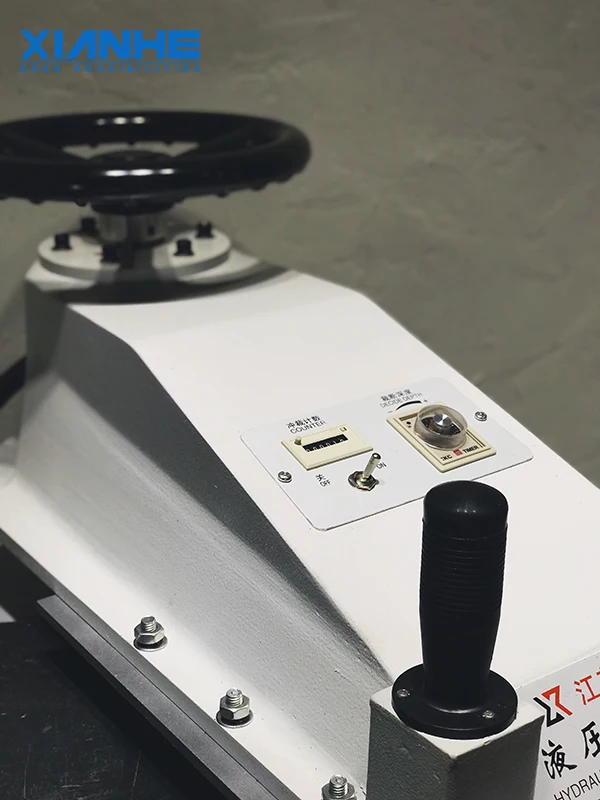

3.The electronic delay circuit is used to control the lower limit position of the stroke, and the precision is high. The height of the swing arm from the table is adjusted by the handcart, which is simple, reliable and convenient.

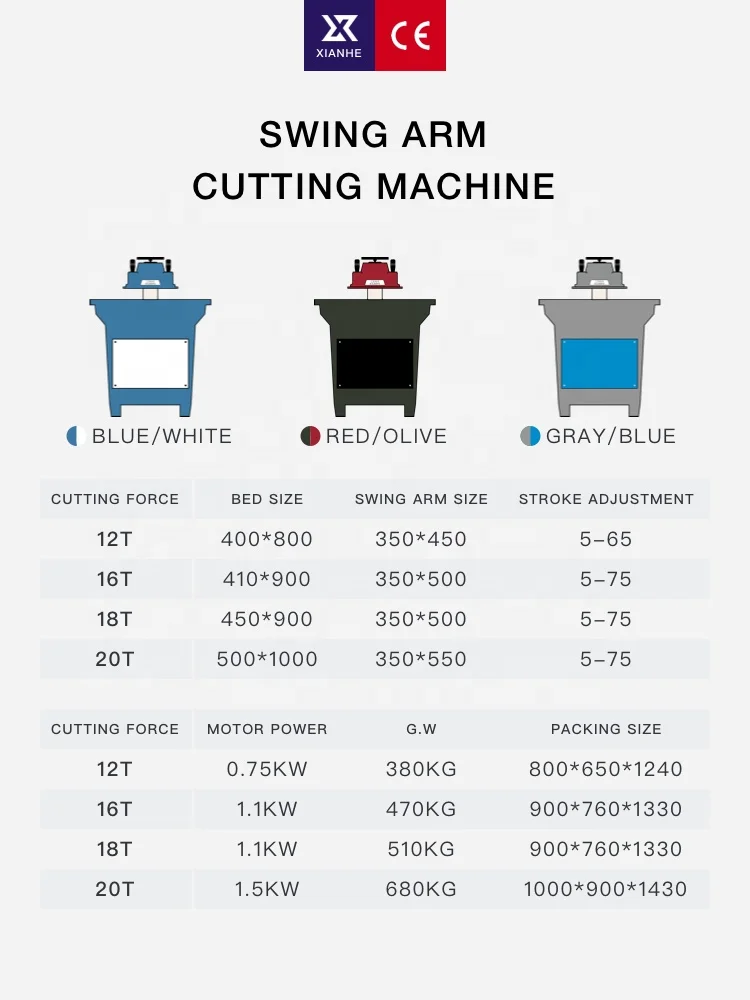

Technical Parameters

Model Number	XH-SW/C 12
Max. Cutting Force	12T
Stroke range	5-75mm
Distance between upper board and lower board	50-120mm
Upper board size	350*450mm
Lower board size	800*400mm
Voltage	Three/single Phase   220-380V / customized
Machine Dimension(L*W*H)	730*650*1330mm
Package Dimension(L*W*H)	880*845*1420mm
Gross weight	400kg



Brand of machine parts

Product Name	Place Of Origin	Brand
time relay	Taiwan	OMRON
auxiliary relay	Japan	IDEC
contactor	French	Schneider
seal components	U.S.A.	Parker
oil pump	Japan-China	Zhejiang Yongling
oil pipe	Germany	QC610
hydro-cylinder	Japan-China	Xianfeng
solenoid valve	Taiwan	Fengchang
switch	Taiwan	Tiande
motor	Shanghai	Dedong
