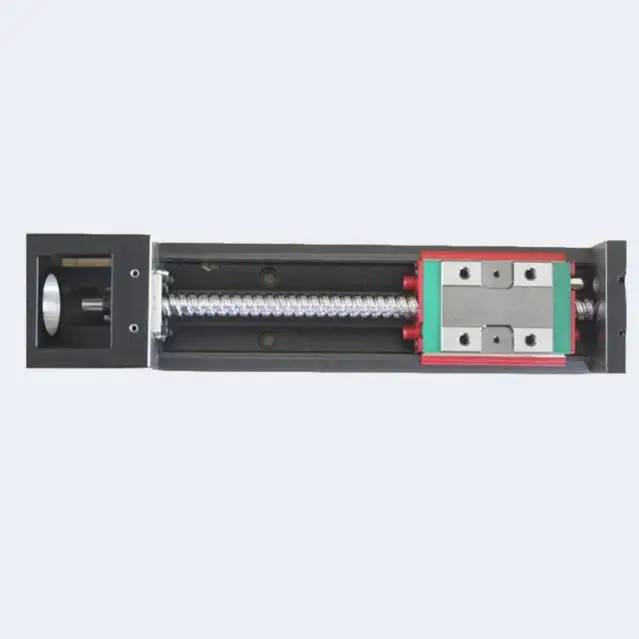

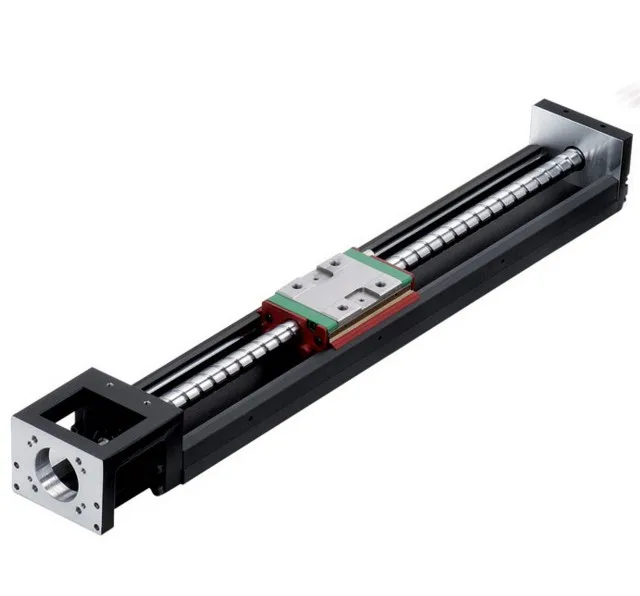

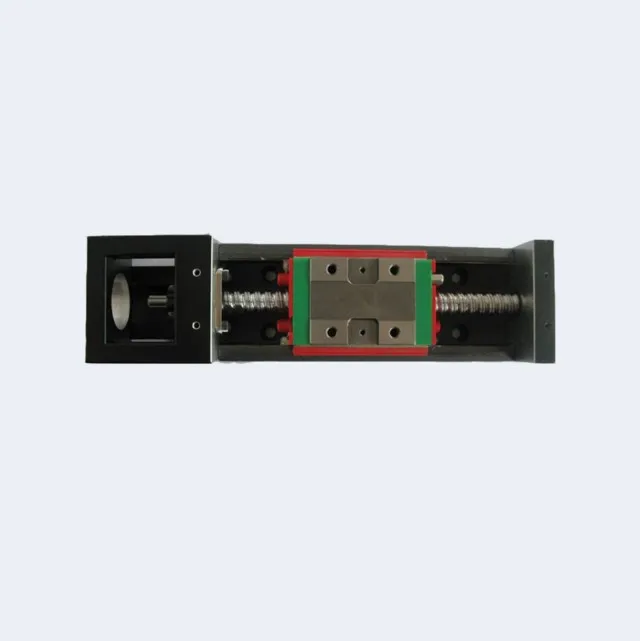

HIWIN Single Axis Robot module linear module KK5002C 150A1 F3CS2

Introduction
The HIWIN Single Axis Robot module utilizes professional standard manufacturing technology developed over the years, with the ball screw and magnetic slide design module developed and produced by ourselves, HIWIN itis applicable to all types of automation equipment due to its features of easy installation, small size, high-precision and various specifications.

Features
1.Complete selection of Single Axis Robots and accessories.
Drive Type: ballscrew, toothed belt
AC motor output: 30W~750W servo motor or stepping motor
Motor connection type (depends on available space): direct, bottom, internal, left, right
Max stroke: Max stroke on belt is 3000mm, minimum stroke on KK, KA and KE is smaller than 100mm.
2. Easy installation and maintenance.
3. Customized designs available.
4. Easy transformation into a multi-axis robot.
