256X128 graphic lcd JHD256128-G03BSWD-G
US $5.72-$6.43
T6963 22 pins 240x128 dot matrix color lcd module 240x128 pixels mono tft graphic lcd display
- Category: Graphic Display >>>
- Supplier: Changsha Sunman Electronics Co. Ltd.
Share on (62081410205):
Product Overview
Description
2019 new hot 22 pins 240128 color lcd module 240x128 pixels mono tft graphic lcd display
Product Description
Product Description
Applicaion | Industrial display |

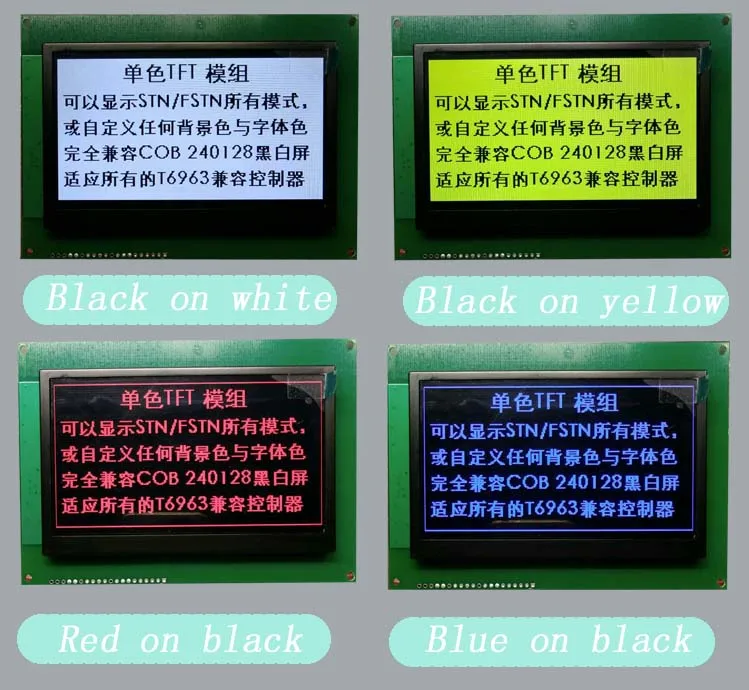

| Display mode | Black on white/red on black/blue on black/black on green |
| Interface | Parallel |
| Controller | T6963 equal |
| Mode size | 144x104x14.7 |
| Viewing area | 114x64 |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
Warranty | 12 moths free, payed warranty lifttime |
Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | ISO,SGS |

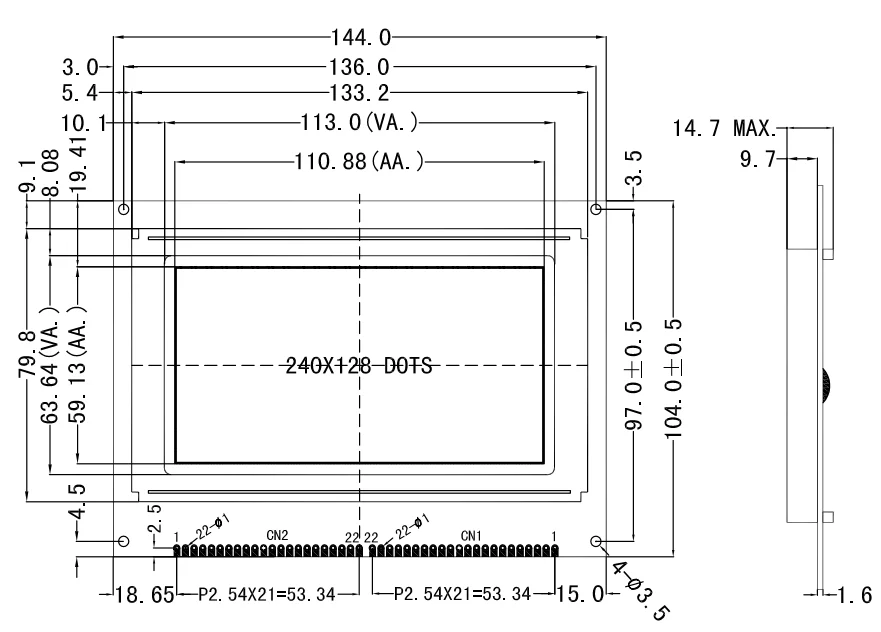

Mechanical Demesion

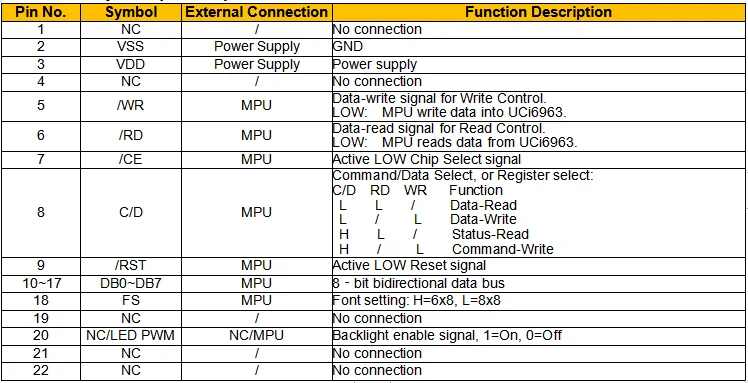

Pin Assignment
CON1
CON2
1 | NC | / | No connection |
2 | VSS | Power Supply | GND |
3 | VDD | Power Supply | Power supply |
4 | NC | / | No connection |
5 | /WR | MPU | Data-write signal for Write Control. LOW: MPU write data into UCi6963. |
6 | /RD | MPU | Data-read signal for Read Control. LOW: MPU reads data from UCi6963. |
7 | /CE | MPU | Active LOW Chip Select signal |
8 | C/D | MPU | Command/Data Select, or Register select: C/D RD WR Function L L / Data-Read L / L Data-Write H L / Status-Read H / L Command-Write |
9 | /RST | MPU | Active LOW Reset signal |
10~17 | DB0~DB7 | MPU | 8bit bidirectional data bus |
18 | FS | MPU | Font setting: H=6x8, L=8x8 |
19 | NC | / | No connection |
20 | NC/LED PWM | NC/MPU | Backlight enable signal, 1=On, 0=Off |
21 | NC | / | No connection |
22 | NC | / | No connection |
