piperoll stainless steel SUS304 2 1/2' Clamped Sanitary Butterfly Flow Control Valve
- Category: >>>
- Supplier: Wenzhou Ranking Imp.& Exp. Co. Ltd.
Share on (62081655052):
Product Overview
Description

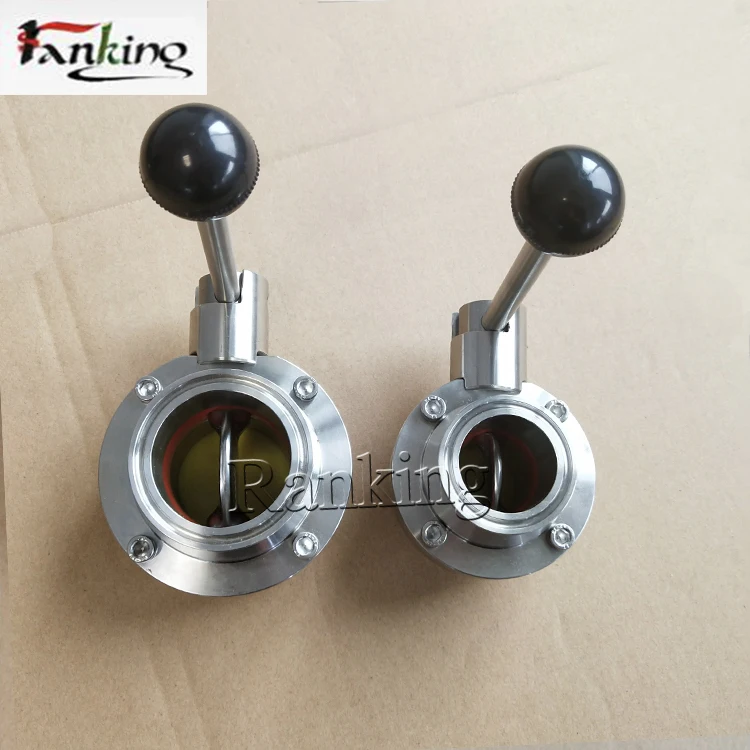

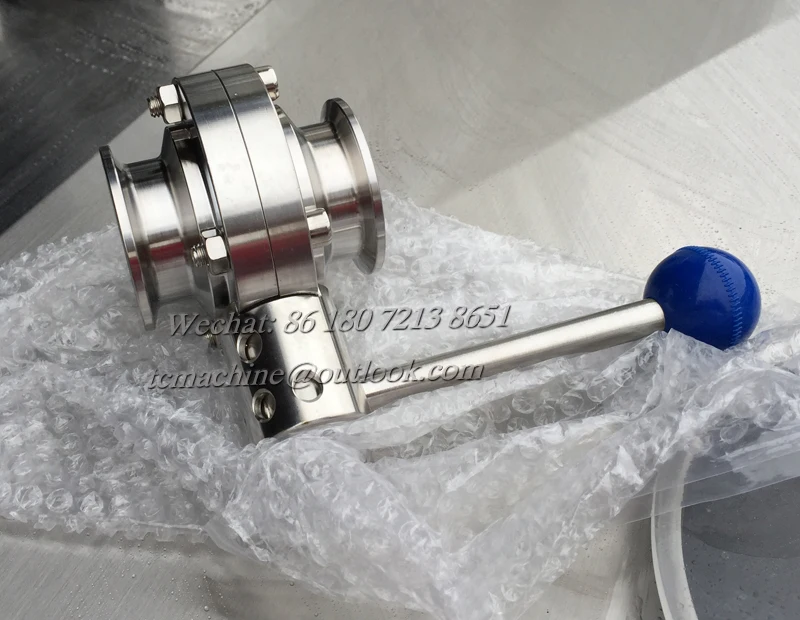

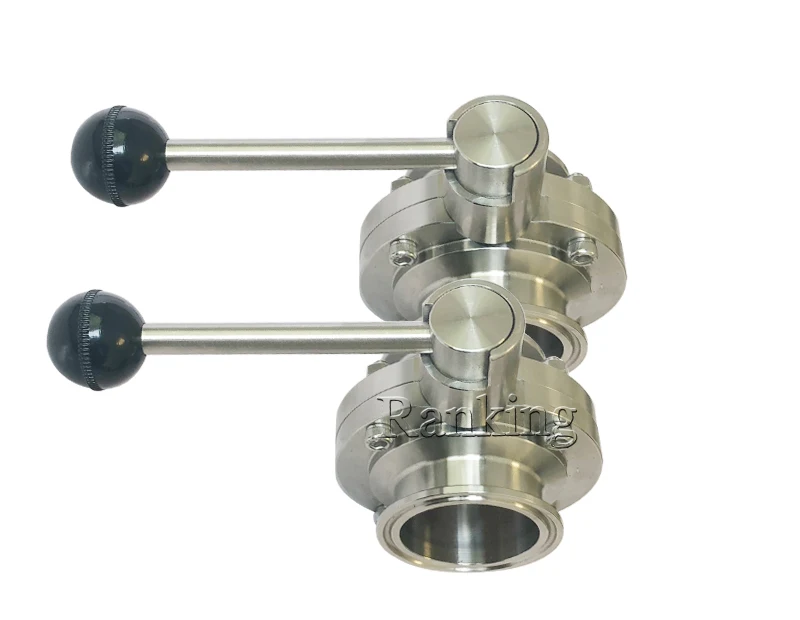

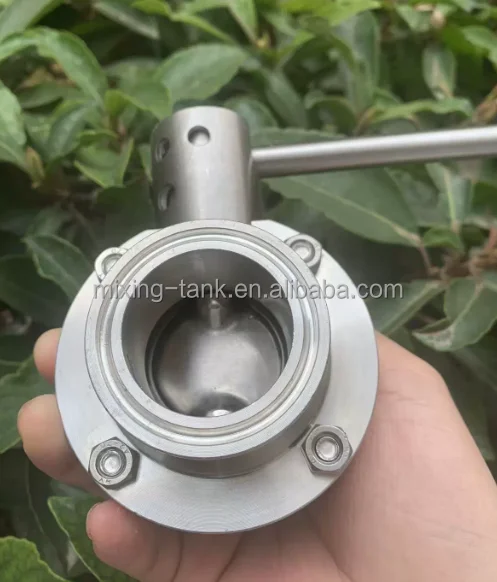

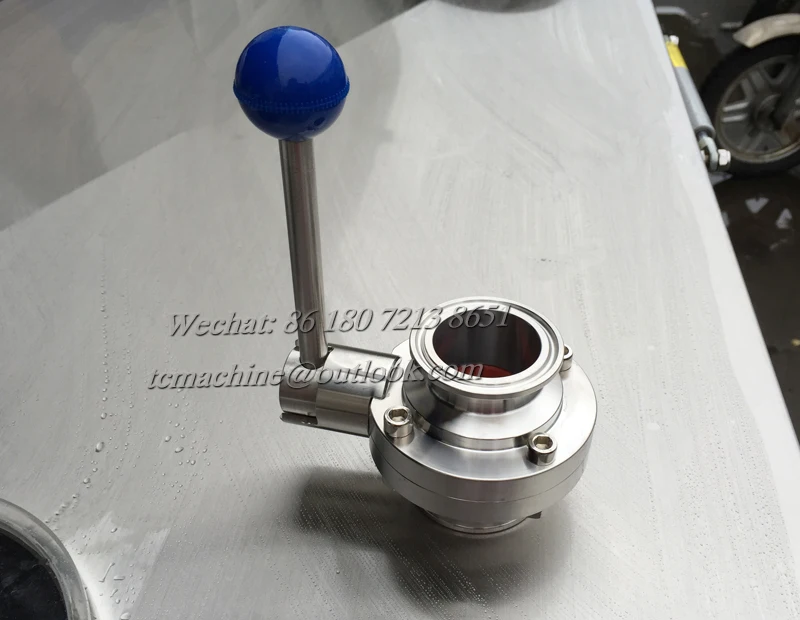

Home Beer Brewing stainless steel SUS304 Fit 63mm 2-1/2'' Pipe OD Clamped Sanitary Butterfly Flow Control Valve
Product description
Application:
2-1/2 " Sanitary Stainless Steel 304 Butterfly Valve Tri-Clamp Silicone Sealing
The pull style handle allows you to set the valve in 3 different positions simply by pulling and turning
Used To Make A Fluid Start Or Stop Flowing Through A Section of Pipe
Well Applied To Stainless Steel Pipe System
For Food, Brewery, Dairy, Brewing,Pharmaceutical And Chemical Industries
Specification:
Sterilization temperature reached 150℃
Valve material:SUS 304 Stainless Steel
Sealing material: Silicone
Connection: Clamp
Surface finish: <0.4μm
Clamp OD:50.5mm
Work Pressure: 0 — 1.0MPa (145psi)
Applicable Temperture: -10℃ ~ +135℃
Applicable Medium:Water, Oil
Operation:Hand operate
Data Sheet:
| Pipe OD | Ferrule OD | Fits Tri-clamp |
| 19MM | 50.5MM | 1.5" |
| 25MM | 50.5MM | 1.5" |
| 32MM | 50.5MM | 1.5" |
| 38MM | 50.5MM | 1.5" |
| 45MM | 64MM | 2" |
| 51MM | 64MM | 2" |
| 57MM | 77MM | 2.5" |
| 63MM | 77MM | 2.5" |
| 76MM | 89MM | 3" |
| 89MM | 102MM | 3.5" |
| 102MM | 115MM | 4" |

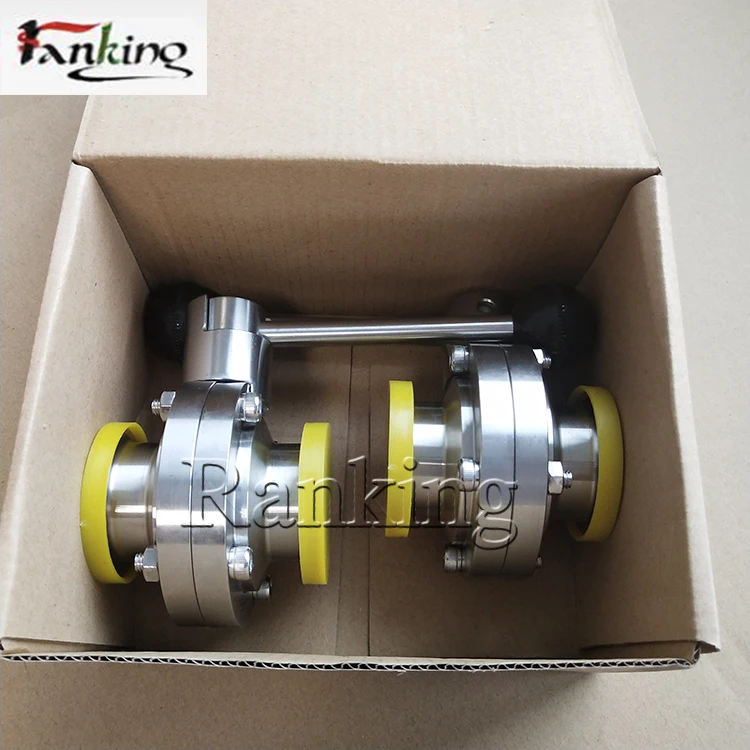

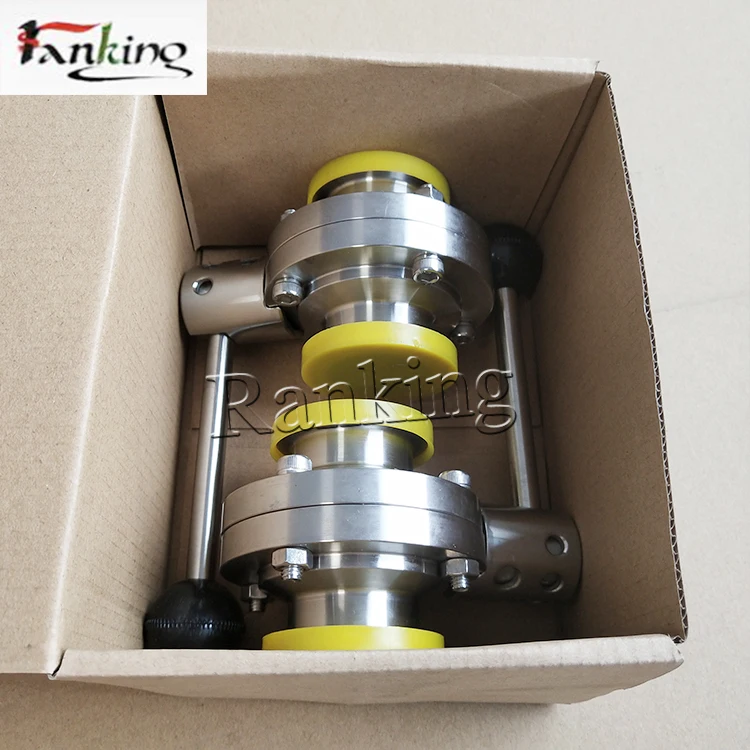

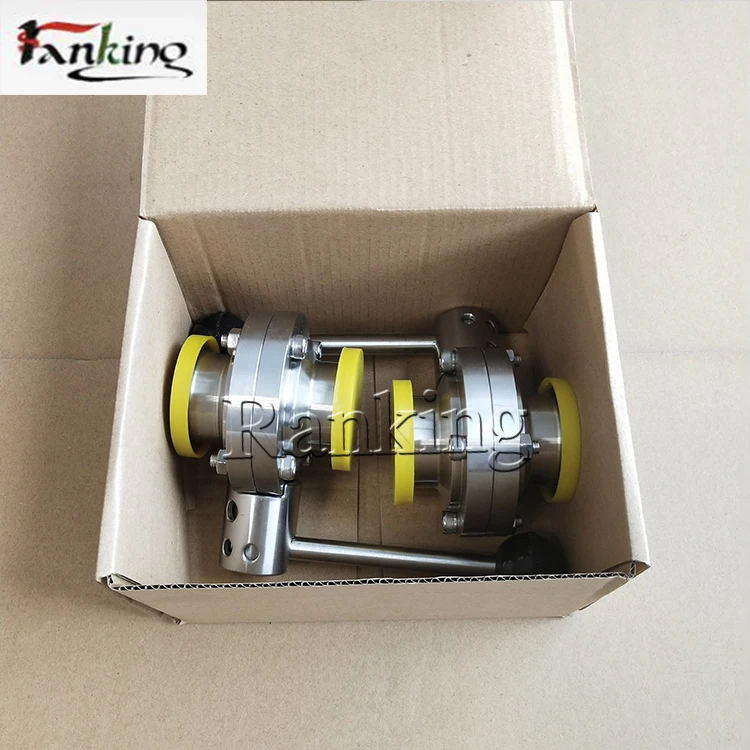

Package include:
1 piece x 63mm Pipe OD Sanitary Butterfly Valve to Clamp Ferrule OD 77mm SS304
