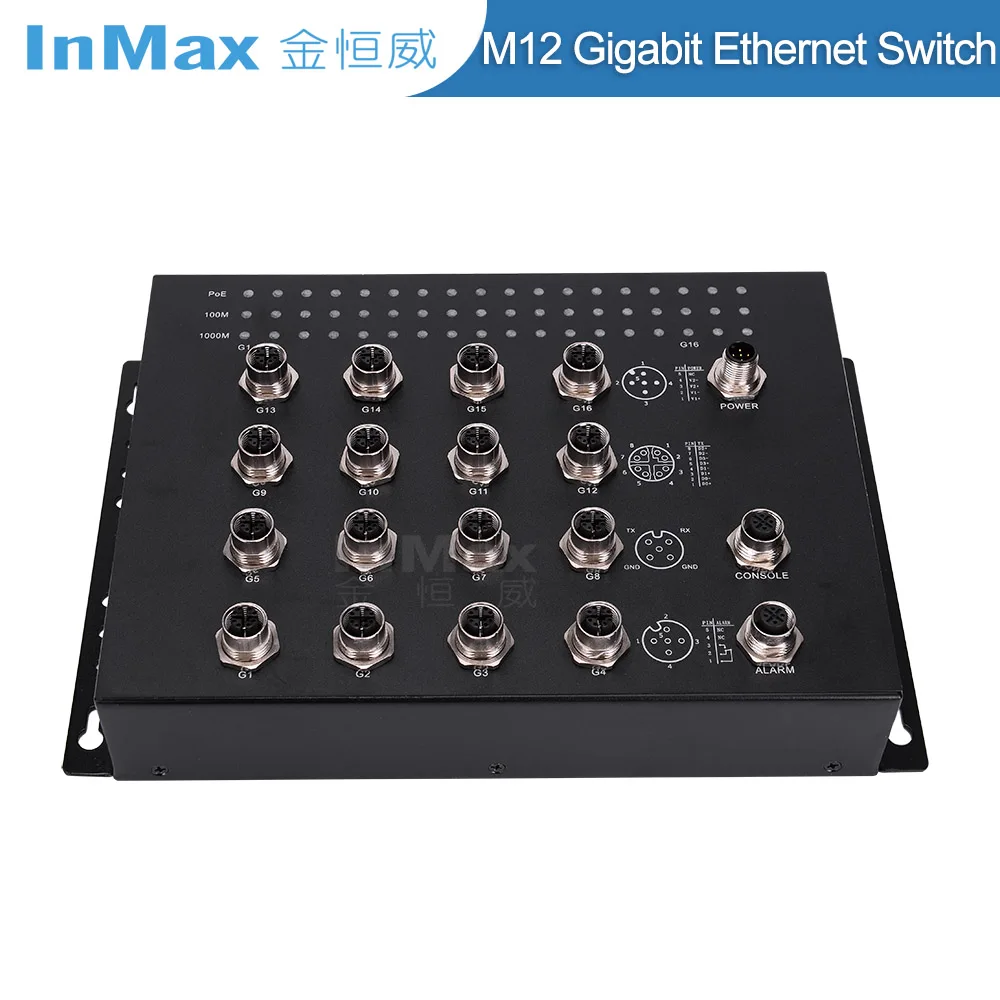

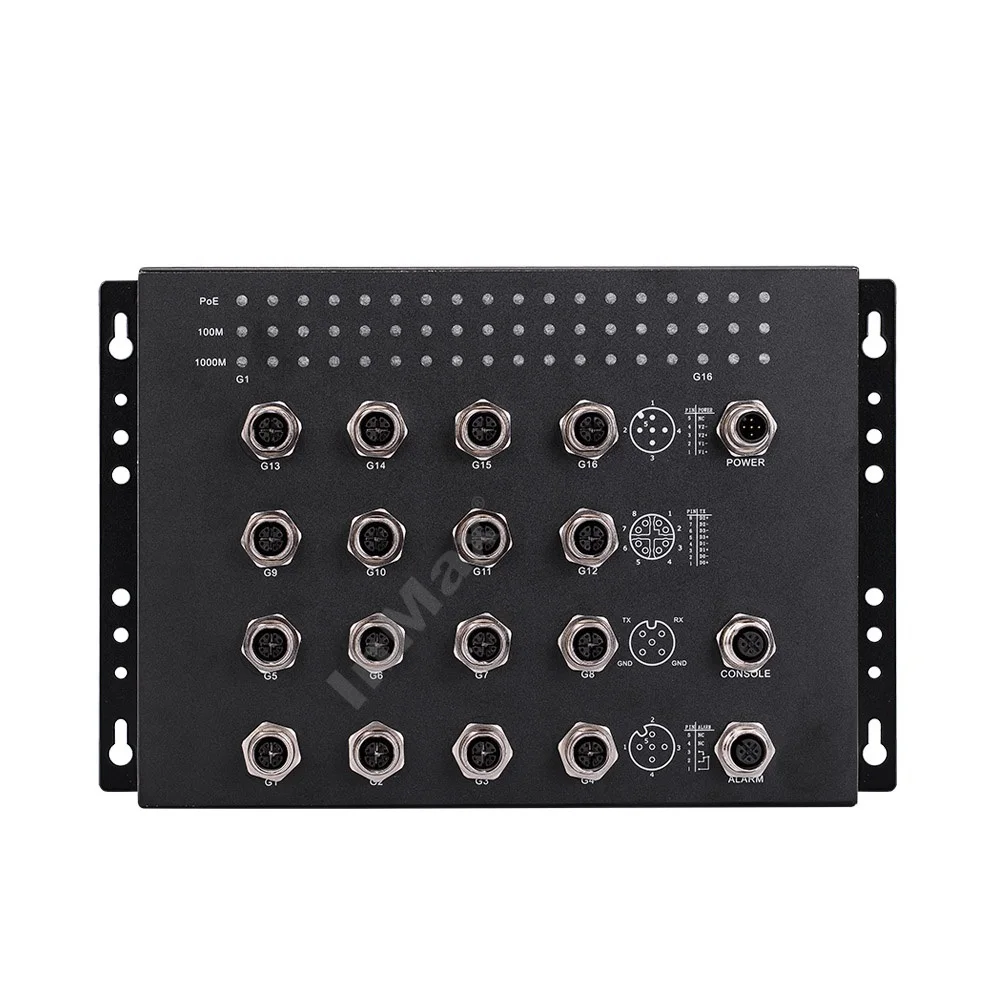

InMax Manufacturer 16 port A code 8Pin 1000Mbps 48V Management Gigabit PoE M12 Railway Ethernet Switch

Share on:

Price:RUB 98,411.77
Price in USD:Details


Product Overview


◎ Meet the EN50155 railway industry standard requirements. Designed for railway transportation         applications.
◎ With 16×10/100/1000M M12 BaseT  ports.and up to 16×PoE ports
◎ With 16 X M12 PoE ports, 15.4W/30W output power of each PoE port.
◎ Automatic recognition of power consumption and power supply mode of network equipment.
◎ Optional function: bypass function(1- 2 port) for power-off protection.
◎ Redundant dual 48VDC power inputs. Built-in overcurrent protection, Reverse connection protection.
◎ Support one-way relay alarm function.
◎ -40 to 85℃ operating temperature range (WT models).
◎ No fan, low consumption, industrial design standard, industrial grade electronic     components,environmental protection & lead-free production.
◎ High strength metal housing, support wall mounting.
◎ IP Rating up to IP40 (Optional IP67 waterproof housing).
◎ Without packet loss in 72 hours full load flow test.


The EN516B series M12 managed railway PoE Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.

The EN516B Ethernet switches provide 16 fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10/100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.

No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.

It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection.

Product Name
M12 16 Port 1000M Railway PoE Industrial Ethernet Switch
M12 Ports
M12-8Pin X-Coded 1000M Connector
M12 Power Port
M12-5Pin Power port connector
Input Voltage
IP Rating
271 × 176 × 45 mm
Operating Temperature
-40 to 85℃
Products Show
Our Service

High quality

ODM DB9 railway switch board

      High quality

       ODM M12 bus switch board

 High quality

   110VDC railway gigabit switch board

Optional Accessories

       M12 A-code (8-Pin male)

10/100/1000 BASE-T RJ45 Interface, customized- length

       M12 X-code (8-pin male)

10/100/1000 BASE-T RJ45 Interface, customized- length

       M12 D-code (4-pin male)

10/100 BASE-T RJ45 Interface, customized- length

                 M12 A-code

       (8-Pin male)Connector

M12 A-code (8-pin male) Quick Connector

                M12 X-code

       (8-pin male)Connector

M12 X-code (8-pin male) Quick Connector


    (6-pin Female)Connector

      M23(6-pin male) Quick Connector

Our Company


Our office


Our Workshop

Packing & Delivery

Packing Details: 1pcs/box, 6 pcs/carton, size:36x34.7x21.5cm/carton , G.W:6kg/carton

Delivery Details : 3-5 days for samples if we have stock, 2-6 weeks for mass order
