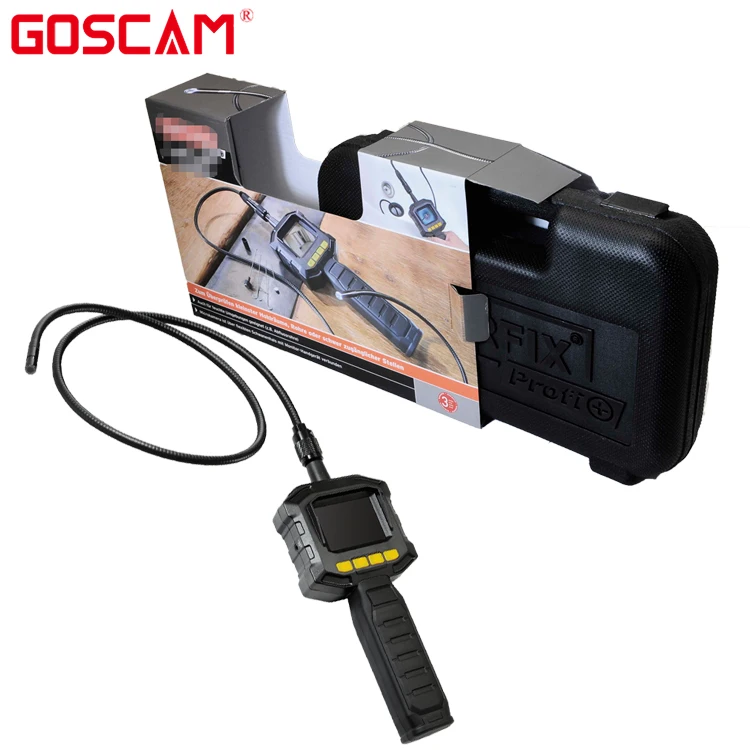

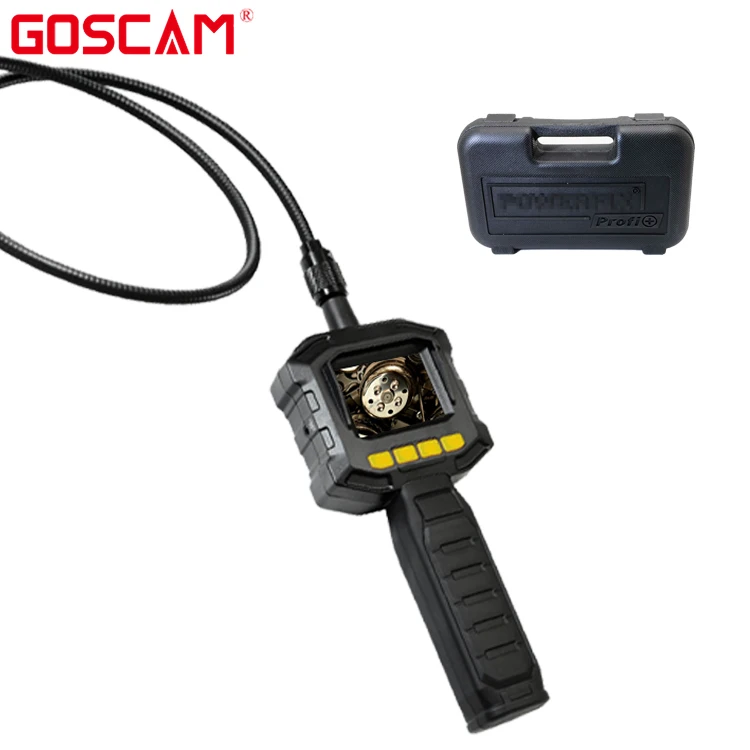

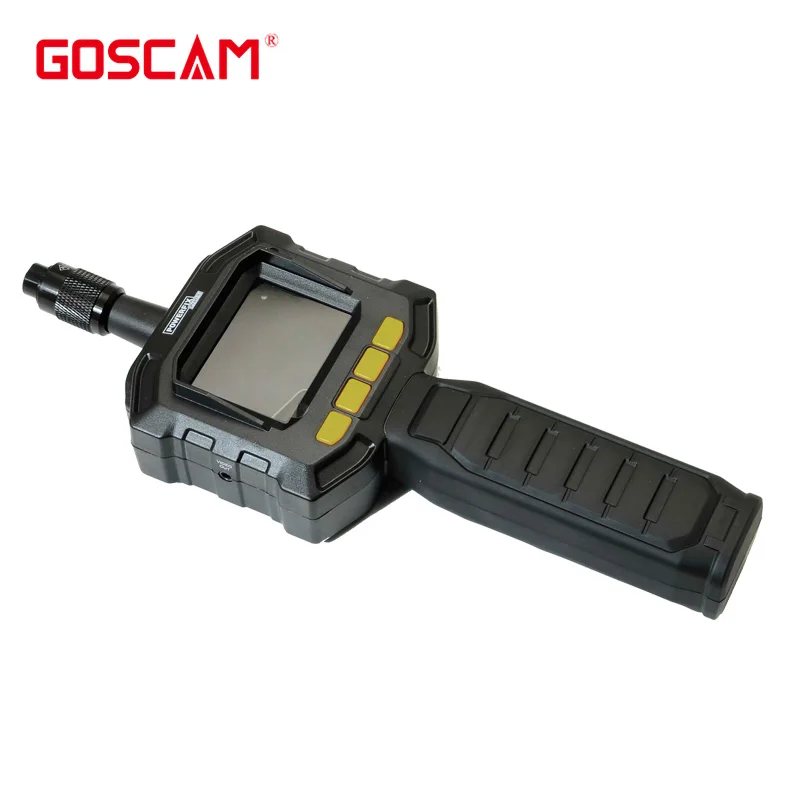

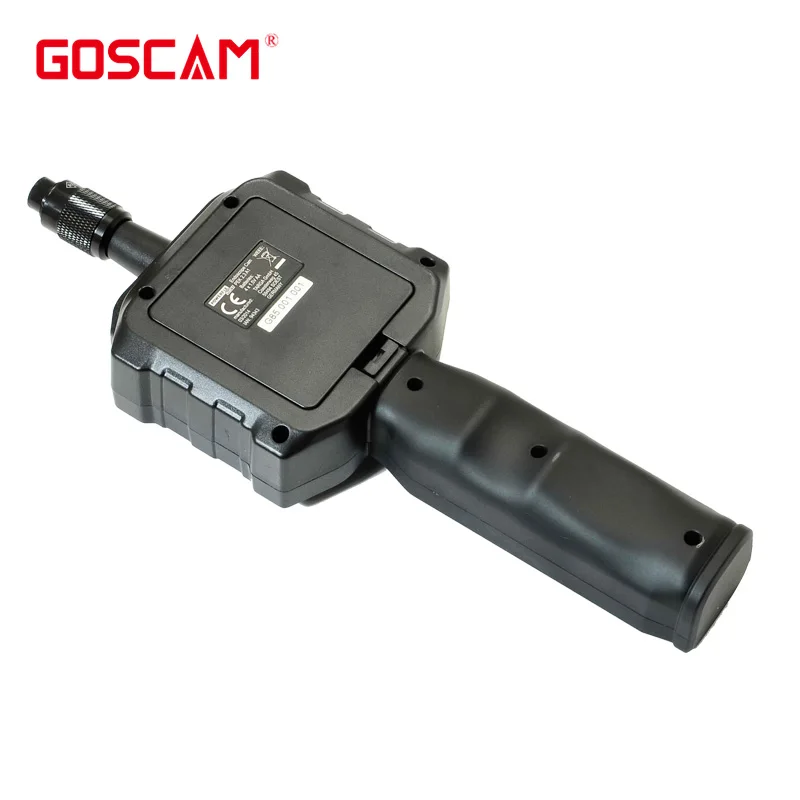

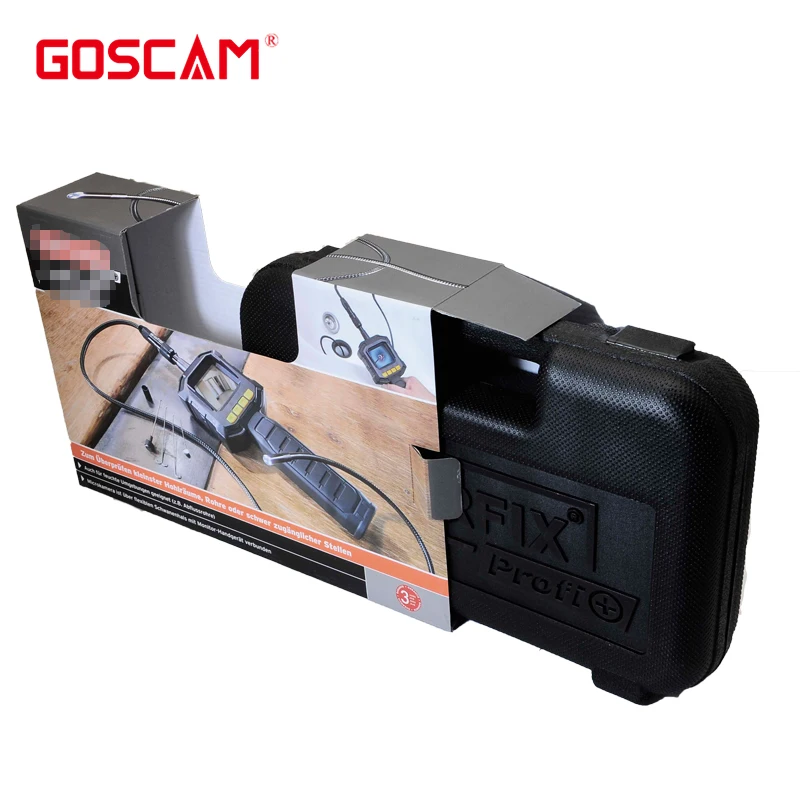

China Manufactory 8mm borescope with a cheap price
- Category: >>>
- Supplier: Shenzhen Gospell Smarthome Electronic Co. Ltd.
Share on (62081774967):
Product Overview
Description
Product Description

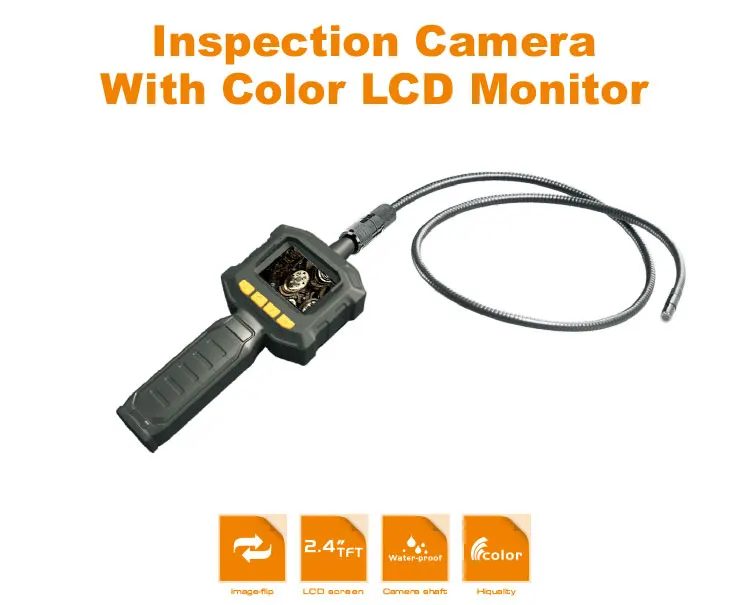

Features:
1. Video out function for viewing on the big screen.
2. Image flip function to view in different angles.
3. Lightweight compact design to easily find, diagnose and solve the problem.
4. Adjustable brightness on led-mounted LED right.
5. 2.4" TFT-LCD color monitor, brightness adjustable.
6. Mini 8mm waterproof camera with the flexible extended tube.
7. Manufactured and tested to IP67 waterproof standard.
8. 4 AA batteries for power supply.
| Item | Unit | Specifications | |
| Screen | |||
| Screen | Screen size | inch | 2.31 |
| Screen resolution | dot | 960 x 240 | |
| Effective display area | mm | 46.75 (w) x 35.06 (h) | |
| Pixel size | mm | 0.0487 (w) x 0.1461 (v) | |
| Display colors | 262k | ||
| View angle | degree | U 20; L 50; D 40; R 40 (typ) | |
| Response time | ms | 25ms | |
| Contrast | 300 | ||
| Video system | NTSC/PAL | ||
| Brightness | cd/m2 | 220(typ) | |
| Whole set | |||
| Whole set | Battery capacity | AA 1.5V x 4 | |
| Runtime | Hour | 6(max) | |
| Consumption current | mA | 238+-5mA/6V (max) | |
| Output signal impedance | ohm | 75 | |
| Output signal Level | Vp-p | 0.9-1.3 | |
| Working humidity | RH | 85% | |
| Working temperature | ℃ | -10 ~~~ +40 | |
| Weight | g | 178 | |
| Tube | |||
| Tube | Image sensor | Inch | 1/9-inch COMS |
| Effective pixels | pixels | 640 x 480 | |
| Video Format | NTSC/PAL | ||
| Lens mount | Color, F=2.8 | ||
| Horizontal view angle | degree | 48 | |
| Minimum illumination | Lux | 0(LED ON) | |
| Power Supply | VDC | 3.3V | |
| Consumption current | mA | 120(max) | |
| Focal distance | cm | 8~15 | |
| Operation temperature | ℃ | -10~~~+50 | |
| Storage Temperature | ℃ | -20~~~+60 | |
| Operation humidity | RH | 15~85% | |
| Dimensions | mm | Φ8 | |
| Weight | g | 138 | |
Hot product

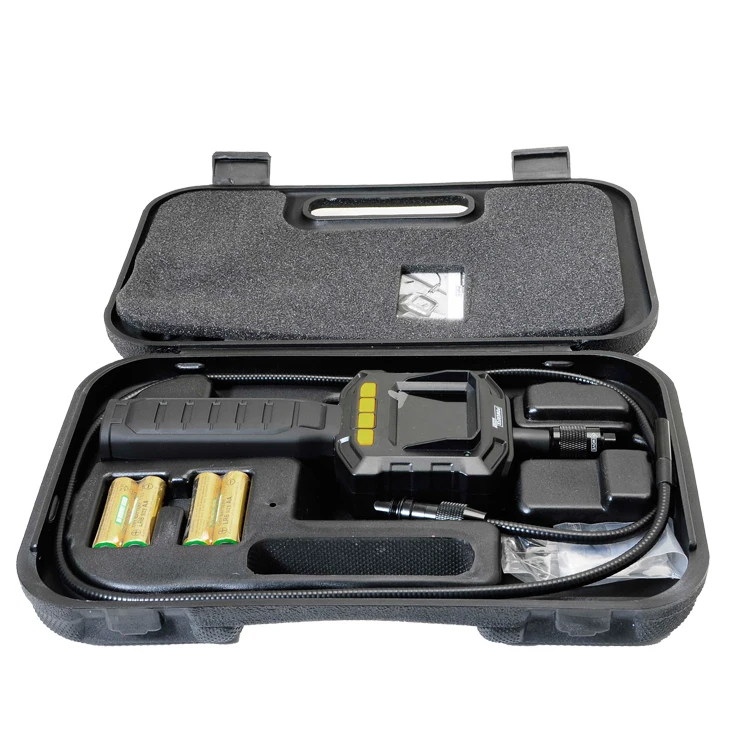

Packaging & Shipping
Why chose us
Why chose us
1. Are you troubled by product quality? Are you spending too much time on product after-sales service? Are you still worried about not finding the target price product? if you have these troubles, Please be careful reading below.
2.GOSCAM is under GOSPELL GROUP(Stock No:002848), was founded in 2002, with nearly 500 employees, and includes R & D centers, sales centers, and manufacturing centers. Our Product won the favor of Bosch, Costco, Stanley, Haier and so on world famous brand.
3. We have a Strict production and test process, numerous test equipment. To ensure our product be the best quality.
4. Our solution for your target Price.we can customize your target price product by adjusting chip, material, function to satisfy you. and ensure it be the best performance.
5.OEM/ODM ability, we have 60 employees team in R&D department.it have won many international and domestic patents (12 invention patents, 28 utility models, 69 appearance patents, 30 software copyrights, and 3 PCT patents).
6.Certification:BSCI,ISO90,IECQ for factory. Rohs, CCC, FCC, UL for product.we have the ability to pass all country`s certification.
7. Contact us now, get the solution for you.
Company Profile
This information contains company information, trade capacity, product capacity, R&D capacity, trade shows. reports>>
Company Information
GOSCAM is under GOSPELL GROUP(Stock No:002848), was founded in 2002, with nearly 500 employees, and includes R & D centers, sales centers, and manufacturing centers.adheres to independent research and innovative design spirit, formed production lines of inspection cameras, IP camera, wireless home security systems, baby monitors, intelligent smart home solutions.
At the same time, GOSCAM is a pioneer and leader of the inspection tool camera industry, GOSCAM is one of the enterprises with a full range of international product lines and maximum shipments. Our endoscope camera series includes wireless inspection cameras, wire inspection cameras, WIFI inspection cameras, multifunctional testing tools.
GOSCAM won the favor of famous brands at domestic and abroad, including China Mobile, Haier group, Lenovo Group, LETV, 360, Lifesmart, Acrosoft, OCO, and other well-known enterprises.
With strong production and manufacturing capacity, strict quality management system, a full range of products testing and certifications, Goscam are always providing first-class quality and service to the global customers.
FAQ
Q1. What types of packaging do you usually use for this product?
A. Normally we offer Color Box Packing.
Q2. How long does it take to manufacture once an order has been placed?
A. It depends on the volume of the order. Most online wholesales orders we ship within 7 days after we receive payment.
Q3.What methods of payment do you accept for the full-order?
A. We can accept T/T or the Alibaba Trade assurance orders.
Q4. Are you able to airship door to door directly to an FBA fulfillment center?
A. That is our top advantages
Q5. Is it possible to put our logo on your product or product packaging?
A.Yes.We can also do the free label or logo sticker for you on packaging at free cost.
Q6.Why did our Customers choose us?
Delivery time > 99%.
Quality Control > 99%
After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
