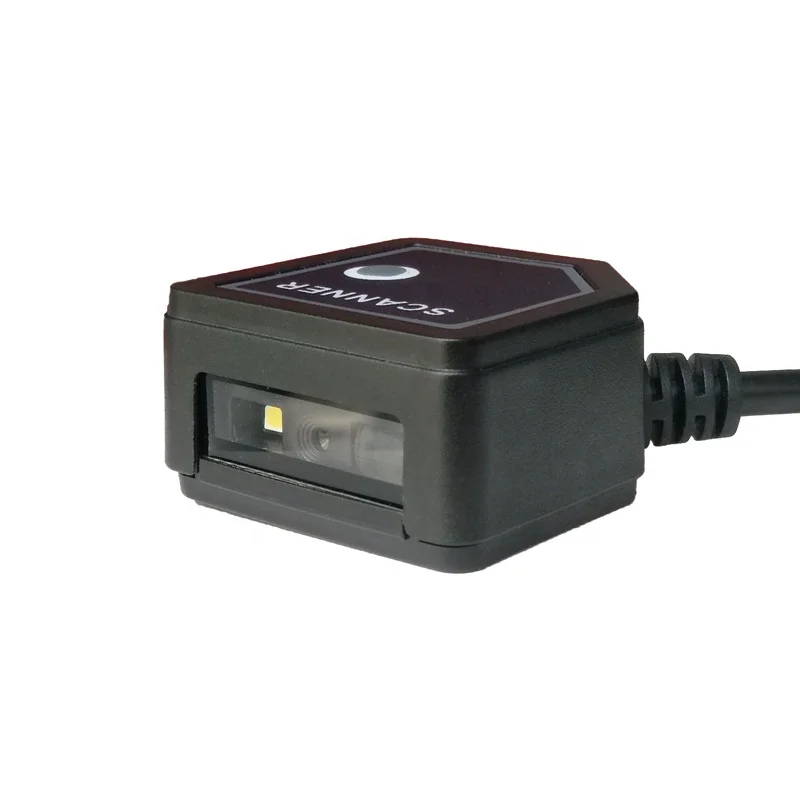

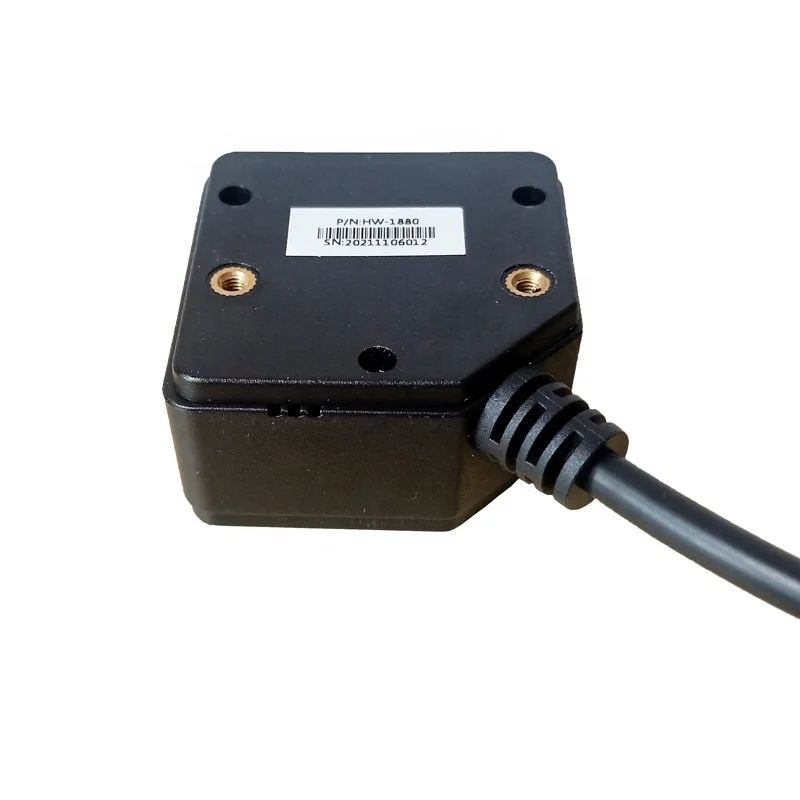

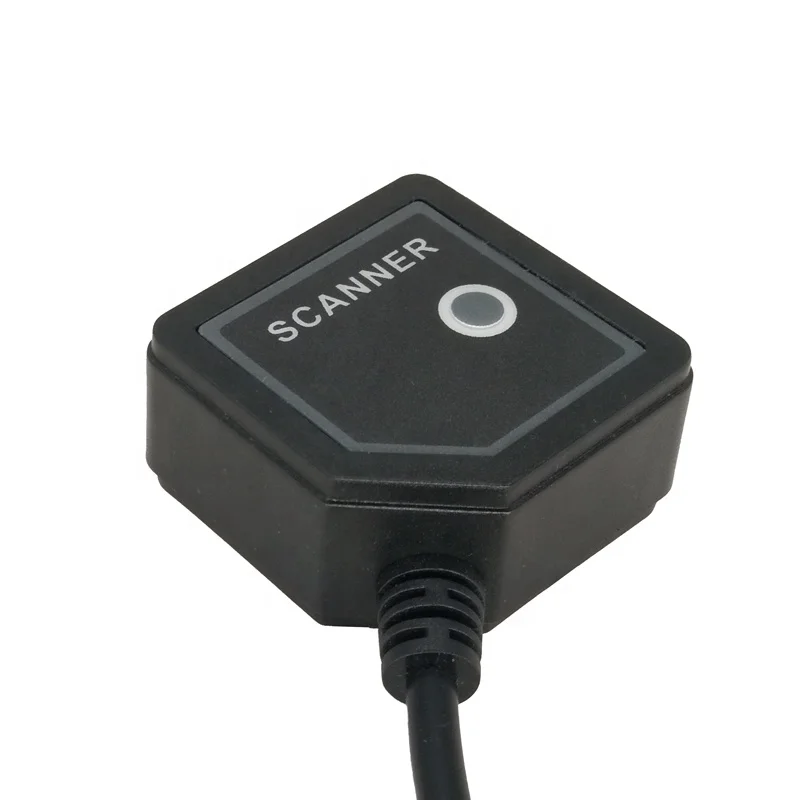

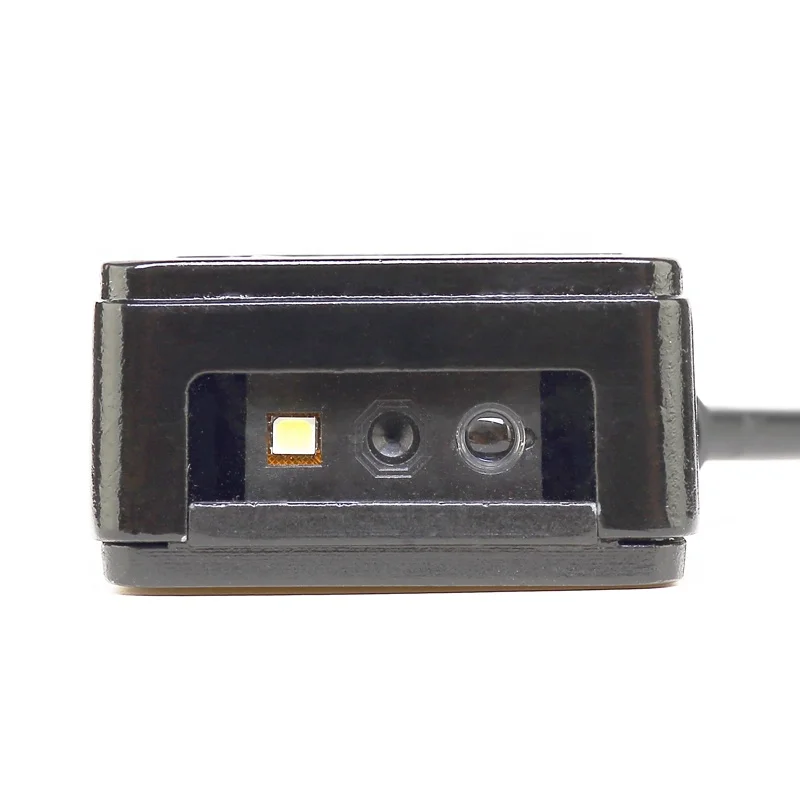

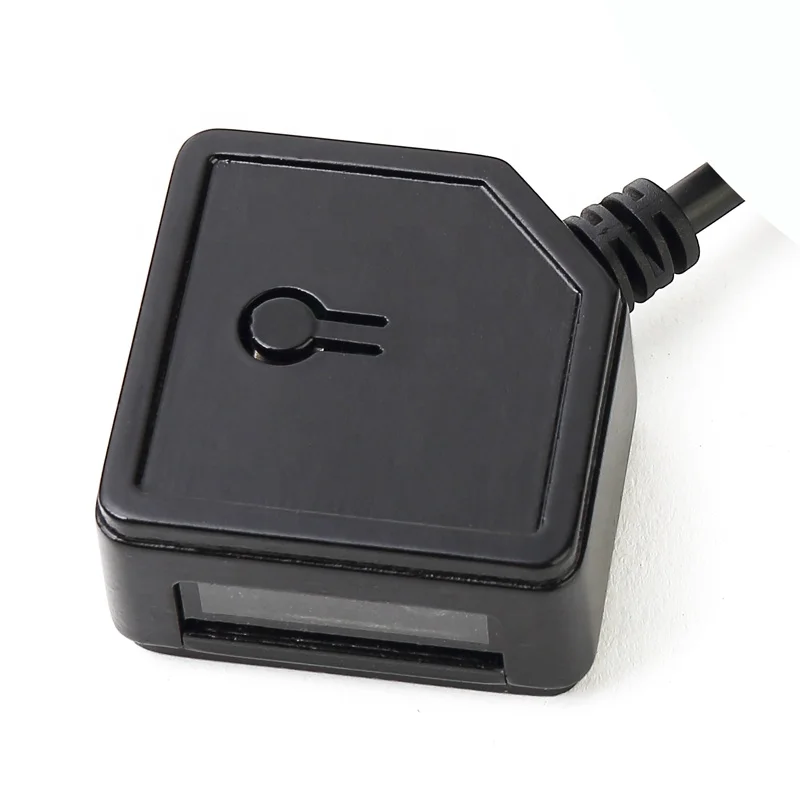

High Pixel 2D Fixed Mount Barcode Scan Engine QR Code Reader For Self Service Kiosk
- Category: >>>
- Supplier: Shenzhen Honor Way Electronic Co. Ltd.
Share on (62081854078):
Product Overview
Description
Product Image
High Pixel 2D Fixed Mount Barcode Scan Engine QR Code Reader For Self-Service Kiosk
Product Description
2D Fixed Barcode Scan Engine QR Code Reader For Self-Service Kiosk
Feature and advantage
1. 32-bits high performance CPU
2. Decoding min barcode density:4mil(752*480)
3. Support 1D/2D barcode on paper and screen
4. Manual, Motion detective, Continuous, Host mode(programmable)
5. Interface USB(HID,COM),RS232(open wire)
6. Small size, fast and convenient installation
Detailed Parameters
| Item | Parameter name | Parameter value |
| Product | Product name | 2D Fixed Barcode Scan Engine QR Code Reader For Self-Service Kiosk |
| Model number | HW-1880 | |
| Application | Self-service machine,factory traceability,logistics etc. | |
| Scanning Performance | Light Source | 620nm Visible red light diode,white light |
| Imaging Sensor | CMOS 60fps | |
| Resolution | 752*480Pixels | |
| Error Rate | 1/8million | |
| Barcode Density | ≥4mil | |
| Scanning Speed | 350times/s | |
| Scanning Angle | Tilt ±55°,Deflection ±55°,Rotation :360° | |
| Minimum Contrast | 25% | |
| Trigger Mode | Auto-sensing,Manual,Continuous,Host mode | |
| Typical DOF | 50-200mm (13mil) EAN-13 40-90mm (5mil) Code39 5-240mm (20mil) QR Code 50-90mm (10mil)Data Matrix 30-130mm (6.67mil) PDF 417 Performance may be impacted by bar code quality and environmental conditions | |
| Decoding Capacity | Support paper and screen barcodes 2D: QR,PDF417,Data Matrix, Aztec, Matrix code etc. 1D: EAN, UPC, Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 etc. | |
| Mechanical and electrical | Indicator | Buzzer&LED |
| Client interface | USB,USB-COM,RS232(open wire) | |
| Language | Support multi-languages | |
| Power | 750mW | |
| Input Voltage | 5V | |
| Operating Current | 170mA | |
| standby Current | 400uA | |
| Shell Material | ABS+PC | |
| Color | Black | |
| Scanner Size | 44*44*23mm | |
| Weight | 70-100g | |
| Cable Length | 1.35M | |
| Reliability | Shock Resistance | 1.5M |
| Waterproof | IP52 | |
| Operating Temperature | -20℃~50℃ | |
| Storage Temperature | -40℃~70℃ | |
| Operating Humidity | 5%~95% | |
| Storage Humidity | 5%~95% | |
| Certificate | CE,FCC,ROHS |
