Table top qr code payment barcode scanner for retail
- Category: >>>
- Supplier: Shenzhen Honor Way Electronic Co. Ltd.
Share on (62082079409):
Product Overview
Description
Product Description

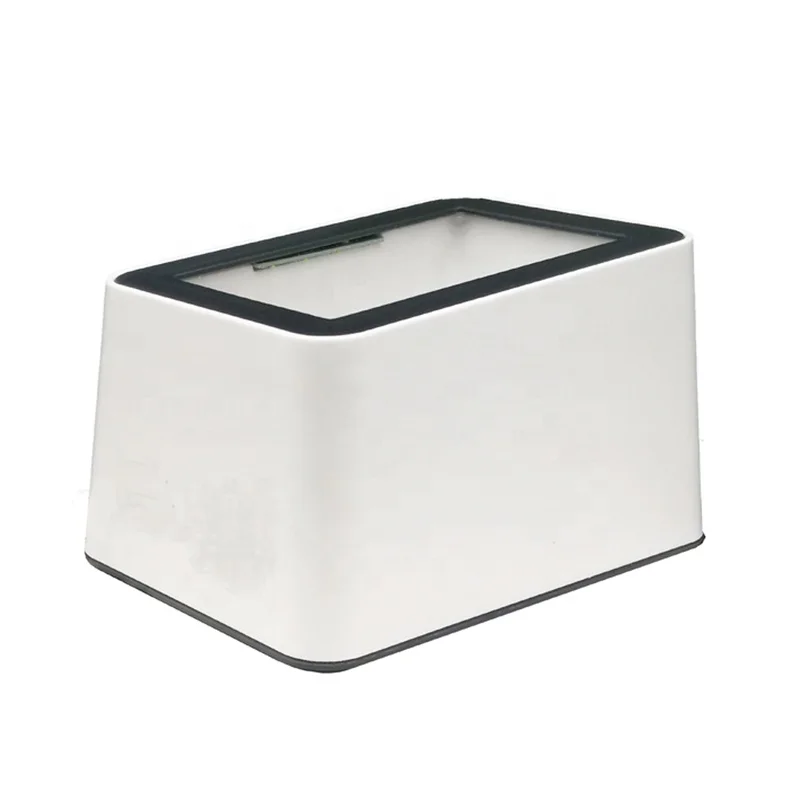

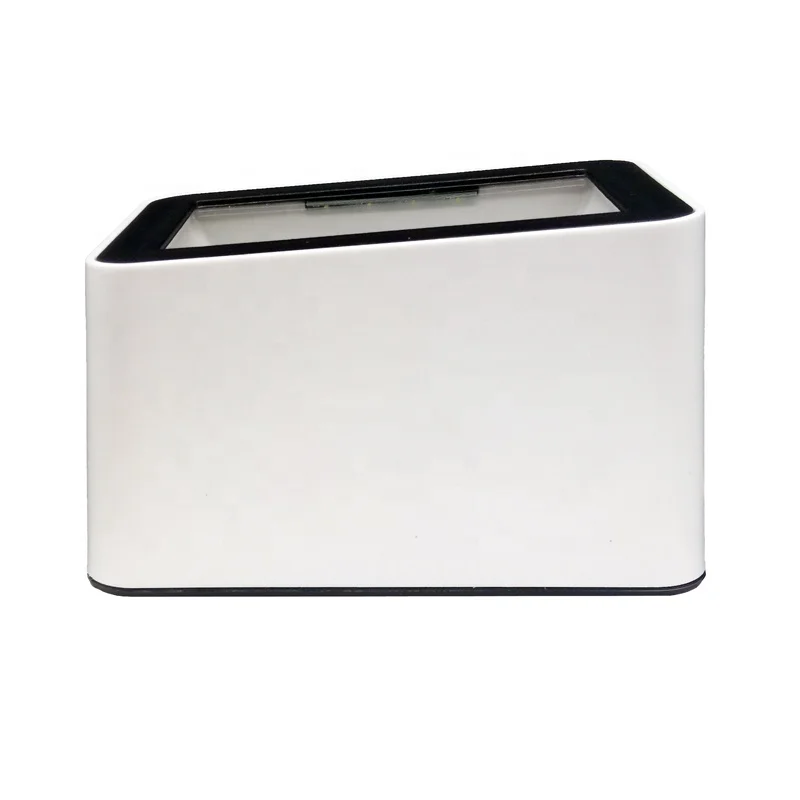

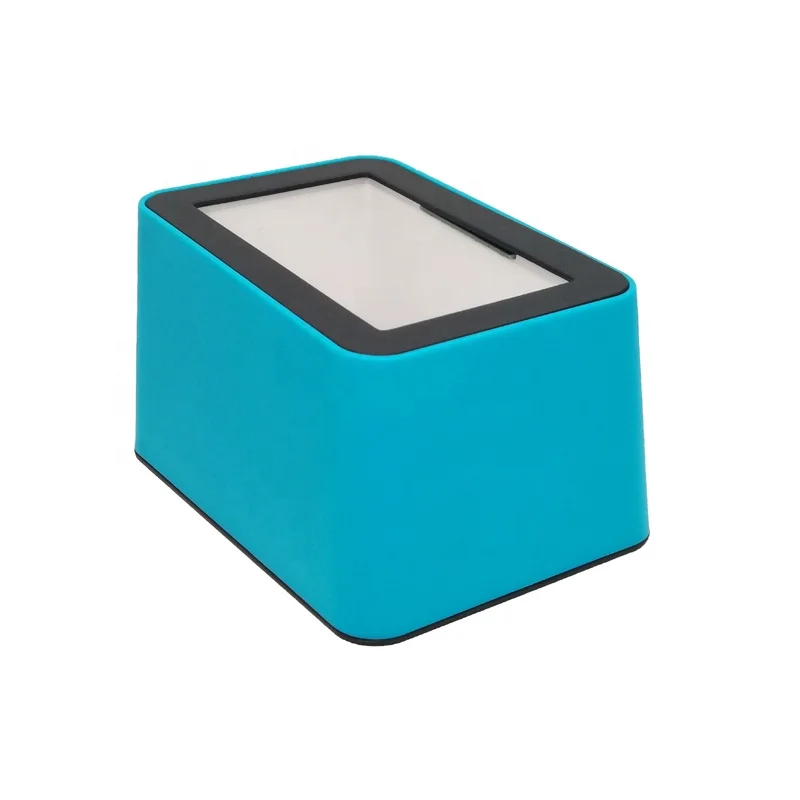

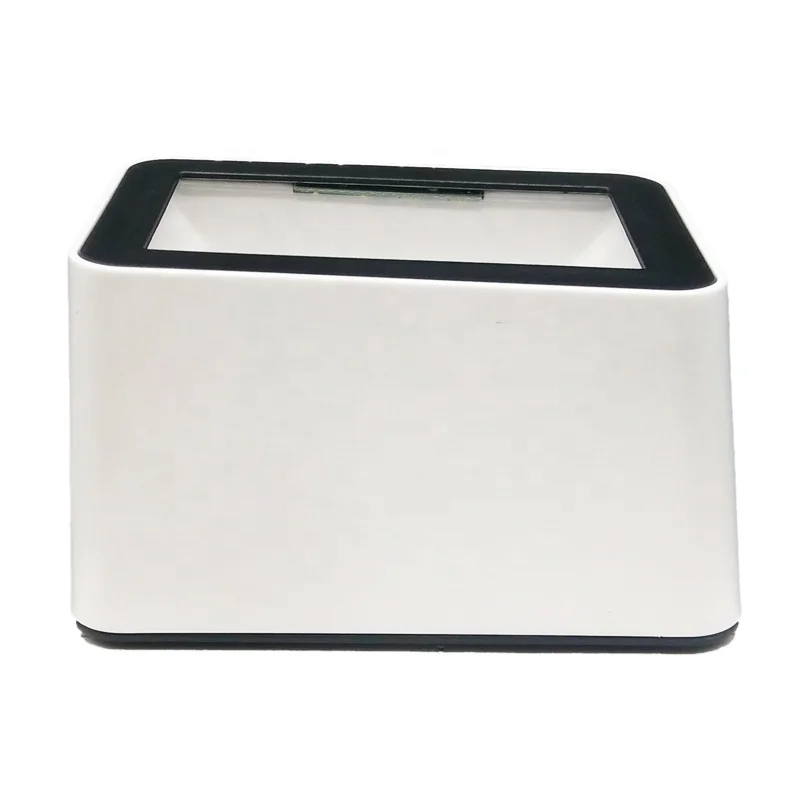

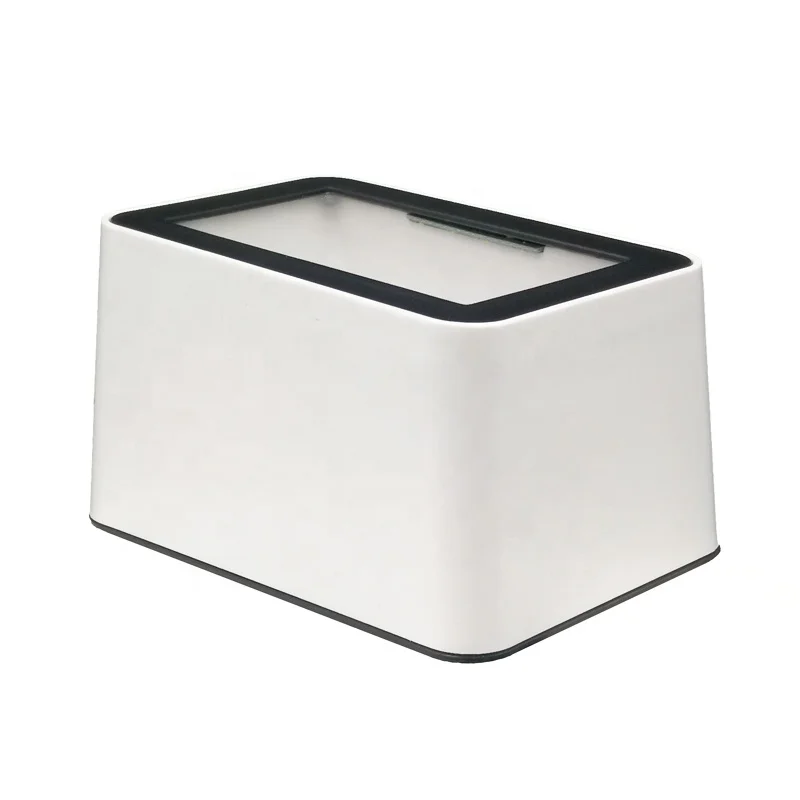

Table top qr code payment barcode scanner for retail
Feature and Advantage
1. Support 2D/1D QR barcode, support paper/screen barcode
2. USB interface,plug and play,no need driver.

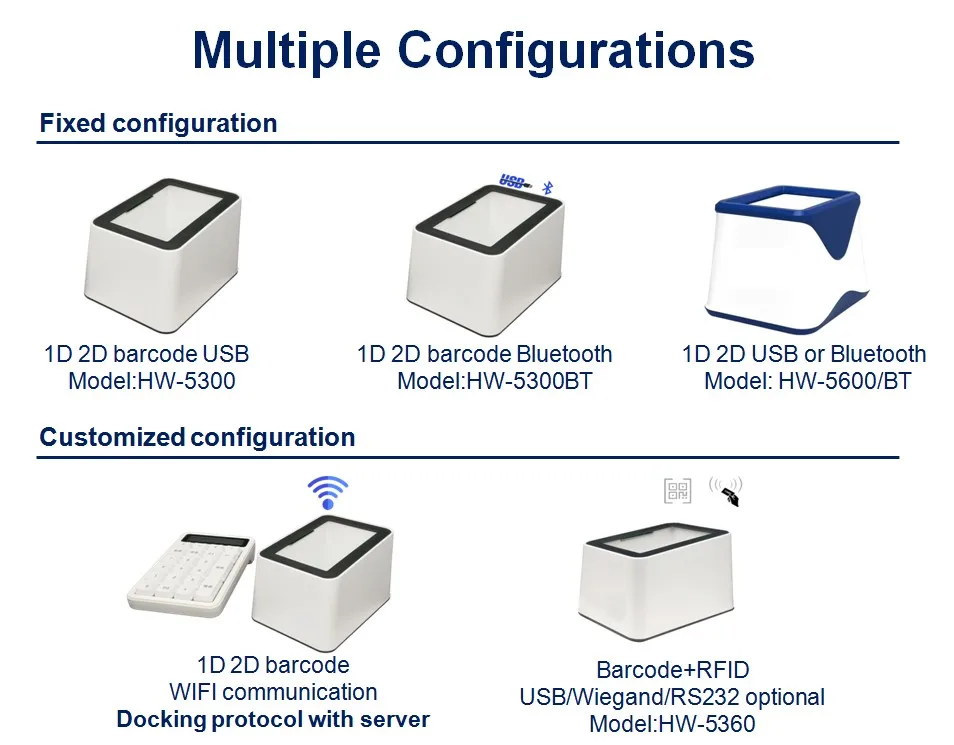

3. We have multiple configurations(bluetooth,NFC),accept customize for WIFI,2G,4G etc.communication methods.
4. We can accept voice broadcast customize.
5. Factory direct sale,highly cost-effective.
Detailed Parameters
| Item | Para. Name | Para. Value |
| Product Info. | Product Name | Table top qr code payment barcode scanner for retail |
| Model No. | HW-5300 | |
| Application | Retail,carting service,exhibition,event sign etc. | |
| Reading performance | Image Sensor | CMOS |
| Resolution | 300 thousand 640*480pixels | |
| Decoding capacity | Support paper and screen barcodes 2D: QR ,PDF417,Data Matrix etc. 1D: Code128, EAN-8, EAN-13,Interleaved 2 of 5,UPC-A, Code39,UPC-E etc. | |
| Precision | 8mil | |
| Light Source | White LED | |
| Scan Angle | Rotation360°,tilt±45°,skew±45° | |
| Min Contrast | 30% | |
| Scanning Speed | 200 times/s | |
| Typical DOF | 40-150mm(15mil code128) conditions | |
| Mechanical and electrical | Interface | USB(charge/data) |
| Working Voltage | DC 5V | |
| Current | 260mA(Max) 120mA(working) 2mA(standby) | |
| Dimensions | L118*W85*H70mm(Housing 1) | |
| Weight | 200g | |
| Cable Length | 1.45Meters | |
| Indication | Buzzer & LED | |
| Environment Request | Working Tem | -20~60℃ |
| Storage Tem | -40~85℃ | |
| Humidity | 5%-95%(Non-condensing) | |
| Light Immunity | 0~10,000Lux | |
| Drop Test | 1.5M | |
| Other Confugiration | Bluetooth,NFC,WIFI,2G,4G | |
