Product Overview
Description
China factory sells 100a12v high frequency electroplating power supply, electroplating rectifier silver plating power supply
Product parameters
| Product name | 100A / 12V plating power supply |
| input voltage | Single phase AC220V (Can be customized for each country's use of power) |
| output voltage | 0~12V Cortinuously adjustable (voltage can be customized according to customer requirements) |
| Output current | 0~100A Continuously adjustable (Current can be customized according to customer requirements) |
| Output characteristic | Constant voltage or current |
| The output power | 1.2KW |
| Work efficiency | ≥93% |
| Power factor | ≥95% |
| Adjustment accuracy | ≤1% |
| Protection mode | Automatic fault protection with phase loss, over temperature,.over voltage,under voltage, over current, short circuit, etc. |
| The output shows | Digital Display of LED Voltmeter and Amperometer |
| cooling method | Forced fan cooling |
| ambient temperature | -10~45°C |
| Ambient humidity | ≤85% |
| Insulation strength | Input and output, input and chassis: AC2200V, 10mA, 1 minute |
insulation resistance | Input and Output, Input and Shell, Output and Shell: > 20M |
| insulation class | Level B |
| Protection level | IP20 |
| Outline size | Shell size: 165 * 436 * 340 mm |
| Applicable load | Metal surface plating continuously plating, precious metal plating |
Other features that can be customized | Time cortrol function, ampere hour meter function, intelligent temperature control function, intelligent touch screen display operation interface, RS-485, PLC or 232 communication interface, LC filtering function, etc. Professional customization according to various requirements of customers |
FAQ
————————————————
1Q:Aer you a manufacturer or a trading company?
| A:We are a manufacturer,and this is our factory's address:NO.3,Xinye Yixiang,Chenchung in dustrial zone,Qiaonan street,Panyu district,Guangzhou city,Guangdong Province,China. |
2Q:Do you accept OEM?
| A:Yes,all of our products can be customized. |
3Q:What's your MOQ?
| A:1piece is OK |
4Q:What's the lead time?
| A:It deoends,generallyit's with in 5 business daysfor 1-2 piece. |
5Q:What's your warranty?
| A:One year. |
6Q:What's your payment?
| A:T/T,L/C are both acceptable. |
contact details
| 1208153133 @qq.com | |
| telephone / fax | 13925093308 |
| 1605779413 | |
| 13925093308 |

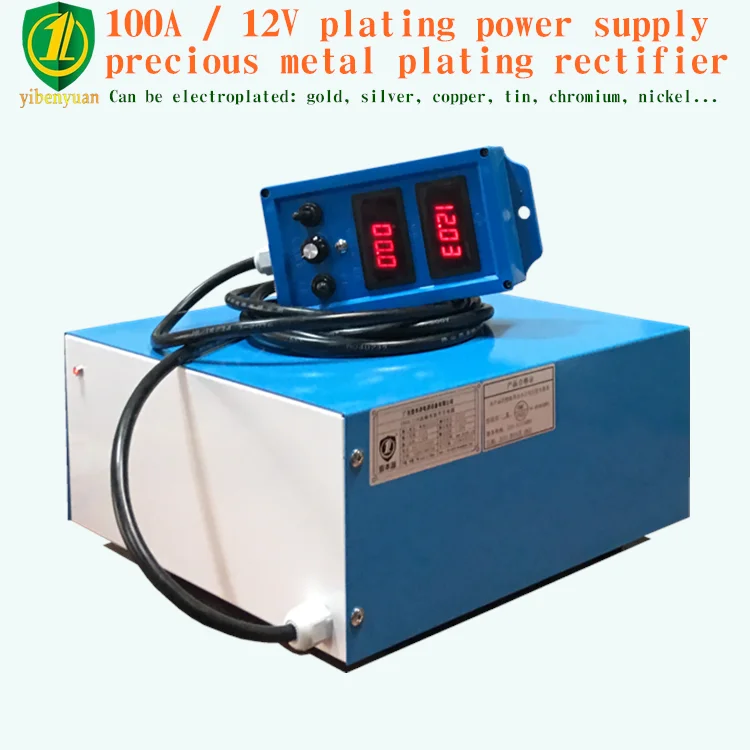

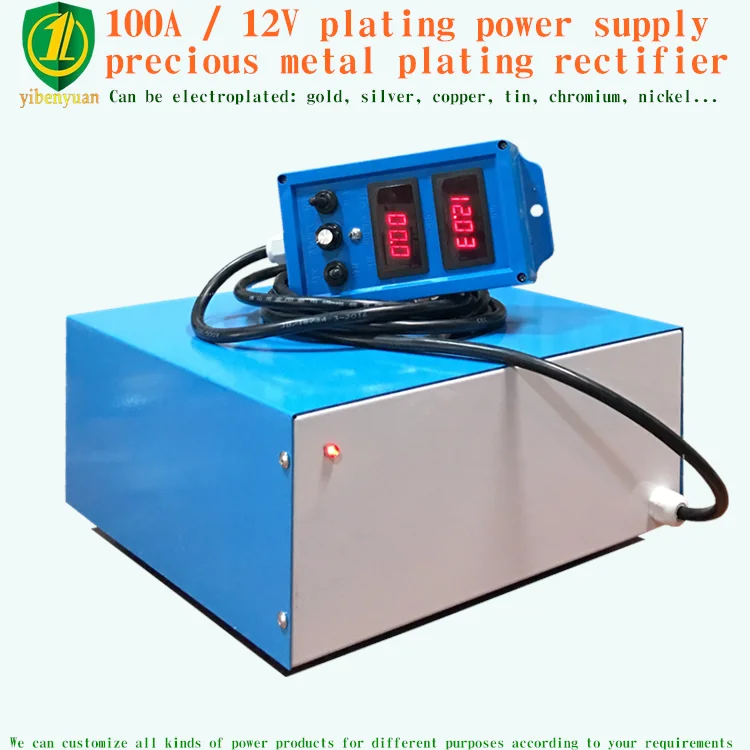

100A / 12V high frequency DC plating rectifier
The product structure is reasonable and firm, the product is light and easy to carry, and the appearance is simple and beautiful.
The voltage and current of the power supply can be continuously adjusted and converted to a constant voltage or current. LED screen digital display.
This product is suitable for: gold plating, silver plating, copper plating, nickel plating, chrome plating, tin plating, etc. It can also be used in continuous plating production line.
