High Quality Processing Plant Diamond Mining Machinery Gold Washing And Extraction Machine Gold Washing Machine
- Category: >>>
- Supplier: Jiangxi Province County Mining Machinery Factory
Share on (62082209587):
Product Overview
Description
Customer Mine Site
Location：Angola
Capacity:200 tons per hour
Project: Diamond wash Plant
Process: First use vibration feeder to feeding material to trommel scrubber, After trommel scrubber for washing clean, and separator big size out, then to vibration screen. Vibration screen also for separator different size.
This is for Angola clay diamond separator line. The capacity is for 200 tons per hour, First use backhoe get material to hopper, under hopper have a vibration feeder, vibration feeder can separator out +70mm size, then 0-70mm size to trommel scrubber, trommel scrubber is have two part, one part scrubber is for washing, one part screen is for separator different size. After trommel scrubber then to vibration screen, separator size again, then can use jig machine get diamond.
This 200 tons per hours diamond separator line is have working for one years, and it have get good effect, for now this customer want open a other 200 tons per hours line, our engineer have go mine site for inspect, first can check the existing line, most things is good, but also some details can make more perfect, Our factory is a progress factory, we need make the machine more and more perfect, beside check the existing line, also need check the new line, base the one new ore site, to choose the best machine.
Products Description

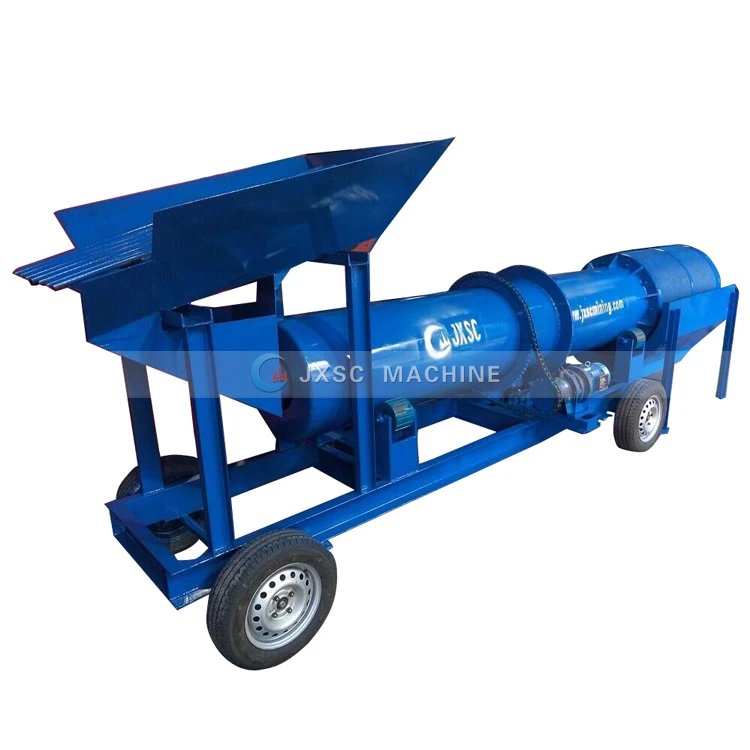

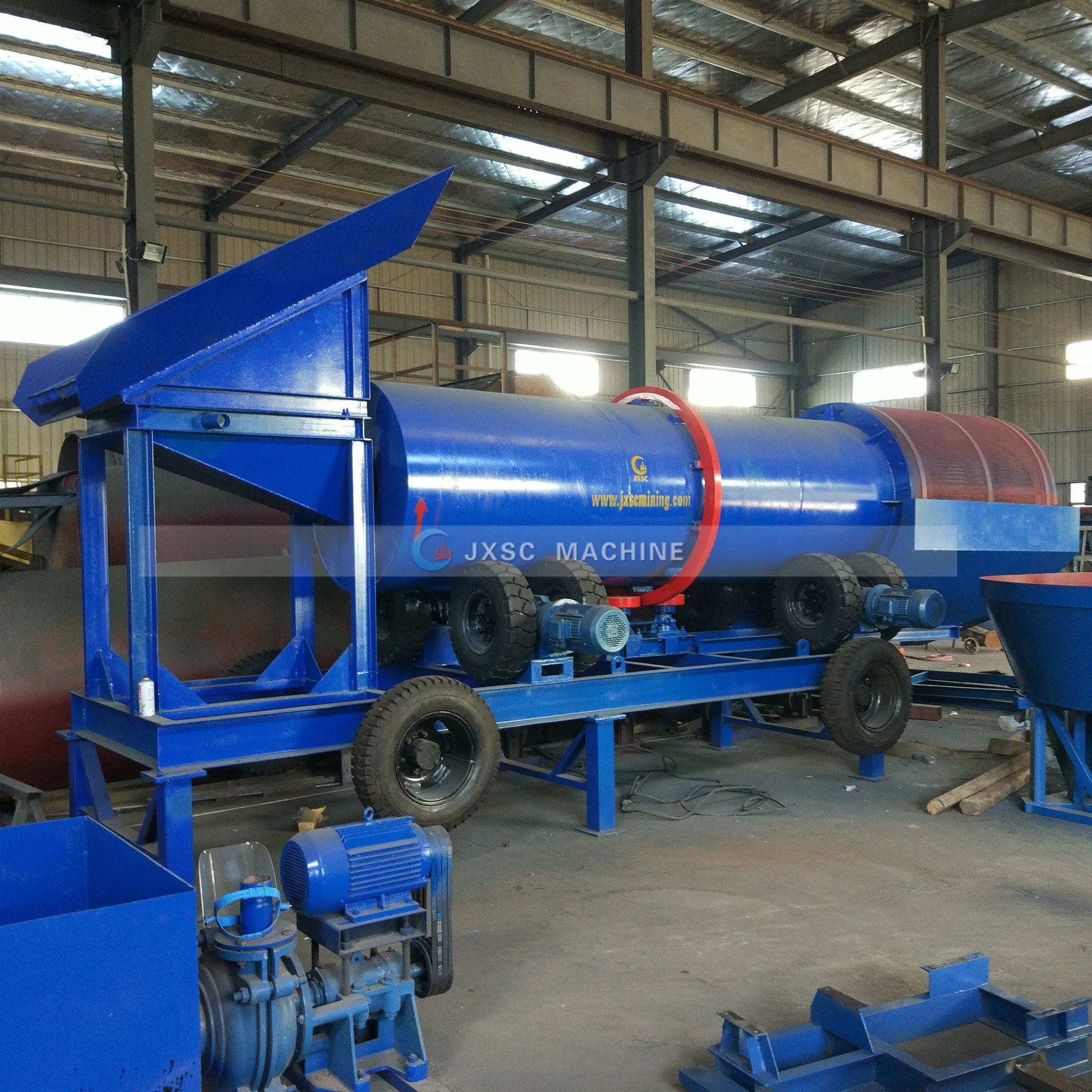

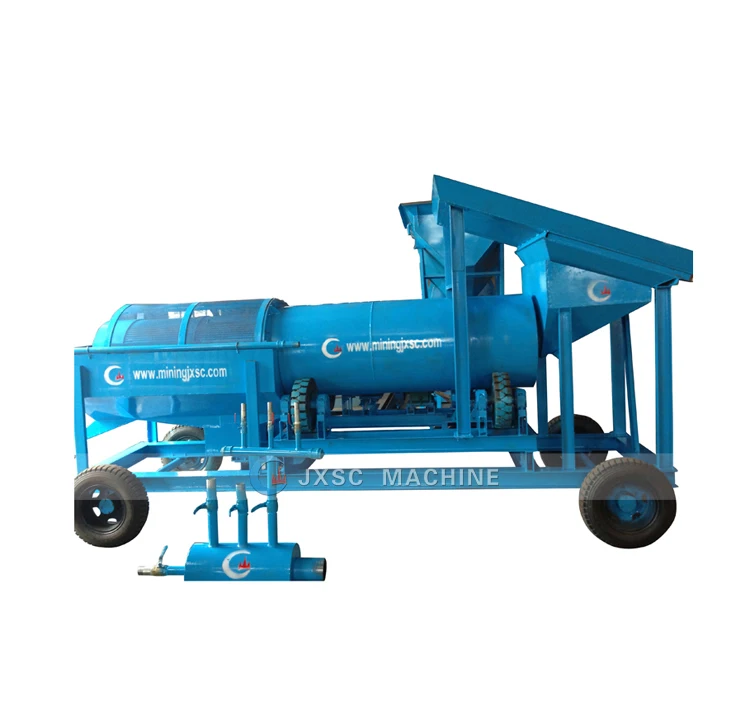

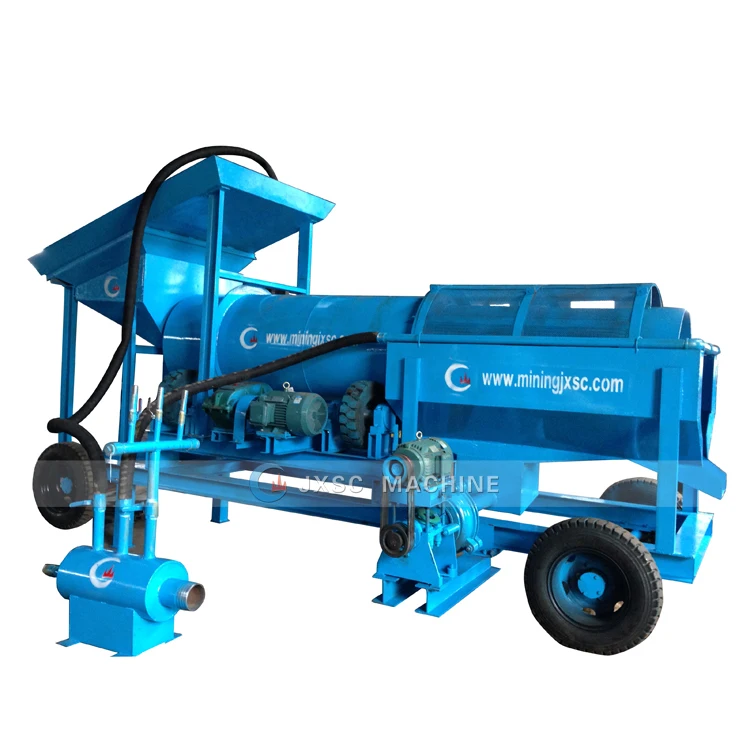

Mining Processing Gold Extraction Equipment Trommel Scrubber is working rotary through the gear in the middle of the outside drum. In the Mining Machinery Parts , it's a closed space ,there are some plate in this part. When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part.
Gold Processing Plant,Gold Panning Equipment ,Small Scale Gold
Trommel Washing Plant Scrubber suitable to Diamond Mining Machinery Coal Mining Machinery
- Good washing effect for sticky clay material, sieving out different size ores.
- Various Process capacity , can be from 5 T/H to 250T/H as per request
- Low operating cost, easy maintenance, low noise.
- The length &diameter of drum , inside drum lined material, screen mesh, layer quantity of screen and Screen material can be customized.
- Mobile type or stationary type
- Diesel generator or electric motor
- Various Process capacity , can be from 5 T/H to 250T/H as per request
- Low operating cost, easy maintenance, low noise.
- The length &diameter of drum , inside drum lined material, screen mesh, layer quantity of screen and Screen material can be customized.
- Mobile type or stationary type
- Diesel generator or electric motor
Screen for Gold Washing Trommel Gold Washer
The screen mesh size& layer quantity & screen materials can be customized, screen material has below choice
- PU: wear resistant, long life time, fix with screw, easy to replace
Rubber Tyres Driving for Gold Washing Trommel Gold Washer
The driving system is Rubber Pneumatic Tyre, which is high quality, wear resistant, High temperature resistant, High tolerance, Chinese Famious Brand, not easy to be broken
Trommel Scrubber Product Parameters as below for reference only:
Model | Screen Size (MM) | Rotation Speed(R/Min) | Feeding size (mm) | Angle of inclination (degree) | Capacity (T/H) |
JXSC-400 | ≤20 | 27.9 | ≤80 | ≤10 | 1-5 |
JXSC-600 | ≤25 | 27.6 | ≤80 | ≤10 | 5-10 |
JXSC-750 | ≤25 | 27.6 | ≤100 | ≤10 | 10-30 |
JXSC-900 | ≤25 | 27.6 | ≤100 | ≤10 | 30-50 |
JXSC-1200 | ≤25 | 17 | ≤160 | ≤10 | 50-70 |
JXSC-1500 | ≤50 | 16 | ≤230 | ≤10 | 70-100 |
JXSC-1800 | ≤50 | 16 | ≤230 | ≤10 | 100-150 |
JXSC-2100 | ≤50 | 16 | ≤230 | ≤10 | 150-180 |
Our Company
Jiangxi Province County Mining Machinery Factory is a leading mining machinery manufacturer with over 35 years experiences, providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore /Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore/Cobalt ore/Antimony ore, ect. As well as complete set small laboratory mining machines.
Main product including: trommel screen, Gold Wash Plant trommel scrubber, shaker table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, jaw crusher, hammer crusher, ball mill, flotation machine, spiral classifier, as well complete set small laboratory mining equipment.

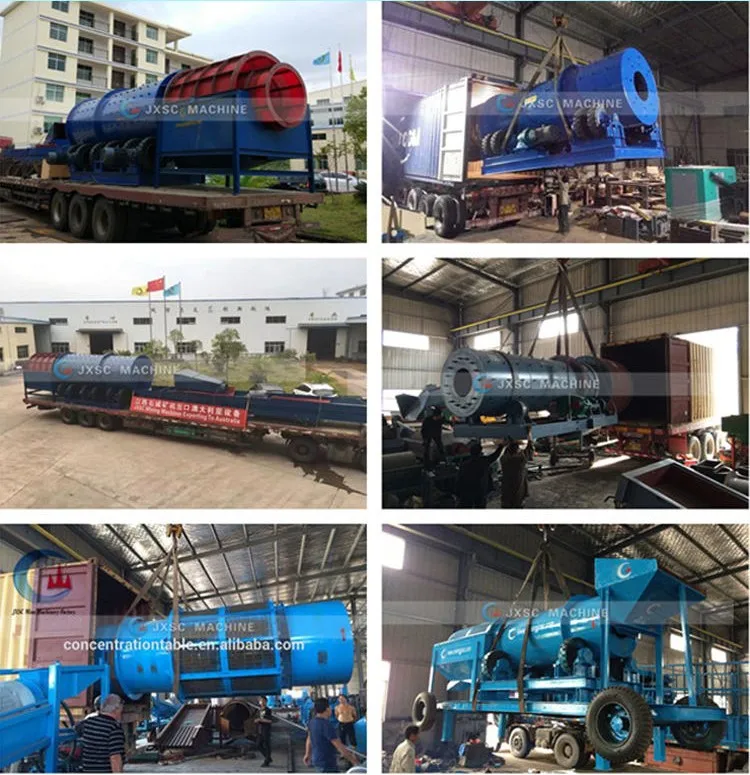

Packing & Delivery
1.Standard parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole machine is loaded in the container.
Transportation:
1.By sea or by air freight
2.MSK/MSC/APL/EMC/WANHAI/KLINE
3.We will remind you before boat arrival
Our Service
Pre-Sales Service
* Receiving clients inquiry
* Studying clients mining conditions
* Introducing our machinery
* Propose the most suitable solution
After-Sales Service
* Design outlet with 3D drawing photo
* Producing according to the design
* Inspection and testing before delivery
* Engineers installation and training service overseas
Our Certifications
FAQ
Q: Are you mining machinery manufacturer? can I visit your factory?
A: Yes, we are, our factory is located in Ganzhou City Jiangxi province, it have direct flight to Beijing,Shanghai,Guangzhou ,Shenzhen Airport. Welcome to visit our factory.
Q:Can you produce as specific size?
A: Yes, most of our products can be customized.
Q: What is the leading time?
A: For shaking table and laboratory mining equipment ,we can send out within 10 days;
For large mining equipment and customized machine, the lead time is 30-40 days.
Q: Do you supply oversea service?
A: Yes, we do. Engineers available to service overseas.
Q: How about the warranty?
A: We will supply you one year warranty and lifelong technical support.
