Product Overview
Description
Product Description
High-quality PVC Flooring antistatic Conductive pvc vinyl tile for ESD room
Name:anti-static floor
Spec:600mm*600mm/610mm*610mm
Thickness:2.0mm/3.0mm
System Resitance:104-106 ohm (Conductive)
106-108 ohm (Dissipative)
Aplication:

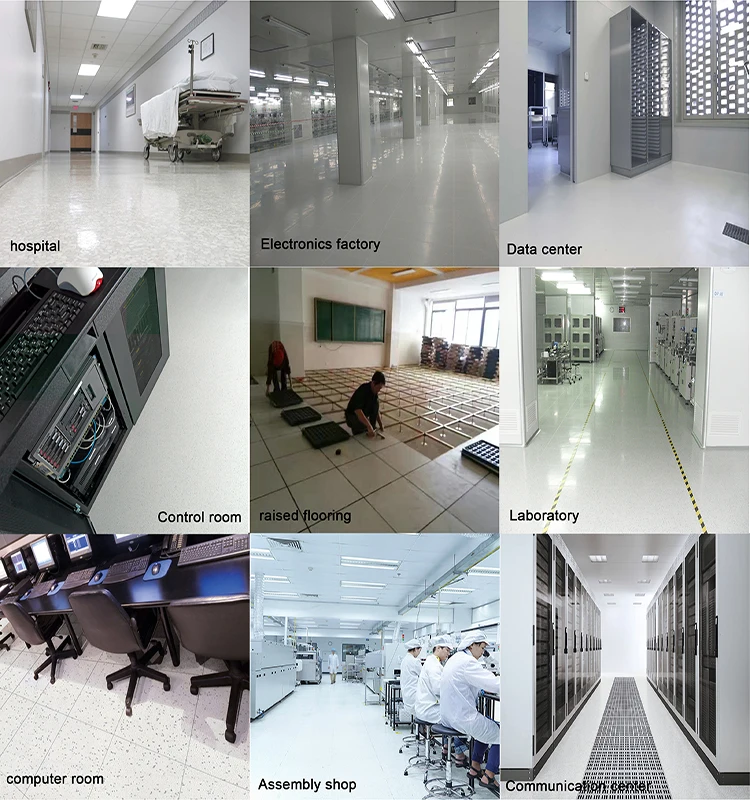

Our products are mainly used in the industries of telecommunication, electronics, microelectronics and medicine etc. (such as electronics factory, Data center, computer room, hospital, lab etc)
Technical Data Sheet
Item | Standard | Index |
Size | EN426 | 600*600mm |
610*610mm | ||
900*900mm | ||
Thickness | EN428 | 2.0, 2.5, 3.0mm |
Weight | EN430 | 2.0mm, 3.8kgs/m3 |
2.5mm, 4.8/kgs/m3 | ||
3.0mm, 5.8/kgs/m3 | ||
Surface Rresistance | DIN51953 ASTMF-1550 or NFPA99 | 104-106 Ω Conductive |
106-109 Ω Dissipative | ||
Decay Time | SJ/T10694-2006(VI<100V) | Equal 0.4S |
Charge Voltage | SJ/T10694-2006(VI<100V) | Equal 70 |
Fire Resistance | DIN 4102 | B1 |
Combustion Properties | SJ/T11236-2001(<10s,FV-0) | Equal 0.35s Ifv-0 |
Amount of anti-wear | SJ/T11236-2001(less than 0.02g/cm3, 110r) | Equal 0.014 |
Anti-wear Properties | EN660pt2 | Ten-T < 2.0 mm3 |
Wheel Pressure | EN425 | No influence |
Residual Concavity | EN433, DIN51955 | 0.03mm(2.0mm) |
0.035mm(2.5mm) | ||
0.04mm(3mm) | ||
Dimensional stability | EN434 | Less than 0.1% |
Color fastness | IDO105BO2 | At least 6 |
Resistance to chenmicals | DIN423,DIN51958 | offers excellent resistance ask for special sheet |
Impact sound absorption | VLI, ISO104, ISO717 | Approx 2dB |
Standard for health care facities | NFPA99 | Comfirm to the requirement of NFPA99 in effect at the line of installation |
Company Information
Huajing is the biggest vinyl floor & conductive floor manufacturer in China. Price 20% cheaper than others!
Huajing was established in 1993 and located in No. 16, Zhongyang Road, Hengling Town, Wujin District, Changzhou City, Jiangsu Province, China. It’s made up of three factories, Covering an area of more than 80000m2. More than 400 employees.
Our main products:
Homogeneous Directional Pvc Floor in Roll
Homogeneous Non-Directional Pvc Floor in Roll
Homogeneous Conductive Pvc Floor in Roll
Homogeneous Conductive Floor Tile
Mob:+86-13584386425
Wechat/What’s up:+86-13584386425
All our products with CE/SGS/UDEM etc approved. OEM for 40 brands (include foxconn, huawei etc). Our website https://www.floor.cn/. Our products are widely used in public place, commercial area, hospital, school, office, clean room, computer room etc.
Features:
Eco-friendly: Non-toxic, Formaldehydeless , Free of heavy metals, No soluble volatile matter
Healthy: Antibacterial, Mouldproof, Anticorrosive, No smell

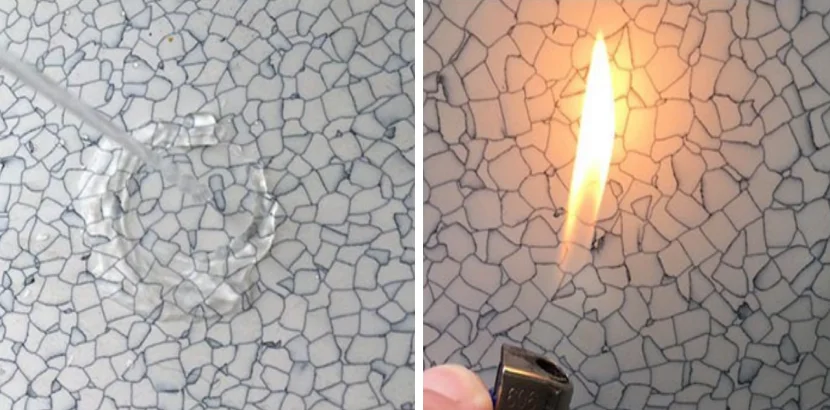

Safe: Non-slip, Anti-static, water-proof, fire-proof
Comfortable: Soft,Temperature constancy, Suitable elasticity, Absorption and noise reduction

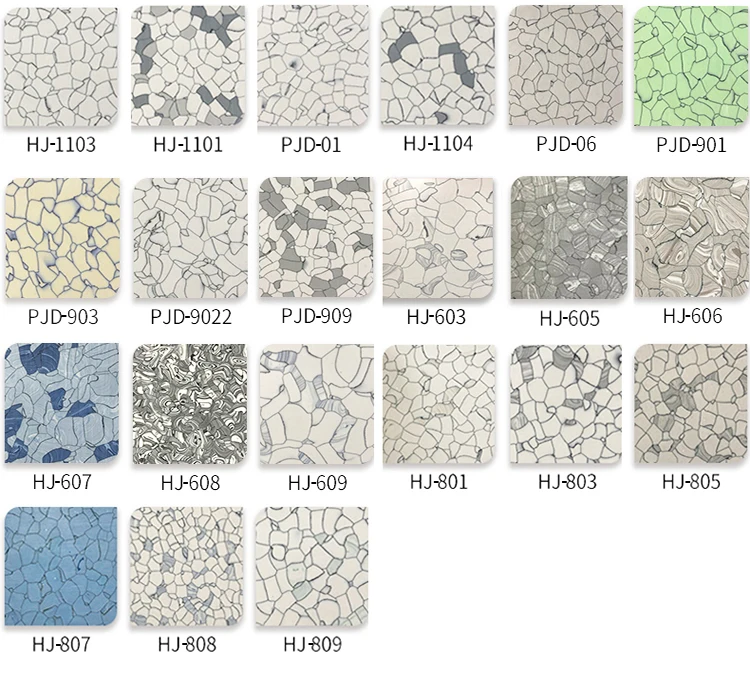

Beautiful: more than 500 patterns and colors can be chosed, Beautiful and fashion
Long life: Latest europ technology and 100% virgin raw materials to make our products can be used more years.
Certificate
![9ZE2`($8ZP]C(7KKU4PHEG](http://sc03.alicdn.com/kf/Hf4a93250274b4c8f8824f7e14e15be5bA/200160915/Hf4a93250274b4c8f8824f7e14e15be5bA.png)
Exhibition
Contact us:
+86-13584386425
+86-13584386425
+86-13584386425
