VC480C High Efficiency Digital Micro OHM Meter

Share on (62082393754):


Price:

Quantity:


Product Overview

Description





VICI VC480C+

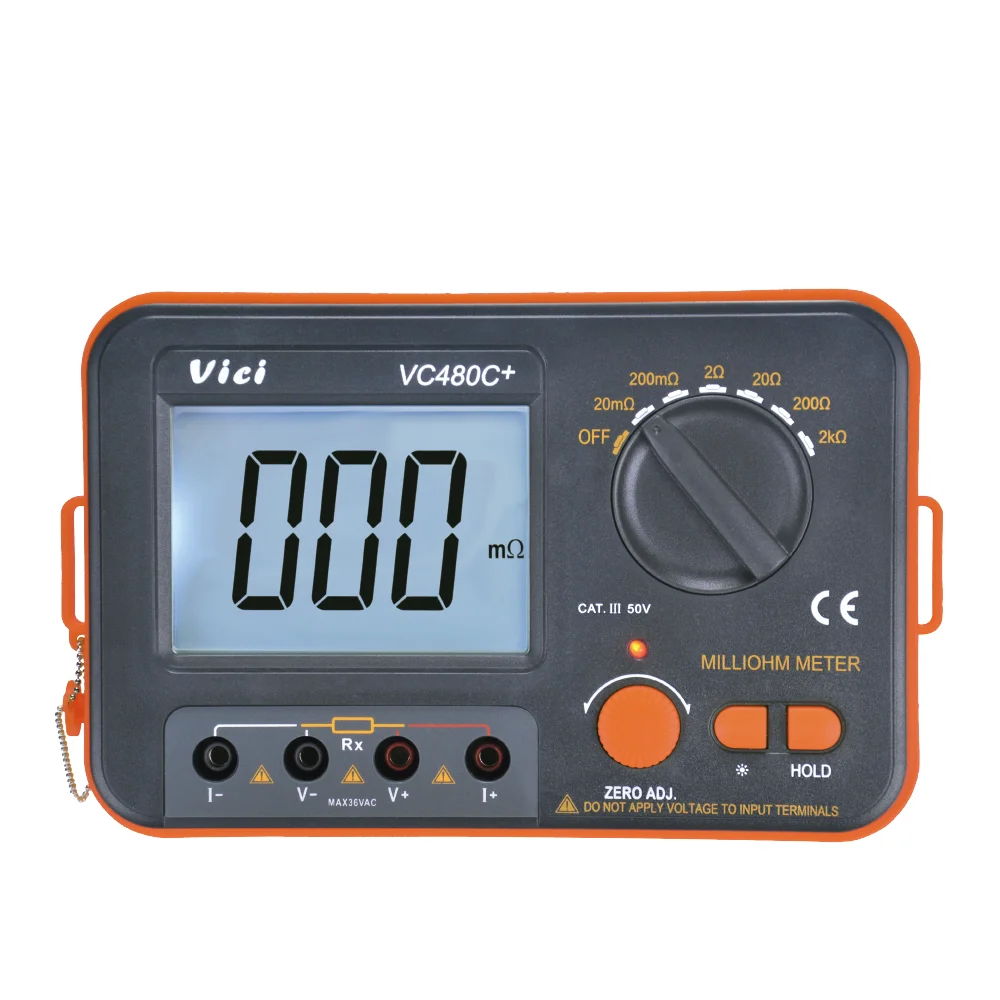

VC480C+ High Efficiency Digital Micro OHM Meter



Product Description










Features



  • Large LCD display for easy reading

  • 4 wire testing, capable of testing extreme low resistance

  • Accurate measurement of conductor, electric heating

  • Elements and solder point

  • High measurement range of 0.01mΩ to 2kΩ at 6 ranges

  • HOLD key for data hold

  • Backlit LCD for easy reading under dark light

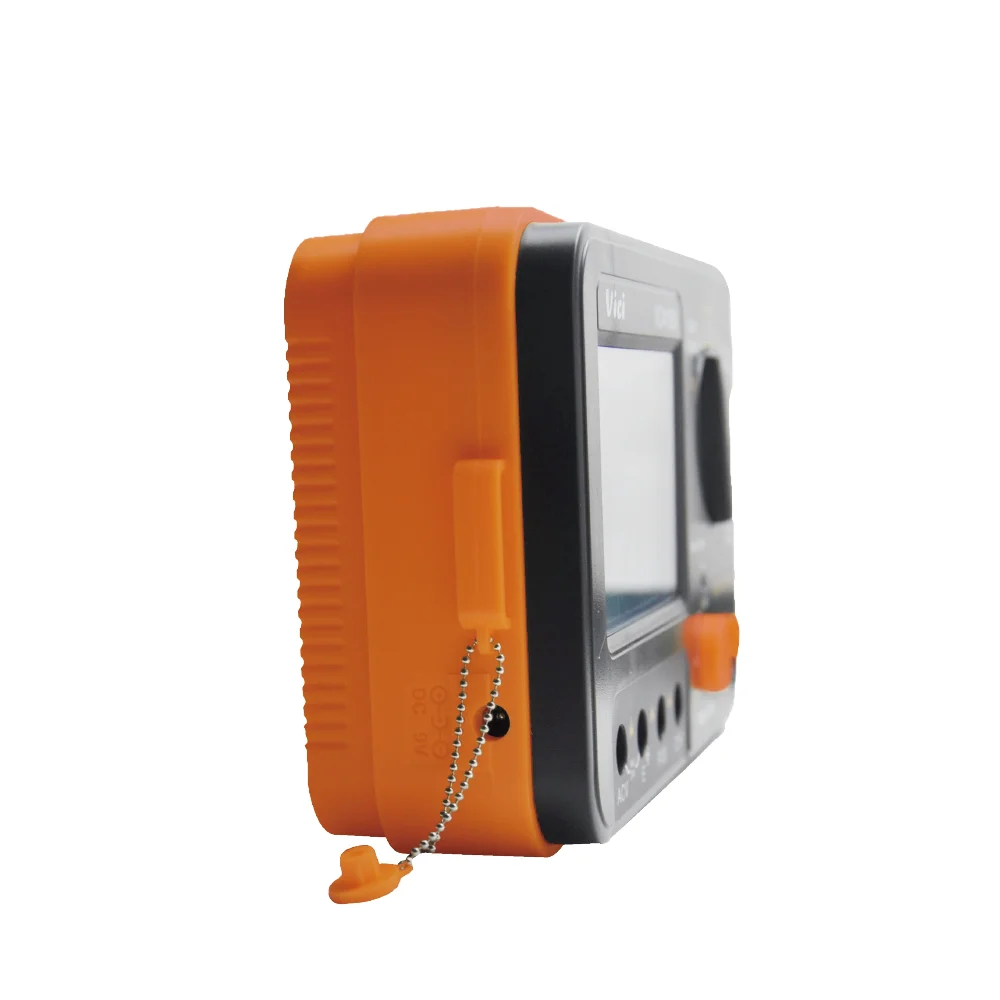

  • Connection for external power supply

  • Strong anti-magnetic and anti-jamming functions

  • Full function protection


Specifications









































Range



Accuracy



Resolution



Measuring current



20 mΩ



±(0.5%rdg±3)



0.01 mΩ



Approx.100mA



200 mΩ



±(0.5%rdg±3)



0.1 mΩ



Approx.50mA



2 Ω



1 mΩ



20Ω



1 0mΩ



200Ω



1 00mΩ



2kΩ




















































Special function



VC480C+



Low battery indication



Less than approx.7.5V



Function protection





Sampling rate



3 times/sec.



Operation mode



Manual range



Max.display



1999



LCD size



75×52mm



Power source



1.5V AAA battery x6pcs, or external DC 9V power source



Power consumption



Quiescent current approx.50mA






General






































Color



Orange and Gray



Weight



580g (including battery)



Meter size



175 (L) x116 (W) x63 (D) mm



Standard accessory

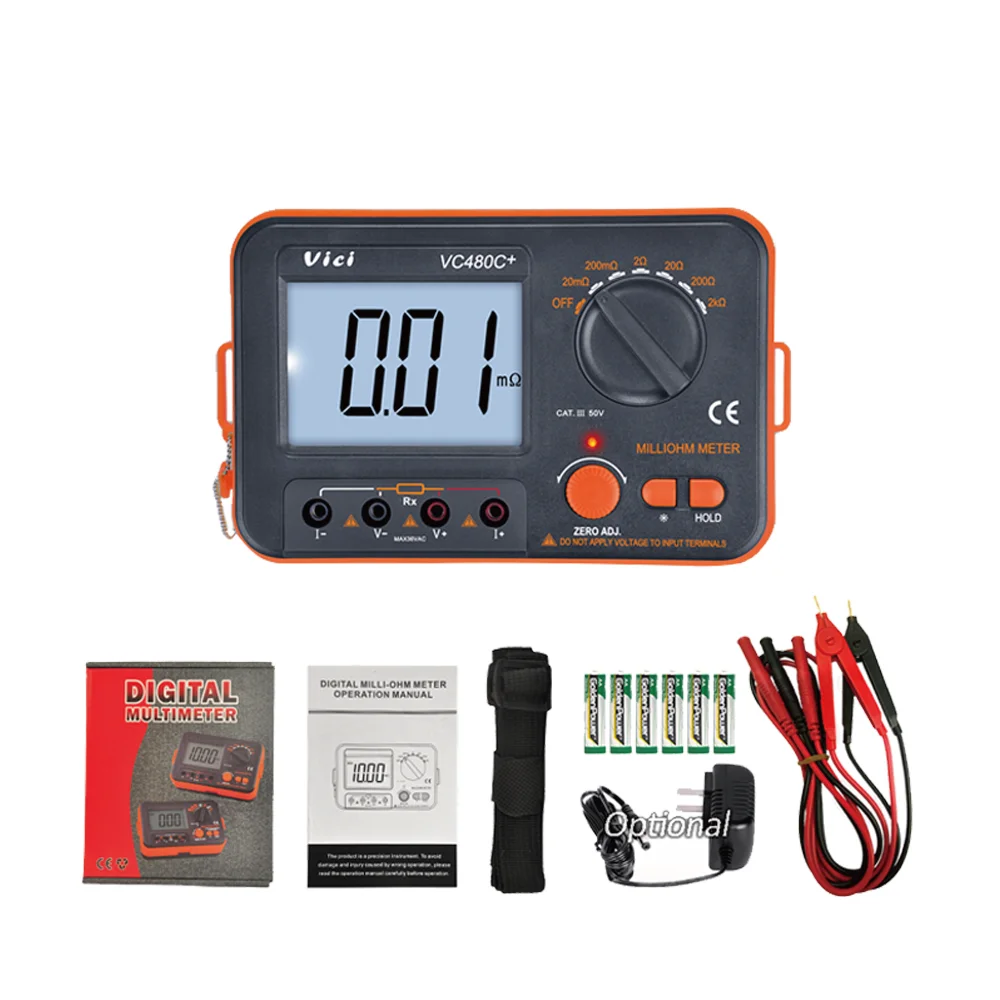

4-wire test lead, shoulder strap, battery, operation manual



Packing



Gift box



Master carton packing



20pcs



Master carton size



37.5*36*43CM



Master carton weight



17.5KG






480C+_02.gif480C+_03.gif480C+_04.gif480C+_05.gif480C+_06.gif480C+_07.gif480C+_08.gif480C+_09.gif480C+_10.gif480C+_11.gif480C+_12.gifVC480C+ packing






Supplement





VICI VC480C+ TEST LEADS










 Tips:


The probe type test leads is suitable for measuring the chip resistance and other micro components which the clip style test leads could not clamp; And because the resistance of the probe type test leads itself is larger than the clip type ones, the measurement process is not like the clip type test leads can be fixed, the test results will also change with even extremely slight changing or moving, so the possibility of human error will be relatively large; in order to maintain the stability of the measurement results, it is recommended to keep the hand or test leads stable during the measurement process.









Certifications

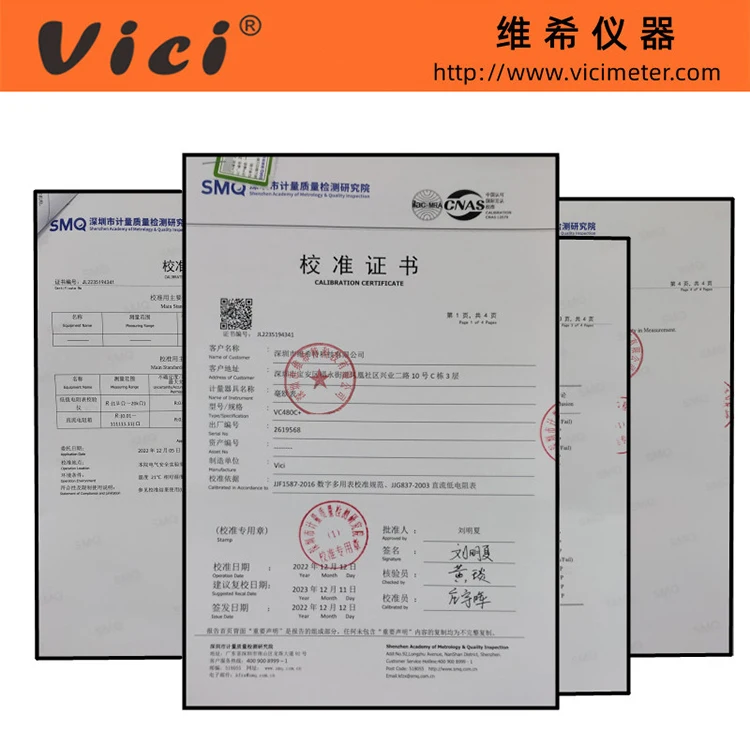

Certificate
