Product Overview

Description



\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t


Filter press plate 1000x1000mm for filter press machine





Filter press plate data


Filter plate size(mm)
250
400
470
500
630
800
870
900
Cake thickness(mm)
10
25
25
25
25/30
25/30/35
25/30/35
30/35
Filter plate type
chamber
√
√
√
√
√
√
√
√
membrane
√
√

√
√
√
√
CGR chamber
Non
Non
√
√
√
√
√
√
CGR membrane
Non
Non


√
√
√
√
Filter plate
feed type
Center
Non
√
√
√
√
√
√
√
corner
√
Non
Non
Non
Non
√
√
√
Max. pressure(bar)
10
12
10
10
10
16
16
16
Max. temperature(℃)
90
90
90
90
90
90
90
90


Filter plate size(mm)
1000
1200
1250
1500
1600
2000
2000*1800
Cake thickness(mm)
30/35/40
30/35/40
30/35/40
30/35/40
35/40
35/40
40
Filter plate type
chamber
√
√
√
√
√
√
Non
membrane
√
√
√
√
√
√
Non
CGR chamber
√
√
√
√
√
√
√
CGR membrane
√
√
√
√
Non
Non
√
Filter plate
feed type
Center
√
√
√
√
√
√

corner
√
√
√
√
√
√
√
Max. pressure(bar)
16
16
16
16
16
16
3
Max. temperature(℃)
90
90
90
90
90
90
90

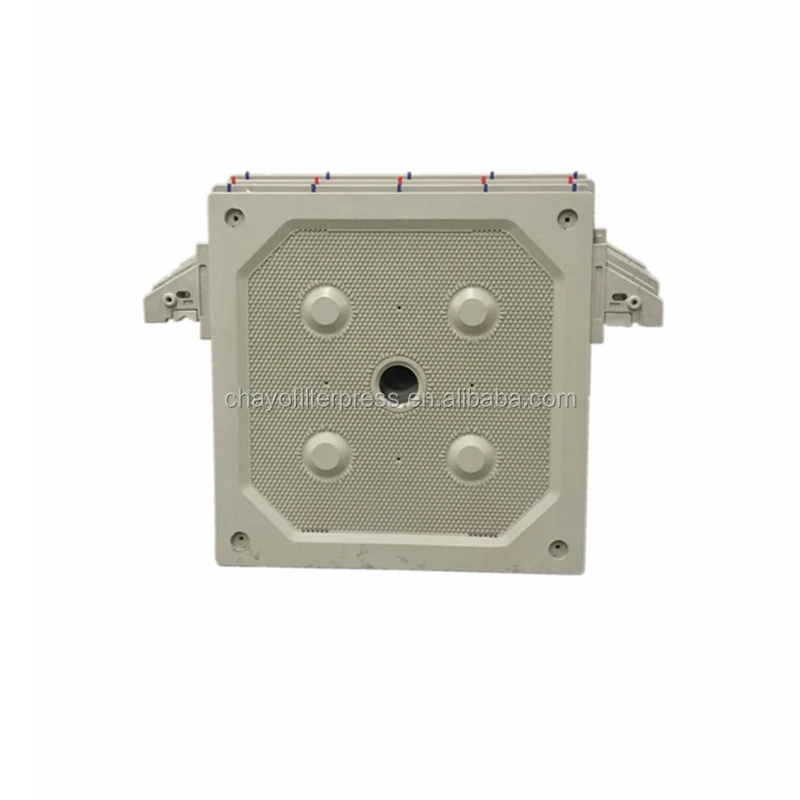

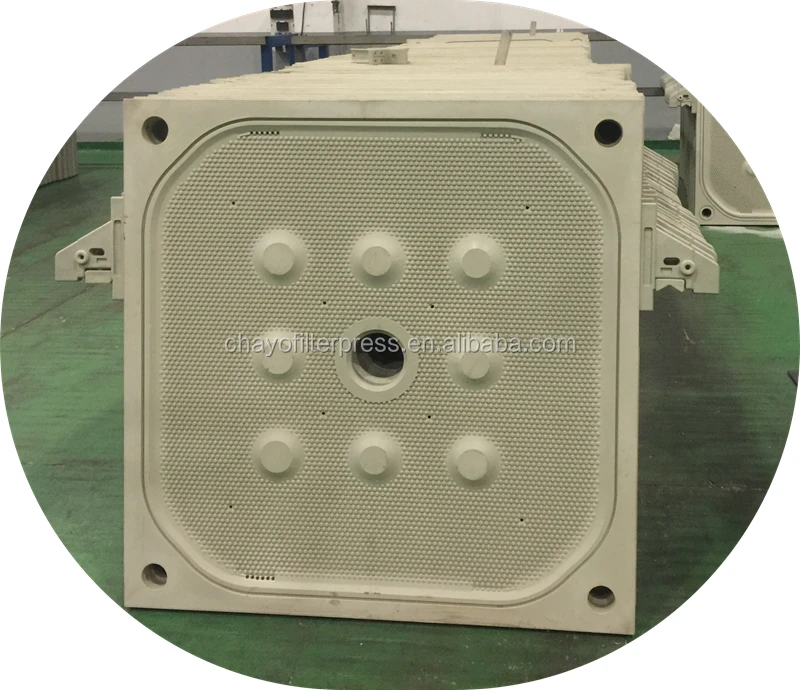

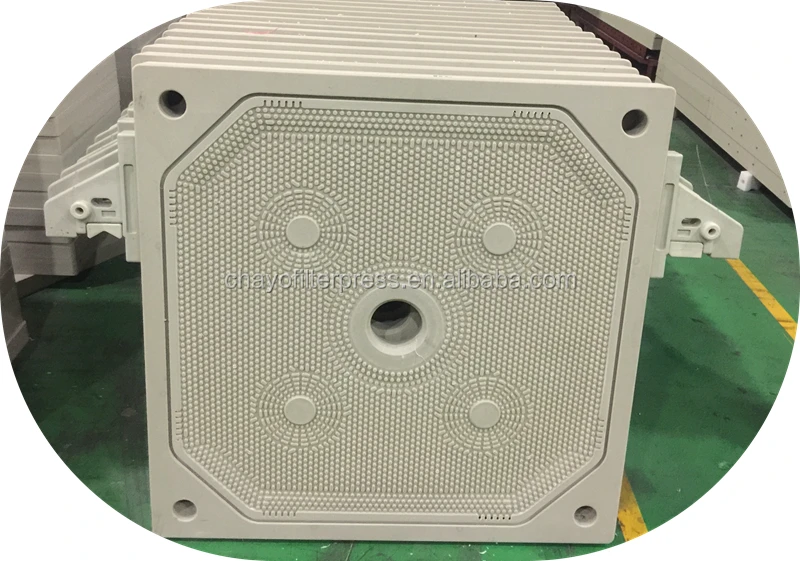

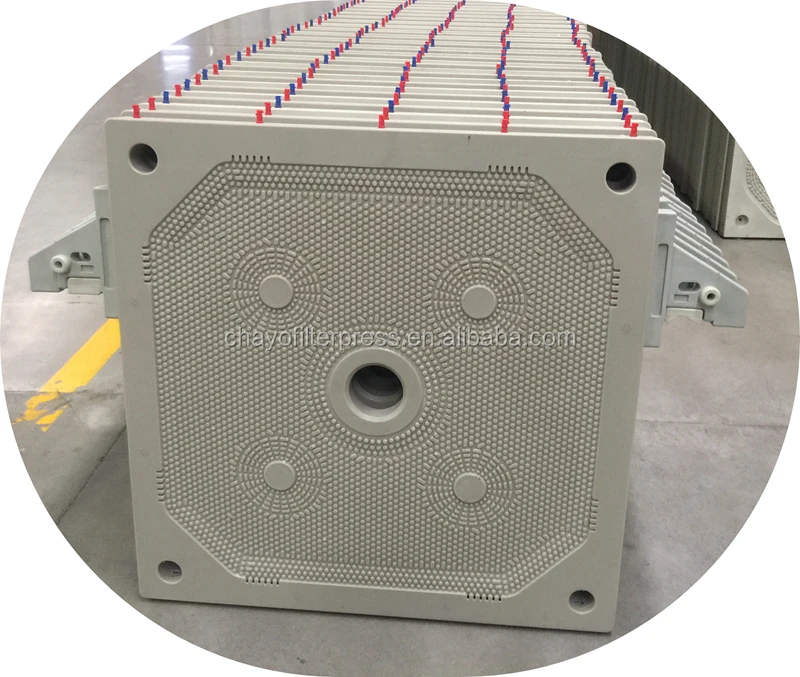

Product Photo

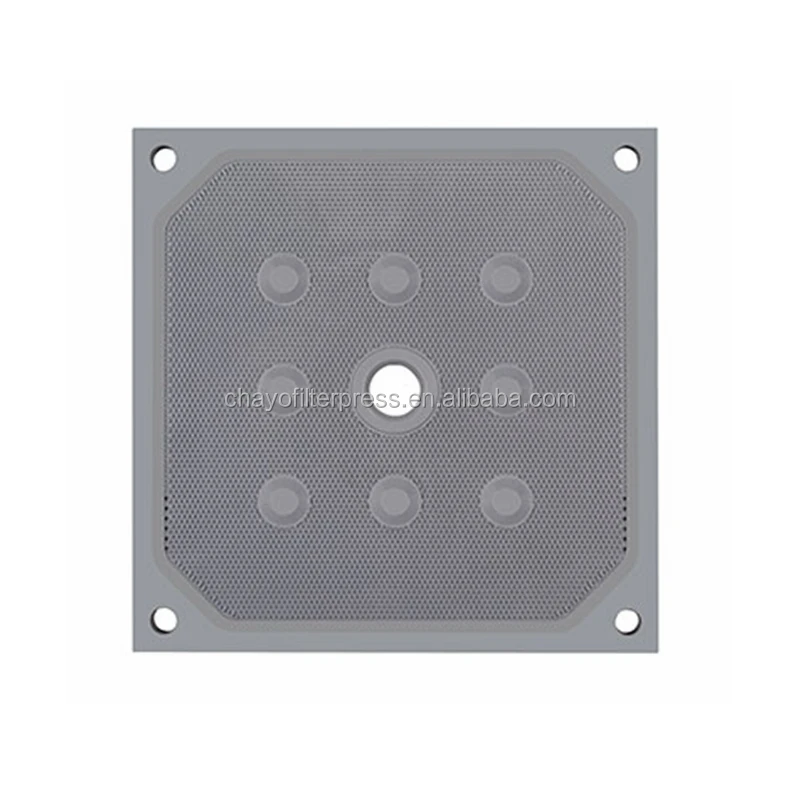

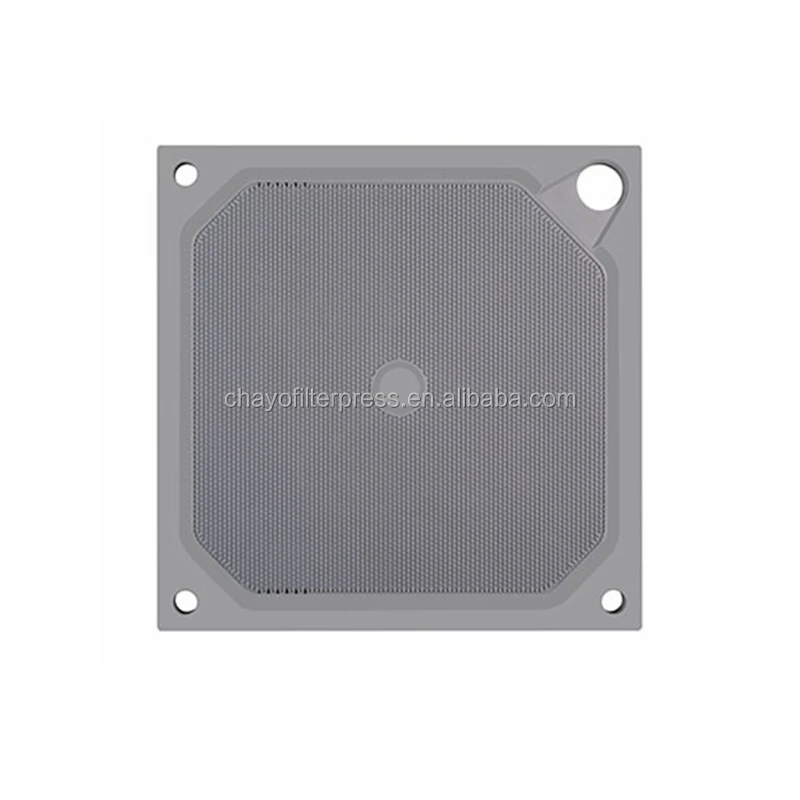

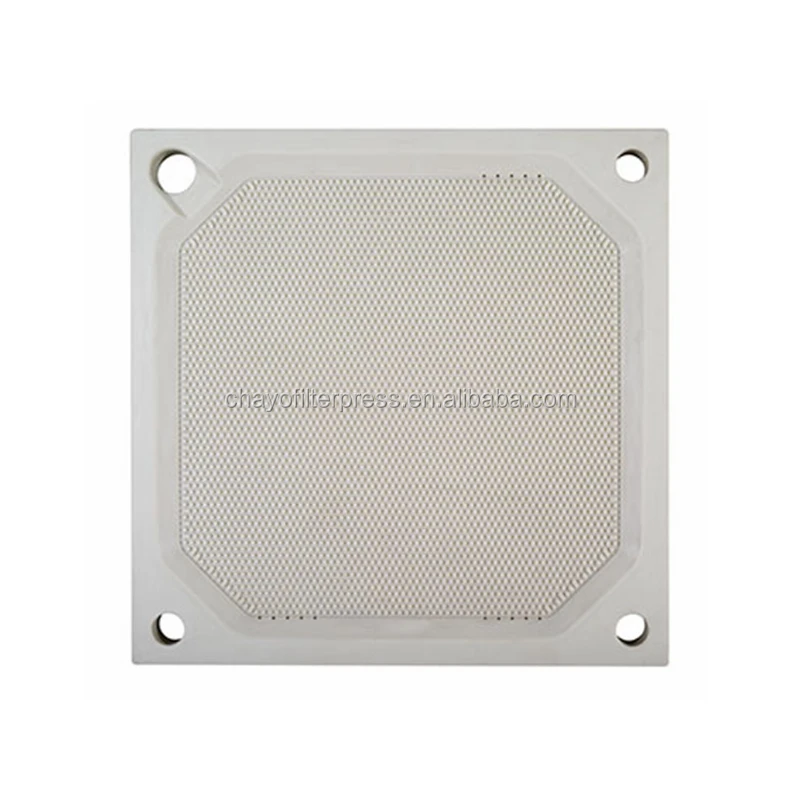

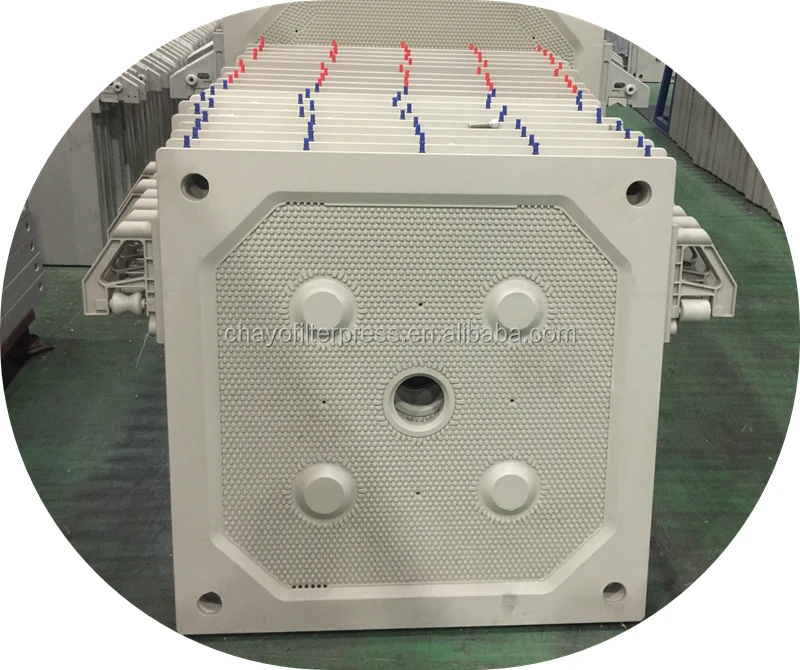

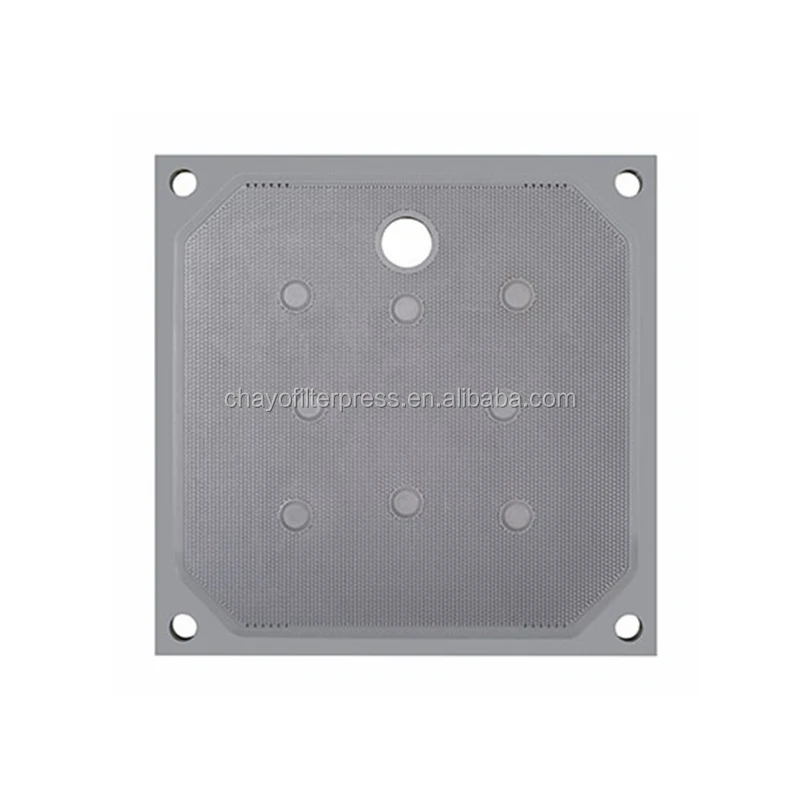

Chamber Filter Plate

Filter Plate Size(mm):

250,400,470,500,630,800,870,900,1000,1080,1200,1250,1300,1500,1600,2000,etc.

Cake Thickness(mm):

10,25,30,35,40,etc.

Feeding Type: Center,Corner,etc.

Filtration Pressure(bar): 6,10,16

Filtration Temperature(℃): 90

Plate Material: FRPP

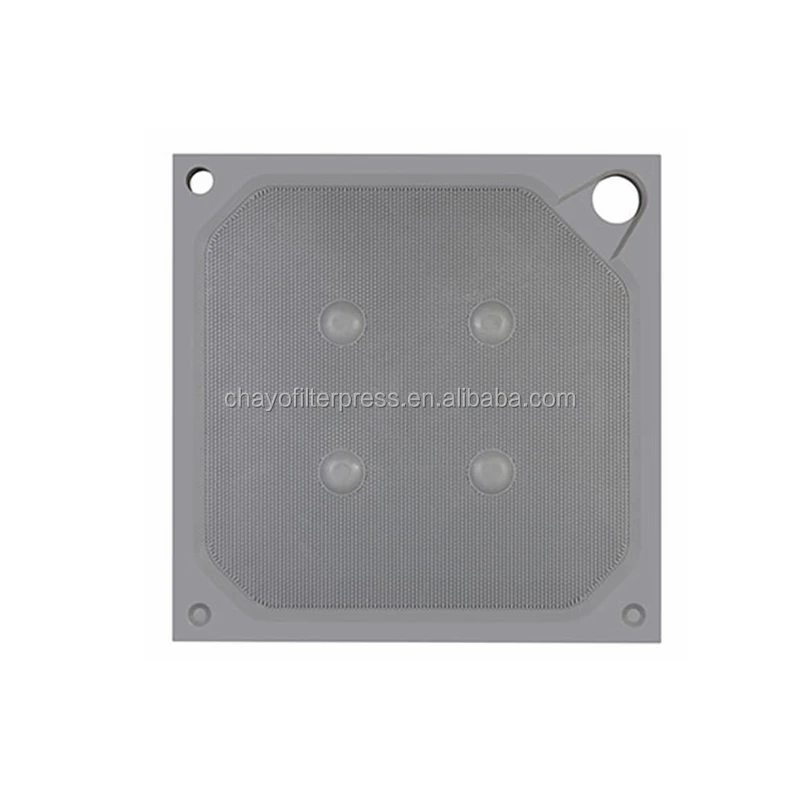

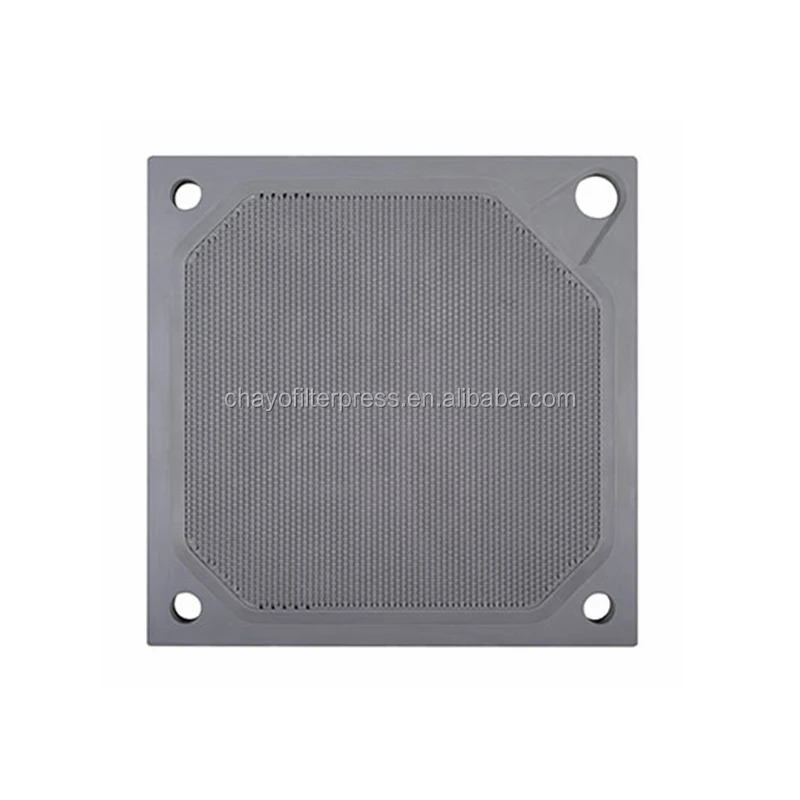

CGR Chamber Filter Plate

Filter Plate Size(mm):
400,470,500,630,800,870,1000,1200,1250,1500,1600,1800,2000,etc.
Cake Thickness(mm):
10,25,30,35,40,etc.
Feeding Type: Center
Filtration Pressure(bar): 6,10
Filtration Temperature(℃): 90
Plate Material: FRPP


PP Membrane Filter Plate

Filter Plate Size(mm):
250,630,800,870,1000,1200,1250,1500,1600,1800*2000,2000,etc.
Cake Thickness(mm):
10,25,30,35,40,etc.
Feeding Type: Center,Corner,etc.
Filtration Pressure(bar): 6,10,16

Membrane Pressure(bar):10,16,20

Filtration Temperature(℃): 90
Plate Material: FRPP

Membrane Material:PP



CGR PP Membrane Filter Plate

Filter Plate Size(mm):
630,800,870,1000,1200,1250,1500,1600,1800*2000,2000,etc.
Cake Thickness(mm):
10,25,30,35,40,etc.
Feeding Type: Center,Corner,etc.
Filtration Pressure(bar): 6,10
Membrane Pressure(bar):10,16
Filtration Temperature(℃): 90
Plate Material: FRPP
Membrane Material:PP

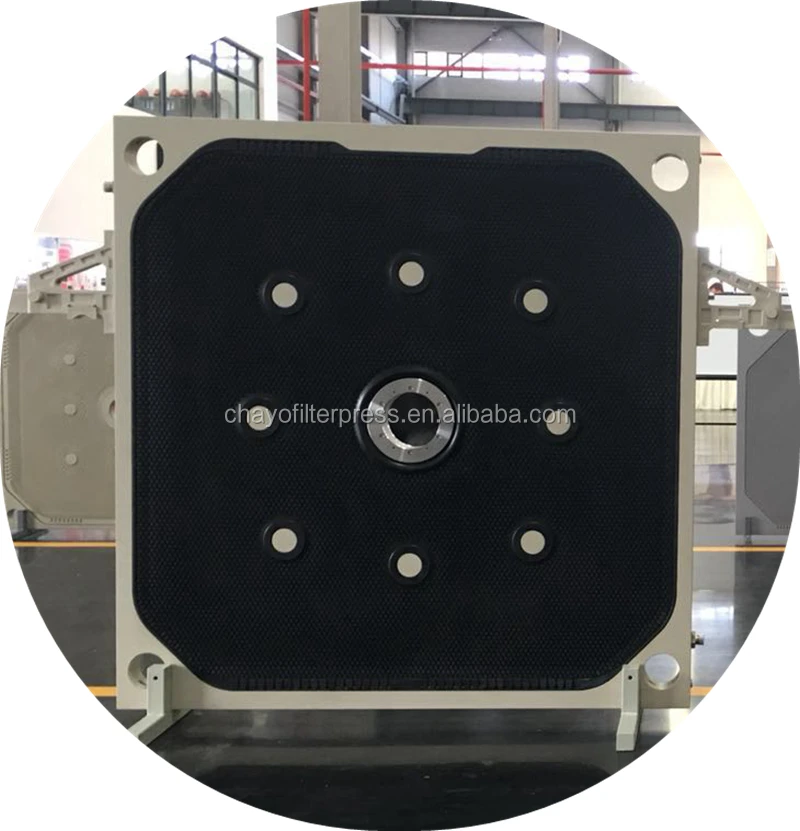

Rubber Membrane Filter Plate

Filter Plate Size(mm):
400,630,800,1000,1200,1250,1500,1500*2000,1800*2000,2000,etc.
Cake Thickness(mm):
25,30,35,40,etc.
Feeding Type: Center,Corner,etc.
Filtration Pressure(bar): 6,10,16

Membrane Pressure(bar):10,16

Filtration Temperature(℃): 90
Plate Material: FRPP

Membrane Material:

EPDM,NR,NBR,FPM,PVM,etc.

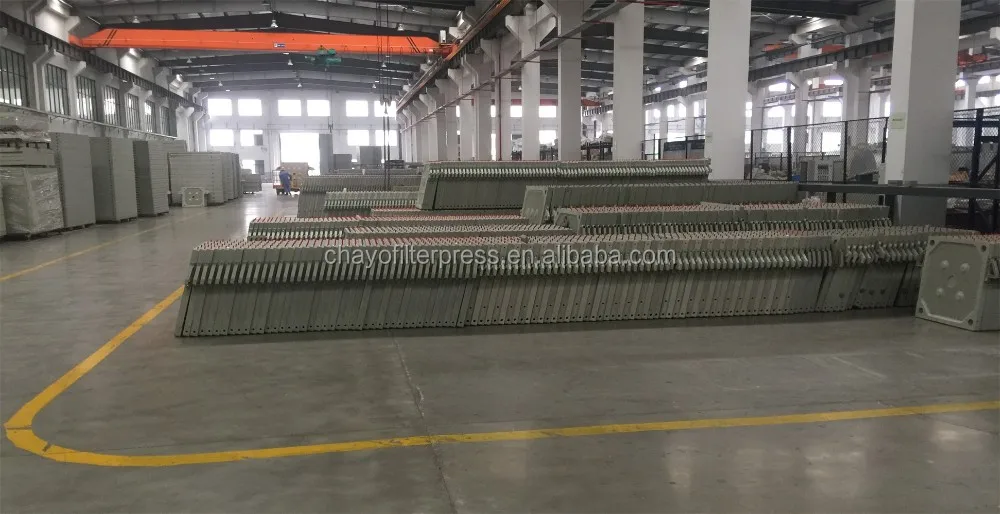

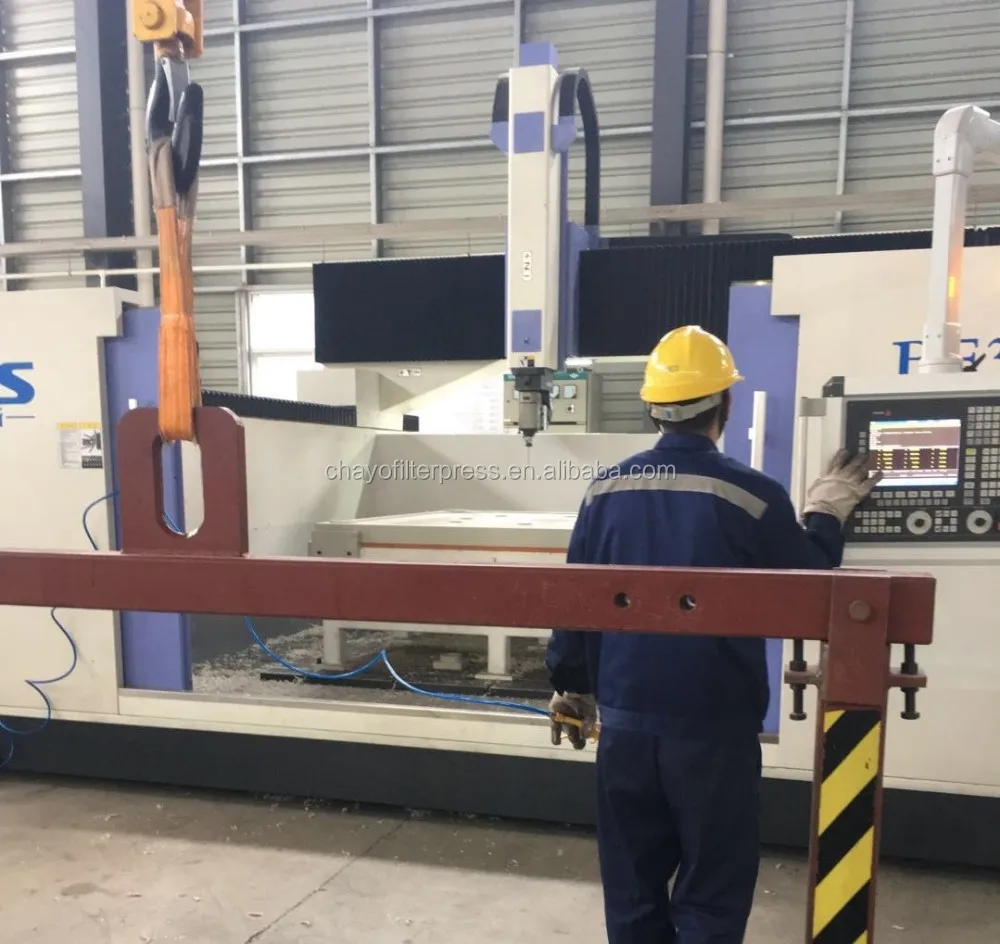

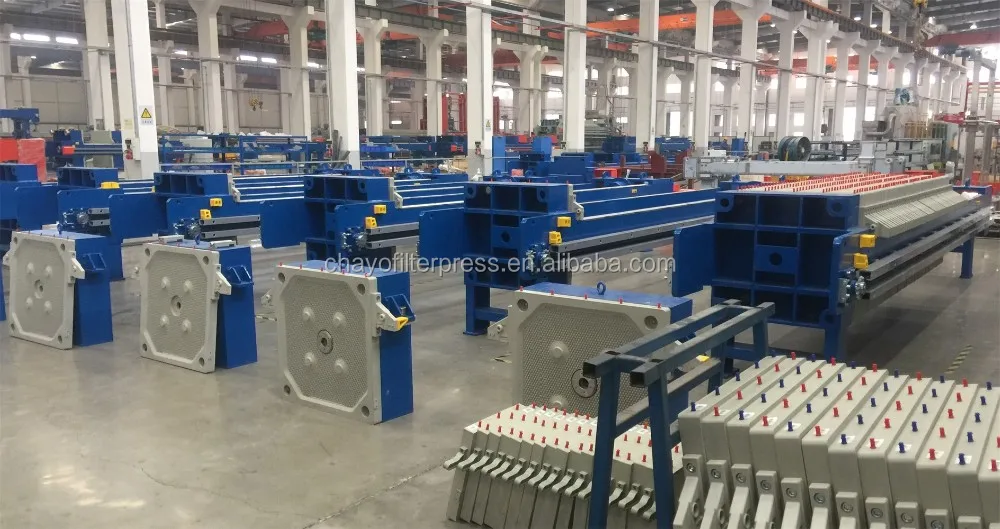

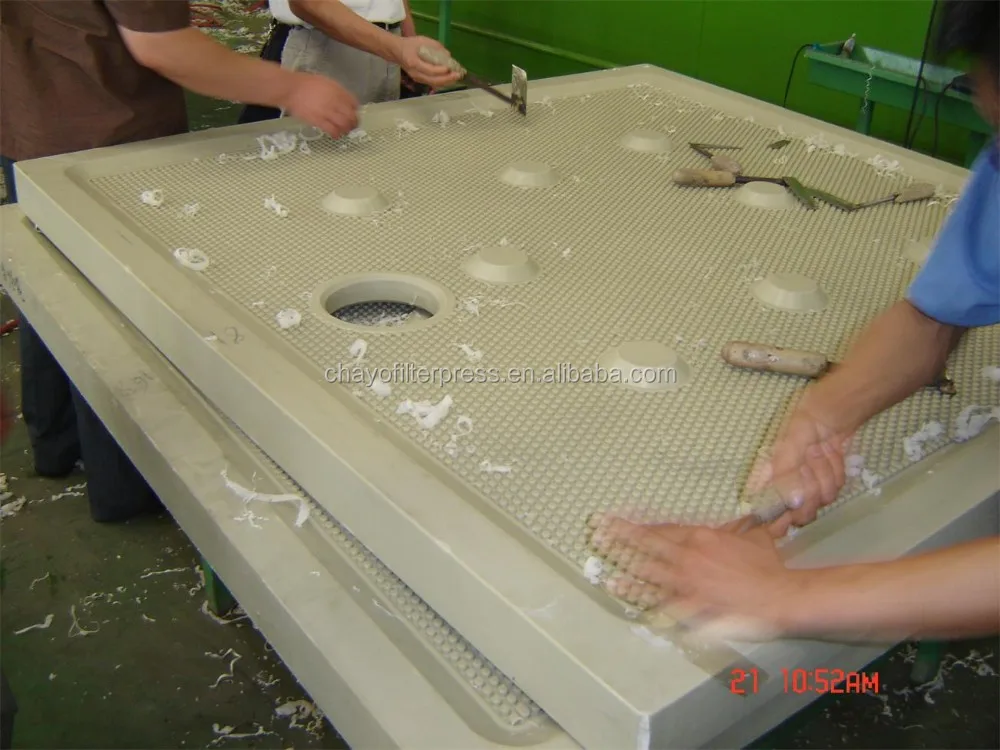

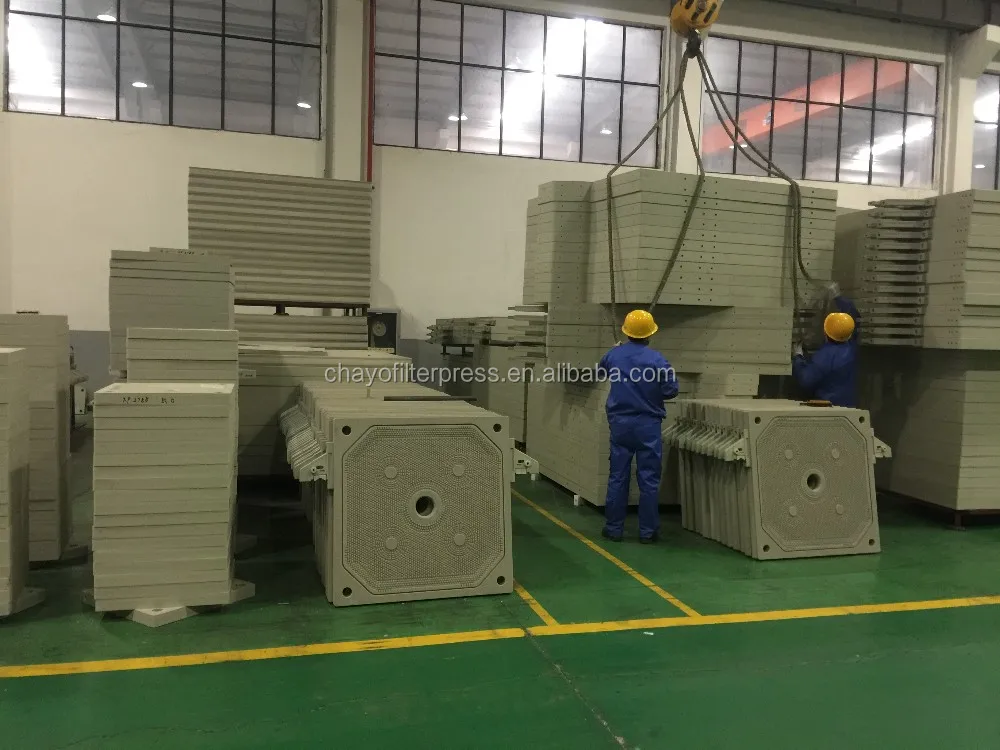

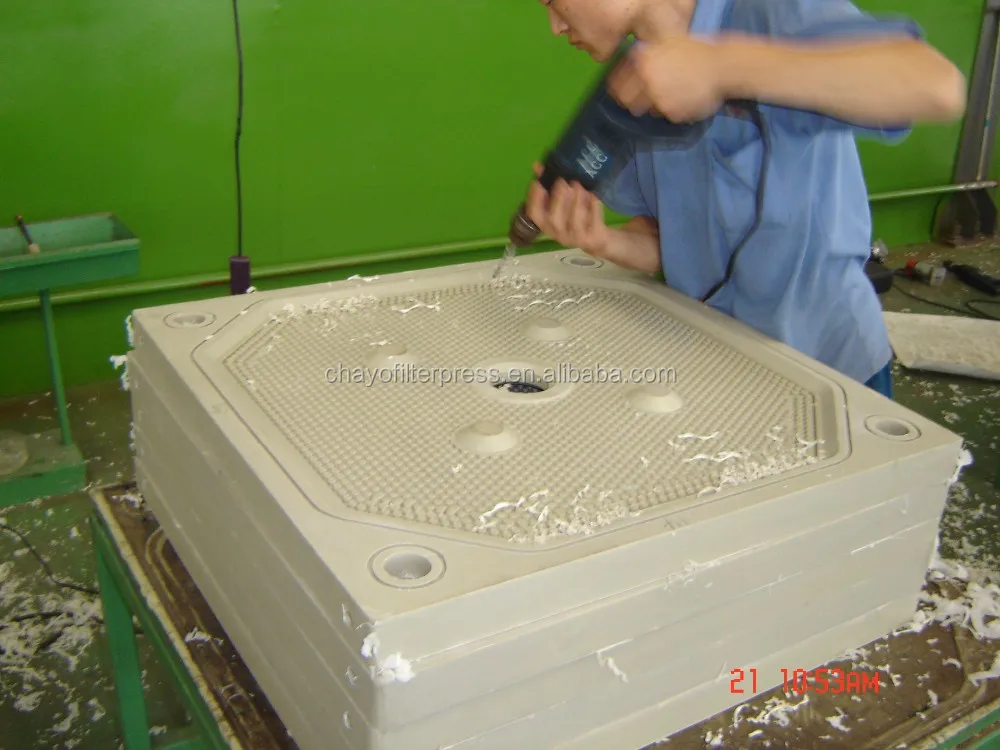

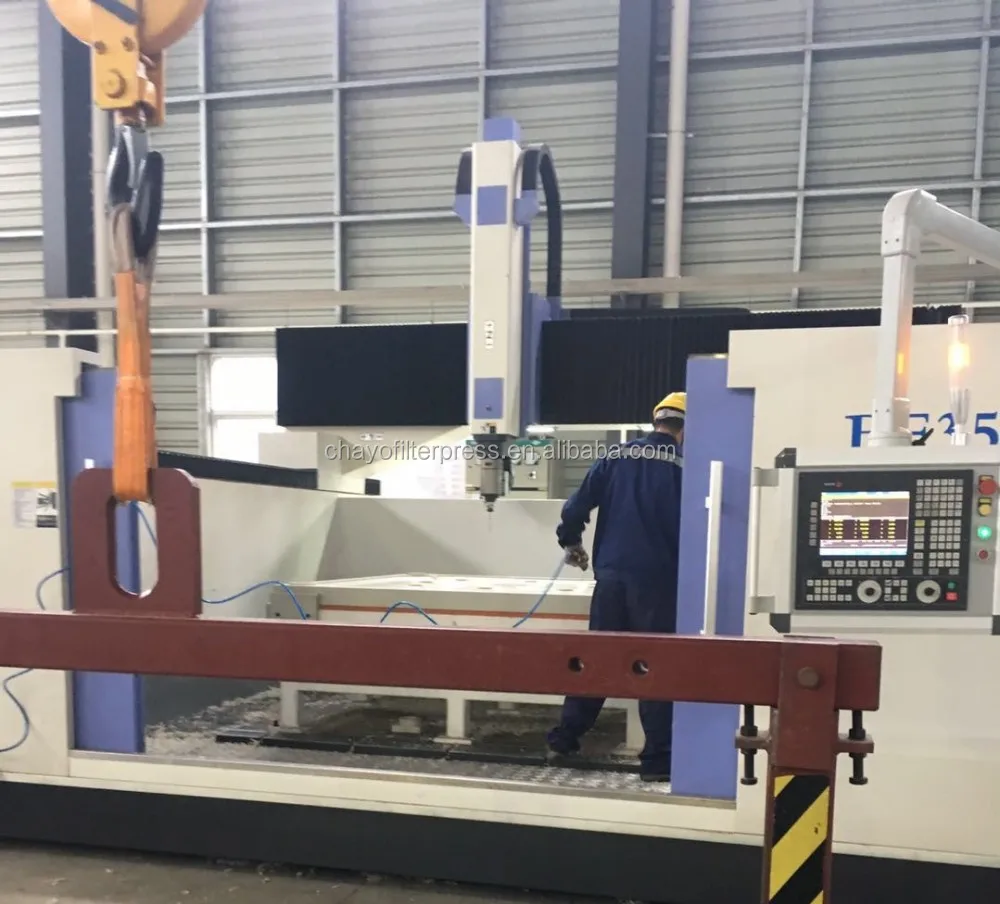

\t\t\t\t\t\t\t\t\tworkshop \t\t\t\t\t\t\t










Customer Vist




\t\t\t\t\t\t\t\t\tApplication Industry \t\t\t\t\t\t\t


Food Industries:
yellow rice wine, liquor, fruit juice, beverage, beer, yeast, citric acid, plant protein, plant secretin, glucose, maltose, fixe d powder, rice flour, ban rice milk, gelatin, carrageenan, monosodium glutamate, spices, sauce, oral liquid, soy milk, seaweed
Metallurgy Industries:
gold, silver, copper, iron, zinc) concentrate/tailings, acid leaching/anode mud, etc.
Oil Industries:
white oil, sesame oil, sesame oil, cottonseed oil, lubricating oil, palm oil, a variety of animal oil, light oil,glycerin, machinery oil, vegetable oil.
Non-metallic ore Industries:
kaolin, bentonite, active soil, porcelain, electronic ceramic soil, phosphate rock, calcium carbonat
Sewage treatment :
 chemical sewage, smelting sewage, electroplating sewage, leather sewage, printing and dyeing sewage, brewing sewage, pharmaceutical sewage, environmental sewage, etc.






\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t




About us


Hangzhou Chayo Environmenal Technology Co.,Ltd is a comprehensive high-tech enterprise who supply a complete set of service of press filter including, manufacture,design,install,debugging&EPC. Chayo has more than 10 year experience in field of solid and liquid separation technology,mainly engaged in design &develop of deep dewater treatment of sludge /sewage treatment process and equipment, Chayo has provided more than 1000sets of various equipment and service for numerous deomestic and foreign enterprises, and its products and service have been widely used and won a good reputation.


Chayo offers different series, such as filter press cloth, chamber filter presses, membrane filter presses, plate and frame filter presses,lime dosing device,flocculant dosing device,screw conveyor,antomatic system and sludgeand dewatering equipments and specially designed filter presses according to different filtration materials. our fully automatic palm oil membrane filter presses are for oil fractionation, our automatic carrageenan membrane filter presses have automatic filter cloth washing system, our automatic medicine filter presses comply with GMP requirements, etc. we offer special filter press design services to meet special industrial filtering requirements.

Owning to our rich experience in solid-liquid separation, we optimize the filtration of your plants to meet your special needs. If you need detailed information, please send emails to us.



Ms.Alice long
Hangzhou Chayo Environmental Technology Co.,Ltd
add: 62-2F Yangchen road,pinyao town,hangzhou.zhejiang.
Tel:0086-0571-86306016
Mob,whats app:0086-13750800179

Email: chayofilterpress@aliyun.com

www:chayofilterpress.com



FAQ


1.Q: How to buy our filter plate ?
A: Firstly we should know from you :
1.1.What size of the filter plate? (such as 800*800mm or 1000*1000mm etc.)
1.2.What is the cake thickness ? (such as 30mm or 40mm etc.)
1.3.What is working pressure? (such as 6bar or 10bar etc.)
1.4.What is working temperature? (such as 60℃ or 90 ℃ etc.)
With complete information, then we selected the filter plate and feedback to you.

2.Q:What’s your MOQ?
A:Trial sample order is OK.

3.What is the delivery time?
A:15-30 days after receiving your advanced deposit.

4.Q:Can you we do OEM brand?
A:Yes,welcome your OEM.

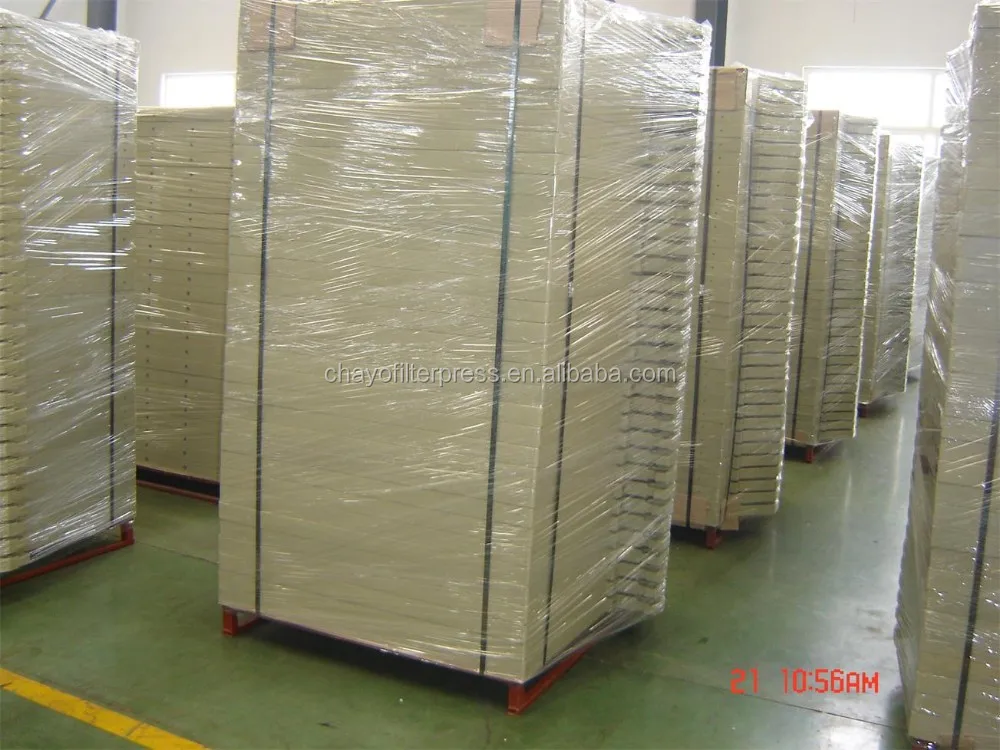

5.Q: How about the packing?
A: export standard pallet or as customer's requirements.
