big Water Can Making Machine PET Preform Blowing Machine For 5L To 20L Plastic Bottle

Product Overview

Description

big Water Can Making Machine PET Preform Blowing Machine For 5L To 20L Plastic Bottle

Summary

KEMO 5Gallon Semi PET Blowing Machine, mainly used for blowing 3 Gallon and 5 Gallon Bottles of pure water, and 10L to 25L Oil Bottle, Lamp-chimney and other plastic containers.

Unique pneumatic circuit design, which greatly improved the production efficiency of large capacity bottles,

absolutely guarantee the production safety,stability and the yield,

Completely eliminate the bottle whiten,exploding bottles and other problem.

Recently, METO company have two type of the 5 gallon machine, semi and manual automatic.



Feature:

1. The function is perfect,with economy model.

2. With advantage of small floor area, stable structure and save space.

3. Easy to operate, one worker enough.

4. Less consumption, not easy to damage, use the new type hyperbolic arm connecting rod clamping, structure stable, suitable for high pressure bottle blowing system.

5. We can provide 3 to 5 gallon bottles cap and preform mould.





 Technical Parameter :

ITEM	MT-1T5G/B
Theoretical output	90
Max.container volume	20L
Max.neck diameter	150MM
Max.container diameter	400MM
Max.container height	600MM
Number of cavity	1
Number of lamp	60
Max.heating power	25KW
Operating low pressure	0.7-1.0Mpa
Blowing pressure	2.5-3.5Mpa
Flow rater	40 L/min
Machine dimension	3.7×1.0×1.8
Machine weight	2200Kg

   (Note: for reference only, it is based on the actual work.)

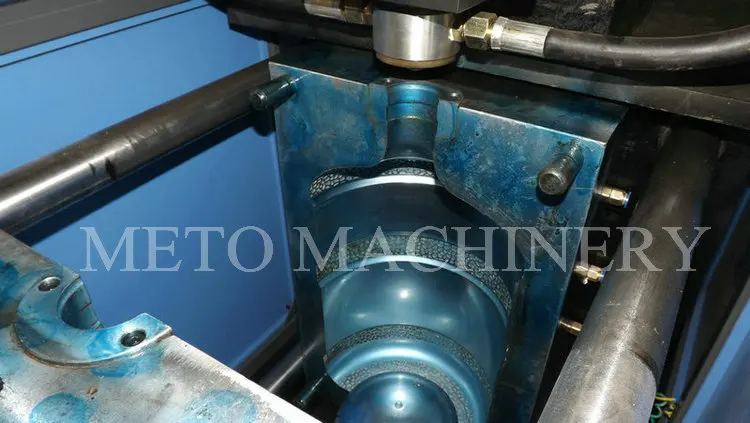

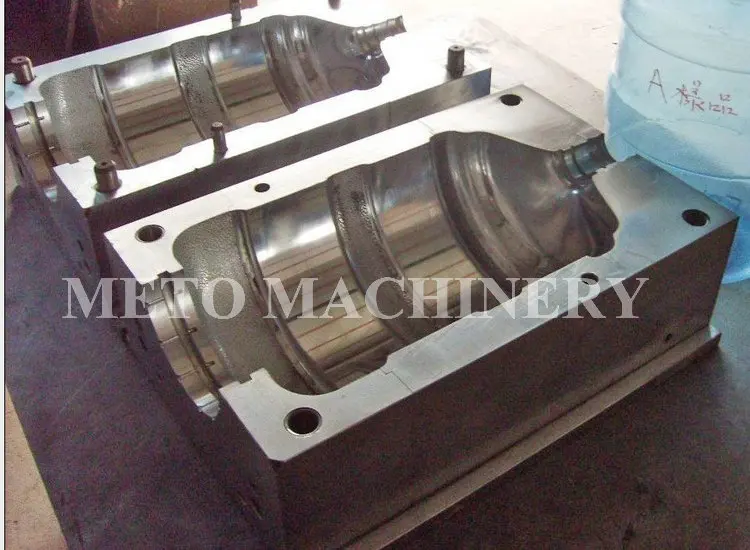

Mould

KEMO Use CAD-CAM design mould, completely anticorrosive processing, process by high precision CNC machine, to achieve accurate, smooth lines capacity, the size and the design is the same as original. We also provide the free design of the mould drawing.
