Lonking Manual Diesel Forklift 5 tons with 2 stage 4 m lifting height mast

Share on (62082744103):


Price:$15,400.00 - $15,500.00

Quantity:


Product Overview

Description


Product Description

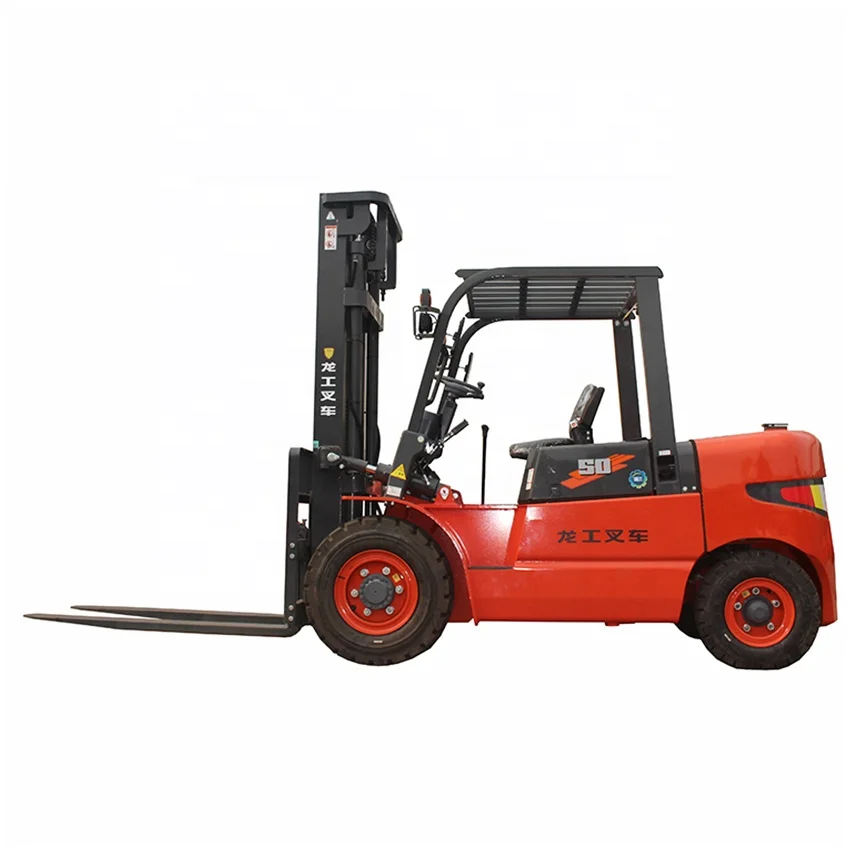

Lonking Manual Diesel Forklift 5 tons with 2 stage 4 m lifting height mast

Optimized Cooling System
Optional OPS System
Smaller Turning Radius
Easy to maintain,High Reliability
Ergonomic Design And Comfortable Operation

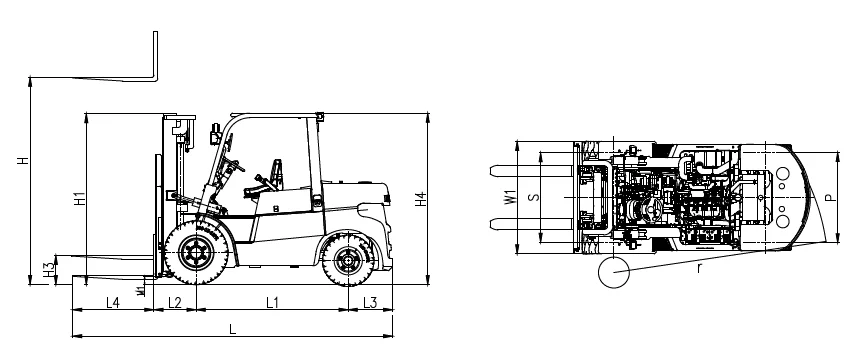

Specification
\t
Description
\t
Mark
\t
Unit
\t
LG50D(T)
\t
Power type
\t

\t

\t
Diesel
\t
Rated capacity
\t

\t
kg
\t
5000
\t
Load centre
\t
J
\t
mm
\t
500
\t
STD Max. lifting height
\t
H
\t
mm
\t
3000
\t
Free lifting height
\t
H3
\t
mm
\t
150
\t
STD Fork size
\t
L5×W×T
\t
mm
\t
1070×150×55
\t
Mast tilt angle, forward/backward
\t

\t
deg
\t
6/12
\t
Front overhang
\t
L2
\t
mm
\t
555
\t
Rear overhang
\t
L3
\t
mm
\t
584
\t
Overall length(with fork)
\t
L
\t
mm
\t
4209
\t
Overall width
\t
W1
\t
mm
\t
1480
\t
STD Mast lowered height
\t
H1
\t
mm
\t
2245
\t
Overhead guard height
\t
H4
\t
mm
\t
2250
\t
Min. turning radius
\t

\t
mm
\t
2780
\t
Max. traveling speed, load/unload
\t

\t
km/h
\t
24/25
\t
Max. lifting speed, load/unload
\t

\t
mm/s
\t
460/520
\t
Max. gradient, load/unload
\t

\t
%
\t
20/21
\t
Self weight
\t

\t
kg
\t
7000
\t
Tread, front/rear
\t
S/P
\t
mm
\t
1180/1190
\t
Axle distance
\t
L1
\t
mm
\t
2000
\t
Min. ground clearance
\t

\t
mm
\t
175
\t
STD Engine
\t

\t

\t
XICHAI CA4DX23
\t
Rated power
\t

\t
kw/rpm
\t
60/2200

Lonking Diesel Forklift

An extensive line of diesel forklifts of more than 20 models available from 1.5T to 25T from mechanical to hydraulic, from mechanical shift to electric shift, both Chinese and Japanese engine optional.

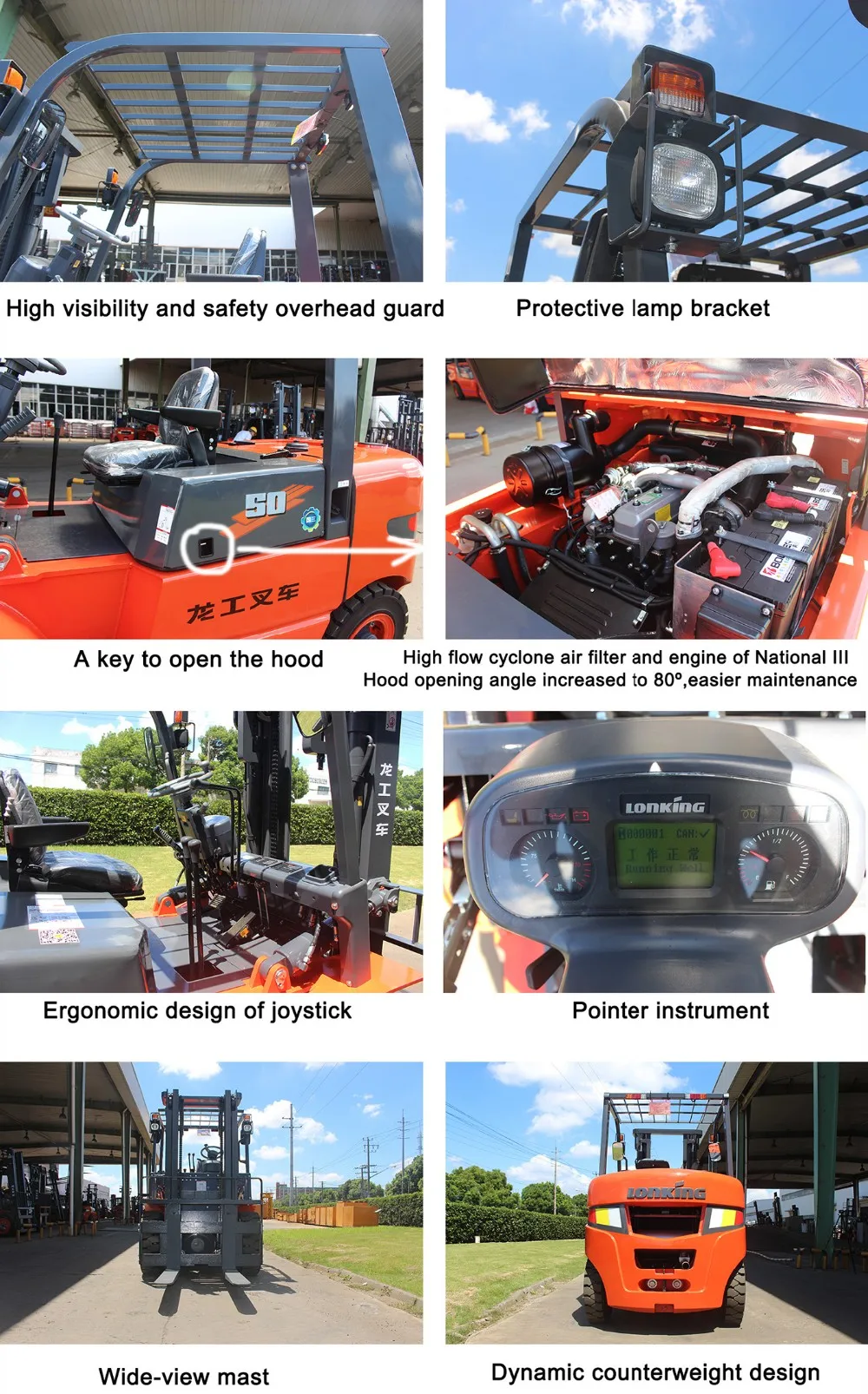

Detailed Images

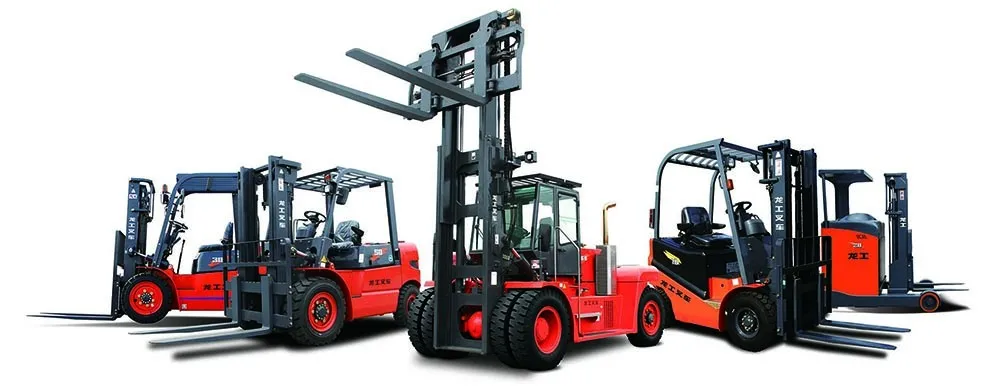

Main Products
Certifications
Factory Workshop

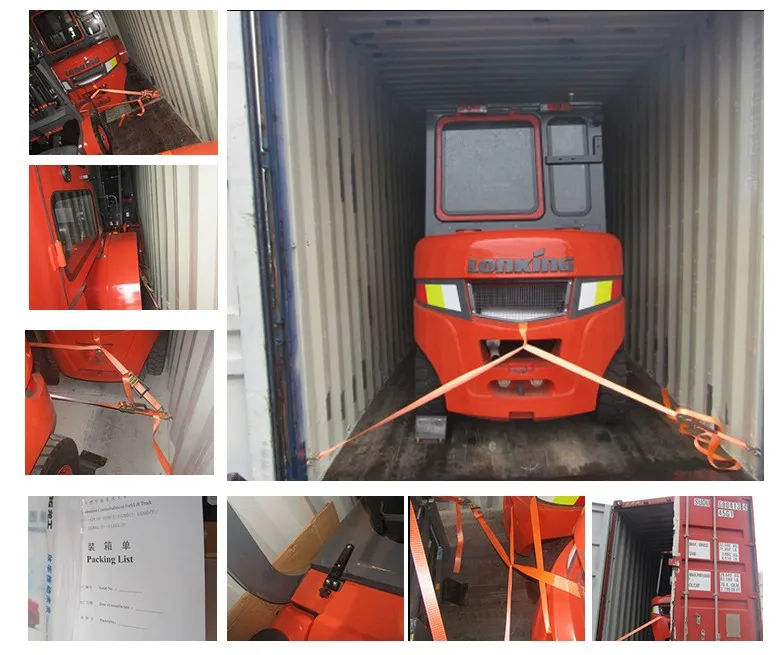

Packing & Delivery
About Us

Founded in 1993, Lonking Holdings Limited is one of the largest construction & logistic manufacturers in China. It has 19 wholly owned subsidiaries and four production bases. Lonking manufacturers wheel loader, hydraulic excavator, road roller, forklift, motor grader, skid steer loader and some core components, including gearboxes, torque converters, axle, hydraulic components, gear pipes and driver shaft among others, all products are well sold all over the world. Among them, forklift truck sales in the top three, big loader market share first in China.
Shanghai Lihua Mechanical Equipment Co., Ltd. is a professional company engaged in forklift, wheel loader, part sale and after-sale service. It's establishment relies on the professional team engaged in forklift truck sale and parts service in China for ten years. The team was founded in 2009 and is the designated dealer and service provider of Lonking (Shanghai) forklift truck sales co., Ltd.
Main products: forklift, forklift parts/attachment, wheel loader, cleaning equipment.
Company culture: quality first, customer satisfaction, integrity management, proactive.
We believe that through our continuous efforts and pursuit, we can achieve mutual benefit and win-win results with our customers.
