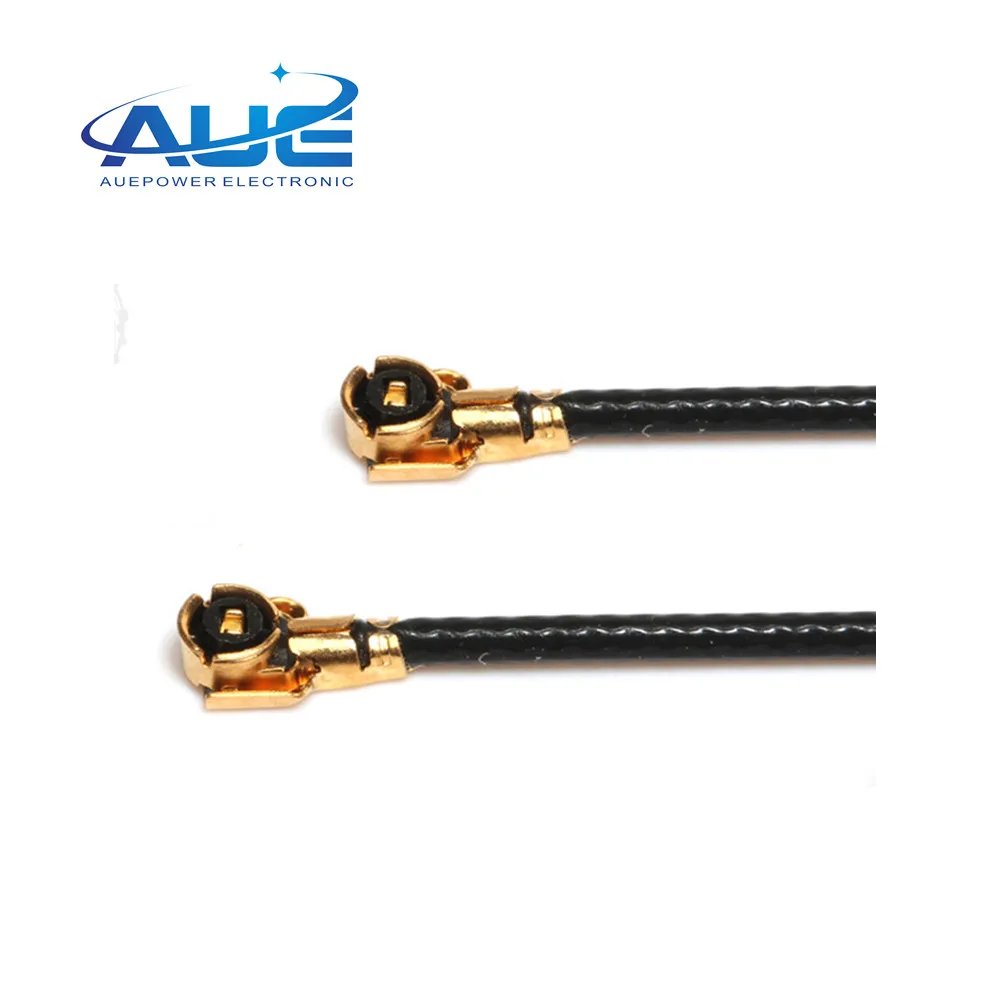

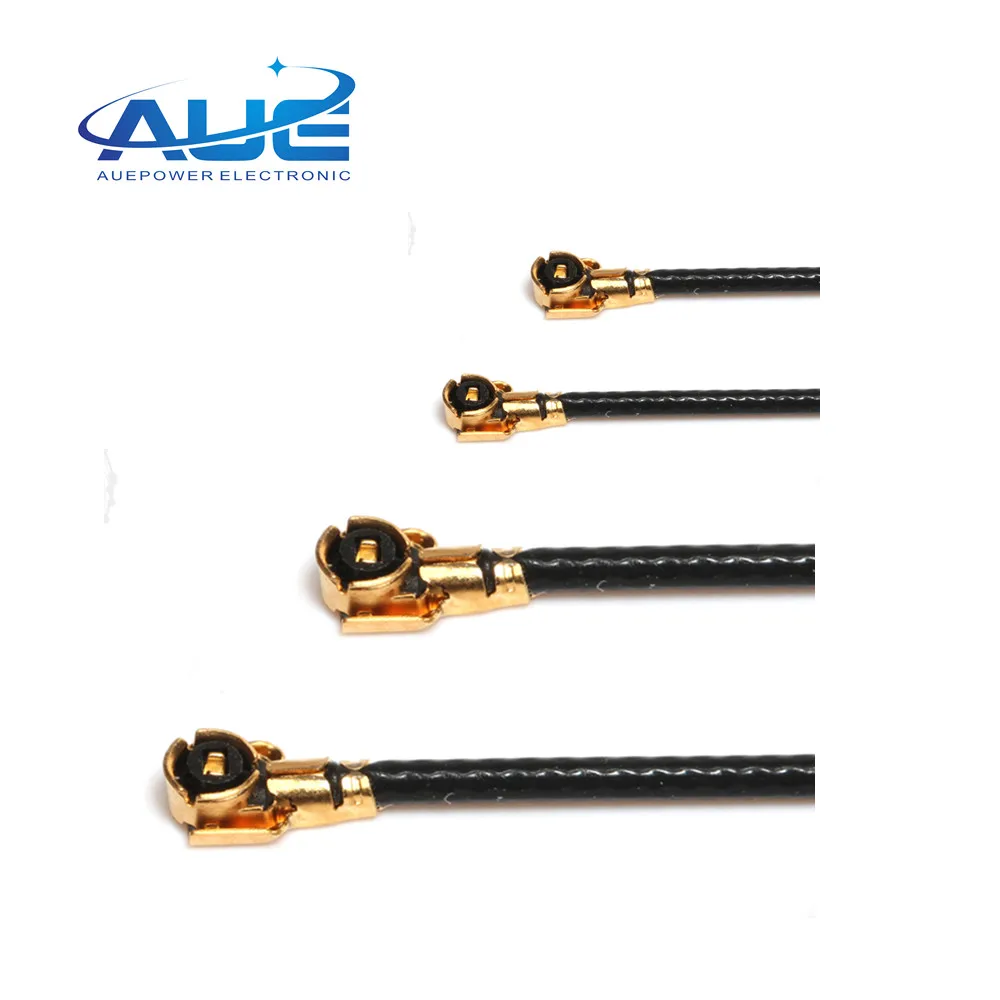

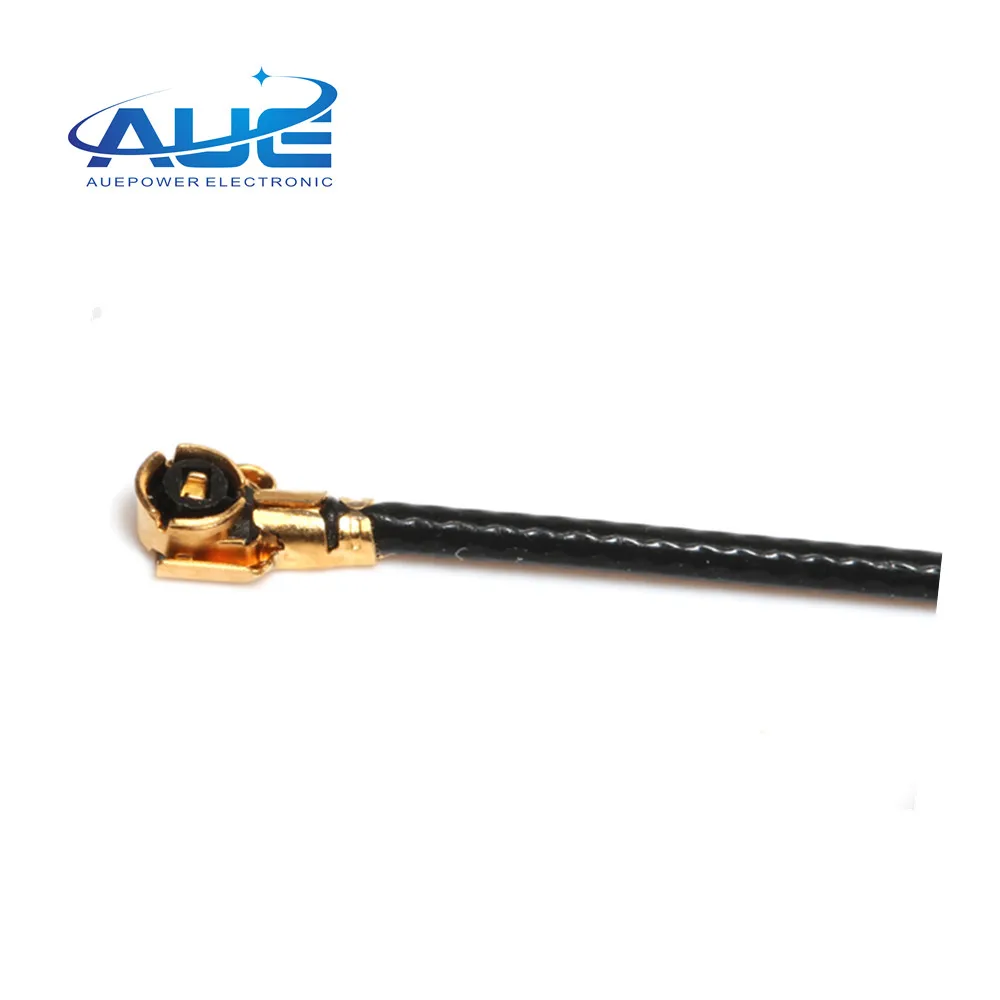

UFL. ipex connector pigtail CABLE 1.37MM 0.81MM 1.13MM 1.32MM

Product Overview

Description

       UFL. ipex  connector pigtail CABLE  0.81MM 1.13MM 1.32MM  1.37MM

     WELCOME TO AUEPOWER

Product Description:

Technical Parameters:
Frequency Range:	0 - 6GHz
Impedance:	50Ω
Insulation Resistance:	500 MΩ Min
Dielectric Withstanding Voltage:	200V AC/1 Min
Inner Contact Resistance:	20mΩ Max
Outer Contact Resistance:	10mΩ Max
Voltage Standing wave Ratio(VSWR):	DIA=1.13mm Coaxial Cable Assembly,1.3 Max (DC~3GHz);1.5 Max (3 - 6GHz)
Mechanical Durability:	30 Cycles
Relative Humidity:	95% R.H.Max
Operating Temperature:	-40℃~+85℃



IPX/IPEX/u.fl Female  Cable Structure:

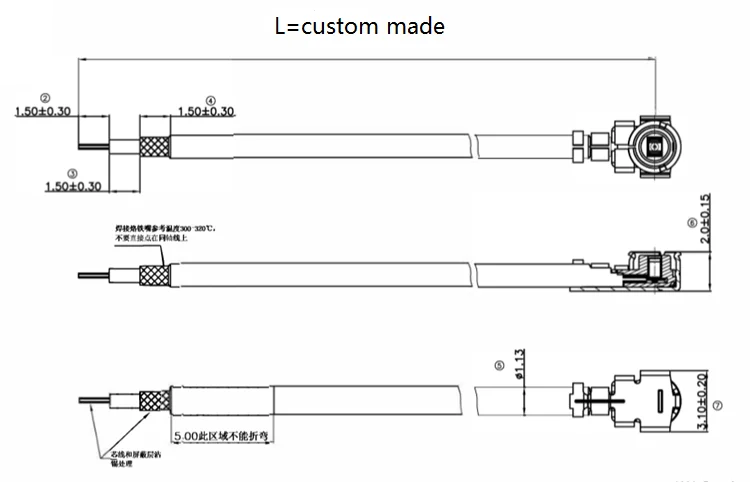

Single plug:

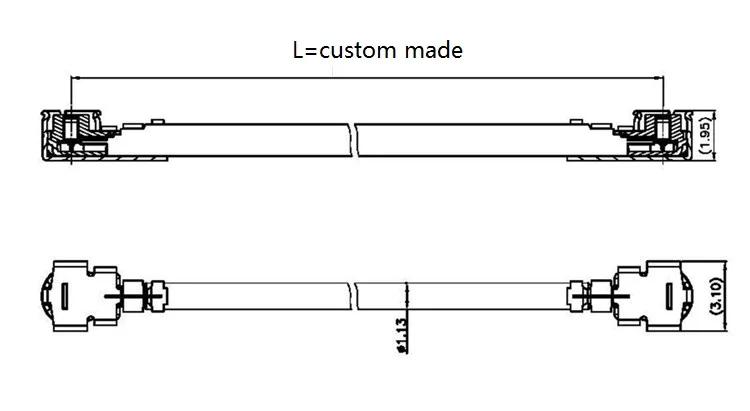

Double plugs:

                                 Free sample,Quick shipping                                 Clink here to contact us directly



Q1: Are you a manufacturer or just trade company?
A1: We are Manufacturer, welcome to our company,Our company is located in suzhou.

Q2: Do you have any product in stock? If not, how many days will it be delivered?
A2: Sorry,We haven’t any stock. Delivery in two weeks.

Q3: If I want to send the drawings to you, which format drawings will be better?
A3: PDF or JPG format drawings will be better, CAD format drawings (dwg,dxf) Solidwork, ProE format are O.K.

Q4: Which kind of payment will be better?
A4: Credit card by Alibaba Assurance order, T/T.

Q5: What is the MOQ?
A5: The MOQ is 100PCS.

Q6: What is the lead time of sample?
A6: Usually 7 days after material ready.
