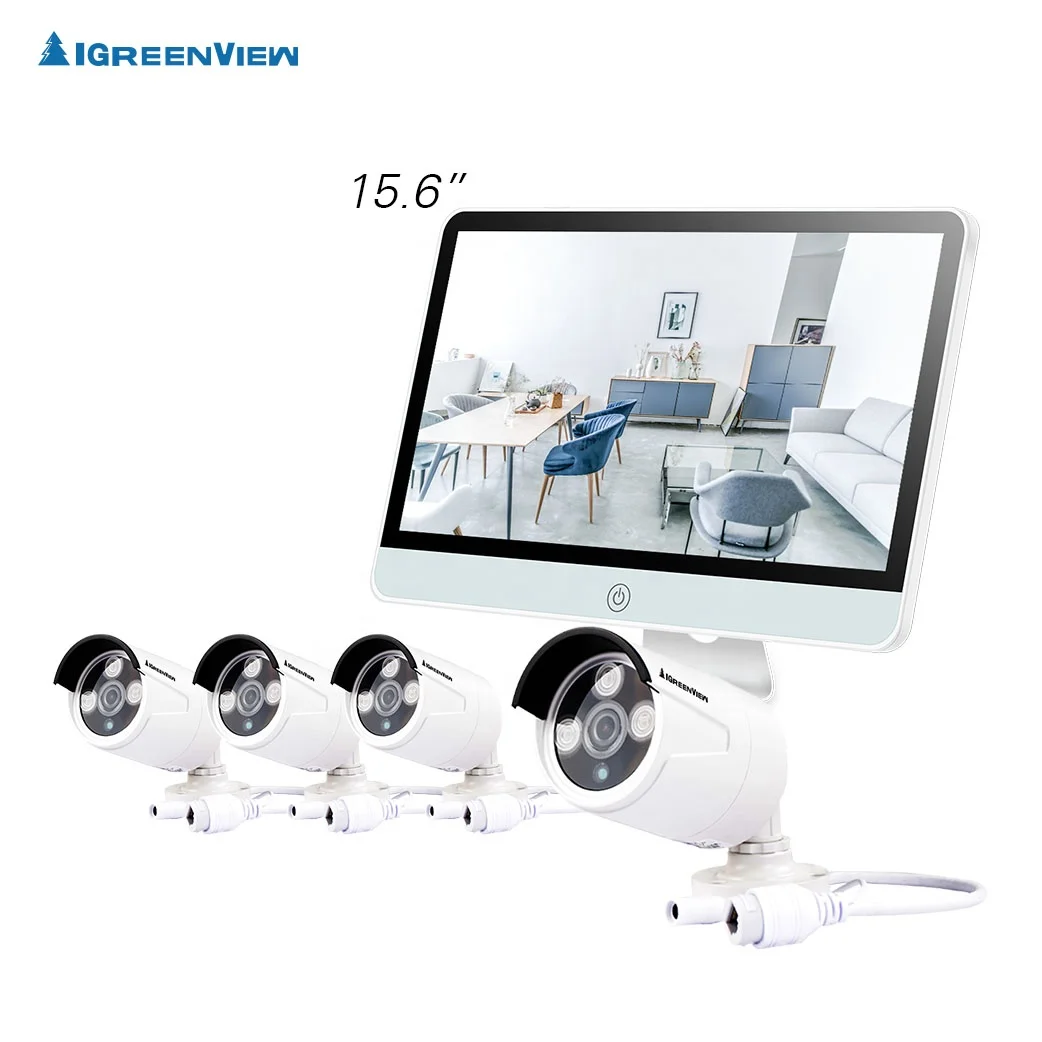

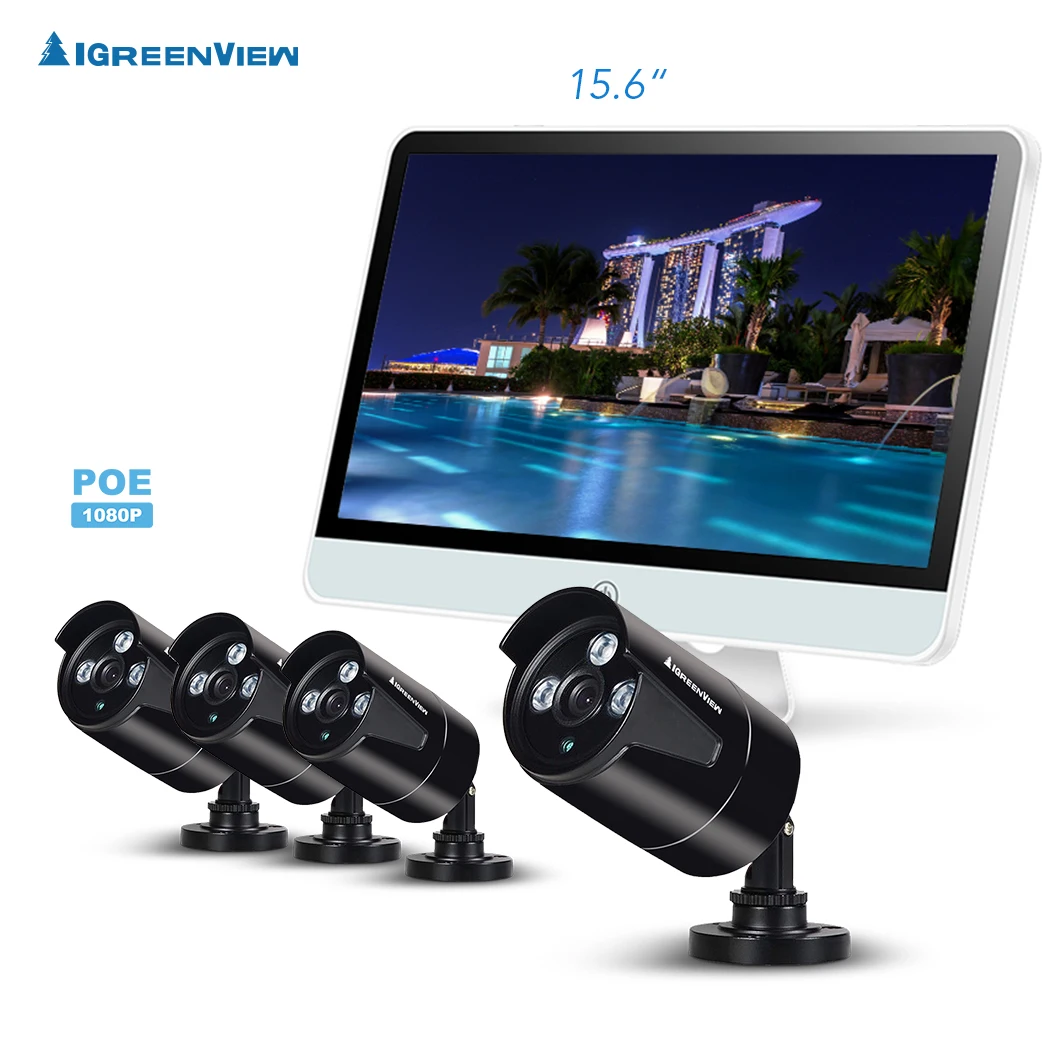

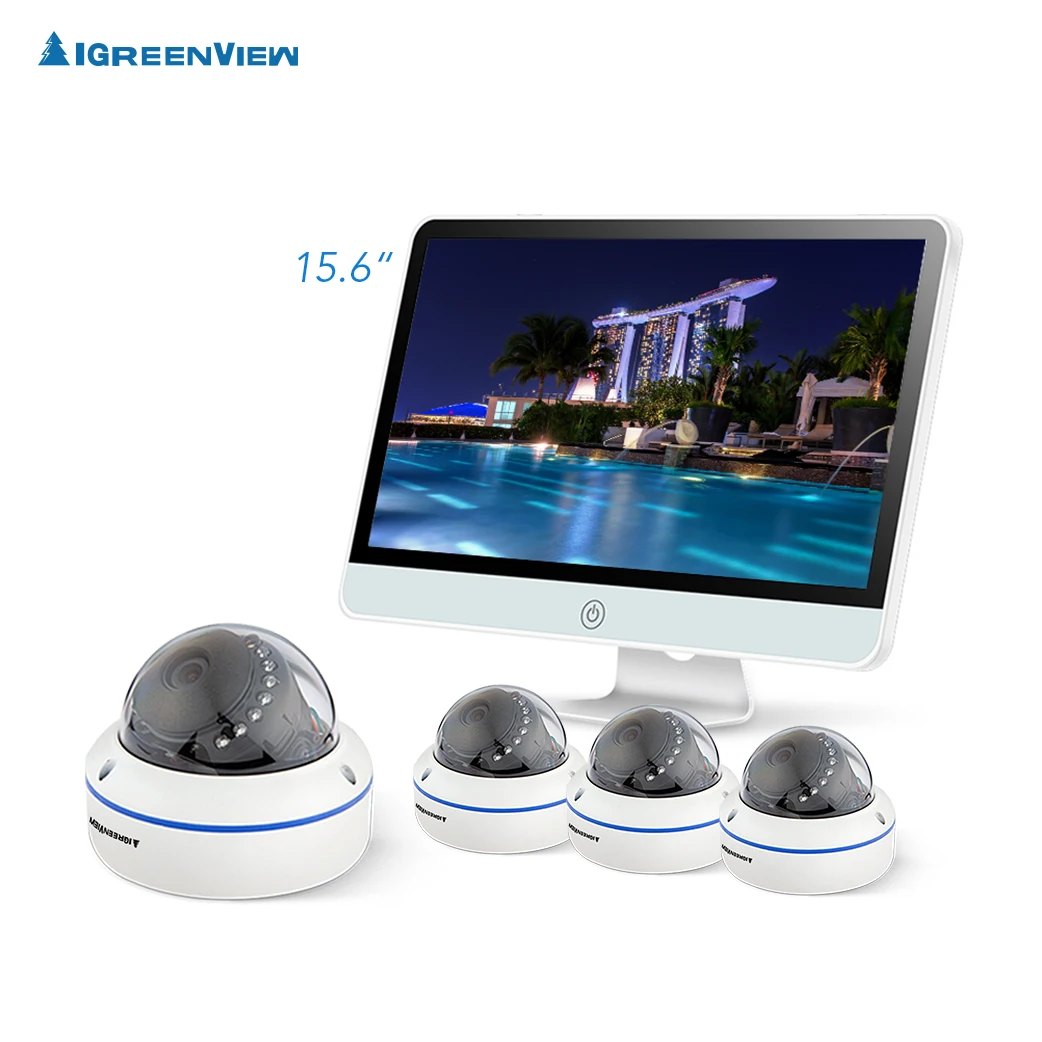

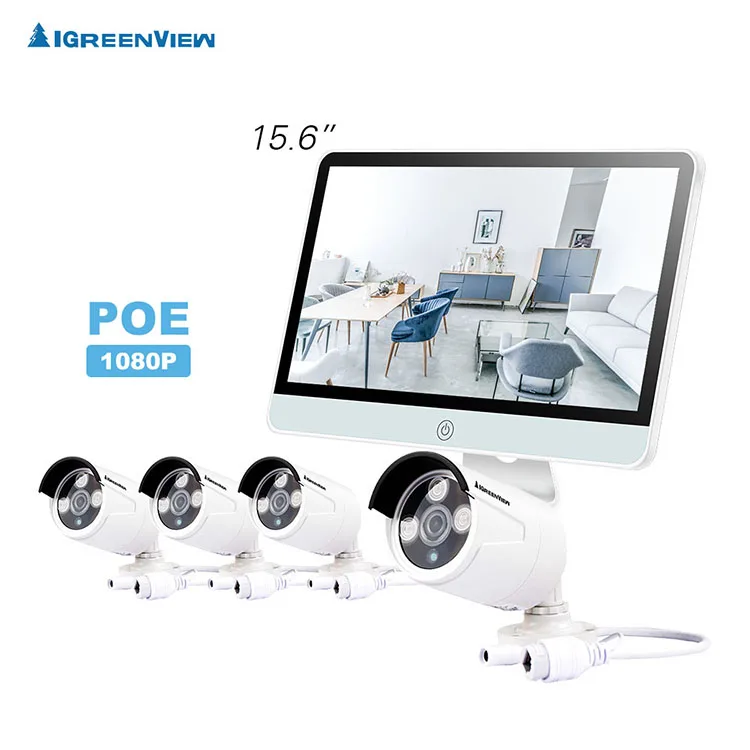

15.6inch LCD Built-in NVR 4CH channel surveillance camera kit security camera system poe nvr kit
IGV-K9804P-2.0MP
Product Description
Main Feature:
l 4CH 15.6” LCD ALL-IN-ONE NVR Support POE (48V 3A)
l 15.6“ High Definition IPS LCD Screen. (Resolution:1920*1080)

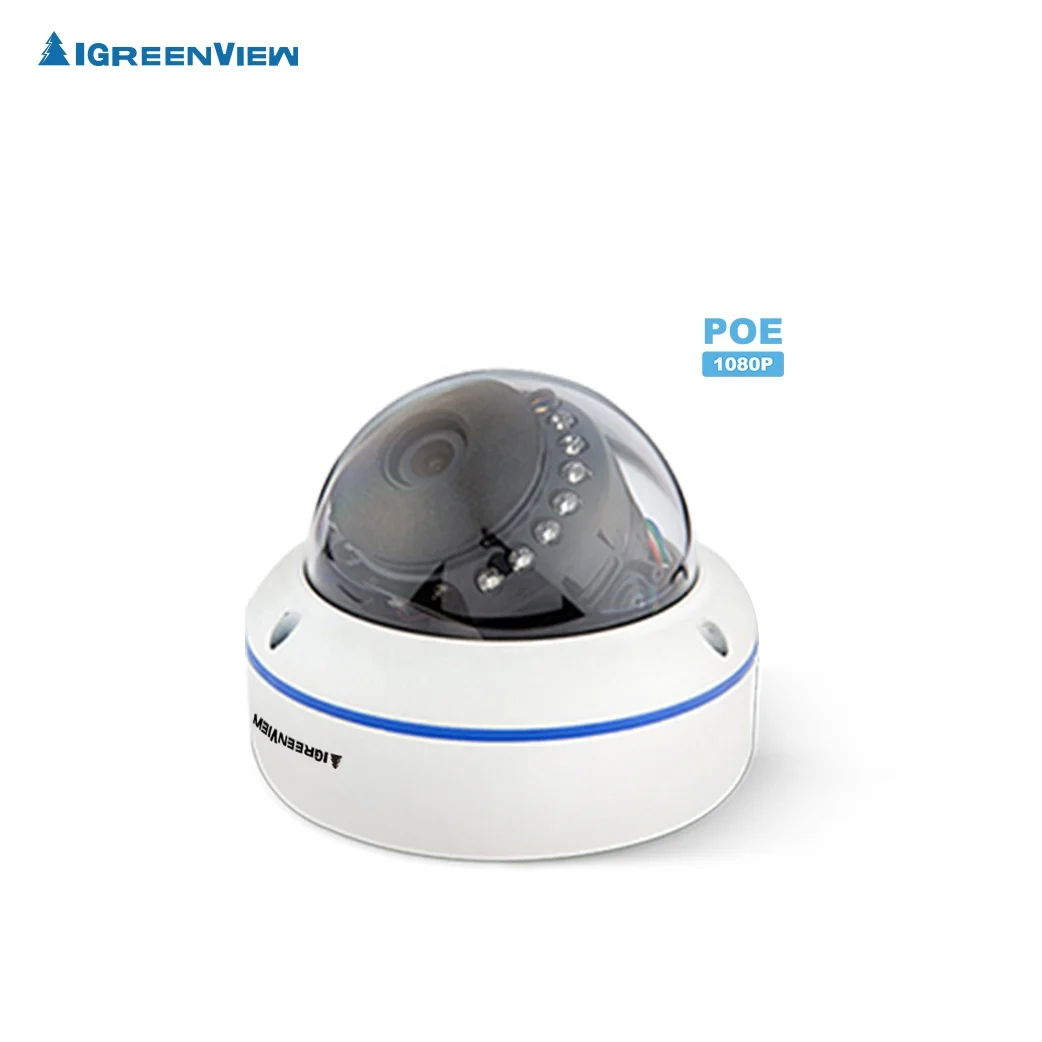

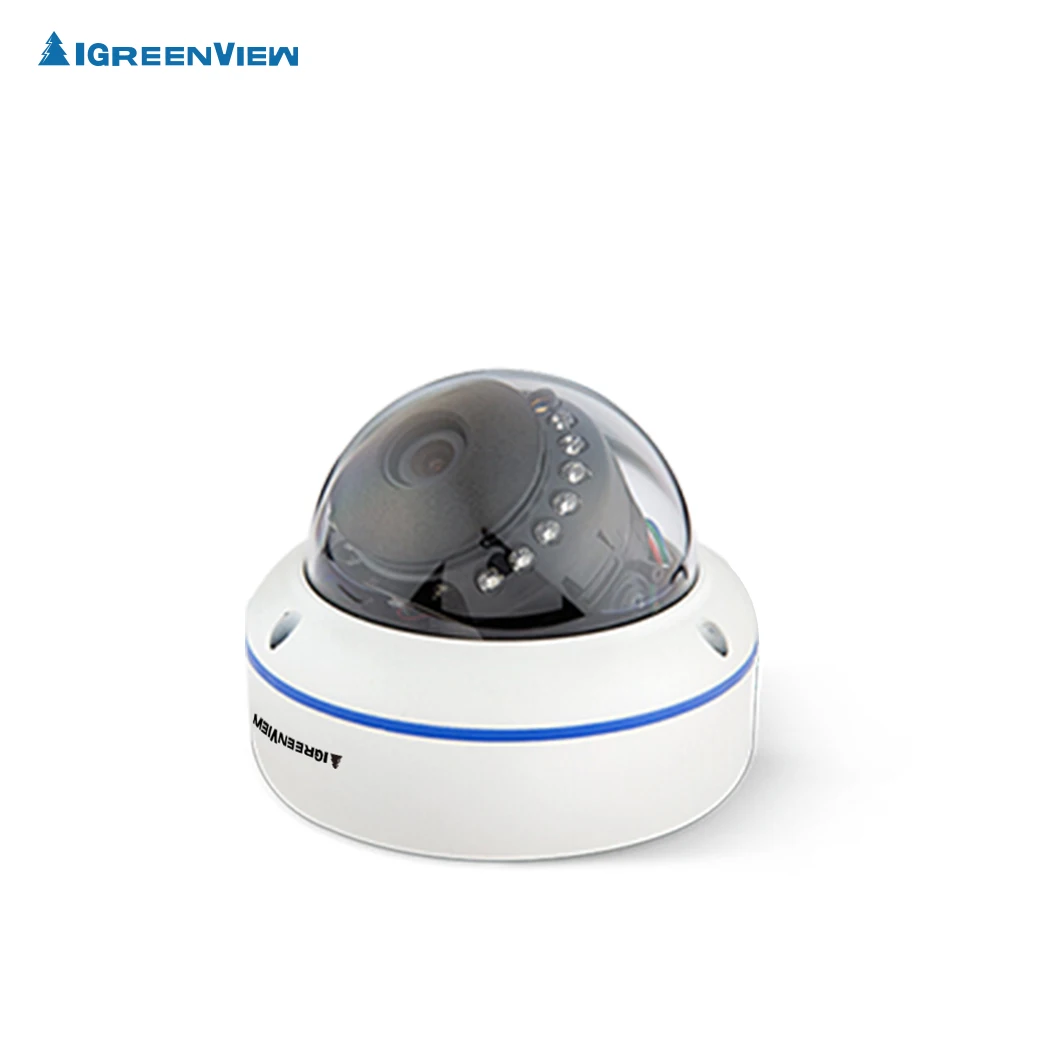

l IR Bullet Camera,Dome camera,PTZ Bullt camera optional
l Support HDMI HD output. Support Audio output.
l Support 3.5"HDD,Max 6TB
l Support PC client CMS software.
l Support Mobile Phone App remote monitor (iPhone, Android)
Specification:
NVR Model | IGreenView H.265 4CH 2Mp PoE NVR | |
Video | Video input | 4CH 720P/960P/1080P |
Compression | H.265 & H.264 | |
Operation System | Embedded LINUX operating system | |
Display | 15.6“HD IPS LCD Screen. | |
AV output | HDMI output | 1ch,Support resolution:1024x768,1366x768,1440x900,1920x1080p |
AV CODEC | Video Resolution | 720P/960P/1080P |
synch-playback | 4CH | |
Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
Playback mode | Real time,Routine,Event | |
Backup | USB backup | |
Hard Disk | Type | 1*SATA interface |
Max Capacity | 6 TB | |
External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
USB Interface | 2* USB 2.0 | |
Network Control | Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
DHCP (Automatically obtain an IP address), etc… | ||
Others | Power Supply | DC12V3A |
Power Consumption (W) | ≤15W(Without HDD) | |
Operate Temperature (°C) | -10℃~+55℃ | |
Working Humidity (%) RH | 10%~90% | |

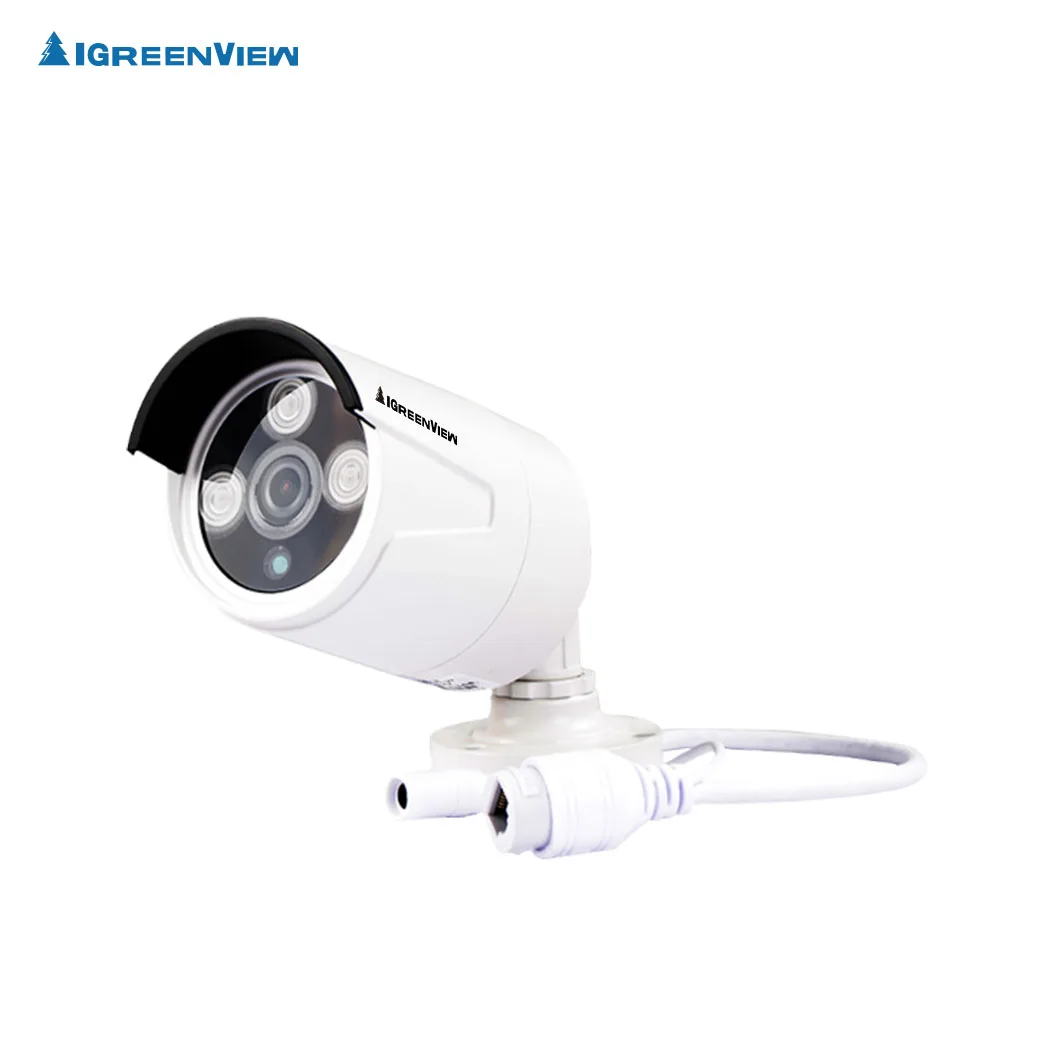

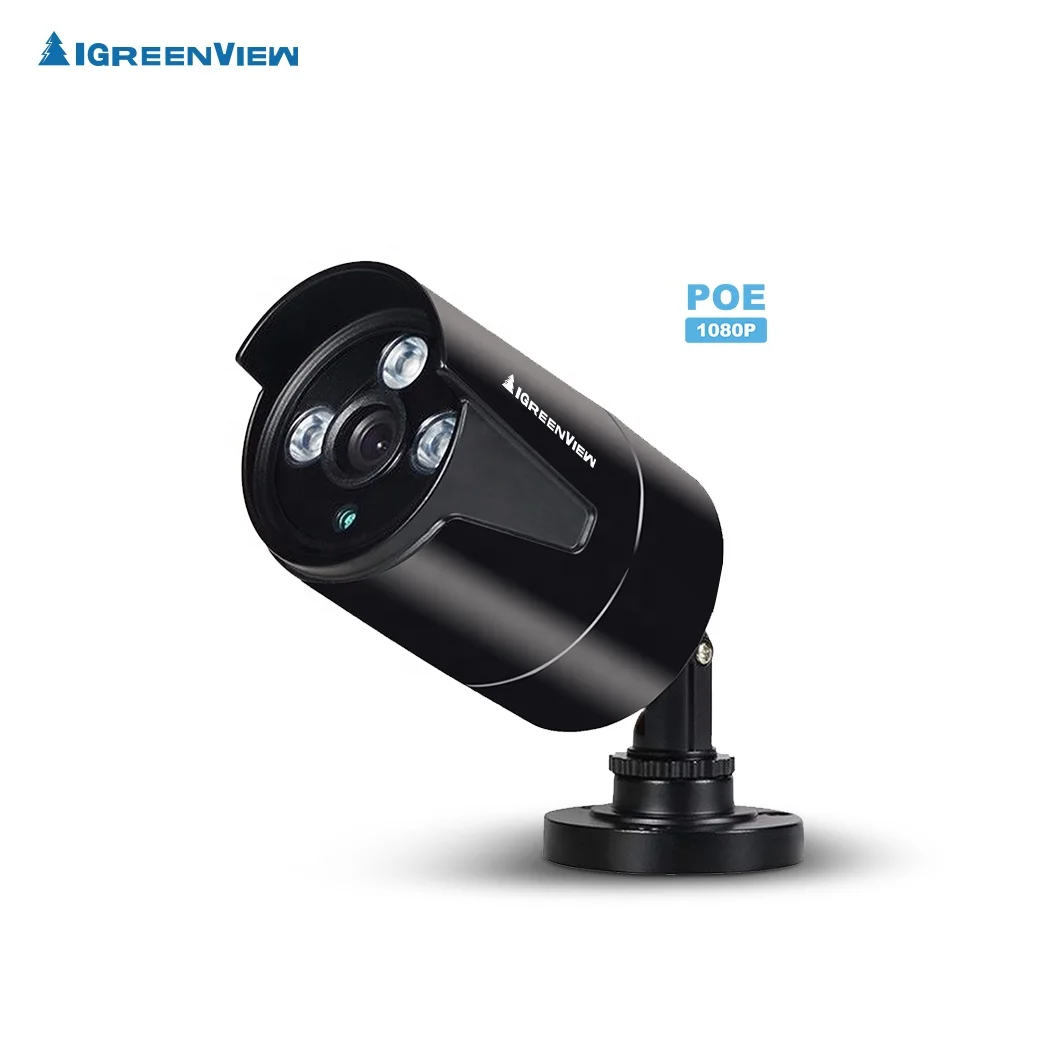

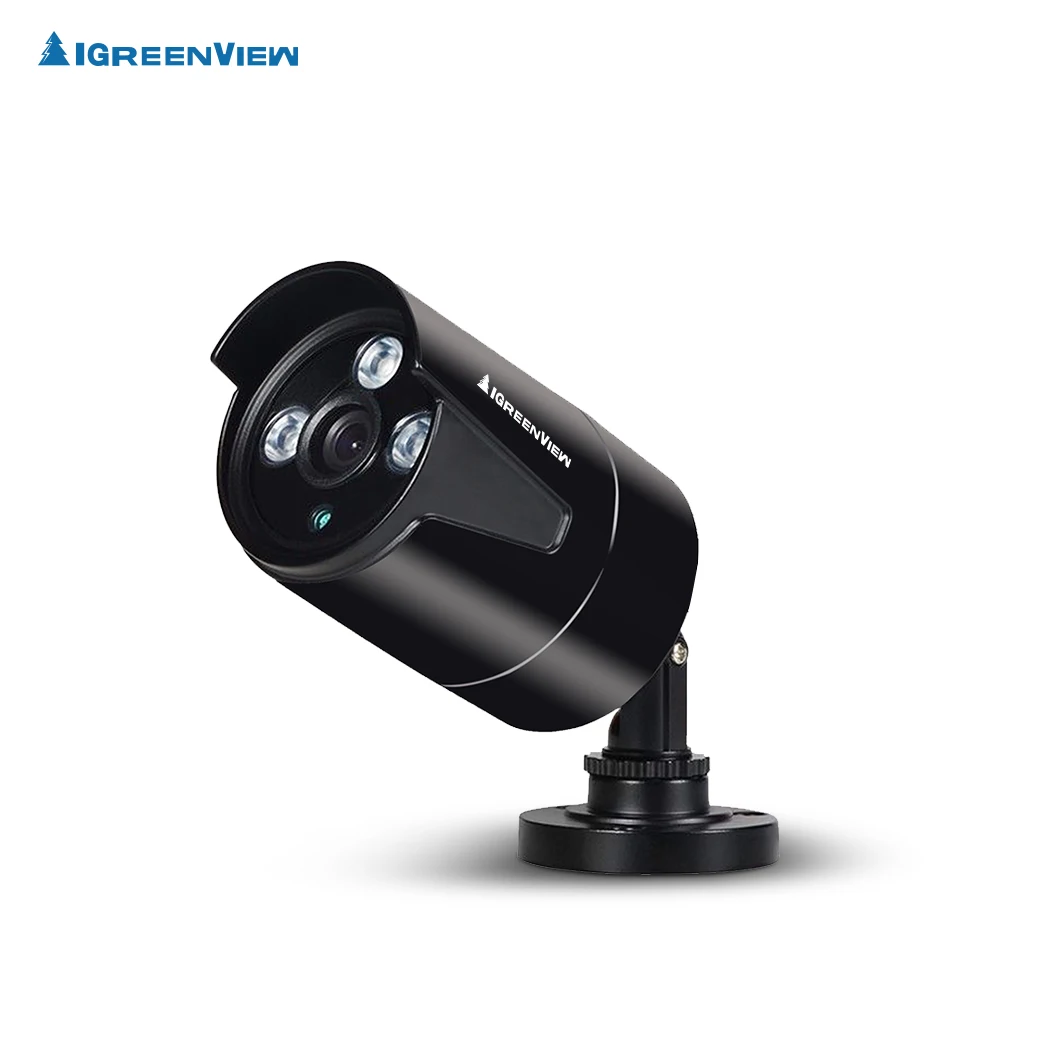

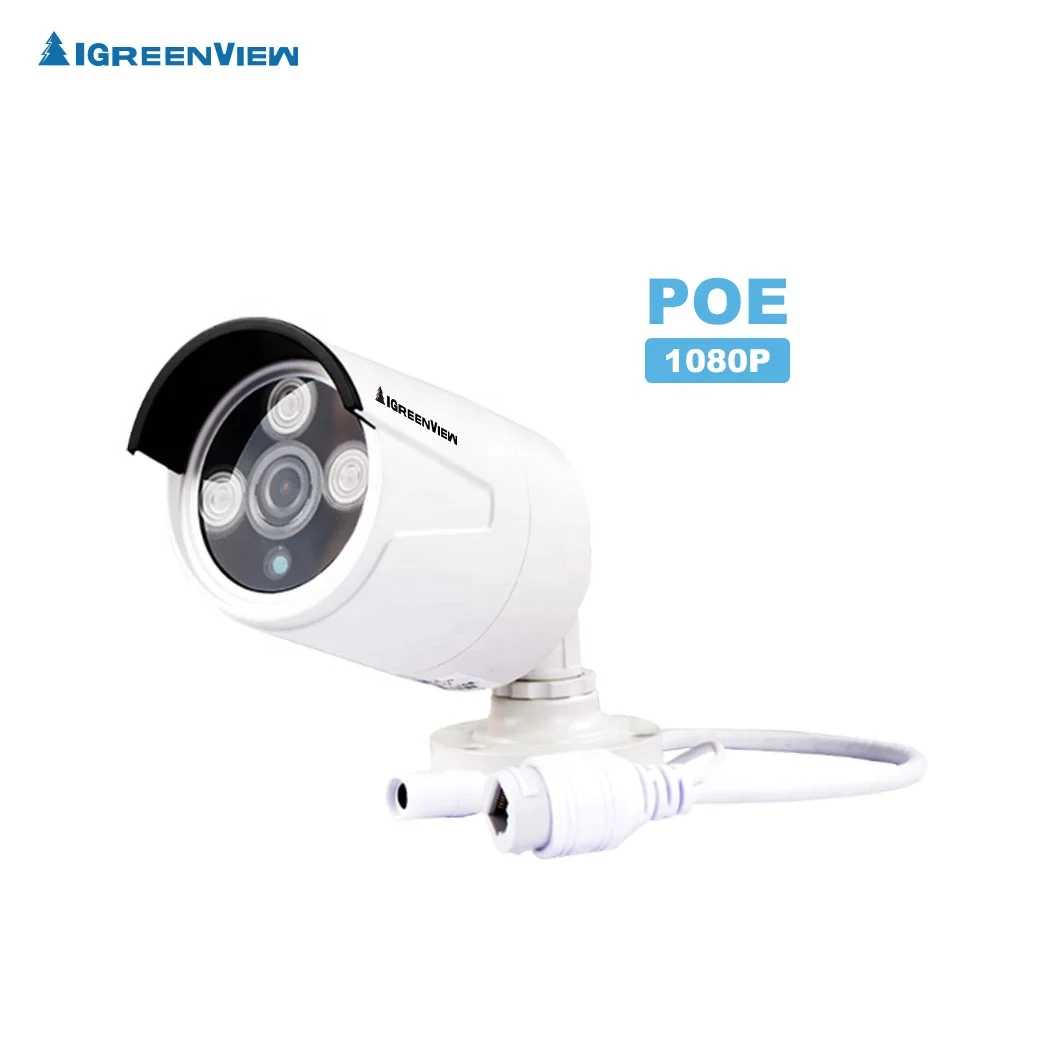

1080P POE Camera Specification:
Camera Model | IGreenView 1080P PoE IP Camera * 4pcs |
Sensor | 1/3” Progressive Scan Sensor |
Resolution | 1920 x 1080 16 : 9 |
Minimum illumination | Color: 0.1 Lux B/W: 0.01 Lux |
Lens | 4/6mm optional |
IR LEDs | 3Pcs Array IR LEDs |
IR Range | 30m/100ft |
OSD | Date Time & Title |
Day & Night | Auto / Color / BW |
3D-DNR | Auto |
Mirror/Flip | On / Off |
Privacy Regional Shelter | 4 Zone Selectable |
smart stream | Dual-stream: |
1920x1080 | |
640x480 | |
Power | DC12V-1A |
Power consumption | ≤6W |
Port | RJ45 / WIFI 802.11b/g/n |
MIC | Support built-in mic (optional) |
Audio | Support speaker(optional) |
working temperature/ humidity | -10℃ to +50℃ / 30% to 80% RH |
Storage temperature/humidity | -20℃ to +60℃ / 20% to 90% RH |
