woodworking machine wood belt sanding machine
- Category: >>>
- Supplier: Qingdao Lusen Machinery Co. Ltd.
Share on (62083037567):
Product Overview
Description
Products Description
Advantage features
1.The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and
durability
2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient
maintenance.
3. The belt tensioning cylinder is made of cast iron, which has large tension and good stability.
4. Conveyor belt adjustment cylinders are all 63*20 cylinders, with high strength and good stability.
5. The active roller head is always thickened and quenched to ensure the stability and robustness of the driving roller.
6. The thickness display table adopts photoelectric sensor head with high precision and good stability under various complicated
environments.
1.The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and
durability
2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient
maintenance.
3. The belt tensioning cylinder is made of cast iron, which has large tension and good stability.
4. Conveyor belt adjustment cylinders are all 63*20 cylinders, with high strength and good stability.
5. The active roller head is always thickened and quenched to ensure the stability and robustness of the driving roller.
6. The thickness display table adopts photoelectric sensor head with high precision and good stability under various complicated
environments.
Product Paramenters
Working width | 450,630,1000,1300,1600mm | First motor | 5.5, 11, 22, 37, 45kw | ||
Min.Working length | 500mm | Second motor | 5.5, 7.5, 15, 22, 30kw | ||
Working thickness | 3-110mm | Third motor | 11, 22kw | ||
Feeding speed | 6-30m/min | Feeding motor | 0.75, 1.5, 4.5kw | ||
First roller | 190, 240mm | Lifting motor | 0.37, 0.55kw | ||
Second roller | 190, 240mm | Working air | 0.6Mpa | ||
Third roller | 210mm | Volume of dust | 8000, 9600, 14000m³/h | ||
Abrasive belt size | 470*1930, 650*1930, 1020*2020, 1320*2220mm | ||||
Overall dimensions | 1800*950*2000, 2700*2100*2100, 3000*2400*2100mm | ||||
Weight | 1100, 2200, 3200, 5300, 6500kg | ||||
Details Images

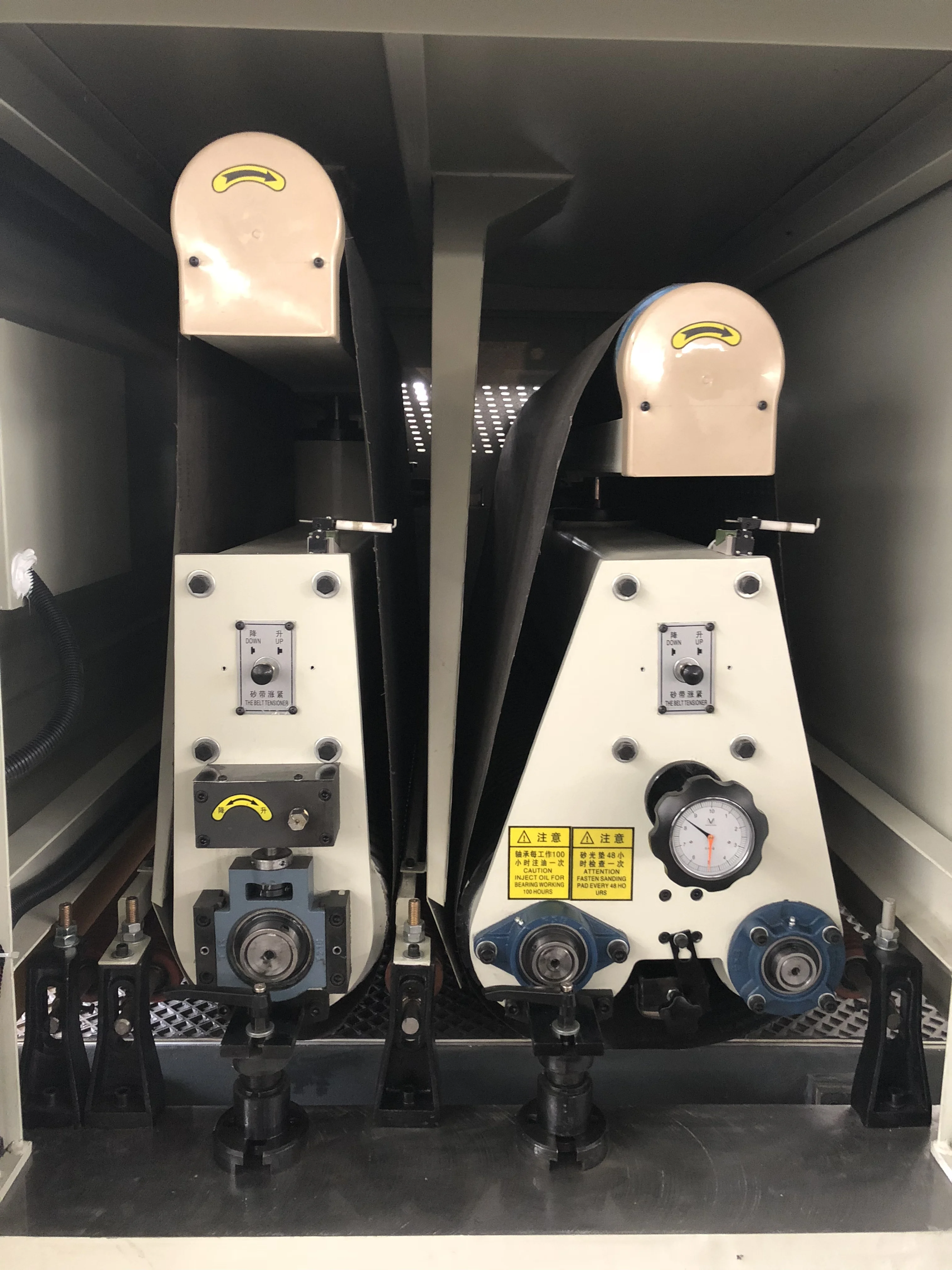

double heads structure

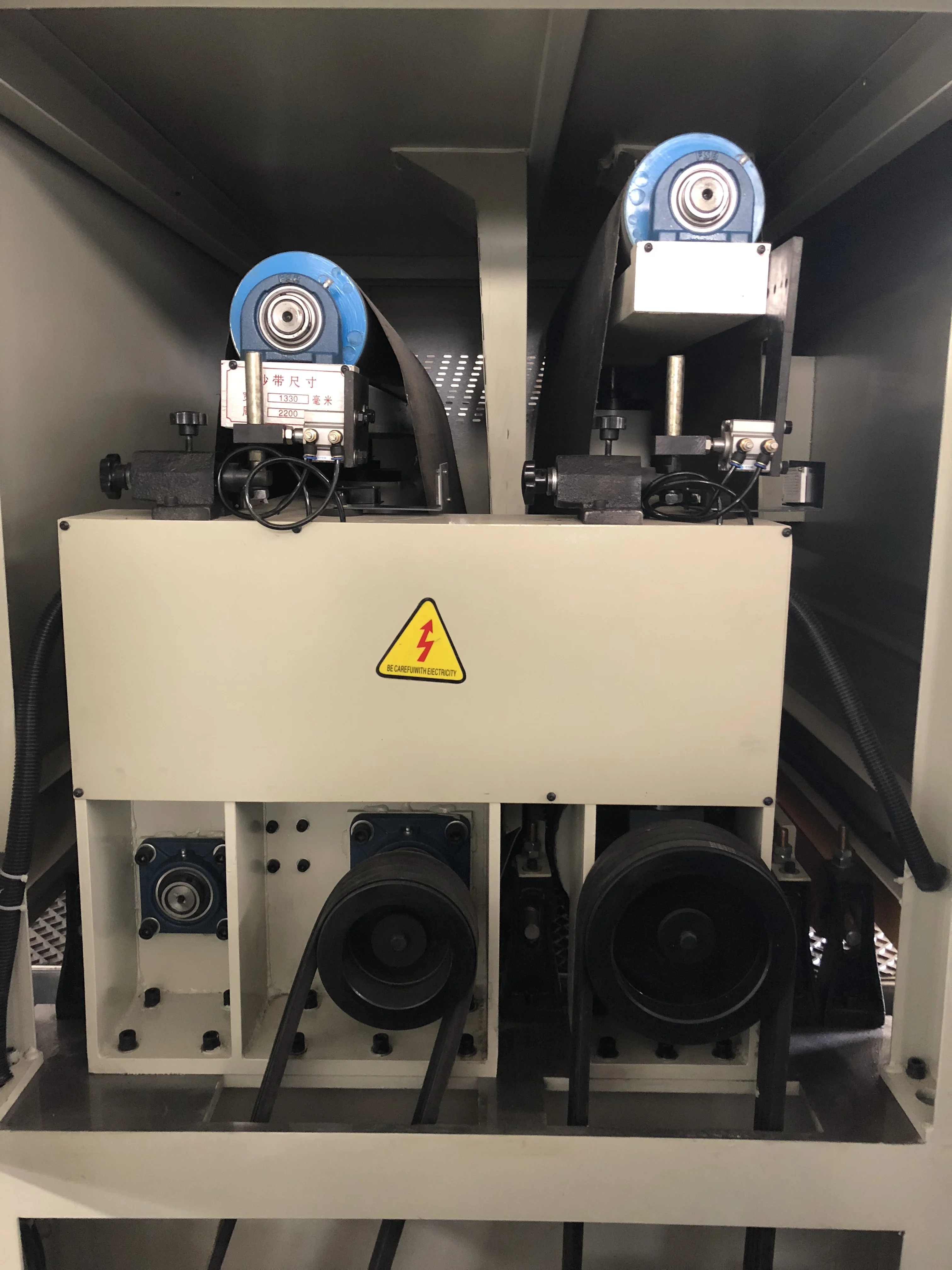

heavy machine body
Product packaging
Certifications
Recommend Products
FAQ
Q1: Are you a manufacturer?
A1:yes. We have 20 years manufacturer and export exprience.
Q2.About the MOQ
A2.1 set, and we are OEM,
I will give you the competitive price better than market.
Q3.May I buy a sample?
A3. Of course ,sample order is welcome.
Q4.How can I place a order?
A4.Just give me your nice inquiry,I will do my best to assist you.
Q5. If I want cheaper quality, can you produce?
A5.Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request
and calculate the price.
Q6. If I order big quantity, what's the good price?
A6.Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms,
Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
