IPC 8600 Plus series surveillance equipment 7inch HD coaxial tester cctv tester
- Category: >>>
- Supplier: Igreenview Optoelectronic Co. Ltd.
Share on (62083143030):
Product Overview
Description
IPC-8600 Plus series surveillance equipment 7inch HD coaxial tester cctv tester
Product Description
Features:
Camera test:
>7 inch retina touch screen, 1920*1200 resolutions
> H.265 & H .264 IP, 4K video display via mainstream
> 8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *
> 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
> 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
> 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu *
> HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
> 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
> Rapid ONVIF, Auto log in and display image, create testing report
> AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
> CVBS camera test and PTZ control
>IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)
>Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
> DC12V/2A power output, camera can be powered from DC 12Votage
> 48V PoE power output power
> Rapid video, just by one key to detect all network cameras and auto display
> Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test:
> Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
> RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
>Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
> TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM*
Other functions:
> Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
> POE & power information, DC12V& PoE power and voltage output /input measurement
> Tester Play: Tester, android version mobile phone and PC display at the same time

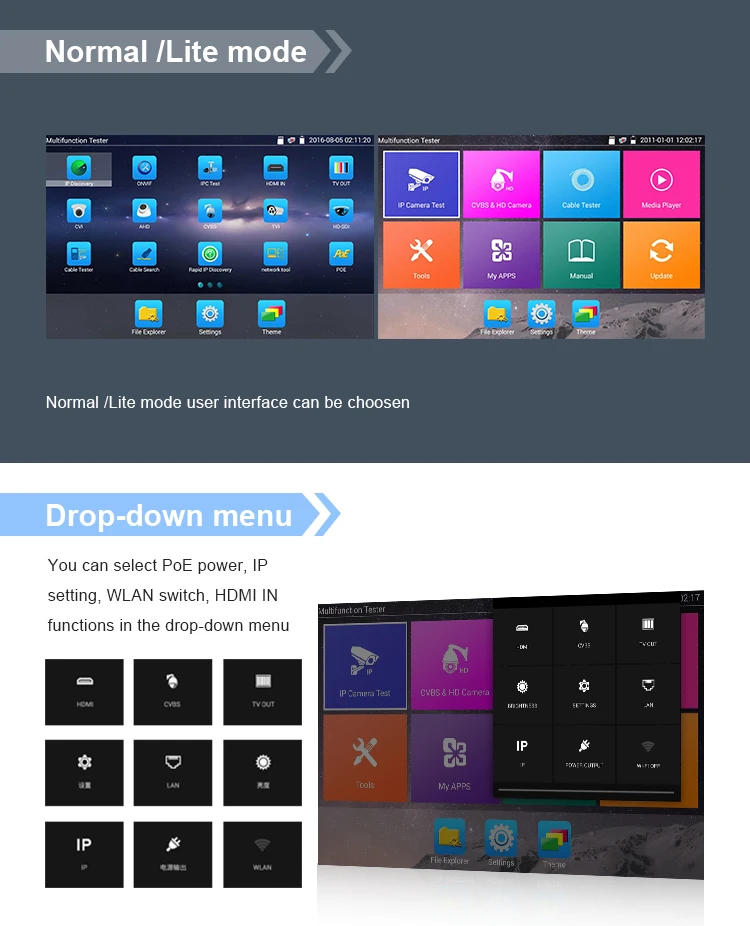

> Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
>Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
> Self -update software, you can install apps with android version
> Media player, 4K video files and MKV/MP4 media files play
> Quick office, quick office app (support excel, word, ppt format) doc. editable
> 8GB SD card including
> Display its genuine resolution of the IP camera images
> Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
>7.4 V /7000mAh Lithium Ion Polymer Battery, after 7~8 hours charging , working time lasts 16 hours
| Model optional | Basic functions Description |
| IPC-8600 Plus |
|
| IPC-8600ADH Plus | Add AHD(A)/CVI(D)/TVI(H) image display, Support the coaxial visual control calls to set up the camera menu. Support HDMI input,1080P. |
| IPC-8600ADHS Plus | Add AHD(A)/CVI(D)/TVI(H)/SDI(S) image display, Support the coaxial visual control calls to set up the camera menu. Support HDMI input,1080P. |
| IPC-8600 MOVTADHS Plus | Add Digital Multimeter (M)/Optical power meter (O)/Visual fault locator (V)/TDR cable test (T). Support Cable tracer,Video level meter. Support the coaxial visual control calls to set up the camera menu. Support HDMI input,1080P. |
Specifications:
LCD | Item series | IPC-8600 Plus series | |
Display | New 7 inch IPS touch screen,1920*1200 resolution | ||
Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output,NTSC/PAL (Auto adapt) | |
Analog video level meter, peak video signal level,SYNC signal level, Color bar chroma level measurement* | |||
PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||
CVBS loop test | the tester send and receive color bar generator signal ,check BNC cable | ||
IP camera test 4k/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play/Client APK | ||
Rapid Video | Auto view the video, create testing report | ||
Hik test tool | Activate hikvision camera, modify the user name, password and IP parameters | ||
Dahua test tool | Dahua camera test, modify the user name, password and IP parameters | ||
IP& CVBS test | IP& CVBS test at the same time ,converter test from analog to digital with dual test window | ||
Coaxial HD test* | 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu * | ||
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS,UTC control call OSD menu * | |||
8MP AHD test, 3840 x 2160P 15FPS, UTC control & call OSD menu* | |||
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu* | |||
HDMI input * | 1 channel HDMI input, support 1080P * | ||
Zoom Image | 4x zoom, to enlarge image, Screen snapshot,record ,save ,view and record and play back | ||
Analog Video out | Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable | |
Power output | PoE power output | 48V PoE power output, max power 25.5W | |
DC12V power | DC12V /2A power output | ||
Cable test | TDR cable test * | BNC cable, network cable, telephone cable, RVV cable and elevator cable,cat 5/6 cable’s length and short circuit. measurement range 1.2KM * | |
Cable tracer * | Search BNC cable, network cable and telephone cable from the mess cables * | ||
UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen | ||
RJ45 cable TDR test | Test cable pair status, length,attenuation, reflectivity, impedance, skew etc.measurement range 180M. | ||
TesterPlay | Screen projection:tester, mobile phone and PC display at the same time (For android version mobile phone) | ||
Network test | Trace route, Link monitor,DHCP server, port flashing,Ping test | ||
Wi-Fi | Built in WIFI,speeds150M,display wireless camera image | ||
Audio test | 1 channel audio signal input, test whether sound normal,1 channel audio signal,to connect headphone | ||
Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal | ||
PoE test | Measurement POE switch or PSE power supply voltage and cable connection status | ||
Drop-down menu | You can select PoE power switch ,IP setting,CVBS, LAN info, HDMI IN functions etc in any interface | ||
External power supply | DC12V 2A | ||
Battery | Built-in 7.4V Lithium polymer battery ,7000mAh | ||
Rechargeable | After charging 7~8 hours, normal working time 16 hours | ||
Operation setting | OSD menu,select your desired language: English, Chinese, Korean,Russian, Italian, French, Polish, Spanish,Japanese etc | ||
Auto off | 1-30 (mins) | ||
Working Temperature | -10℃---+50℃ | ||
Working Humidity | 30%-90% | ||
Dimension/Weight | 231mm x 172mm x 52mm / 1.26Kg | ||
Below are customizable functions, if need customize them, QTY MOQ is 50pcs, Full function model is IPC-8600MOVTADHS Plus | |||
M | Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement | ||
O | Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~+10 dBm, for optical power testing and Fiber link loss relative measurement | ||
V | Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10KM | ||
T | TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM | ||
A | AHD camera test: 8MP AHD test,3840 x 2160P 15FPS, UTC control & call OSD menu | ||
H | TVI camera test: 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control & call OSD menu | ||
D | CVI camera test: 8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control & call OSD menu | ||
S | HD-SDI/EX-SDI/3G-SDI camera test ,UTC control & call OSD menu | ||
L | Video level meter :PEAK ,SYNC signal level,color burst chroma level measurement | ||
C | Cable tracer :search BNC cable, network cable and telephone cable from the mess cable | ||
Application:
> CCTV system installation and maintenance
> Network cabling project installation and maintenance
> Dome camera, 4K H.265 IP camera testing
> Video transmission channel testing
>PTZ controller
