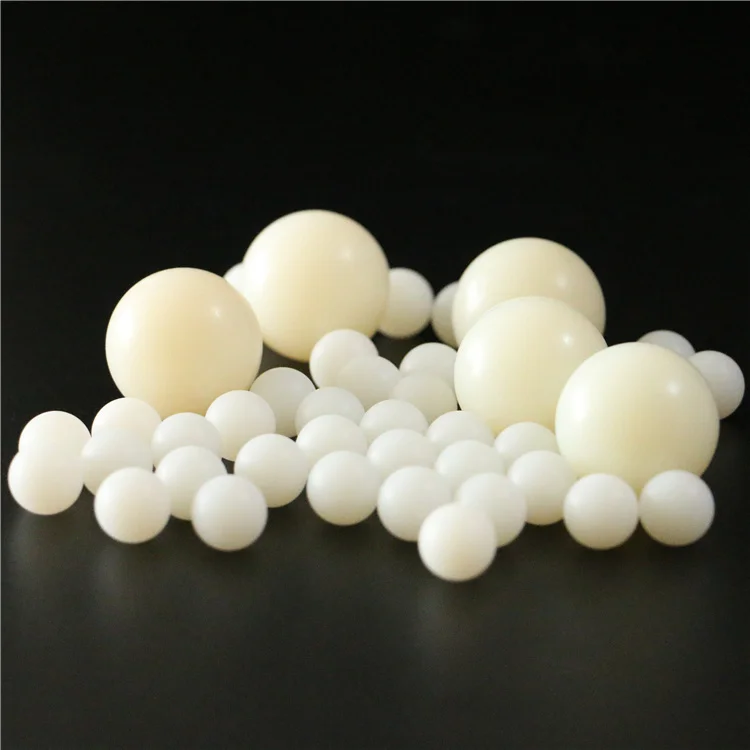

High grade 30mm 60mm PP PTFE POM PA66 HDPE solid hollow plastic ball

Share on (62083197893):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Product name
\t
High grade 30mm 60mm PP PTFE POM PA66 HDPE solid hollow plastic ball
\t
Material
\t
PP ball,POM ball,PA66 ball,PTFE ball
\t
Size
\t
1mm-100mm
\t
Certificate
\t
SGS ISO ROHS
\t
Color
\t
white, black ,colorful
\t
Type
\t
solid/hollow
\t
Product
\t
PP plastic ball
Polypropylene
\t
POM plastic ball
Delrin
\t
PA66 Plastic ball
Nylon
\t
PTFE plastic ball Polytetrafluoro ethylene
\t
Size
\t
3mm-100mm
\t
2.381mm-100mm
\t
4.763mm-100mm
\t
1mm-80mm
\t
Material
\t
Polypropylene balls
\t
Delrin, POM balls
\t
 Nylon Balls
\t
Teflon Balls-PTFE
\t
Grade
\t
G0-G3
 (±0.01-0.05mm)
\t
G0-G3
(±0.01-0.05mm)
\t
G0-G3
(±0.01-0.05mm)
\t
G0-G3
 (±0.01-0.05mm)
\t
Type
\t
Solid/Hollow
\t
Solid
\t
Solid
\t
Solid
\t
Density
\t
Around: 0.85g/cm3
\t
Around:1.4g/cm3
\t
Around:1.1g/cm3
\t
 Around: 1.5g/cm3
\t
Grade
\t
Tolerance range of diameter(mm)
\t
The tolerance range
of roundness(mm)
\t
G0
\t
+/-0.0127
\t
0.00635
\t
G1
\t
+/-0.0254
\t
0.0127
\t
G2
\t
+/-0.0508
\t
0.0254
\t
G3
\t
+/-0.127
\t
0.127

The size we can produc2.1e


2.381mm 3mm 3.175mm 3.969mm 4mm 4.5mm 4.763mm 5mm 6mm 6.35mm 7mm 8mm 8.731mm 9mm 9.85mm 10mm 11mm 11.1125mm 12mm 14mm 15mm 15.875mm 20mm 25mm 25.4mm 30mm 31.75mm 33.33mm 35mm 38.1mm 40mm 45mm


Exhibiton

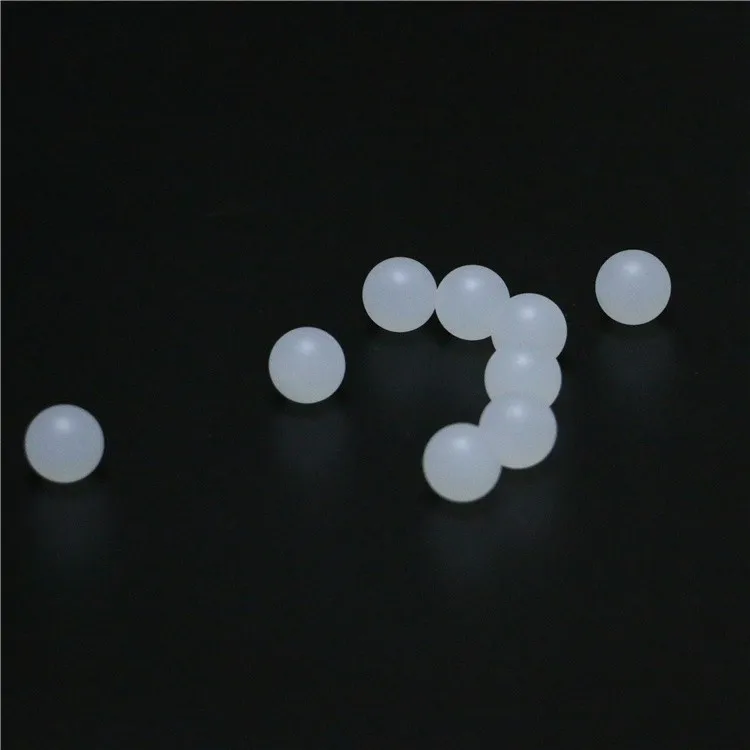

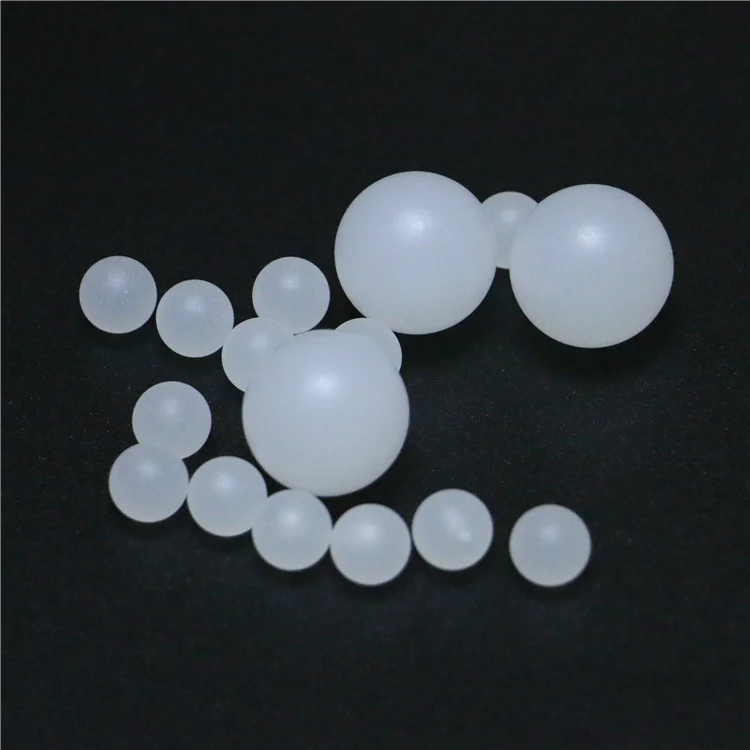

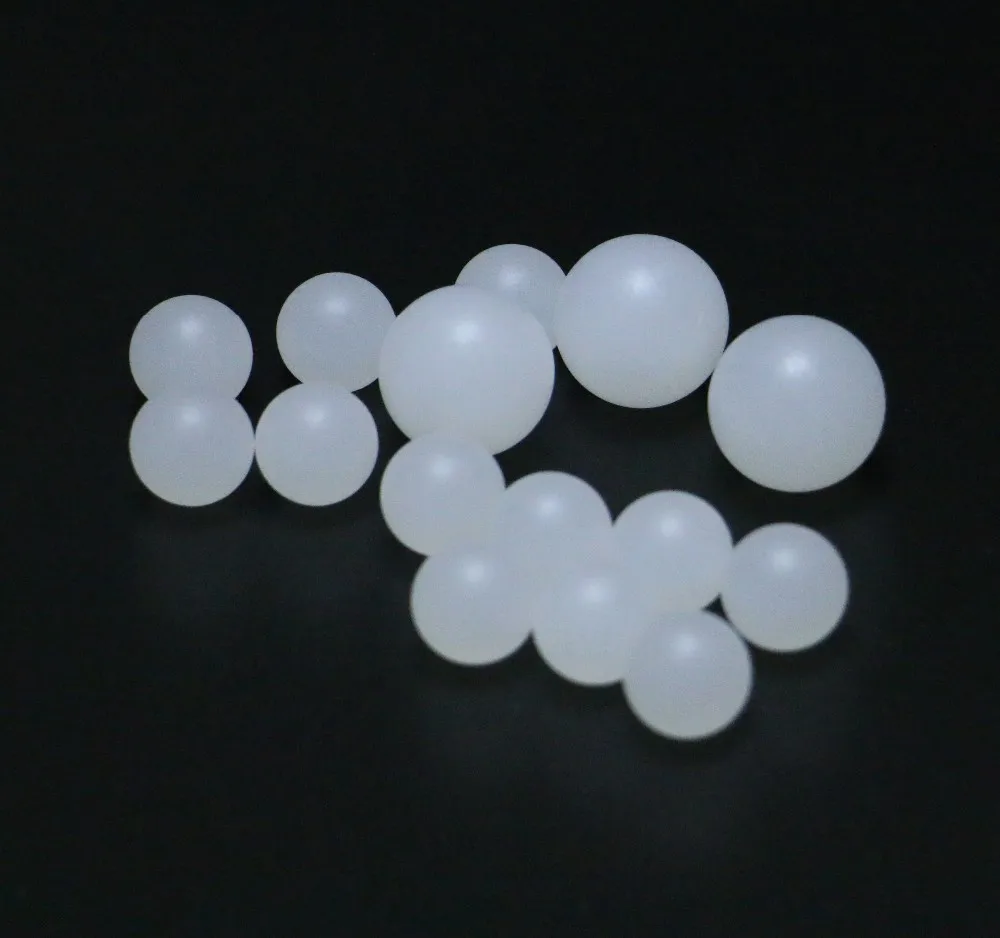

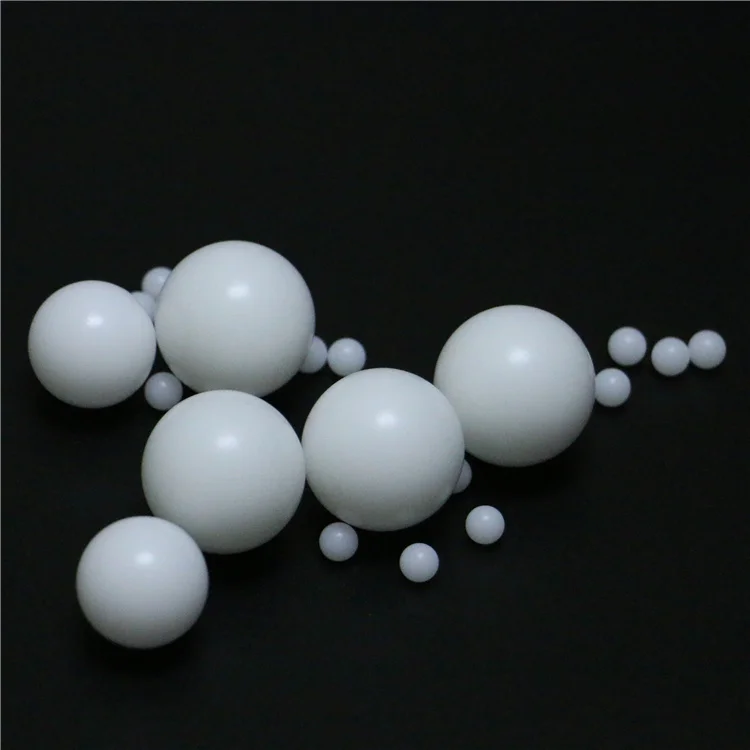

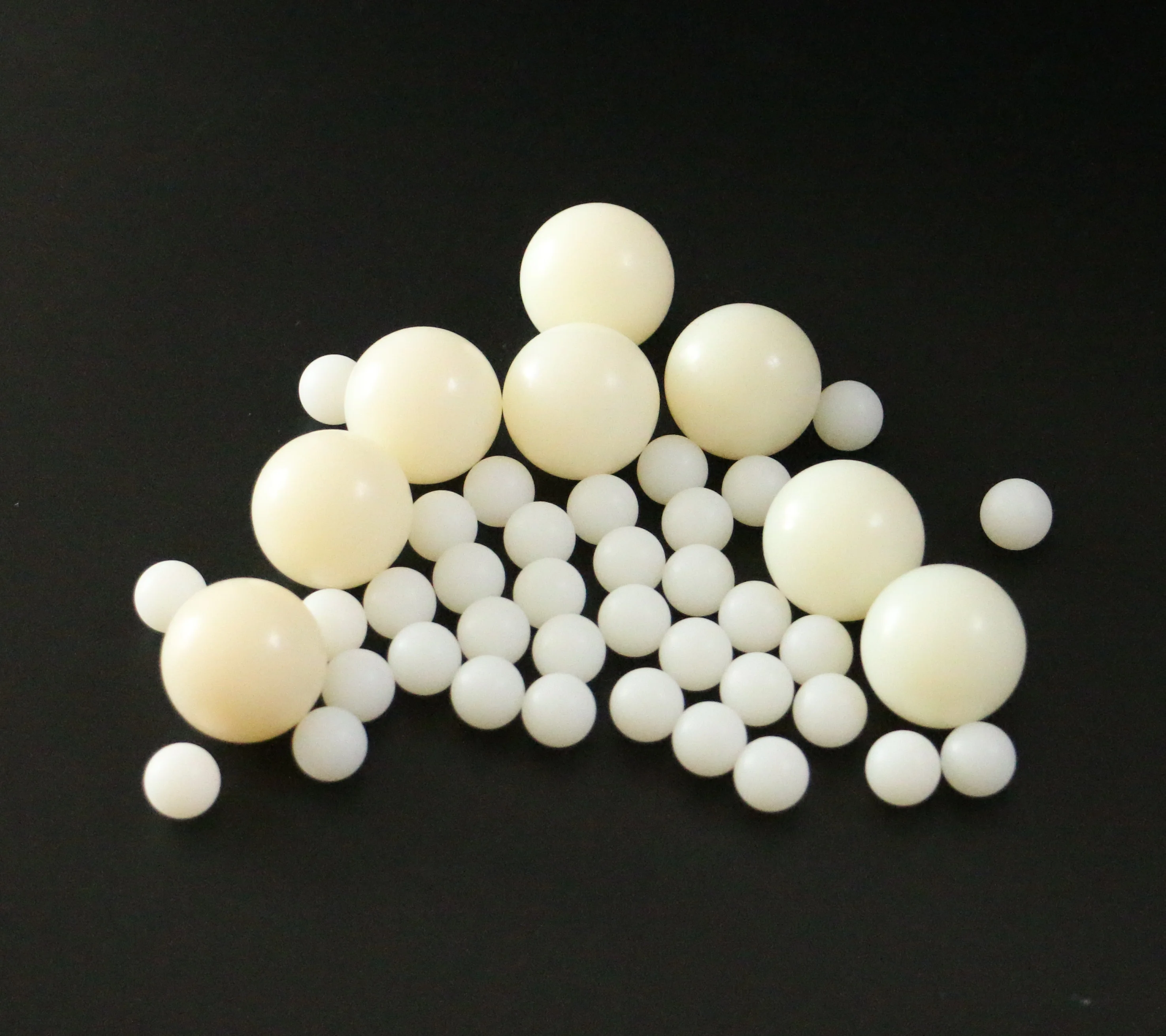

Solid PP plastic ball  Polypropylene

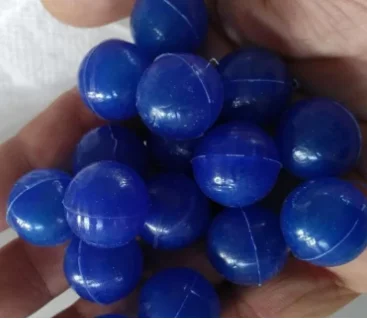

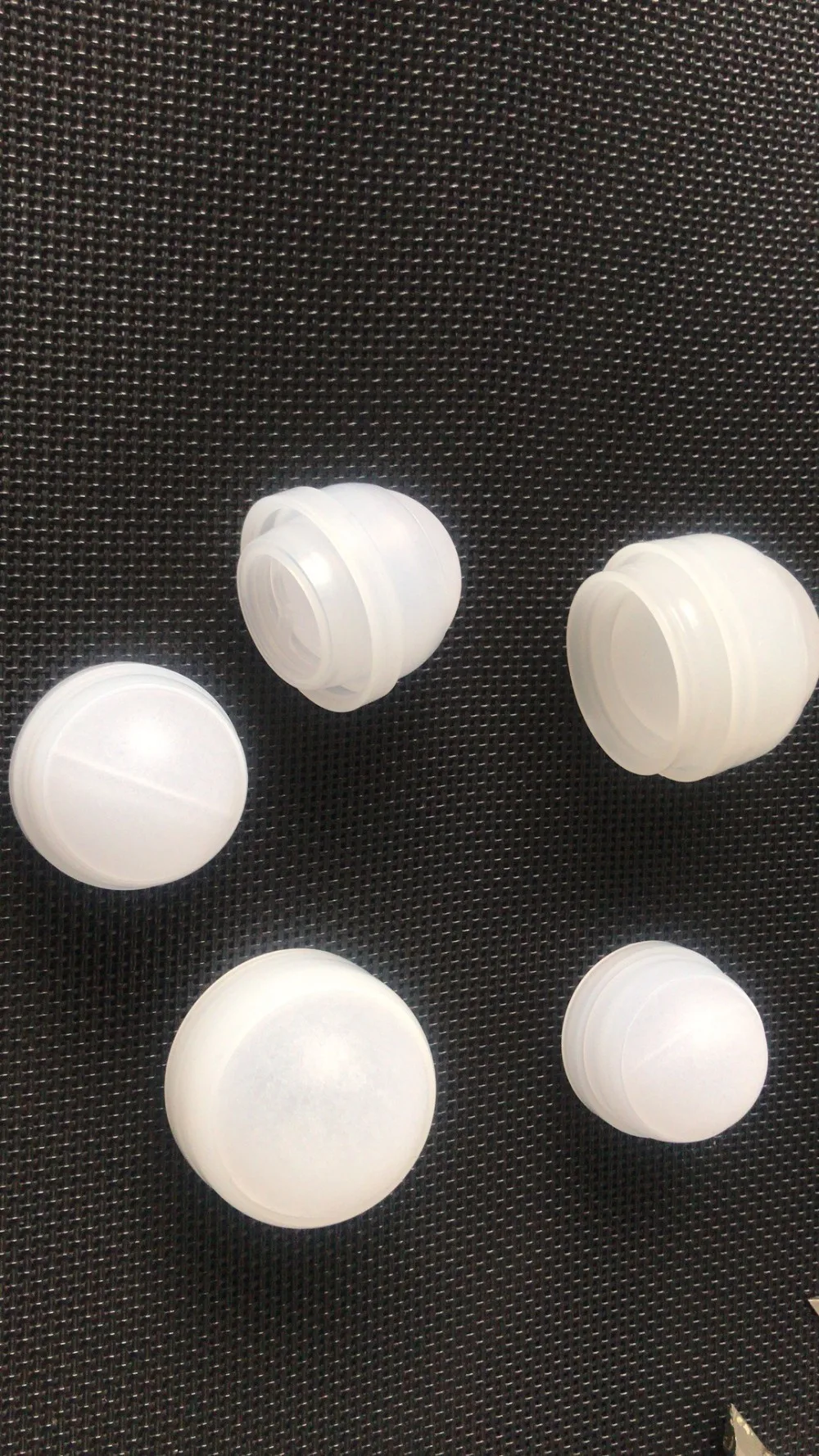

Hollow PP plastic ball Polypropylene

It has good resistance, chemical resistance, low density (density less than water), low water absorption, the highest melting point of the thermoplastic with excellent electrical insulator and low dielectric coefficient, often used for floating capacity requirements, withblood transfusion, level calibration indicator. It has a high resistance to chemical substances, such as acid, alkali, alcohol, many inorganic substances, salt solutions, solvents, gasoline, water, oil, grease, cleaning agents, fruit juices, milk and the like, but not resistant to aromatic carbon hydrogen compounds and chlorate.

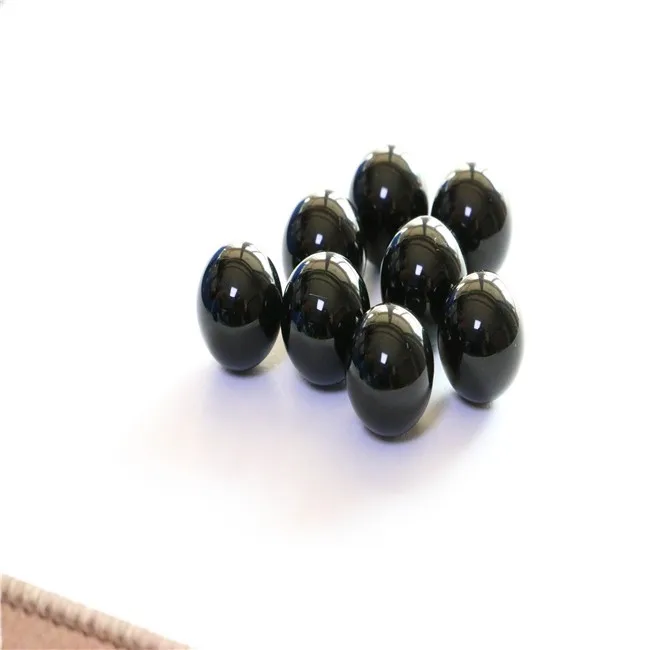

POM(DELRIN )Balls

It is similar to nylon, but slightly harder than nylon, slightly larger than the density recommended products applied to the required low water absorption

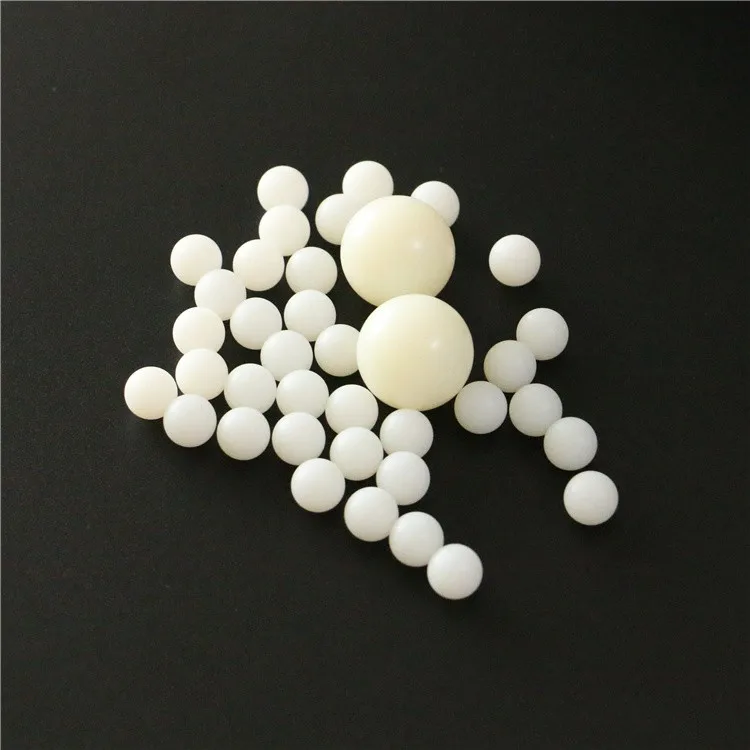

 PA66( Nylon) Ball

The nylon has preferably the alkali metal, to adapt to the neutral characteristics of petroleum products and all kinds of chemical products.

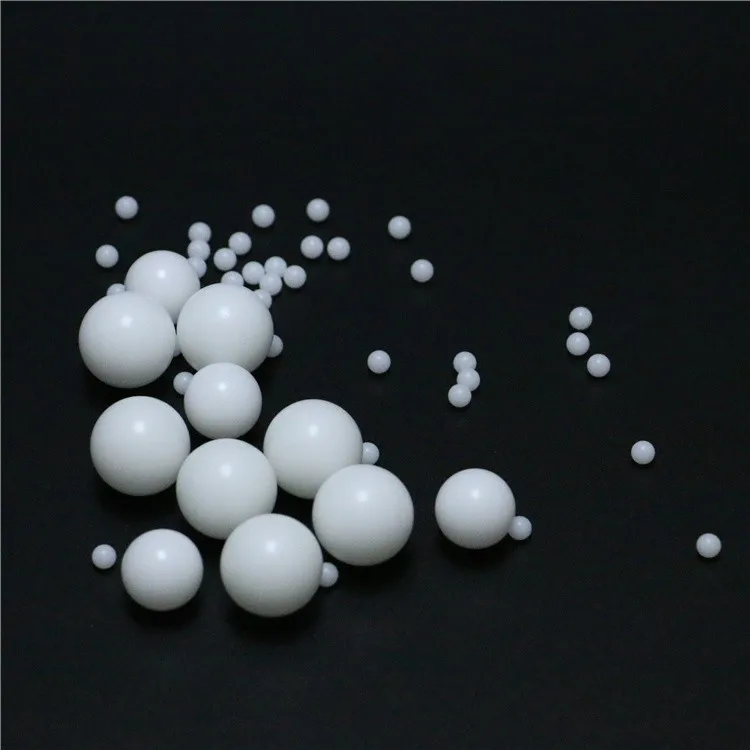

PTFE plastic ball Polytetrafluoro ethylene

It has excellent chemical stability, resistance to corrosion, sealing, high lubricity non-tackiness, electrical insulation and good anti-aging Stamina. Continuous use temperature range of -180 ° C to 250 ° C. PTFE (Teflon ®), ball so excellent frictionless known to most corrosive
resistant possessed electrically insulating material

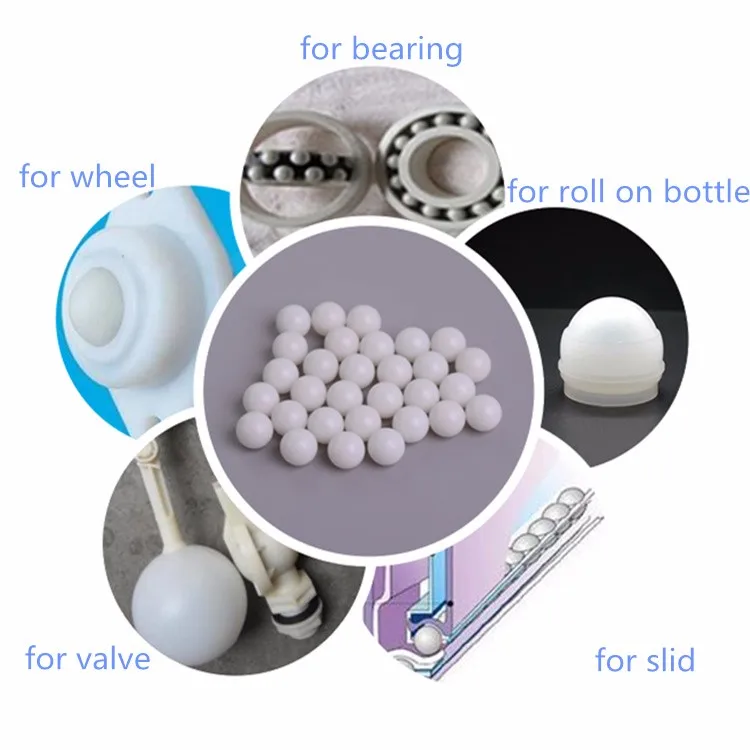

Application
\t
PP plastic ball
Polypropylene
\t
POM plastic ball
Delrin
\t
PA66 Plastic ball
Nylon
\t
PTFE plastic ball Polytetrafluoro ethylene
\t

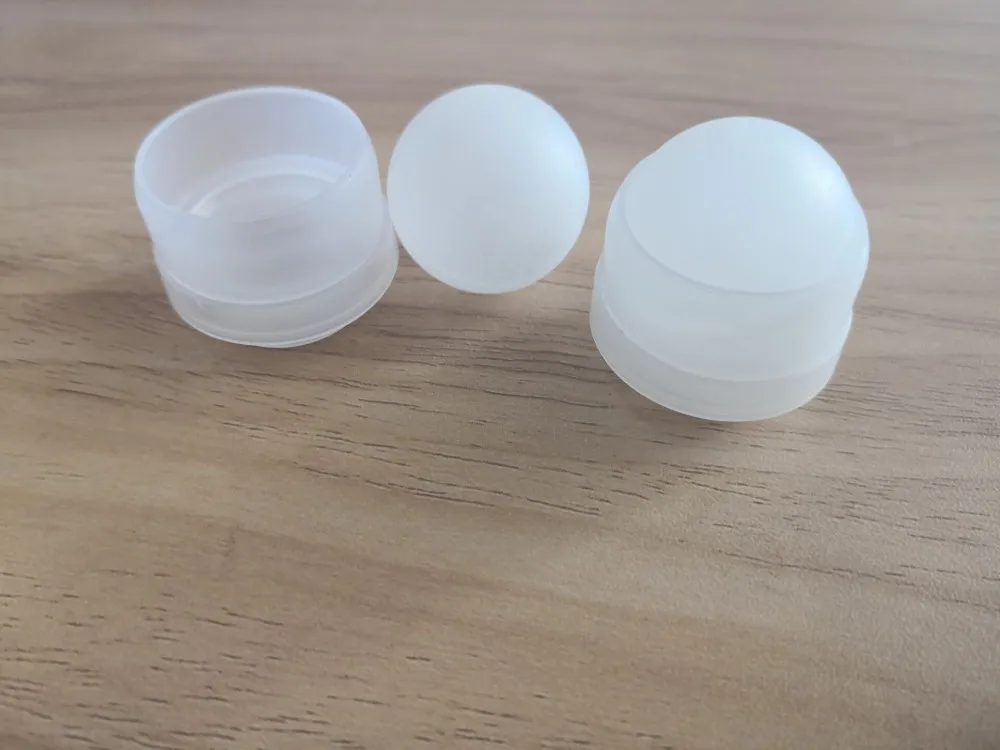

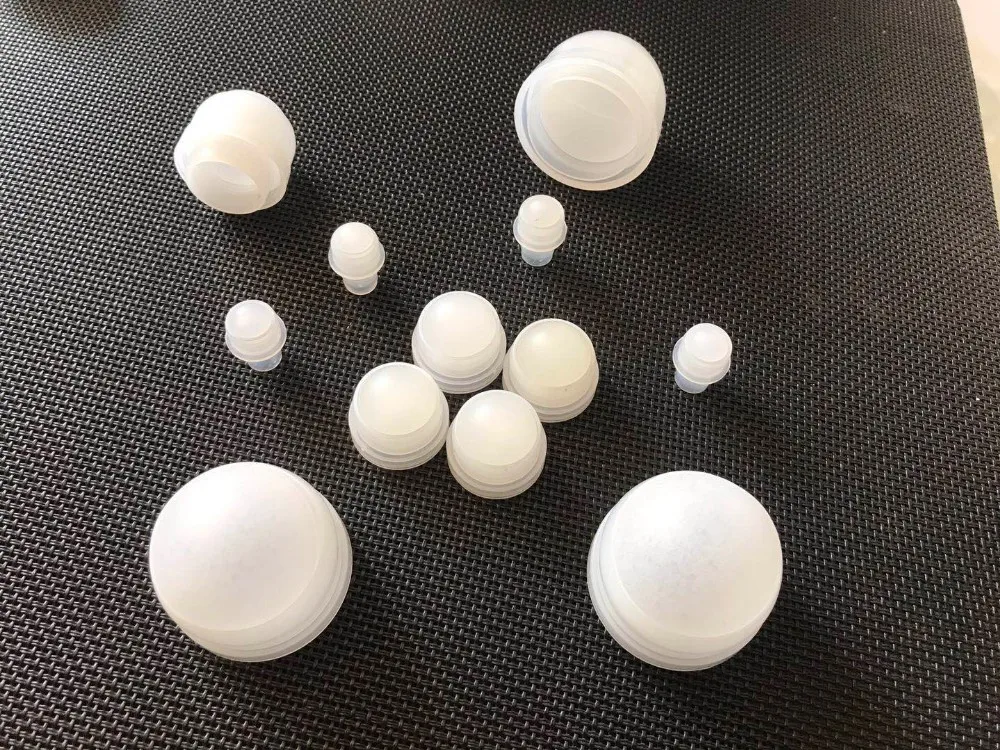

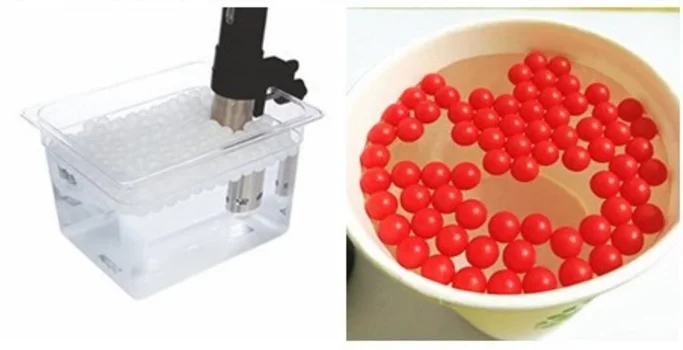

Used for cosmetic beads, used for liquid level calibration indicator, medium oil or acid alkaline liquid
\t
Table and drawer sliding devices, bearings, rollers, valves and electronics, sailing, etc
\t
For check valve, light load bearing, knob, pull switch, good elasticity, high hardness device
\t
Mainly used in cryogenic liquid and acid - base conditions of instruments
Company Information

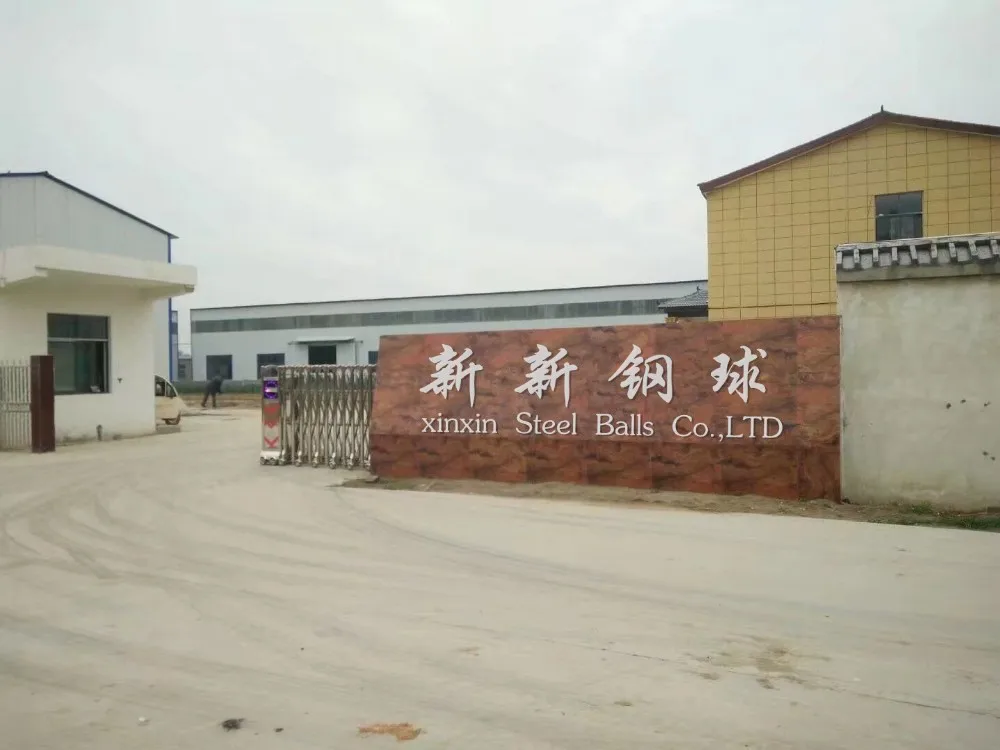

Ningyang Xinxin Stainless Steel Ball Manufacture Co.Ltd

One of famous and professional stainless steel ball factory from china .

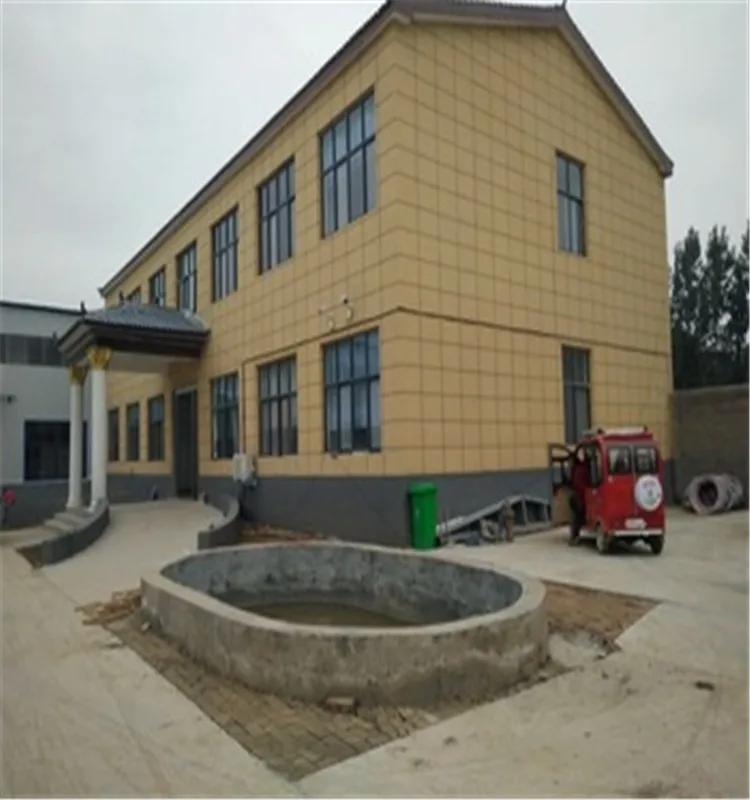

We have two professional factory to produce steel ball ,one is in Shandong province(5000 square meters),other one is in Henan province (10000 square meters ) .

With over 20years history,our factory have good reputation from our customers and government,so our factory passed ISO9001:2008 and our products got SGS,RHOS Certificates .
We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430). also produce chrome steel ball (AISI52100,100CR6,GCR15),carbon steel ball(1015,1010,1045,1085), copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball and other kinds of material ball.
We have the ability to provide many kinds of steel ball, of which accuracy range is G10-G1000,size 0.4mm-50.8mm. The brand "XinXin" is trusted deeply by customers. Our products have been widely applied in the hardware goods form a complete set for the aviation and spaceflight industry, automobiles, sprayers, stainless steel bearings, and handicraft and precision instruments.


We have advanced production equipment and consummative instruments. We use perfect equipment to detect the roundness, libration size and the quality of the surface of steel balls.
Welcome to visit our factory and looking forwarder to cooperate with you !

Certifications

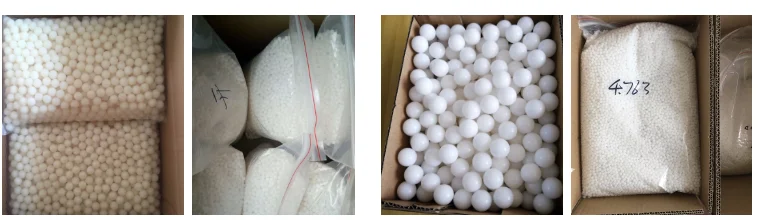

Packing& Delivery

Port:Qingdao seaport Shanghai seaport or Ningbo seaport

Lead Time :3-25 working days

Other products

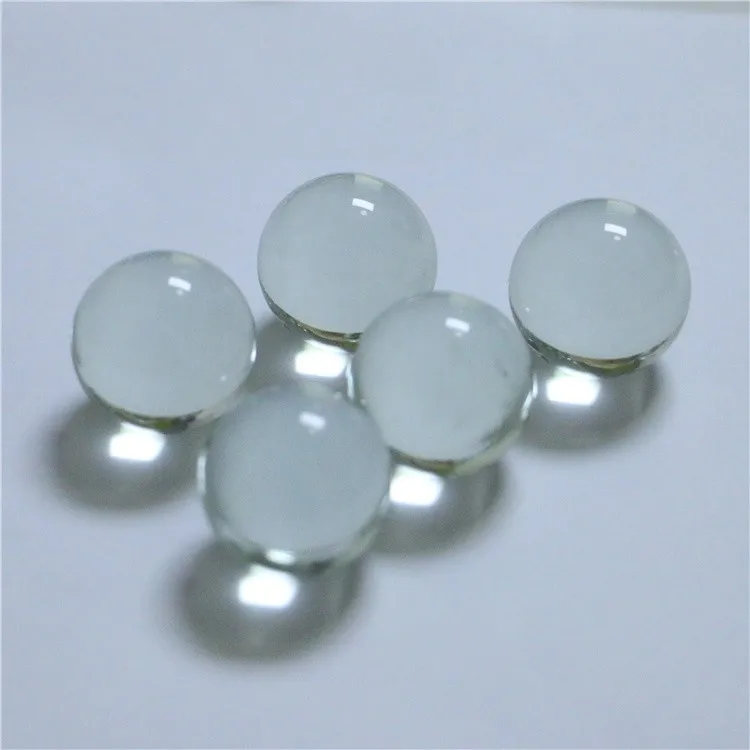

Glass ball

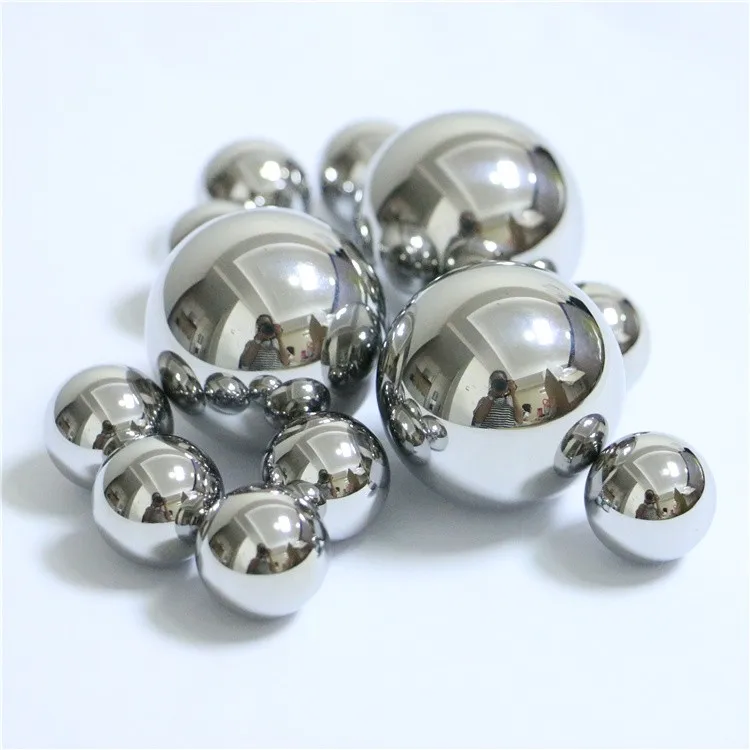

Stainless steel ball

Tungsten caibide ball

Ceramic ball

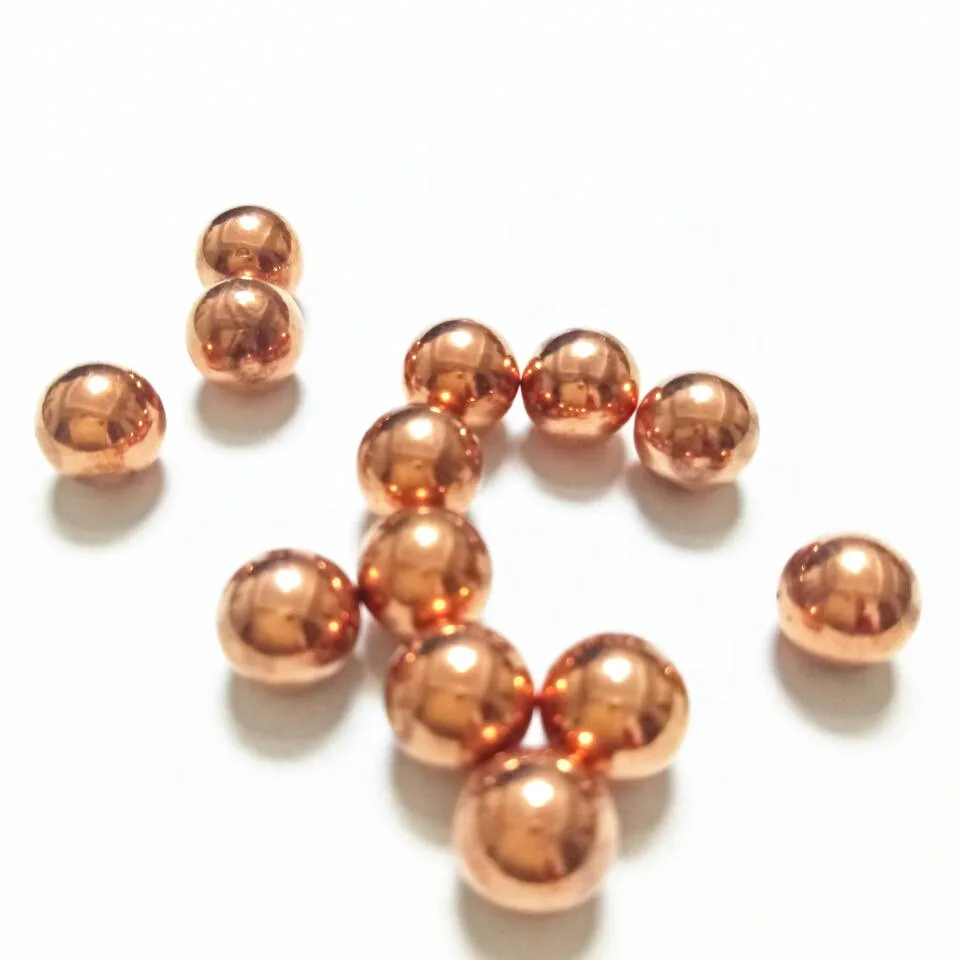

Brass ball/copper ball

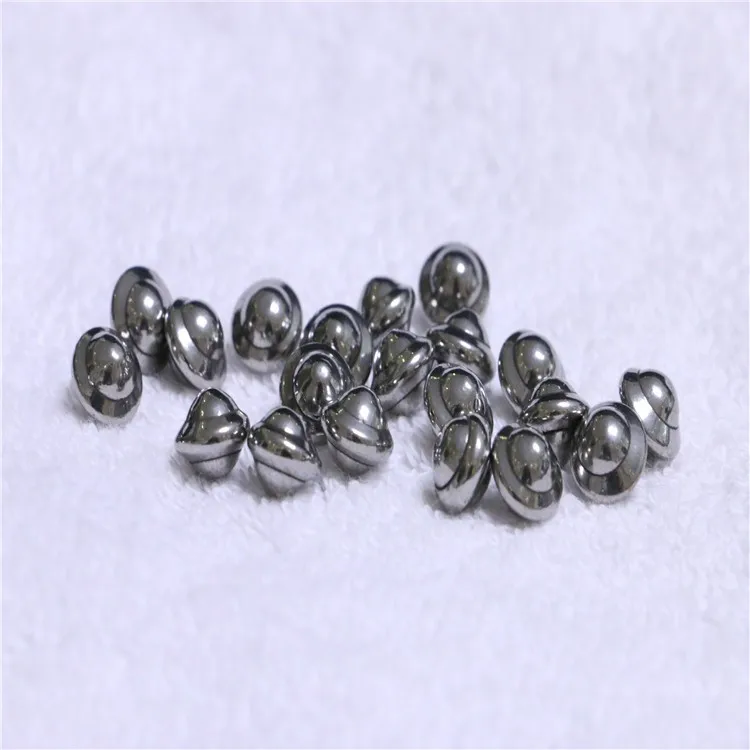

Flying Saucer
