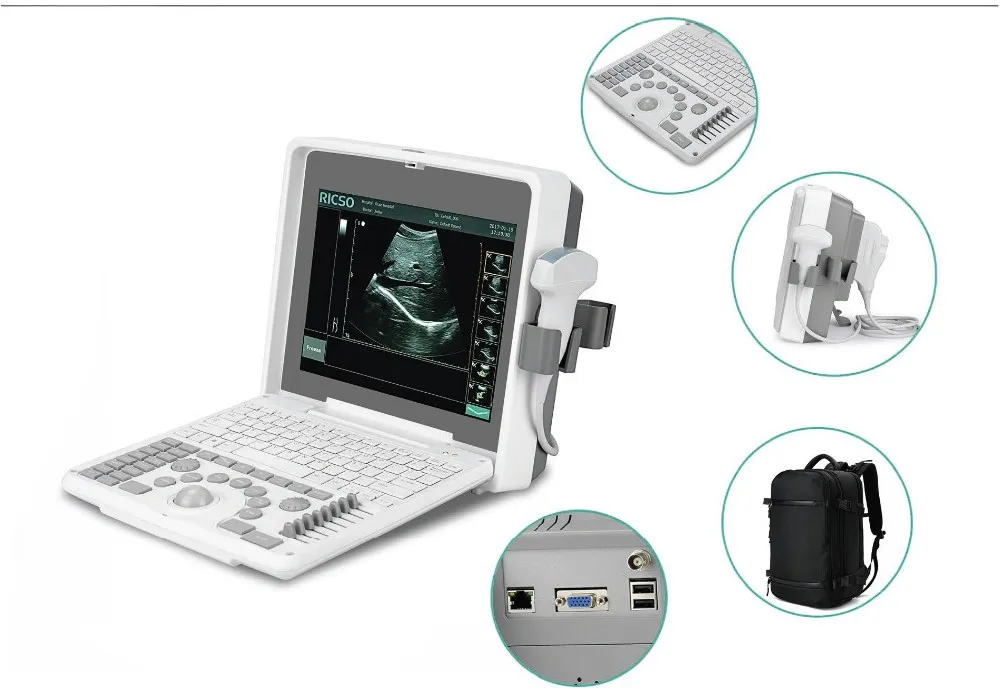

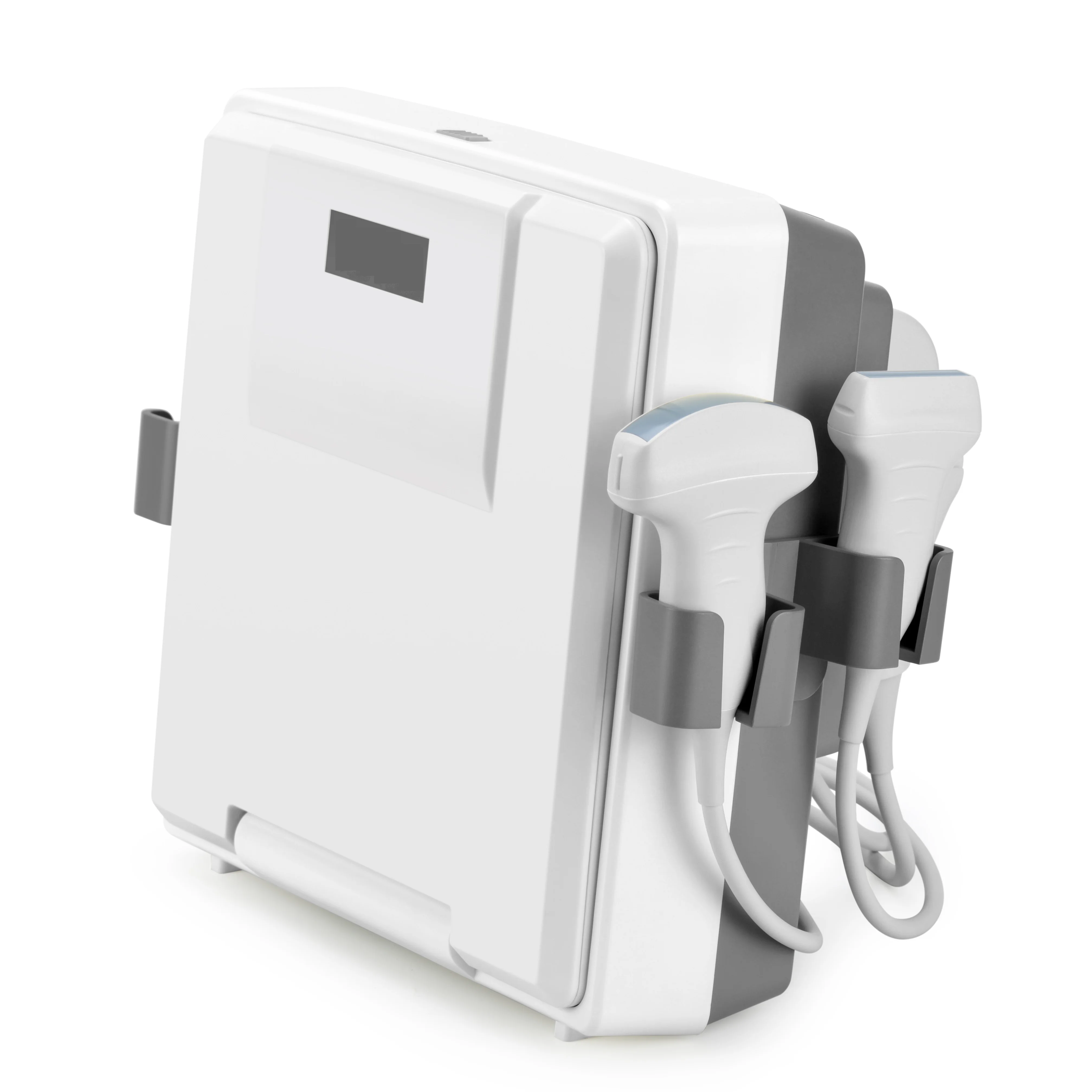

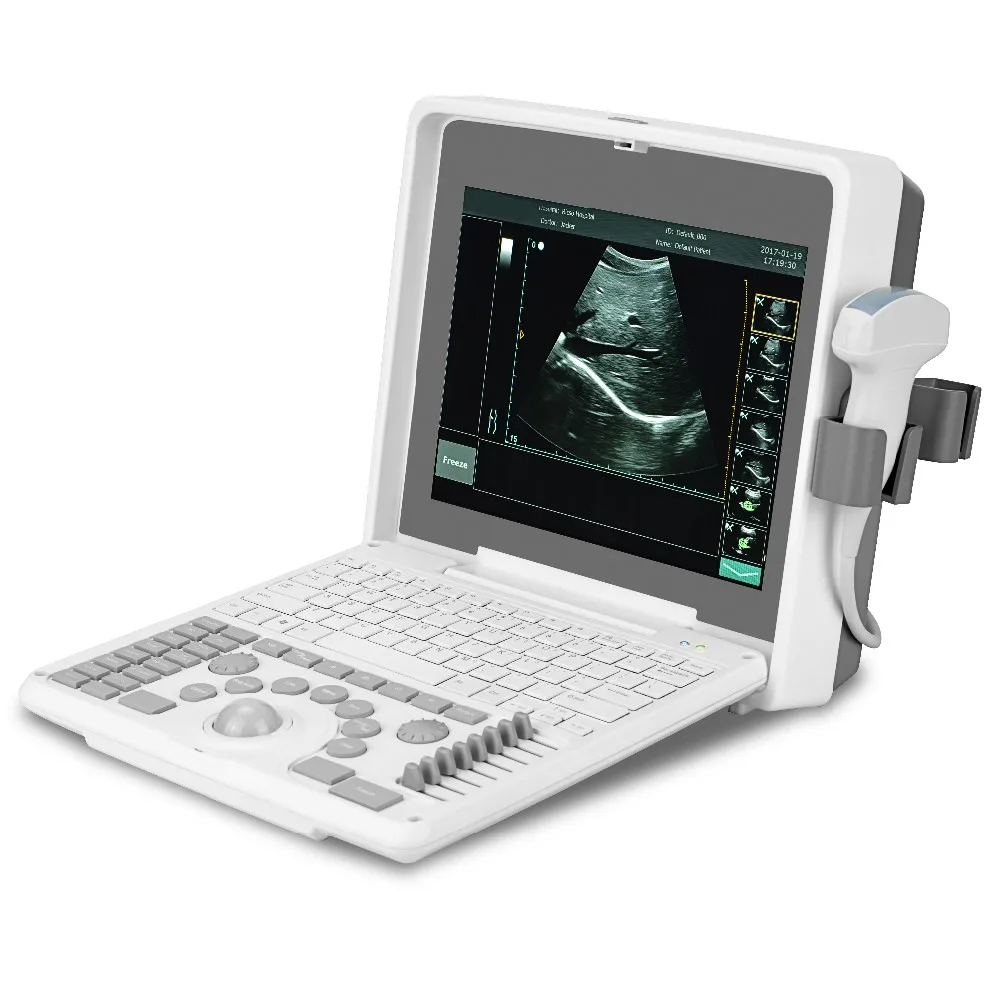

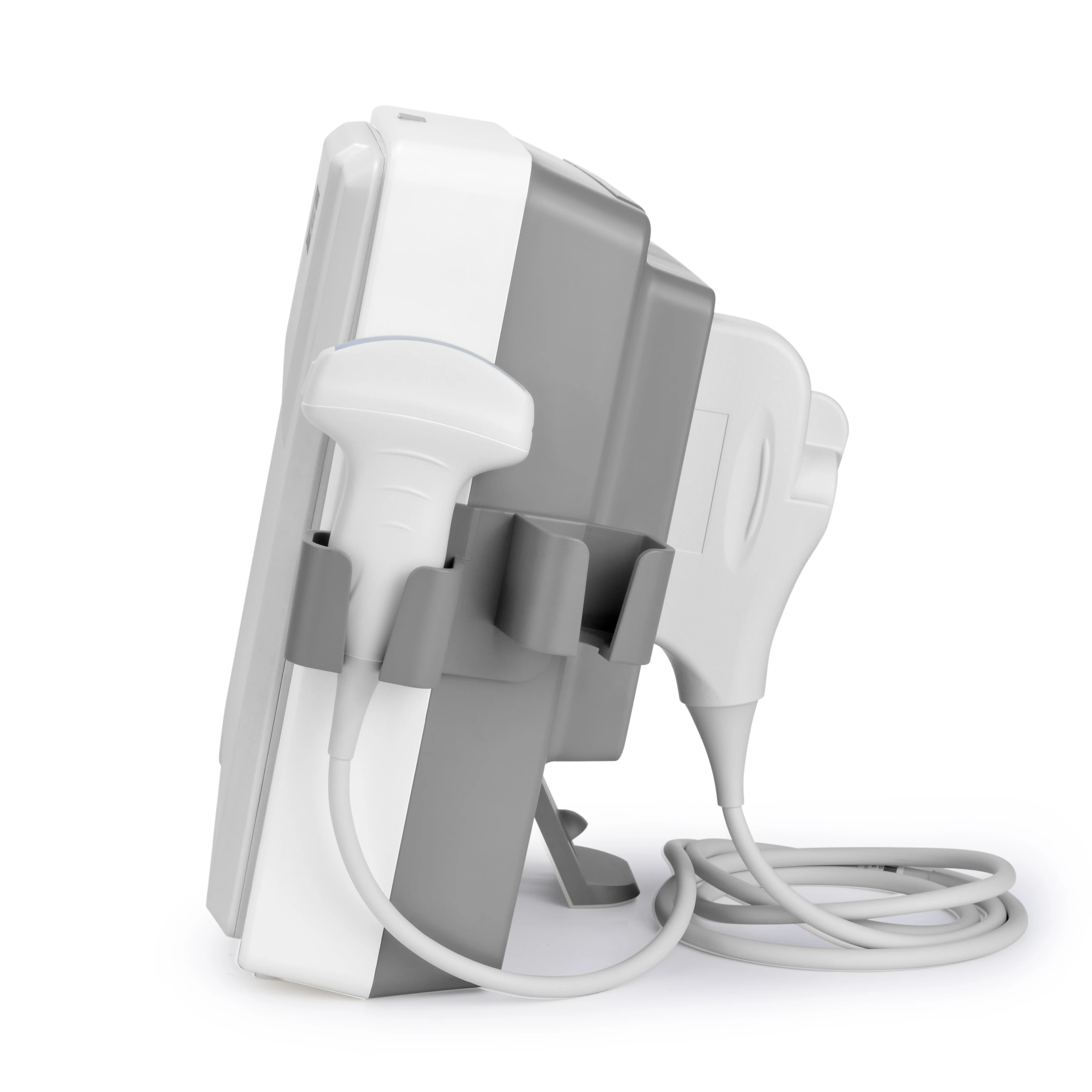

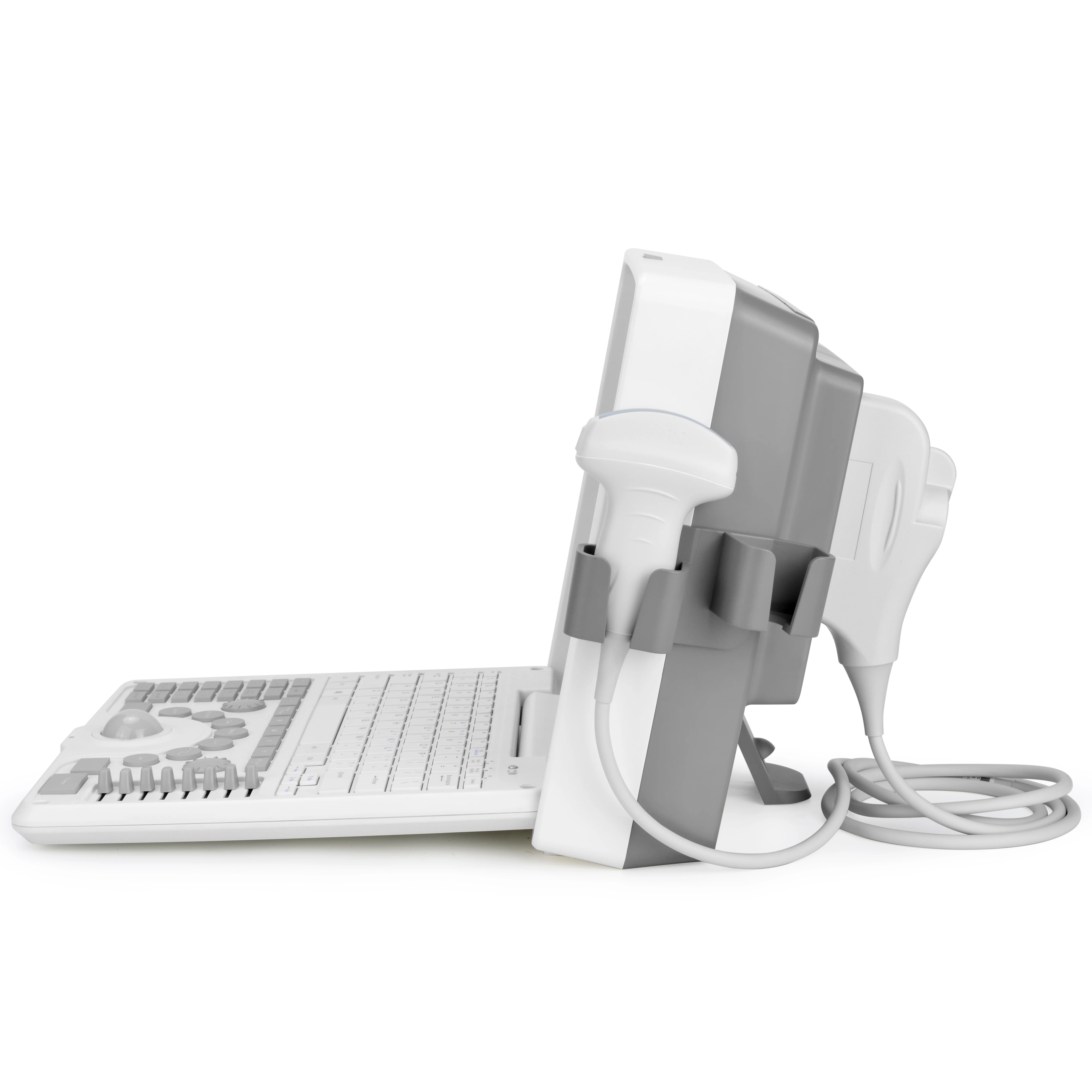

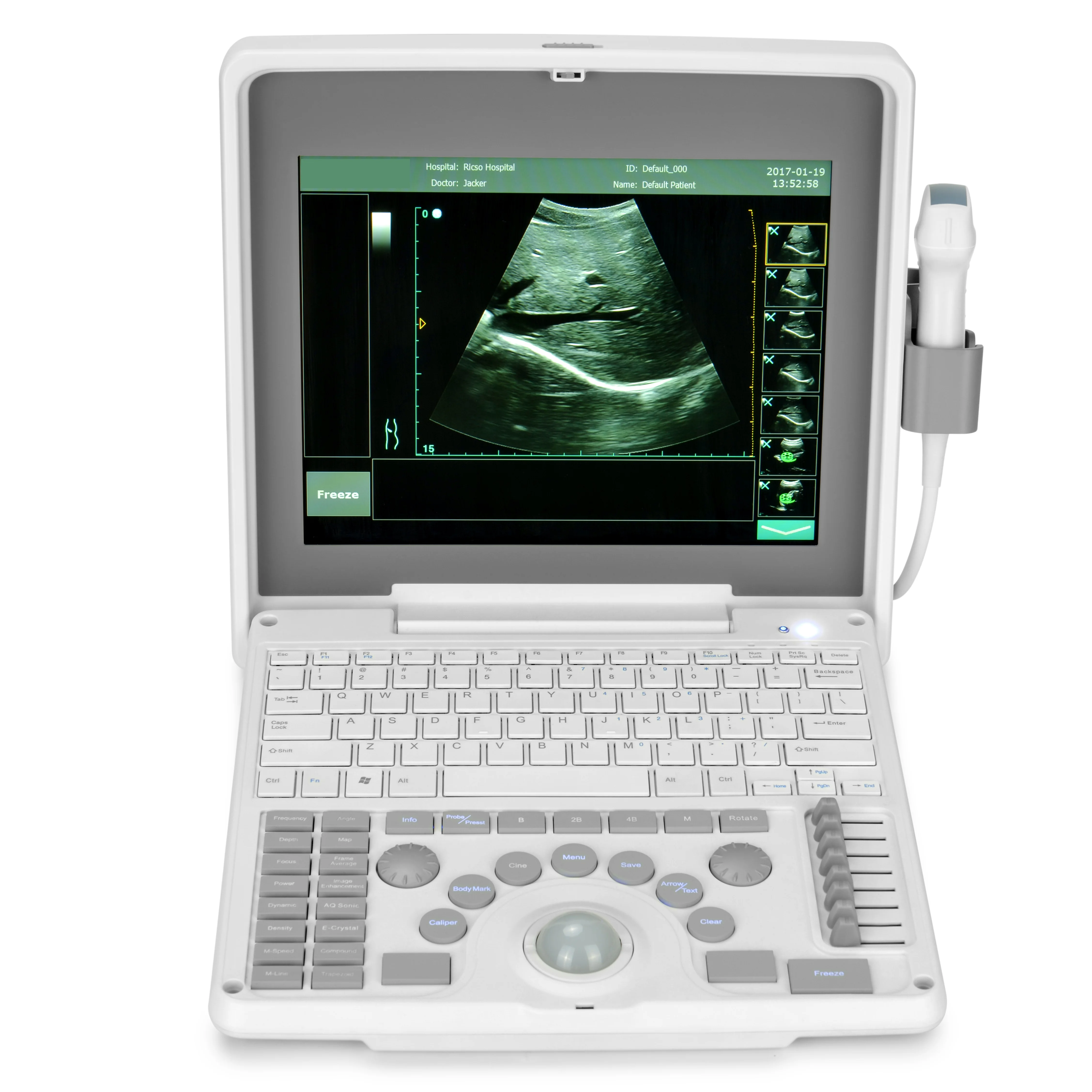

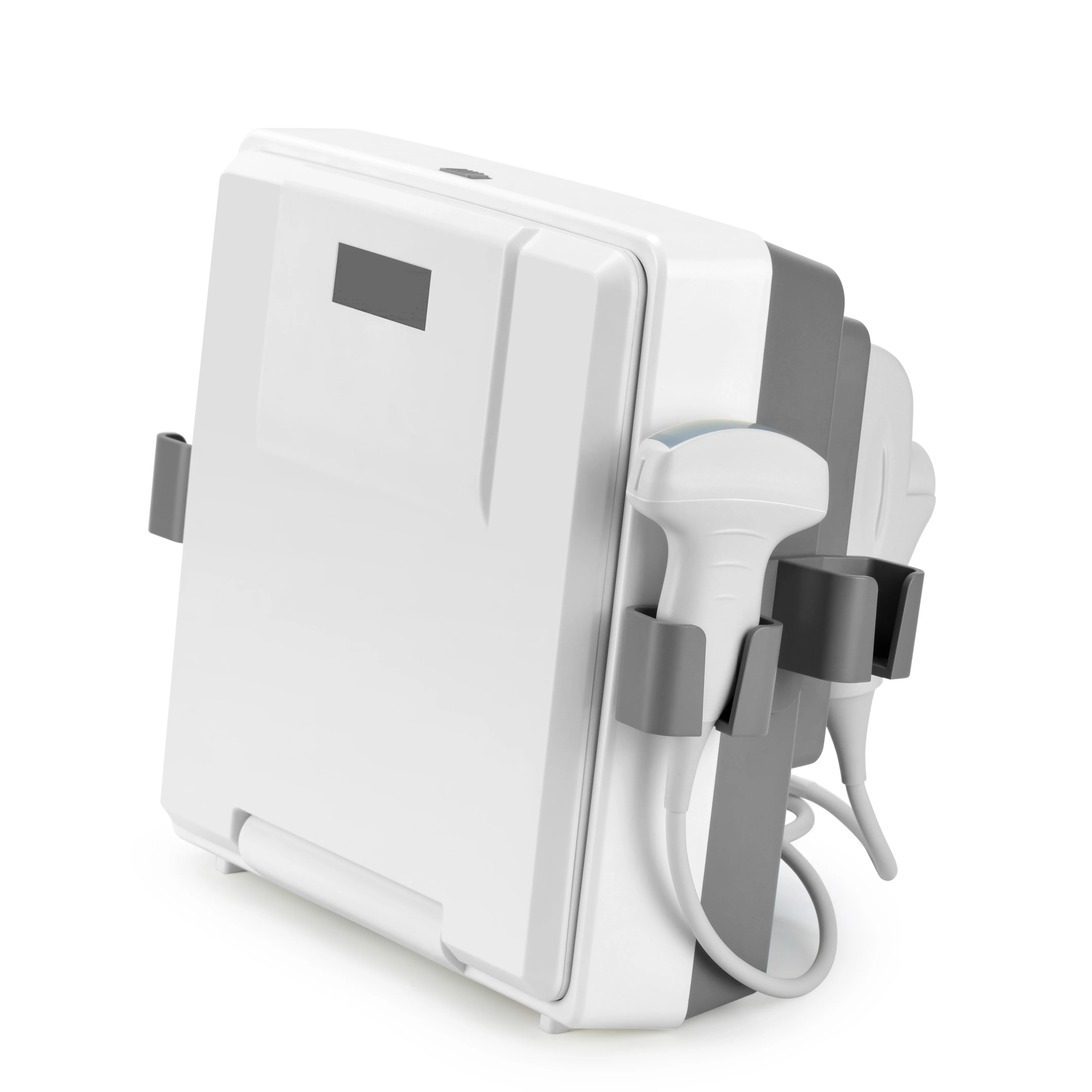

Portable Digital Laptop Ultrasound Imaging System

A3C is an advanced full-digital ultrasound technology system,with unique and perfect design.The system brings high definition images and at the same time greatly enhance the lightweight characterist ics. lt provides totally new operation and clinical diagnostic experience to sonogapher in daily working. A3C is equipped with multiple transducers ,comprehensive functions and high mobility,which makes it applicab le to different body scans and clinic application

Advance Technology

Select different options depending on the different characteristics of different tissues, speckle and noise reduction can improve the imaging quality

Ultra-wideband beamformer Trapezoid imaging,Compound imaging AIO(Automatic image optimization)

Application Abdomen ,OB&GYN ,Urology,Blood vessel ,Small Organ,Pediatric,Musculoskeletal ,Basic Cardiac

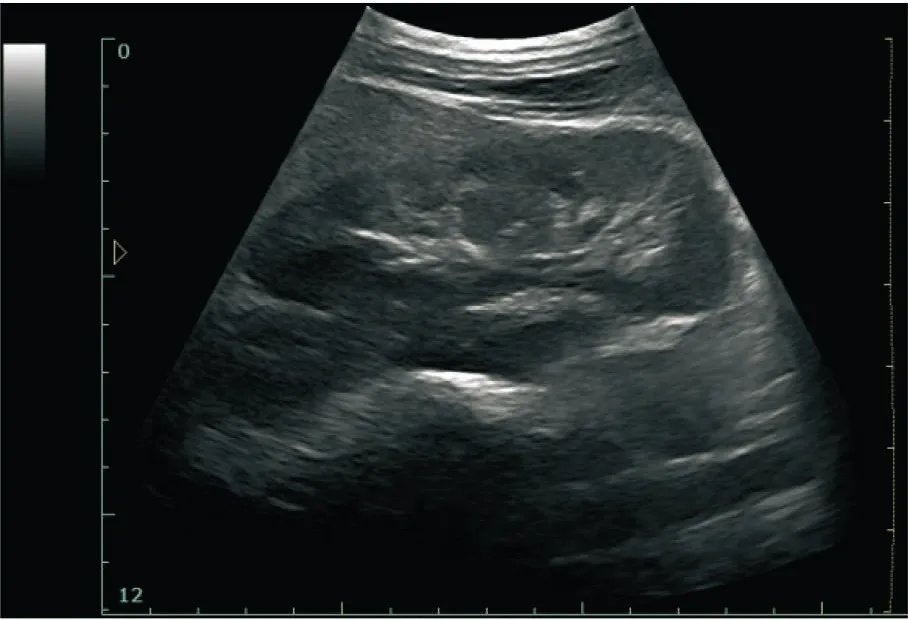

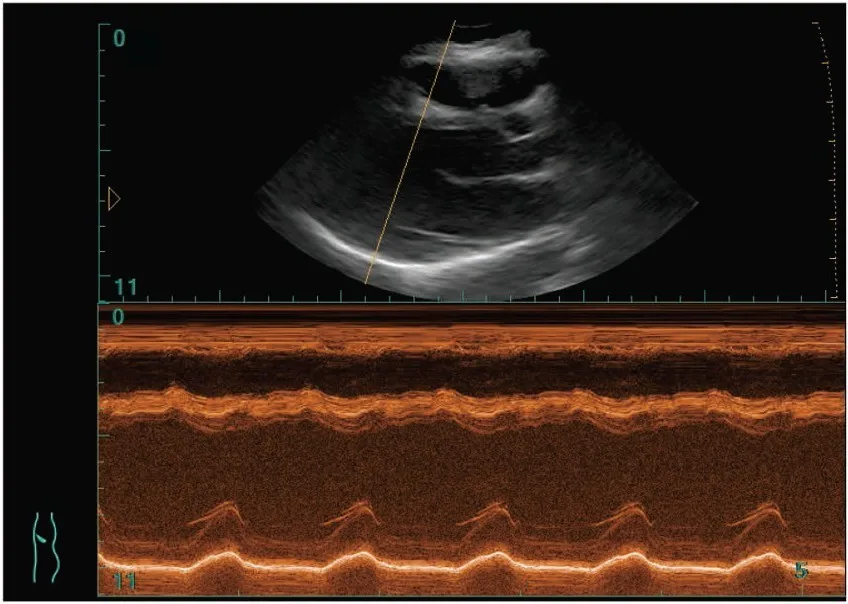

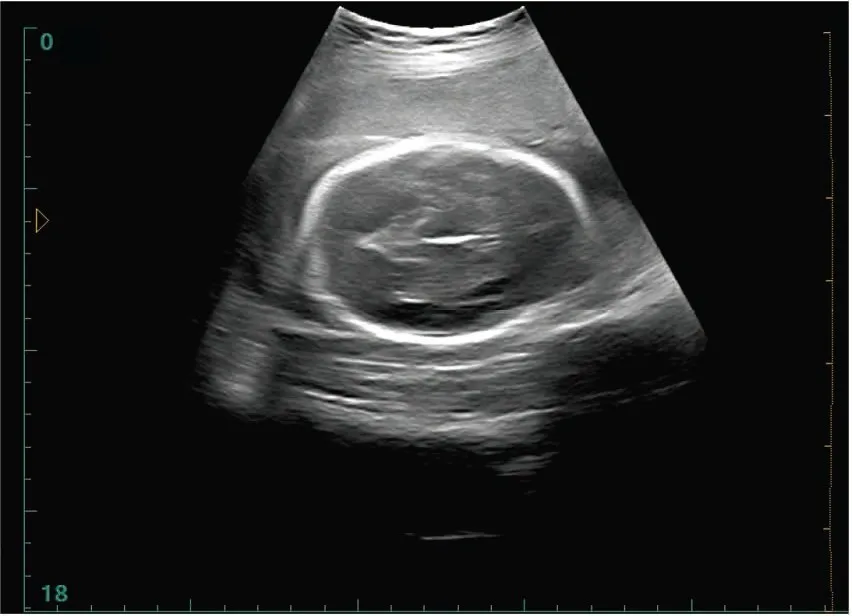

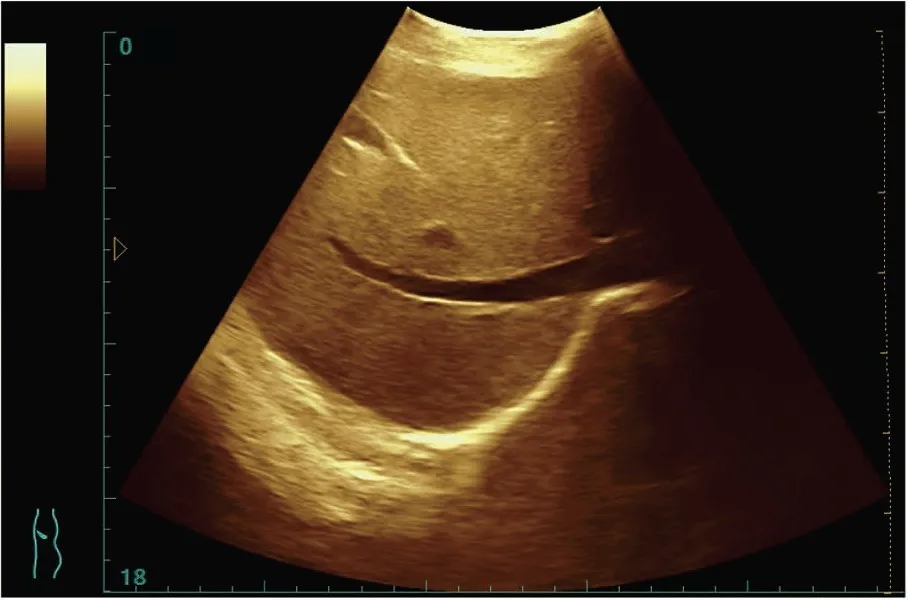

image processing

AQ sonic&E crystal,Dynamic,Frame average,Image inhancement,Trapezoid Image,Coumpound image

Specification

Power	• Litium battery for optional,Working hour: about 2.5 hours
Interface	• User-friendly control interface with backlit silicon keys to make the operations more convenient
Storage	• Built- in 32 GB SSD for more reliable data storage
Display	•  12-inch LED display
Smoother workflow	Software Package of Obstetric,Gynecology,Organ urinary,Cardiology,etc.

Transducer Model	Type	Frequency Range
3C60A	Convex Probe	2-5Mhz
3C20A	Micro-convex probe	2-4Mhz
3C20DA	Micro-convex probe	5-9Mhz
3C15A	Micro-convex probe	5-8Mhz
3C10A	Micro-convex probe	5-12Mhz
3L40A	Linear probe	6-15Mhz
3L25A	Linear probe	6-15Mhz
3EC10A	Transaginal Probe	5-10Mhz
