aluminum wide belt sanding machine for hot platen
- Category: >>>
- Supplier: Qingdao Lusen Machinery Co. Ltd.
Share on (62083503170):
Product Overview
Description
woodworking machine wood belt sanding machine
Product description
R-R STRUCTURE
Advantage features
1.The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and durability
2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient maintenance.
3. The belt tensioning cylinder is made of cast iron, which has large tension and good stability.
4. Conveyor belt adjustment cylinders are all 63*20 cylinders, with high strength and good stability.
5. The active roller head is always thickened and quenched to ensure the stability and robustness of the driving roller.
6. The thickness display table adopts photoelectric sensor head with high precision and good stability under various complicated environments.
Technical specifications
| Working width | 450,630,1000,1300,1600mm | First motor | 5.5, 11, 22, 37, 45kw |
| Min.Working length | 500mm | Second motor | 5.5, 7.5, 15, 22, 30kw |
| Working thickness | 3-110mm | Third motor | 11, 22kw |
| Feeding speed | 6-30m/min | Feeding motor | 0.75, 1.5, 4.5kw |
| First roller | 190, 240mm | Lifting motor | 0.37, 0.55kw |
| Second roller | 190, 240mm | Working air | 0.6Mpa |
| Third roller | 210mm | Volume of dust | 8000, 9600, 14000m³/h |
| Abrasive belt size | 470*1930, 650*1930, 1020*2020, 1320*2220mm | ||
| Overall dimensions | 1800*950*2000, 2700*2100*2100, 3000*2400*2100mm | ||
| Weight | 1100, 2200, 3200, 5300, 6500kg | ||

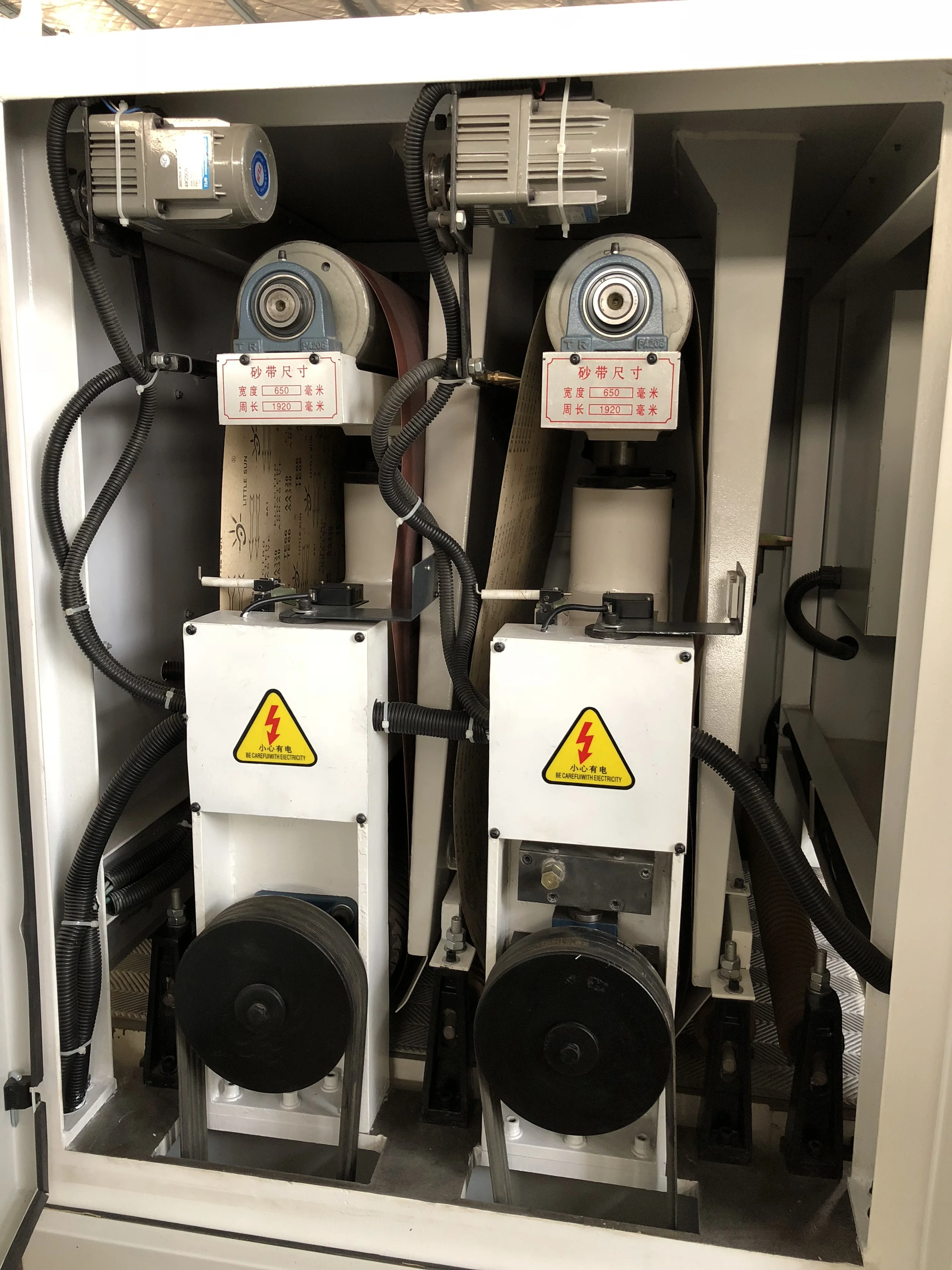

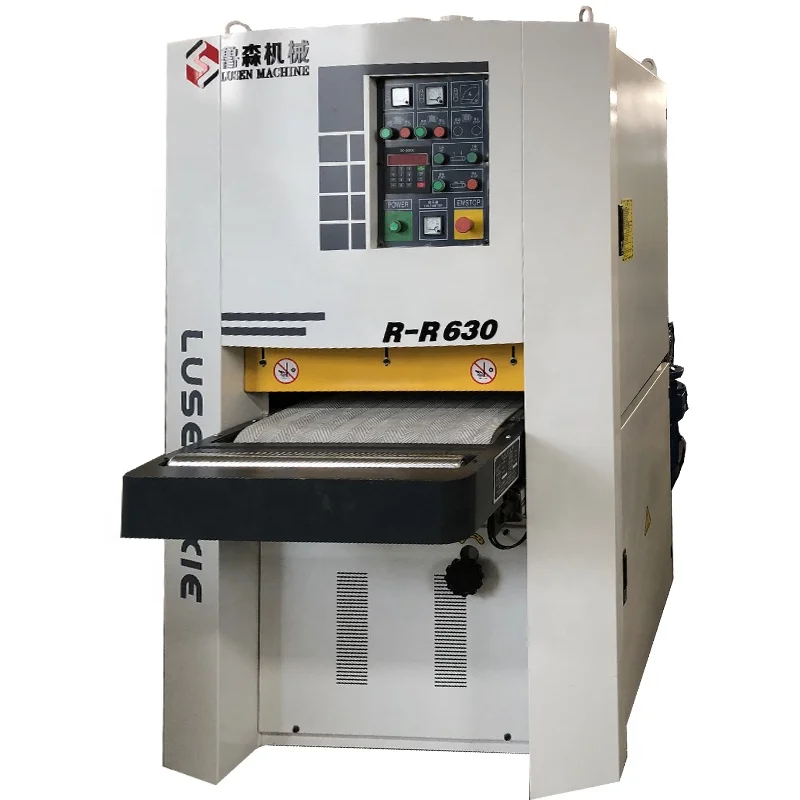

Machine picture
Details
My Factory
Packing &shipping
My company
1.Qingdao LUSEN is a professional Woodworking Machinery Manufacturer, Supplier and Exporter in Shandong.
2.ISO9001, CE certificated,nearby Qingdao port, this is how we keep superior quality and competitive offers for global valued customers.
3.Main product: sliding table saw,edge banding machine,hydraulic press machine,belt sanding machine etc.
4.Company cultural :Pursuing Quality, Creating Value for Every Customers
Our Services
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients’ special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging.
FAQ
Q1: Are you a manufacturer?
A1:yes. We have 20 years manufacturer and export exprience.
Q2.About the MOQ
A2.1 set, and we are OEM,
I will give you the competitive price better than market.
Q3.May I buy a sample?
A3. Of course ,sample order is welcome.
Q4.How can I place a order?
A4.Just give me your nice inquiry,I will do my best to assist you.
Q5. If I want cheaper quality, can you produce?
A5.Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
Q6. If I order big quantity, what's the good price?
A6.Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
