low cost phychips pr9200 epc gen2 uhf rfid reader chip module

Product Description

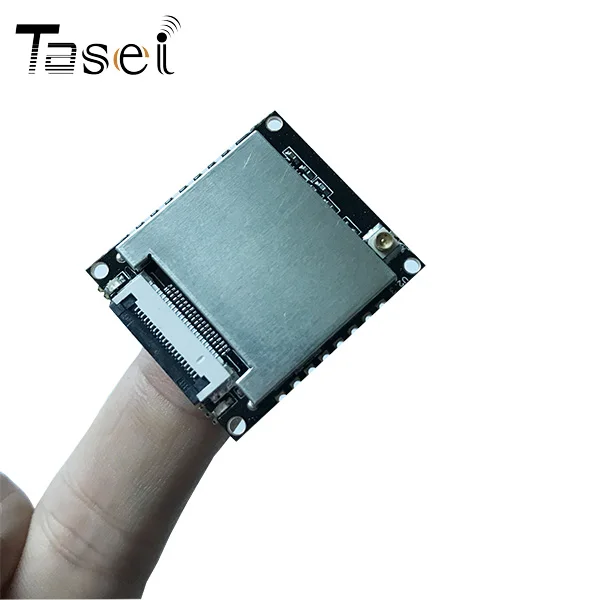

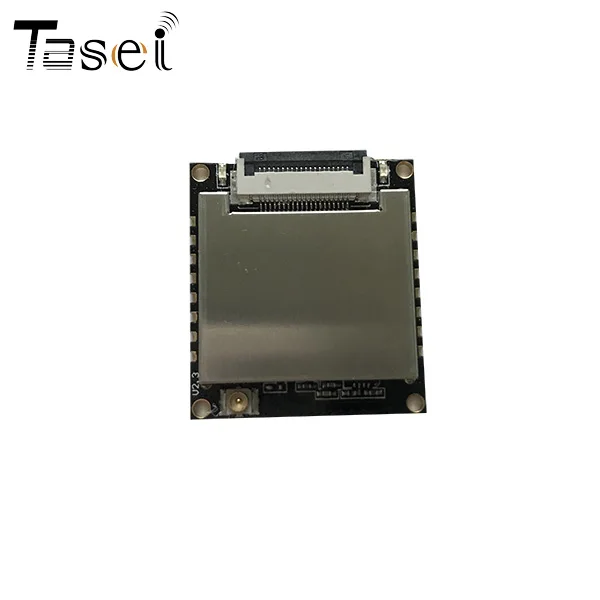

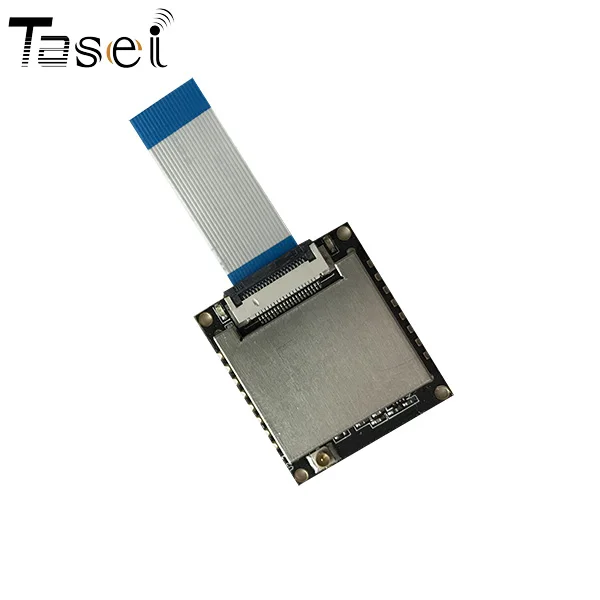

TS-310M is a high performance based on PHY Chips PR9200

*PHY Chips PR9200 inside with outstanding performance and cost-effective.

*2Read distance with 3m above. (Tested with Impinj E41b inlay and 2dbi Antenna)

*Stable performance with less affected by rising temperature.

*Super low power consumption; no additional cooling devices required.

*Good consistency in terms of RF parameters.

*Simple peripheral circuit design(refer to 4-1: circuit design reference)

*Full compatible with different communication interfaces of INDY R2000 series products.

Electrical Characteristics
Operating Temp	-20°C to 70°C
Storage Temp	-20°C to 85°C
Humidity	95%(+25°C)
Parameter
Protocol	ISO 18000-6C(EPC gen2) ISO 18000-6B
Frequency Range	902MHz~928MHz or 865MHz~868MHz or customize others frequency according to your needs
Working Voltage	DC 3.5V – 5 V
Standby current	<80mA (EN high level)
Sleep Current	<100uA (EN low level)
Operating Current	180mA @ 3.5V (26 dBm Output,25°C ). 110mA @ 3.5V (18 dBm Output,25°C ).
Starting Time	<80mS
Output Power	0-26dbm
Output Power Precision	+/- 1dB
Output Power Flatness	+/- 0.2dB
RF connector	I-PEX
Receive Sensitivity	< -70dBm
Peak Inventory Speed	>50 tags/sec
Tag Buffer Capacity	200 tags @ 96 bit EPC
Tag RSSI	Supported
Host Communication	TTL Uart port Wiegand 26 Wiegand 34
GPIO	2 input 2 output (3.3V TTL Level)
Max Baud Rate	115200 bps (Default and Recommended) 38400bps
Heat Dissipation	Air cooling (Don’t need external Heatsink).

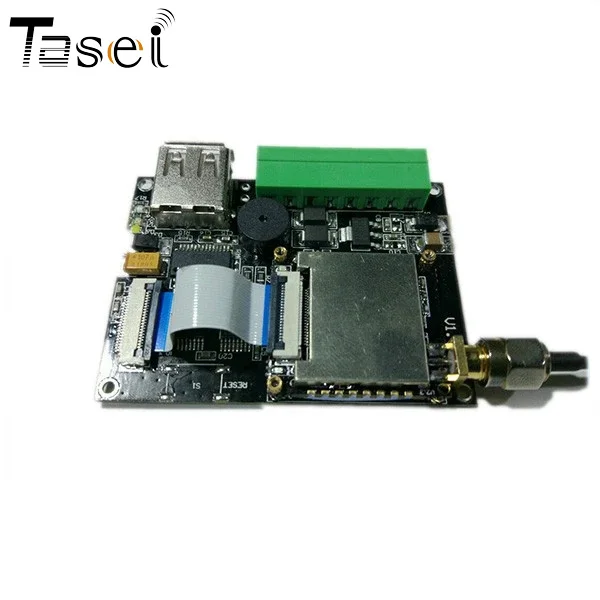

Product details

Interface defination:
