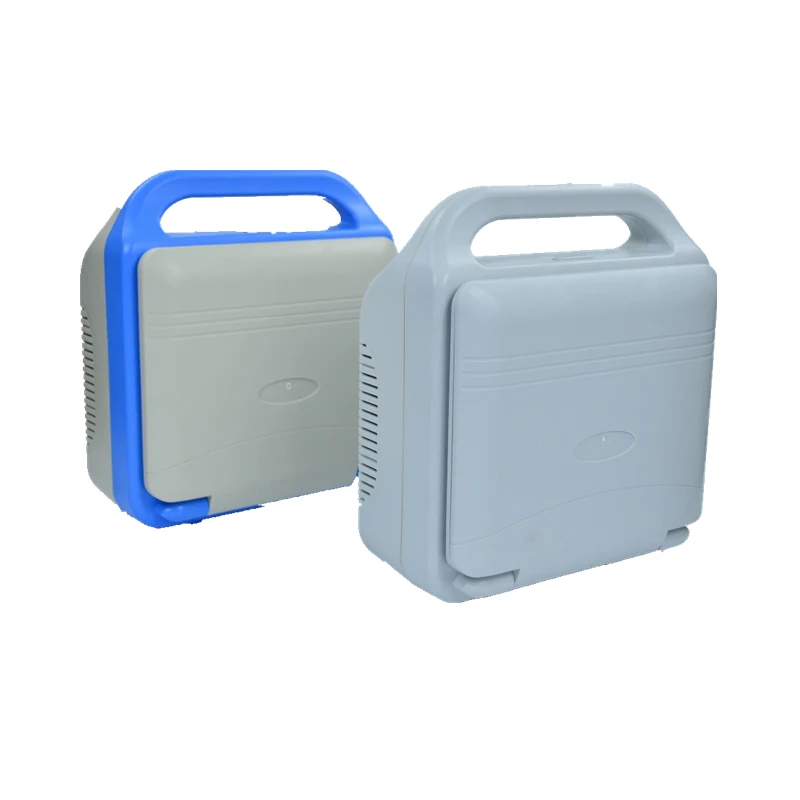

Black /white laptop ultrasound scanner linear probe for Clincl

Product Overview

Description

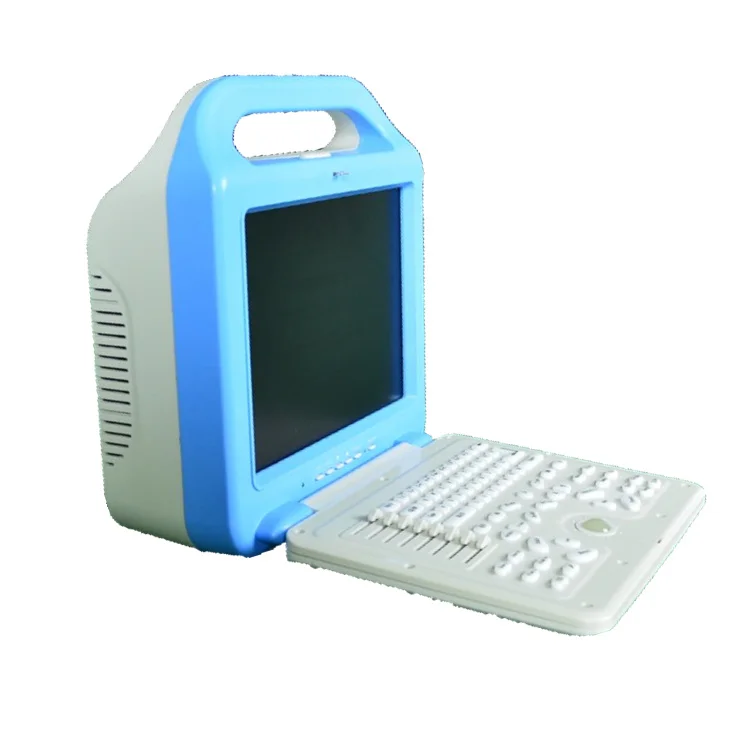

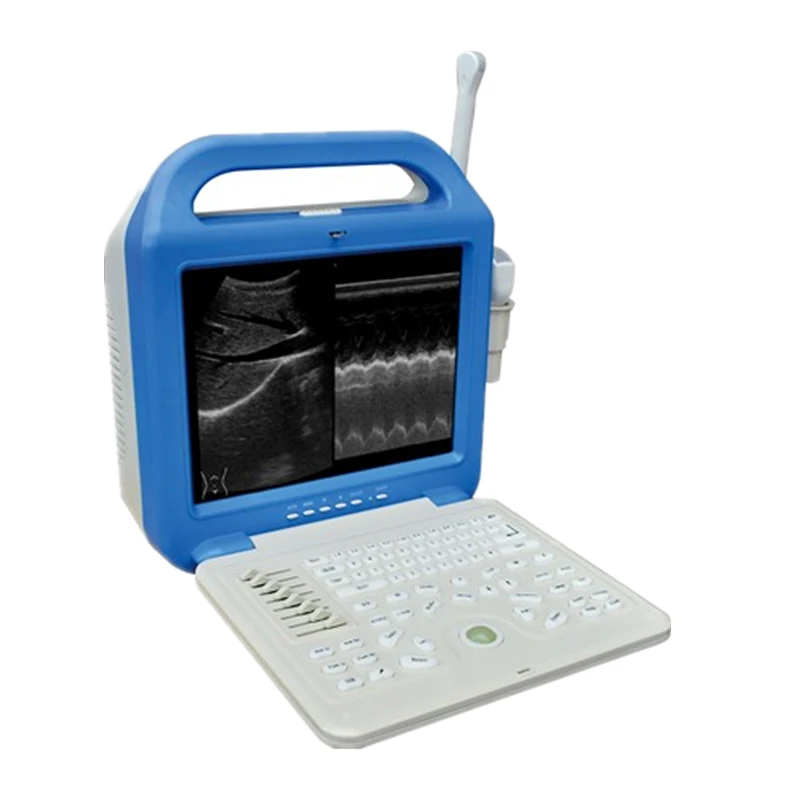

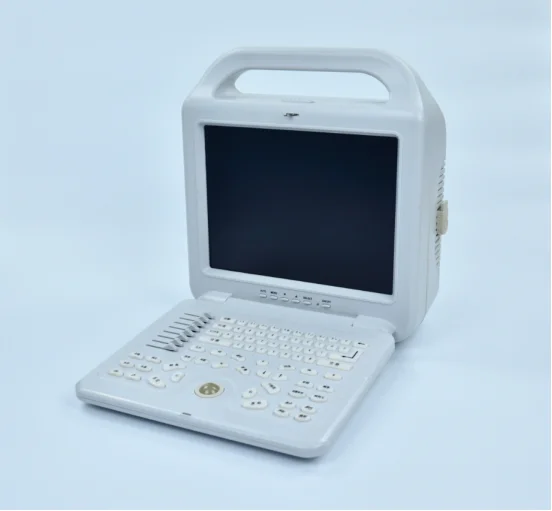

2D B/W Notebook Ultrasound Scanner



YJ-U100 is a full digital B/W HCU system with 6kg weight and it is integrated with a lot of ergonomic designs to make it easy-to-use and excellent for diagnosis. Besides this special design, the biggest strength of YJ-U100 is the premium image quality which is comparable to hi-end cart-based B/W ultrasound systems. This reliable and easy-to-use ultrasound scanner can be used in abdominal, OB/GYN, radiology, small parts, and the emerging applications, such as ICU, emergency, anesthesia, MSK, and so on.





Monitor	12 inch LCD
Scanning Method	Convex, Micro-convex, Linear, Trans-vaginal
Frequency for Convex	2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0
Display Mode	B, B+B, B+M, M, 4B
Gray Scale	256 levels
Power supply	AC 110V-240V, 50HZ/60HZ
Operation interface:	English/Chinese switchable

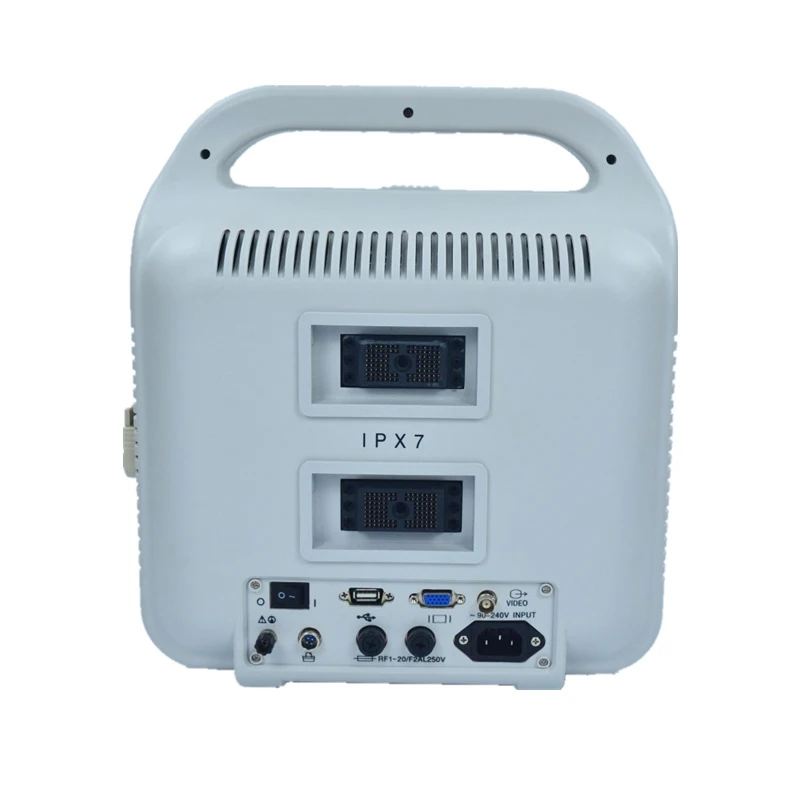

Probe connector	2(USB/VGA/ ports; Video printer connector; )
Port	USB 2.0, VGA, Video connector
USB Function of image store	More than Sixteen thousand images
Scanning Depth	240mm
Detecting depth	>=190mm
Image magnification	Image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze
Image conversion	up/down, left/right, black/white
Max dynamic range	>=100db
Gamma	4 gray scale γ transform function
The geometric location accuracy	Vertical<=5%; lateral<=5%; blind spot: <=4mm; Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm   Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm
Printer function	Can connect laser printer and Video printer directly
Comment	Date, Name, Sex, Age, Hospital, Annotation
Zooming	*1.0, *1.2, *1.5, *2.0



Scanner YJ-U100 B

1.Powerful measurement &calculation software packages

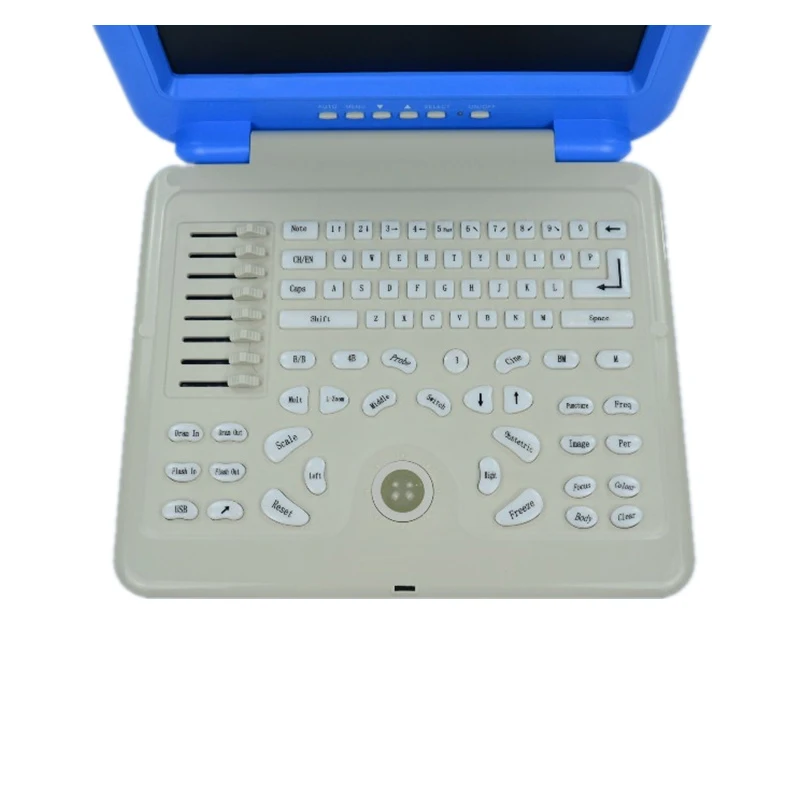

2.8-Segment TGC ABD Trackball adjustment

3.12 inch LCD monitor

4.Permanent function of image store: 32 images Back-lit keyboard

5.OB measurements: BPD, GS, CRL, FL, AC, HC, etc 2 probe connectors

6.Probe automatic identification



FAQ

Q:Can we visit your country ?
A:Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

Q:How long is the validity of quotation?
A:Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .



Q:Do you have the CE certificate ?
A:Yes, most of our products have the CE certificate.



Q: What is your shipping & delivery time?
A:Once we have confirmation of your order & payment, we normally ship within 5 working days.

Q: What product guarantees do you offer?
A:All our products are Alibaba Trade Assured which means that your order will be fully protected. Hence if we fail meet product quality obligations or fail to ship on time, Alibaba will refund your payment.

Q: Which certifications do you have?
A:Most of our products are CE, ISO and RoHS certified.

Q:Can I place my company logo on your product?
A:Yes, baring a few exceptions. Please check with our sales team before applying.
