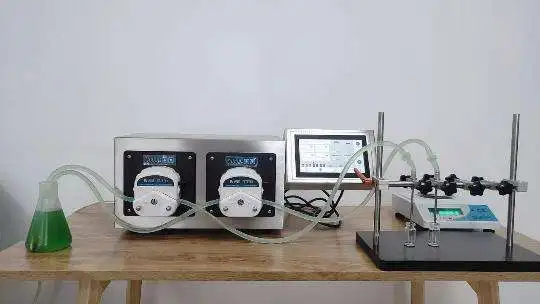

4 канала насадки косметический фармацевтическое химическое соус машины для наполнения Дозирующий перистальтический насос дозировочная машина
- Category: Tools & Hardware >>>
- Supplier: Baoding Chuangrui Precision Pump Co. Ltd.
Share on (62084079040):
Product Overview
Description

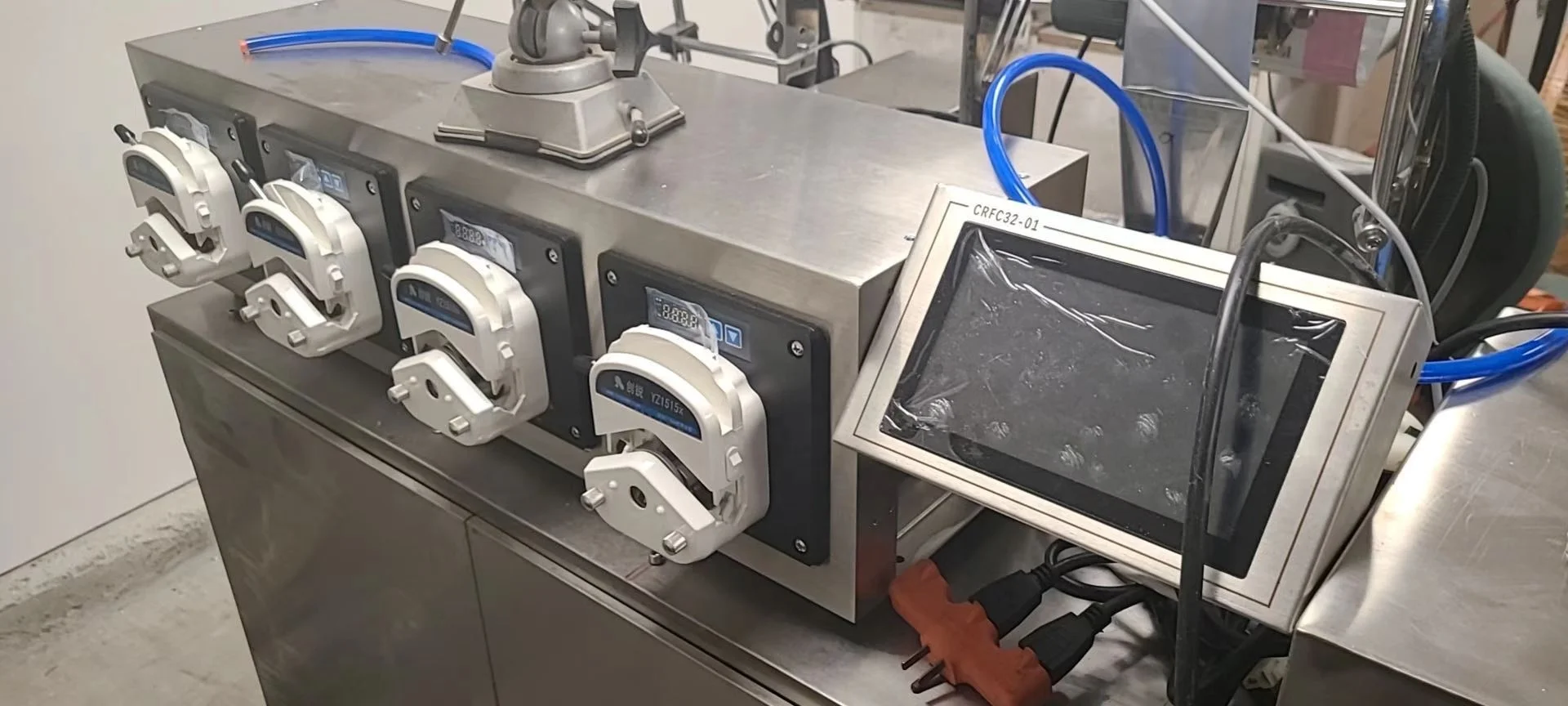

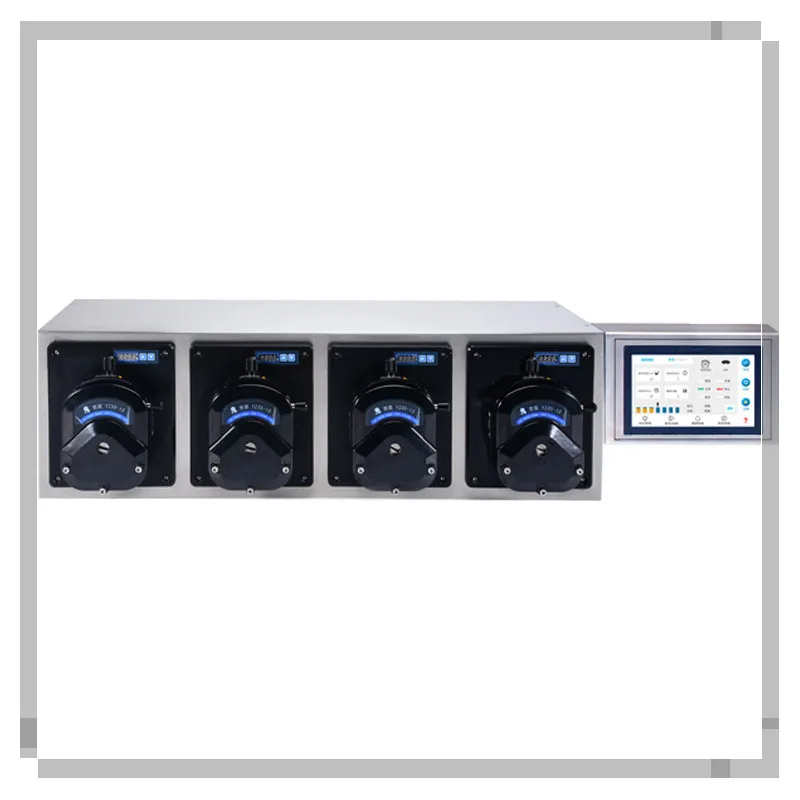

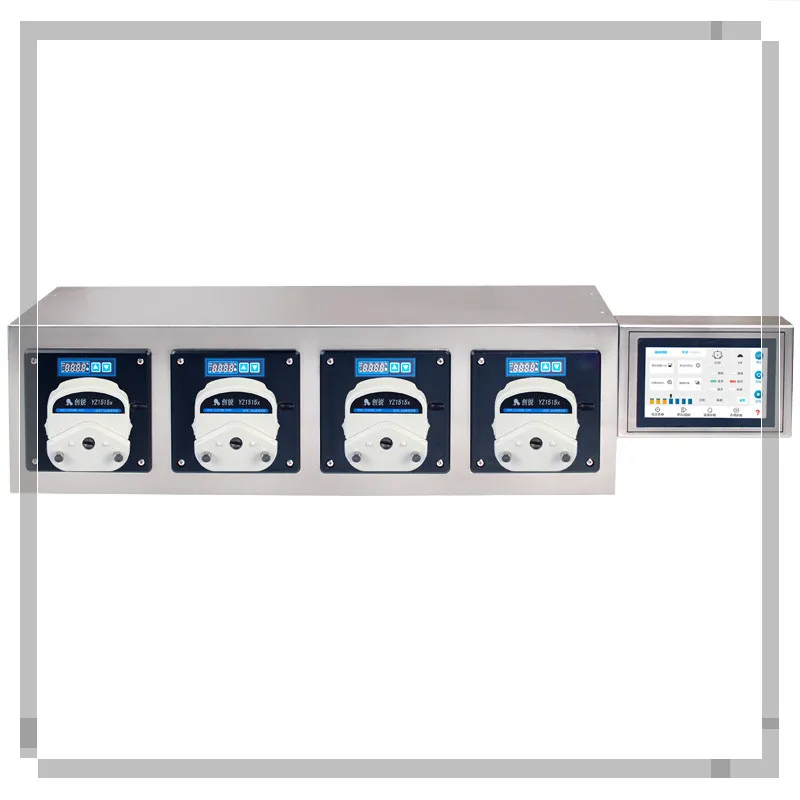

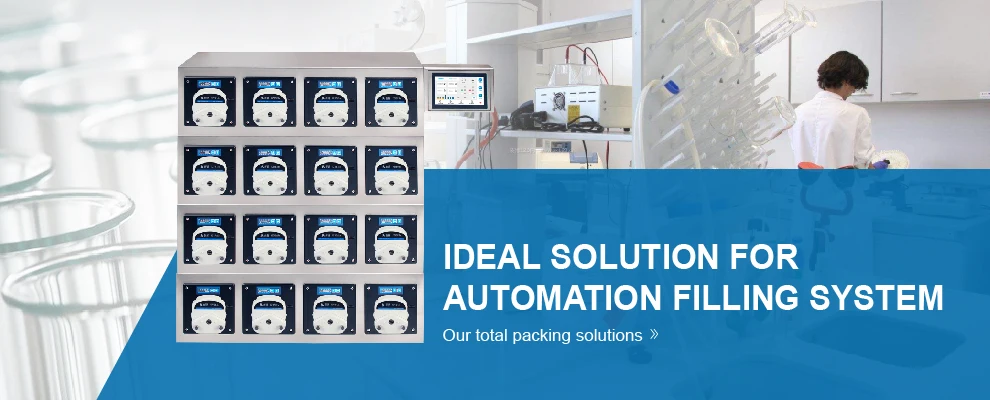

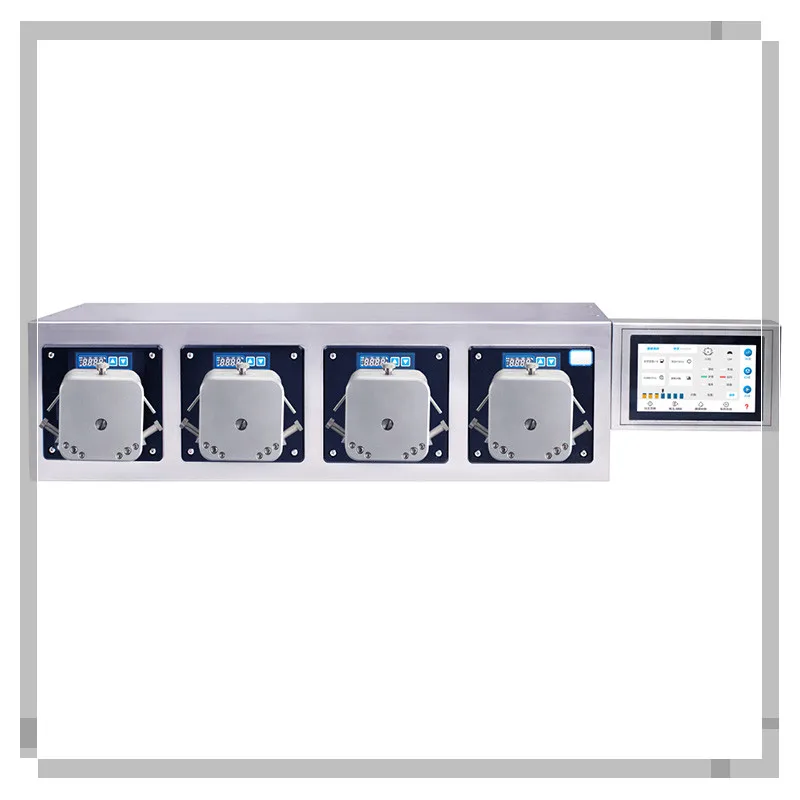

Multi-channel peristaltic pump filling system
UTF01 is a filling peristaltic pump independently developed by Chuangrui Precision Pump. It consists of an intelligent filling system and the main controller. The standard drive unit is 4 channels,which can be expanded up to 32 channels. UTF01/YZ1515x can be adapted to 7 different tubes, which can fully meet customer application needs and provide more flow selection.
Model | UTF01/YZ1515x |
Channel | 4*1/ 4*2 /4*3 / 4*4 /4*5 /4*6 /4*7/ 4*8 (standard) Noted: For 2*N 3*N 5*N 6*N . We accept customization, Production time is about 7-15 days. |
Filling capacity | 1-50 ml per time per channel |
Remote signal | Start/stop(default) RS485 (optional) |
Drive Model : UTF01 | Pump Head Model : YZ1515x | |
Channel Number :4 channels is standard , Other options pls contact us | ||
Speed range : 0.1-600rpm | Flow range : 0.007-2280ml/min | |
Filling volume : 0.1ml-9999.99ml | Filling time : 0.1-9999.9s | |
Interval time : 0.5-9999.9s | Copy number :0-9999 times "0" means an infinite loop | |
Such back speed : 0-300rpm | Suck back angle : 0-1000° | |
Data Storage : 20 groups | Display : LCD+4-LED | |

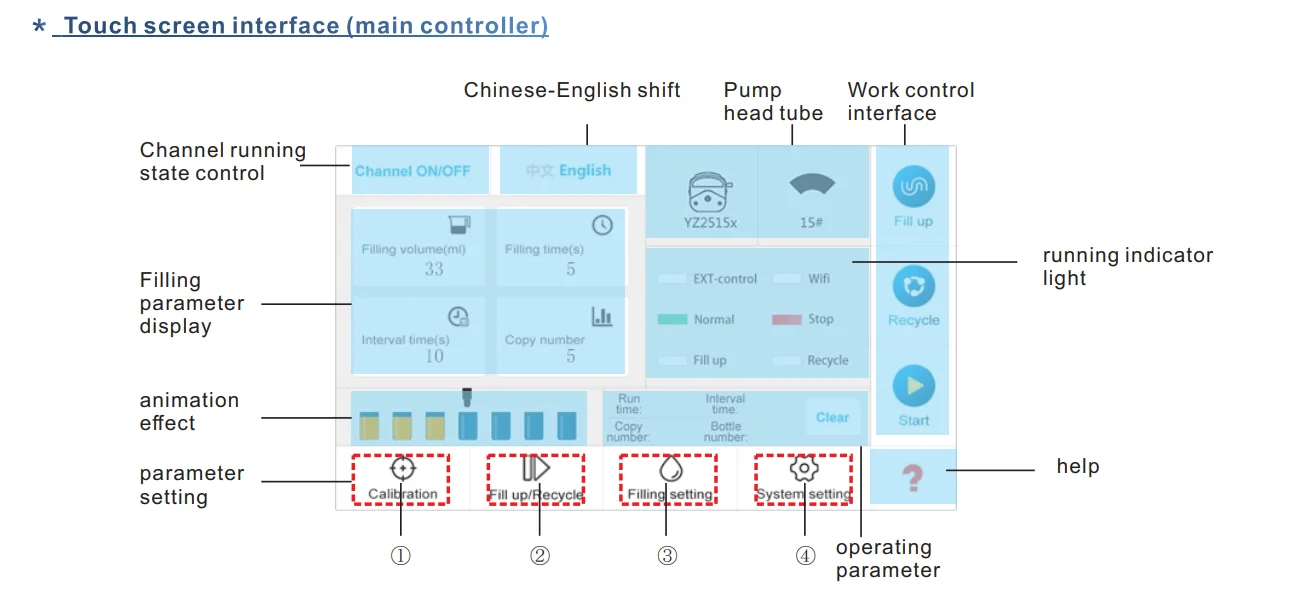

Setting method : Touch screen + Keypad + Remote Control | ||
Communication interface: Support RS485 communication protocol | ||
Start/Stop Signal Input : a pair of dry contact input | ||
No bottle No Filling Signal Input : 4 pairs of dry contact input (for 4channels) | ||
Work environment :0℃-40℃ | Casing IP rate : IP31 | |
Kindly reminder:
All the data in the Above chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
Model :UTF02/KZ25

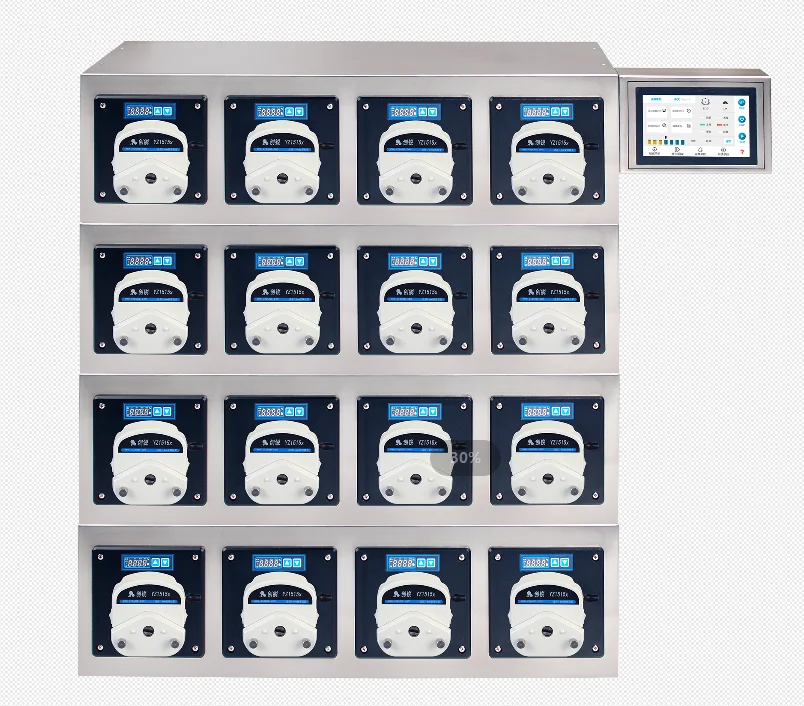

Channel No. : 10

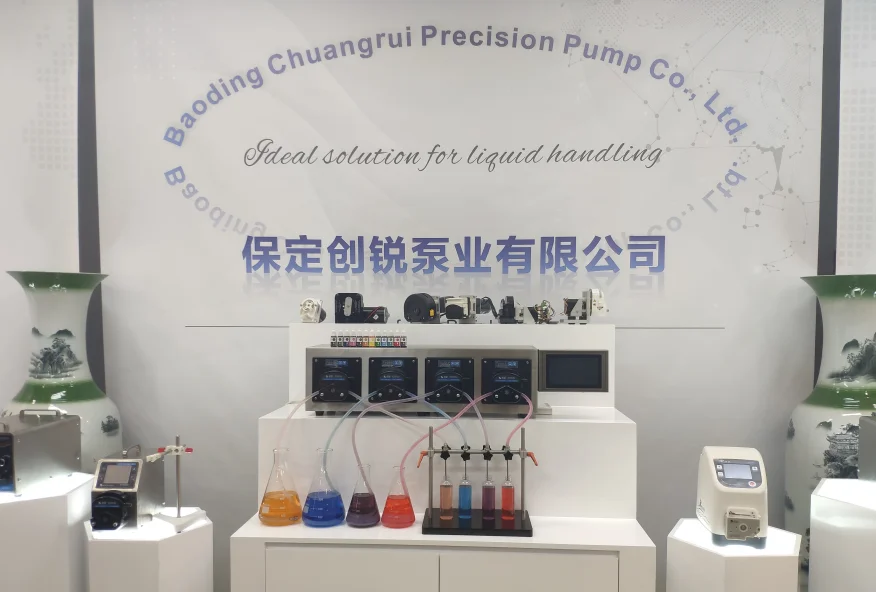

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

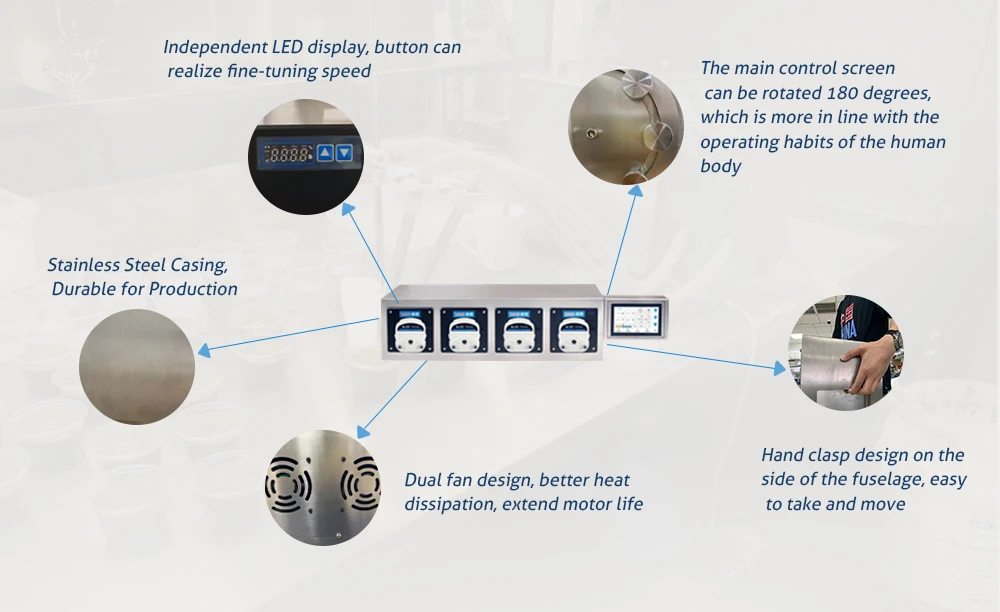

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
