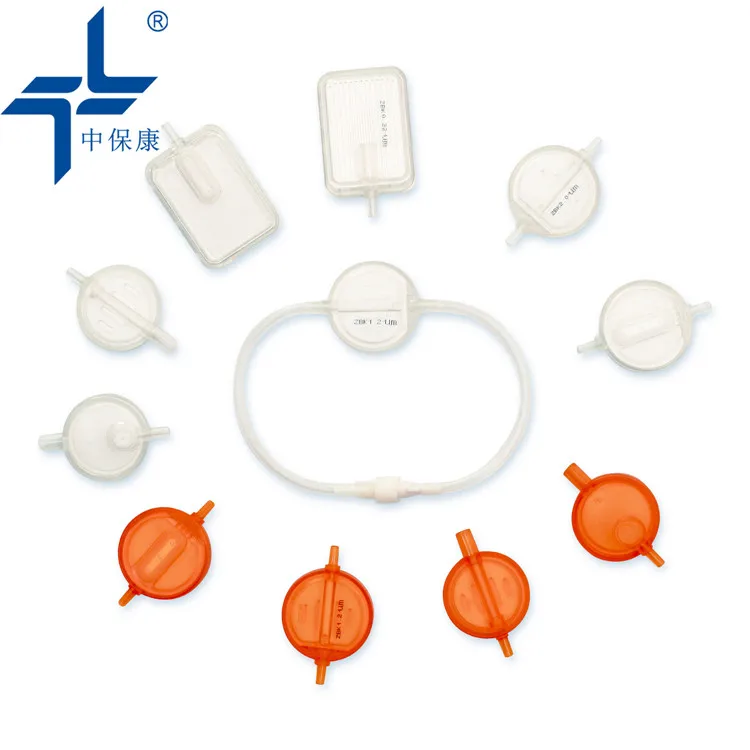

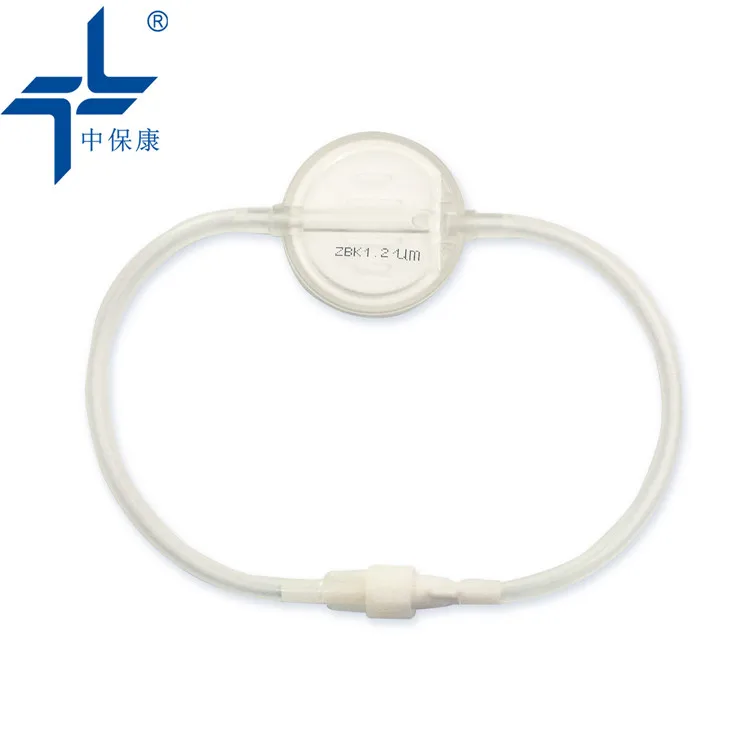

Medical iv set filter is assembled with infusion apparatus into precise filtering infusion sets. It is used to filter the insoluble particles in liquid medicine to avoid harms to the body from particles.
Main Features
1)Fast flow rate and there is no blocking in the process of infusion. 2) High Biological compatible, low drug adsorption. 3) Autimatically exhaust. The exhausting speed is fast and there is no bubbles remaining. 4) The filtration rate is more than 99%. 5) No foreign matters fall off and avoid secondary pollution. 6) Transmittance for lightproof filter≦35%.
Packing & Delivery
Package
Size
440*390*400mm
Weigt
15 kg
Pacakge Details
3000 pcs/carton
Parameter
Type
Size(mm)
Shell
Material
Filtration Rate
Transmiitance for lightproof filter
Pore
Size
Inlet/
Outlet tube
Effective filter Area
Weight

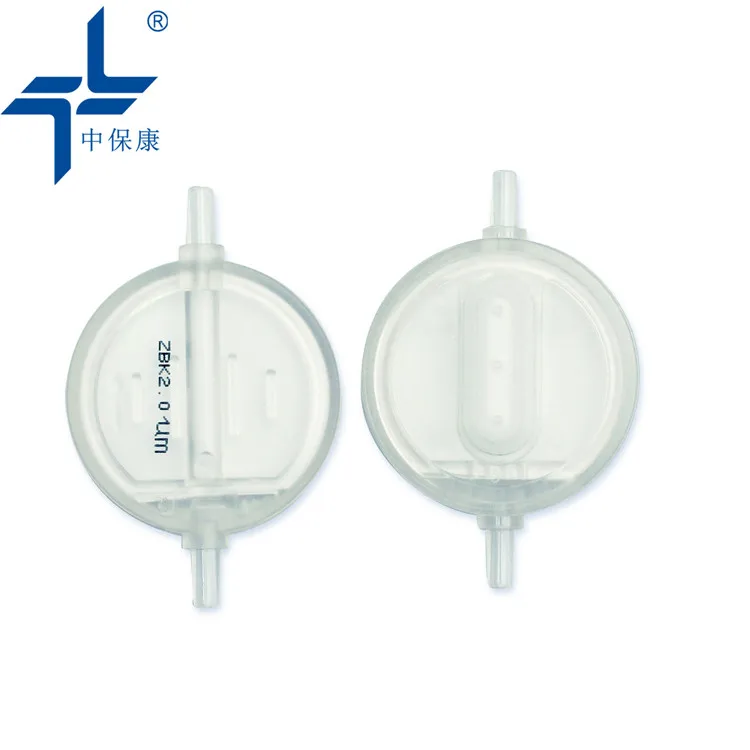

Round Filter
Width
31
ABS
≧99%
N/A
1.2 µm
2.0 µm
3.0 µm
5.0 µm
3.1*4.0
5.0 cm2
3.9 g
Depth
7
Length
48

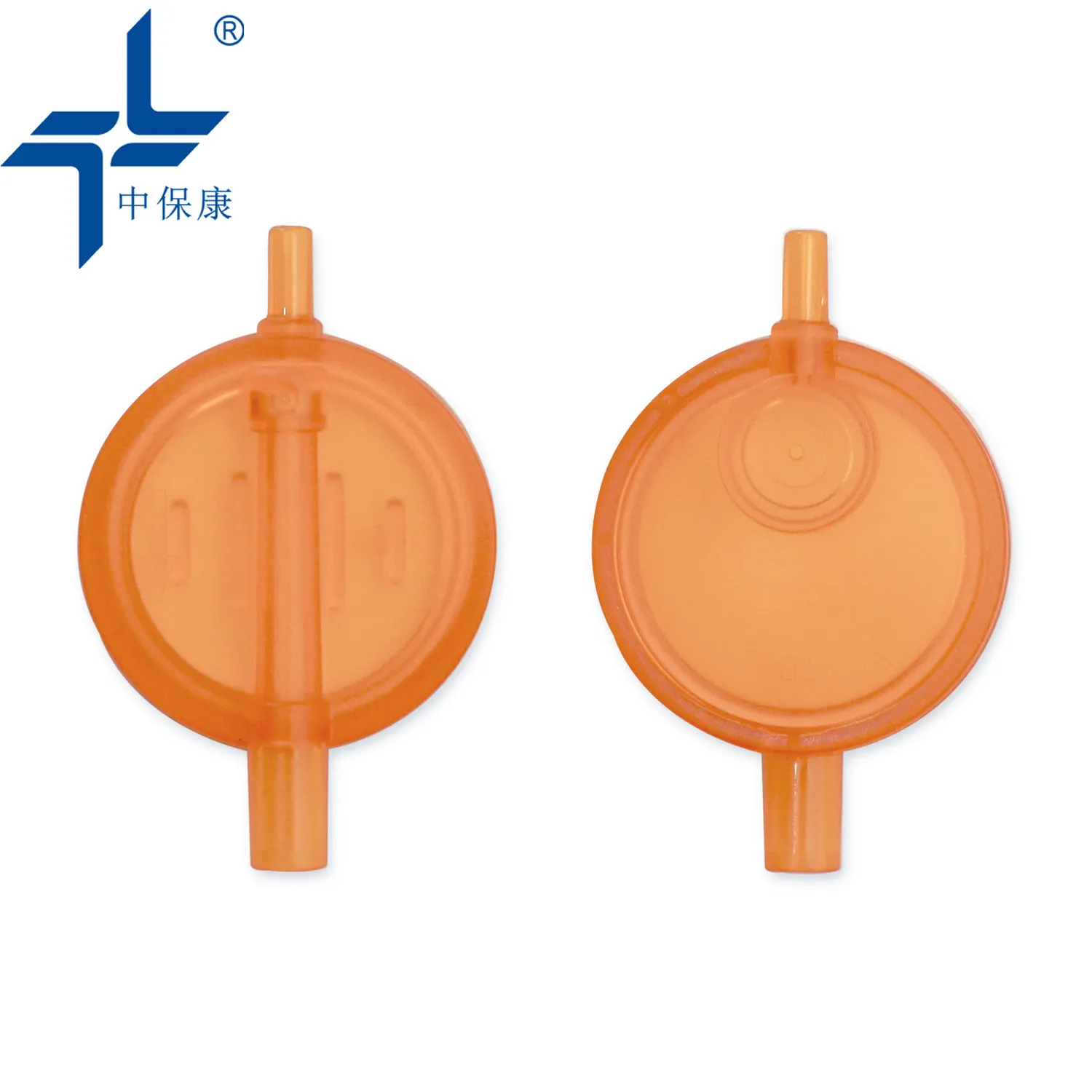

Light-resistantRound Filter
Width
31
ABS
≧99%
N/A
1.2 µm
2.0 µm
3.0 µm
5.0 µm
3.1*4.0
5.0 cm2
3.9 g
Depth
7
Length
48

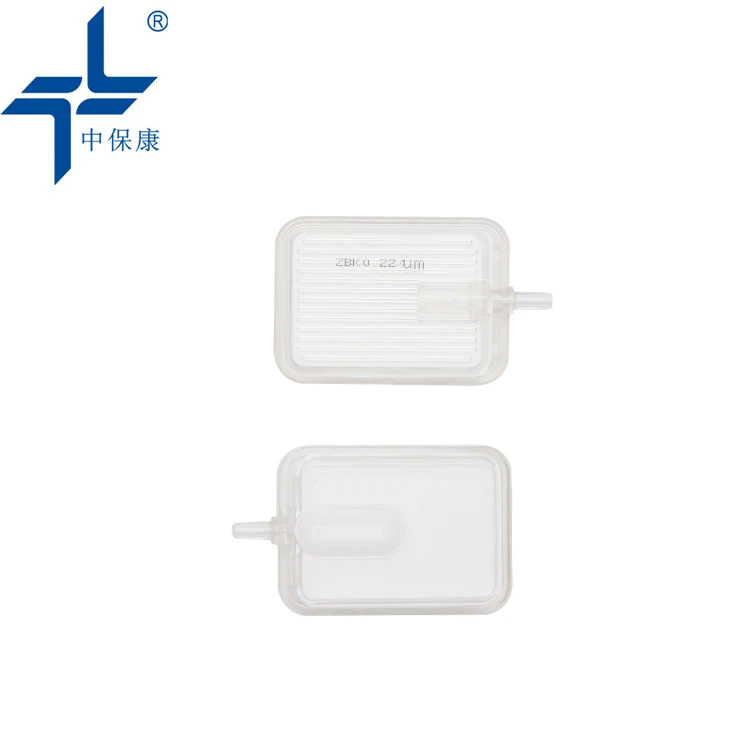

Square Filter
Width
31
ABS
≧99%
N/A
0.22 µm
3.1*4.0
10.0 cm2
7.1 g
Depth
7
Length
48
Our Factory
Certifications
Our Exhibition
FAQ
Q1. Is your company a factory or trading company?
We are a professional factory and is estalished in 1996.
Q2. are the samples available ?
Yes, please give us your exactly needing details. We can provide you free charge samples according to your specification and you just need to pay the freight charge.
Q3 .Can you offer OEM servive? Yes , we can.
Q4. how about the after-sales services? We will be responsible for products in the valid time .
Q5. Do you have in the inspection procedures for products? Yes , 100% self-inspection before packing .
Q6. can you help us to register the products in our country ? Yes , all documents and samples will be provided by us , But freight charges are paid by yourself .
If you have any other questions, welcome to contact us!
