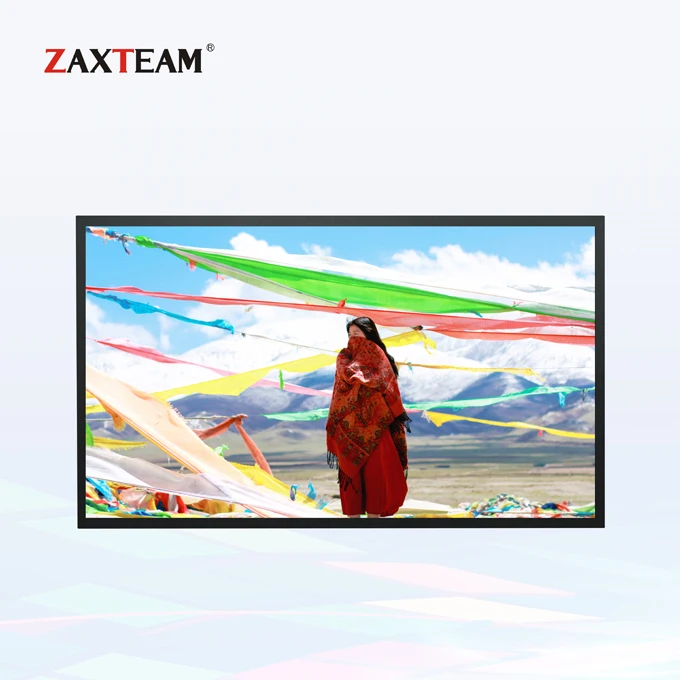

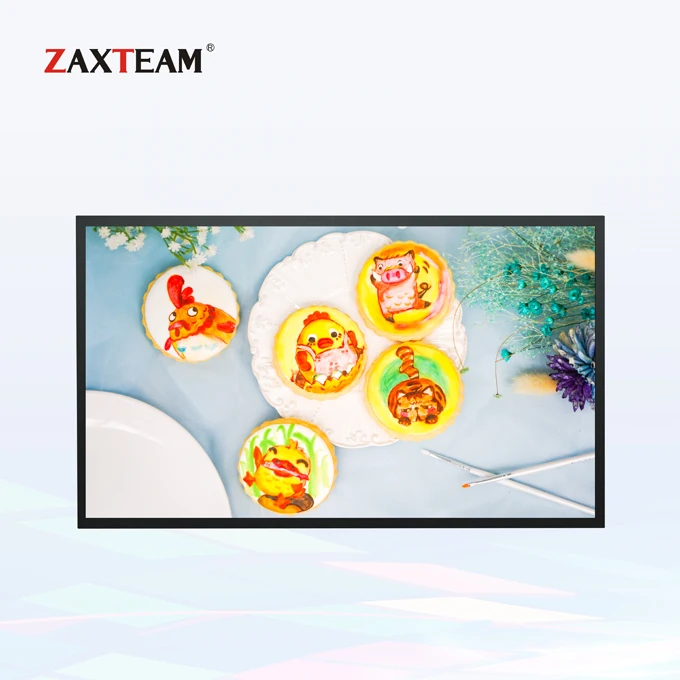

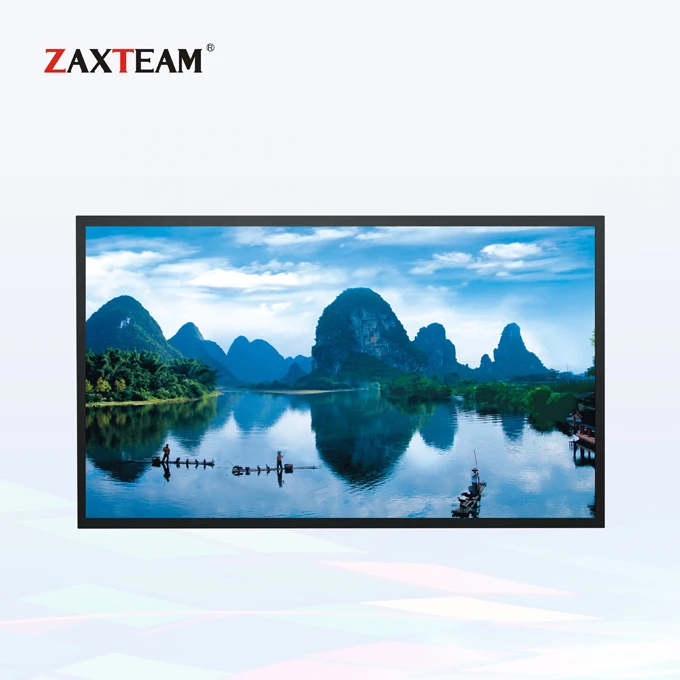

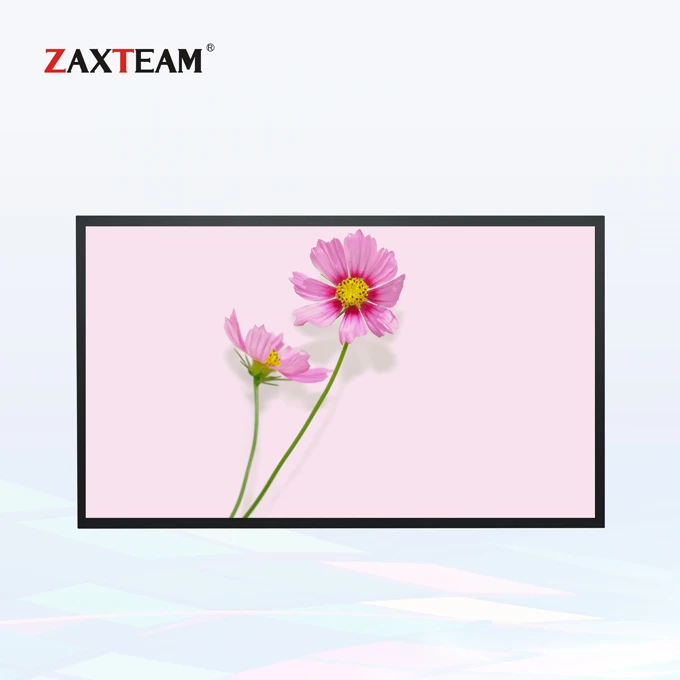

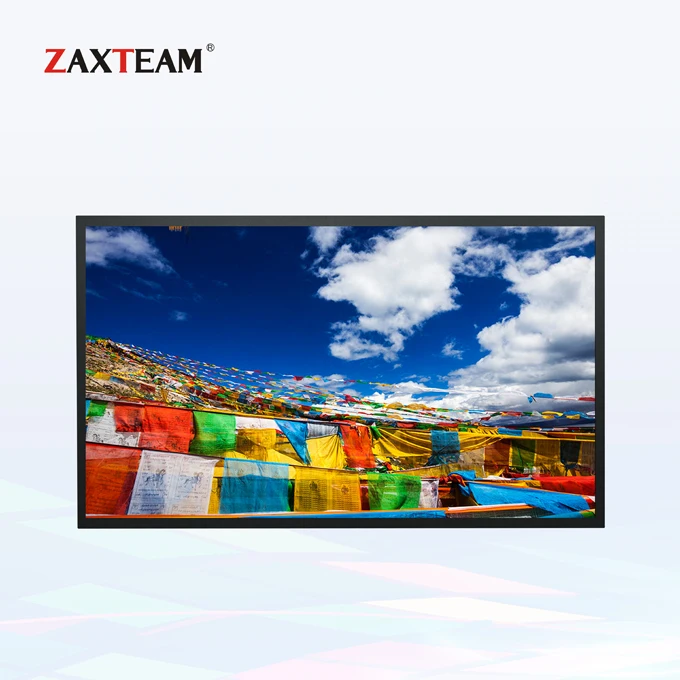

Industrial Level 32 inch BNC CCTV LCD Monitor with AV Input LCD CCTV Monitor 24/7 Hours Working

Share on (62084352416):


Price:RUB 16,126.10

Quantity:


Product Overview

Description

Industrial Level 32 inch BNC CCTV LCD Monitor with AV Input LCD CCTV Monitor 24/7 Hours Working



Features:

With 3D Deinterlace Decoding technology, the image is smooth;

Support 3D digital comb filter and MPEG digital image noise reduction with sharper images;

Fully support PIP and POP function, intelligent viewing mode.

5ms fast response time, no trailing;

With ultra-quiet thermostat- Cooling Fan to lengthen lifetime;

Low comsuption, Energy- saving, working life over 60,000H;

        The metal glaze paint housing, no radiation, durable;



Industrial Level 32 inch BNC CCTV LCD Monitor with AV Input LCD CCTV Monitor 24/7 Hours Working.jpg

Industrial Level 32 inch BNC CCTV LCD Monitor with AV Input LCD CCTV Monitor 24/7 Hours Working.jpg

Industrial Level 32 inch BNC CCTV LCD Monitor with AV Input LCD CCTV Monitor 24/7 Hours Working.jpg

Specification



Screen Size

32inch

Aspect Ratio

16:9

Visible Size

702.9mm (H)*397.3mm (V)

Panel

TFT LED

Max Resolution

1920*1080

Display Color

16.7M

Pixel Pitch

0.36375(H)*0.36375(V)

Brightness

500cd/m2

Contrast

3500:1

Viewing Angle

178°(H)/178°(V)

Response Time

5ms

Field Frequency

50-75Hz

Lamp Life

>50,000 H

Composite Video Input

2CH BNC Input (BNC*2), can connect record device

D-sub PC/VGA Input

1CH D-SUB VGA Input

HDMI Input

1CH HDMI2.0 Input

Audio Input

2CH Mini Stereo (d=3.5)input

Color System

PAL/NTSC

Compatible HD/SD and HDMI Input

400i/P, 576i/P, 720P, 1080i/1080P

3D Deinterlace Decoding

Support

3D Comb filter

Support

MPEG Noise Reduction

Support

PIP, POP

Support

Language Menu

Chinese /English

Voltage

AC 100~240V,50/60Hz

Watt

90W

Standby Watt

<1W

Heat Dissipation System

Ultra-quiet thermostat -Cooling Fan

Housing

Metal glaze paint

Wall mount dimension

100mm*100mm

Dimension

725.2mm*422.9mm*43.9mm

Weight

13.76 (wall mounts not included)

Installation

Cabinet/ Wall-Mounted

Accessory

Wall-mount bracket, Power Supply, Remote Controller, Manual , Warranty Card, QC pass card



Packaging & Shipping

Industrial Level 32 inch BNC CCTV LCD Monitor with AV Input LCD CCTV Monitor 24/7 Hours Working.jpg

Our Services

1. One year warranty for panels. If the panel is defected during warranty, you can enjoy free repair or replacement;

2. We have mature and complete process on tender protection;

3. OEM/ODM service can be offered. Customers' own logo can be printed or showed on the products or packages;

4. 1~2% free spare parts can be provided if the qty over 30pcs;

5. We can offer engineers door-to-door service if needed. But the charge of flight ticket and accomodation shall be paid by the customers.



Company Information

-1

-1

-11

FAQ

1. Q: Are you a factory or trading company?
     A: We are manufacture since 2004.

2. Q: What is your tender protection process?

     A: Our process is: 1. let us know your tender basic information; 2. Revise our model numbers to yours before offering quotation list to your customer, and keep us known this special model numbers;  3. This tender information and special model numbers will be shared during our salesmen and also will be registered in our inner CRM system. In future, whoever get the inquiries from other companies, they will pass the inquires to your pointed salesman; 4. We will not give quotation to other companies until getting your guidance.


3. Q: What panel brand you use for LCD video wall?

     A: Currently, we mainly use original Samsung or LG panels. And we also use BOE or CHIMEI panels in few cheap models.



4. Q: What is the warranty?

    A: The panel default warranty is one year. If you need 3 years warranty, the cost will add 15%~20%.


5. Q: What payment method you accept?
     A: We accept TT or west union. And you can pay 30% deposit for production, and 70% balance before shipment.



6. Q: What's the delivery time?
     A: It depends on the order qty. 3~4 days for sample order, 5~7 days if order qty is ≤50pcs, 7~10pcs if qty is ≤ 100pcs. And over ≥100pcs, the lead time needs to be negociated.
