1440 точный ручной токарный станок

Share on (62084357234):


Price:3 400,00 $

Quantity:


Product Overview

Description

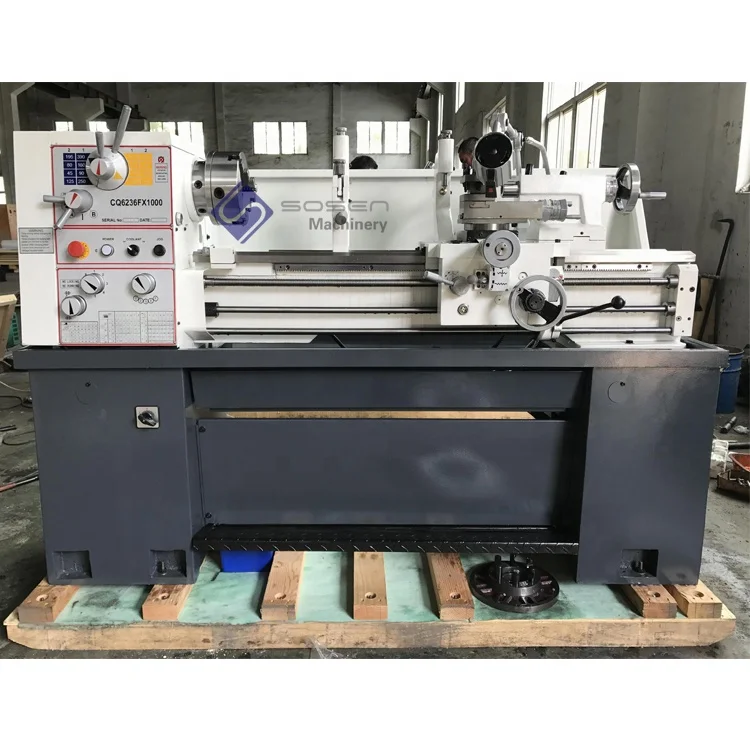

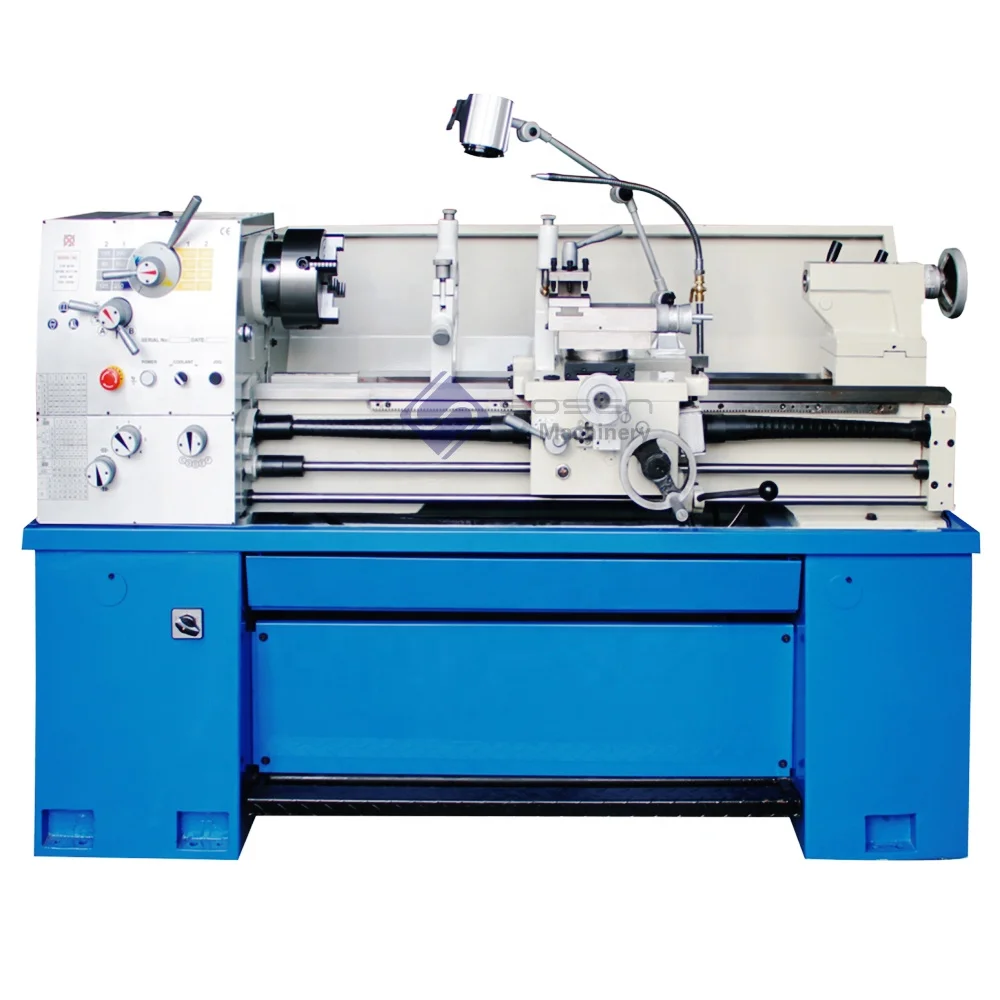

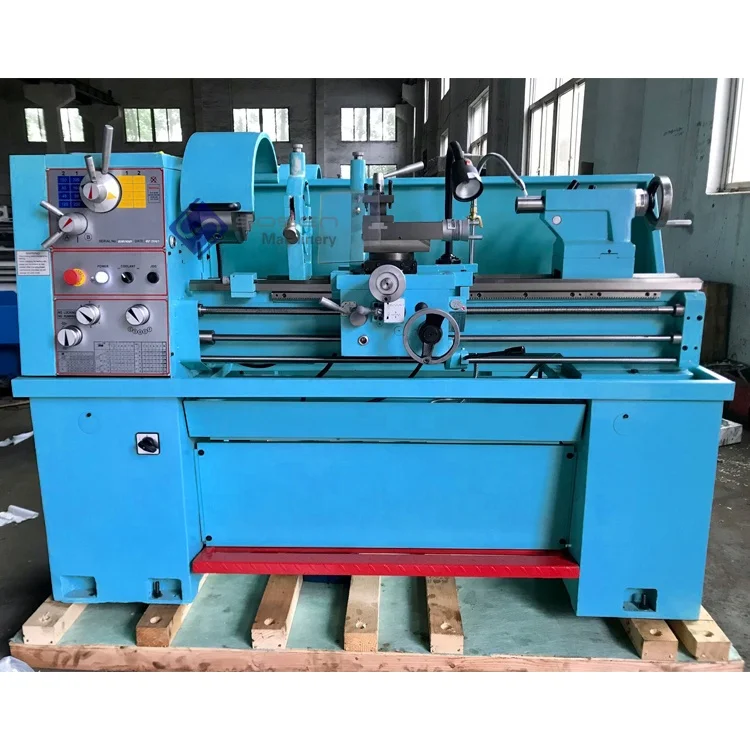

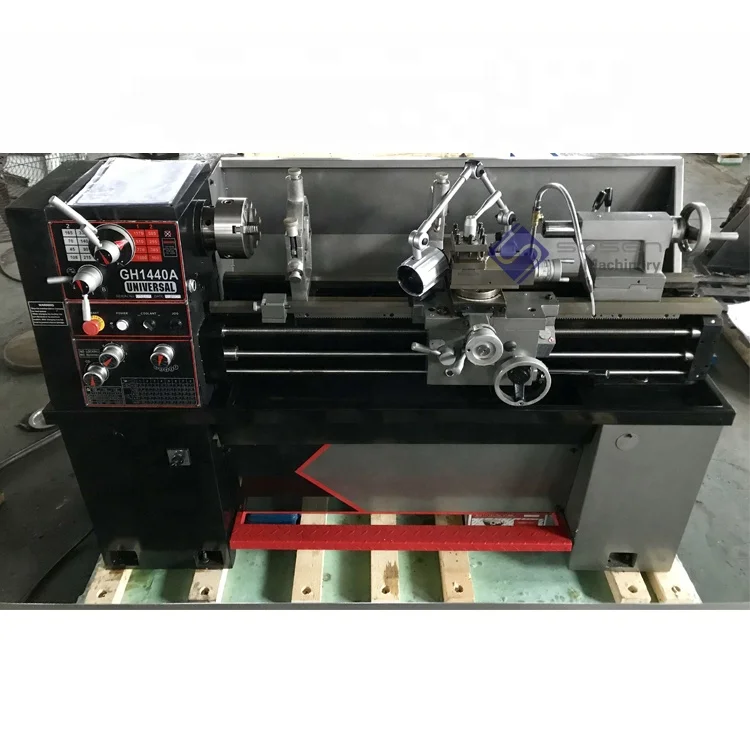

1440 Precision manual lathe machines metal

Product Description

paste-pic-dp_uuid_8jnag

1440 Precision manual lathe machines metal.jpg

Features:

1.Variable speed as optional for 1440 Precision manual lathe machines metal.

2.Precision ground and hardened bed ways.

3.The spindle is supported with precision roller bearings.

4.Head stock gears are made of high quality steel ground and hardened.

5.Removable gap is provided for larger diameter work.

6.Easy operating gear box has various feeds and thread cutting function.

7.Circular appearance as optional.

8.φ51mm big spinlde bore as optional.




Specification:

1440 Precision manual lathe machines metalModel 1440
Max.swing over bed356mm
Max.swing over cross slide220mm
Max.swing in gap506mm
Max.length of workpiece1000mm
Width of bed206mm
Spindle speed range(16 changes)45-1800rpm
Spindle boreφ38mm or φ51mm
Spindle noseD4 or D5
Taper of spindle BoreMT5 or MT6
Center height178mm
Threads metric pitches              0.4-7mm/28kinds(Metric lathe)              0.45-7.5mm/22kinds(inch lathe)
Threads imperial pitches               4-56TPI/28kinds(Metric lathe)         4-112TP/40kinds(inch lathe)
Compound rest travel90mm
Cross slide travel150mm
Max.section of tool16*16mm
Longitudinal feeds range              0.043-0.653mm/rev(Metric lathe)     0.0012-0.0297in/rev(inch lathe)
Cross feeds range0.024-0.359mm/rev/39kinds
External diameter45mm
Max.travel100mm
Taper of boreMT3
Main motor power1.5/2.4kw
Coolant pump power40w
Packing size(L*W*H)1950*750*1500mm
Net weight700kg
Gross weight800kg

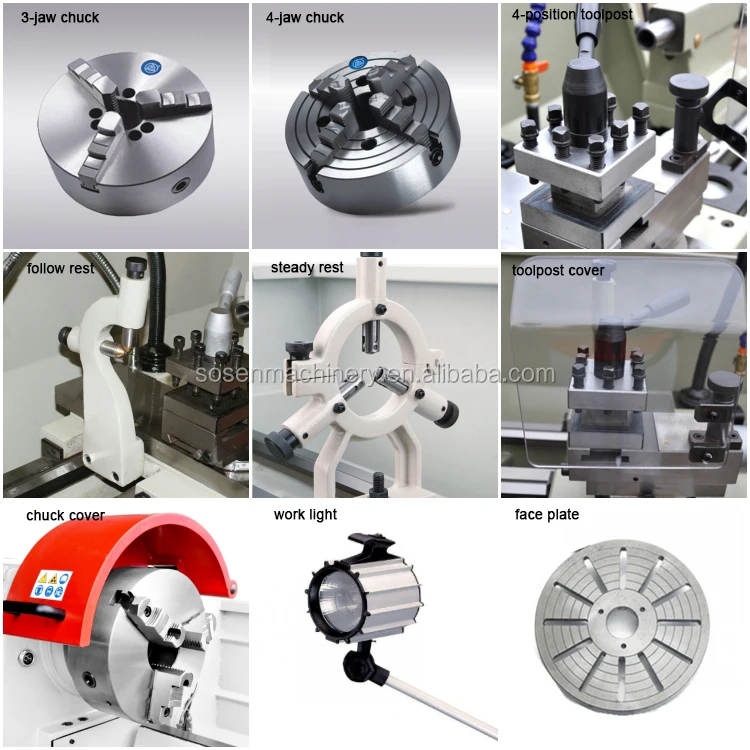

Standard accessories :

3-Jaw chuck, 4-Jaw chuck, steady rest, follower rest,

face plate, longitudinal automatic trip,

coolant system, brake system, dead center,

oil gun, change gears,  operation manual, work lamp

 lathe detail 02

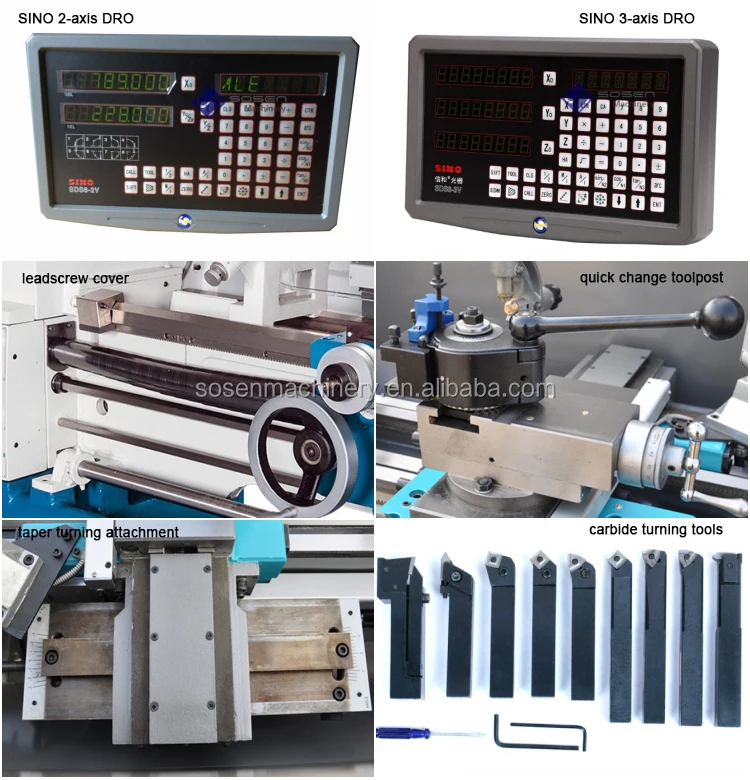

Optional  accessories:

DRO 2-axis

Live center

Turning tools

Toolpost cover

Chuck cover

Leadscrew coverlathe detail 04

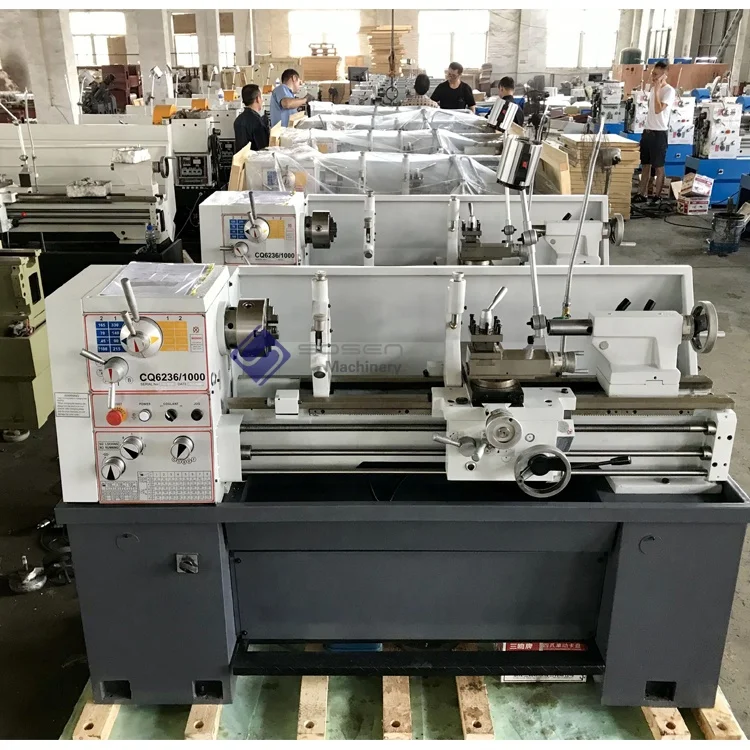

 CQ6236F 03.jpgCQ6236F 04.jpgCQ6236F 05.jpglathe 01.jpglathe

Packing & Shipment

1440 Precision manual lathe machines metal.jpg

Company Information

1440 Precision manual lathe machines metal.jpg1440 Precision manual lathe machines metal.jpg1440 Precision manual lathe machines metal.jpg

TENGZHOU SOSEN CO.,LTD is a manufacturer and trader specialized in the research, development and production of Lathe machine, Milling machine, Grinding machine, CNC lathe and CNC vertical machine centers. We are located in Tengzhou Shandong China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.

We are looking forward to forming successful business relationships with new clients around the world in the near future.



FAQ


Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.

Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.

Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.

Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.

Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.

Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
